450BPH 5gallon Still Water Production Line 450BPH 5gallon Still Water Production Line

Model QGF-450 Barrel Packing Production Line is affiliated production facility especially for five gallons barrel packing production line .It is especially suitable for producing mineral water, distilled water ,purified water .The machine is made of excellent stainless steel ,it is erosion-proof and it is easy to wash. Main electrical appliances have applied SIMENS ,OMRON product .Pneumatic circuit . has applied imported AIRTACT product. It is a automatic barreled equipment with motor ,electric unit and air three in one .

Quantity:
Share this:
  • Model: QGF-450
  • Brand: KM
  • Product Description
  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ

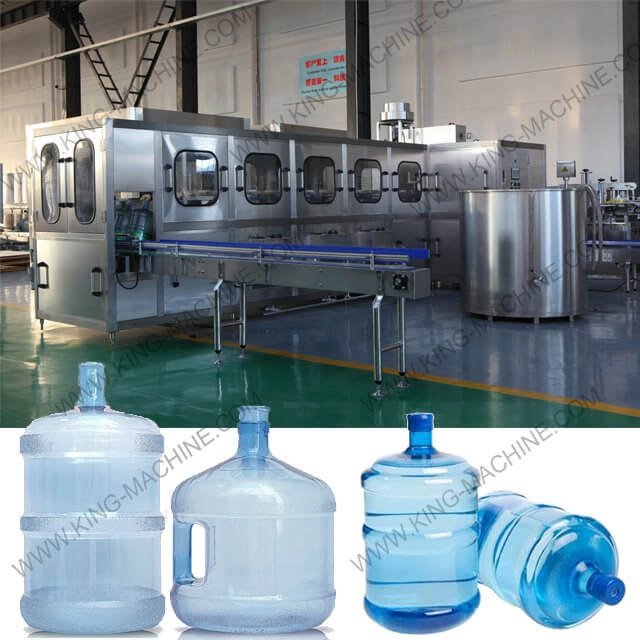

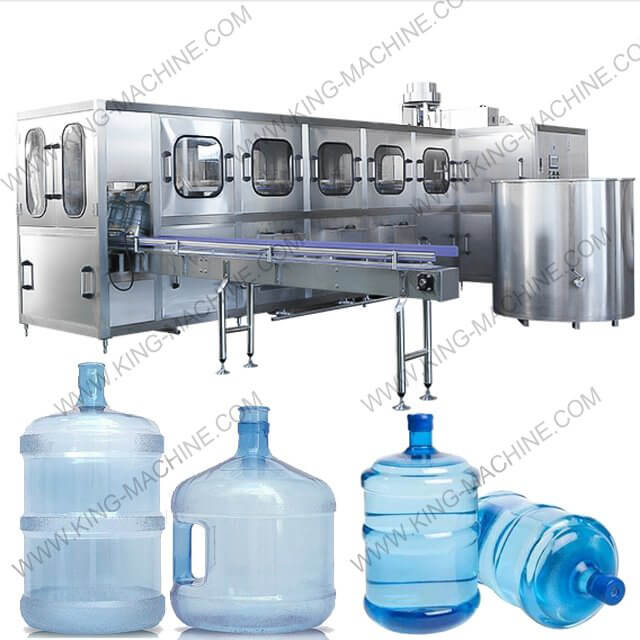

450barreles/h washing filling capping mono-block

Model QGF-450 Barrel Packing Production Line is affiliated production facility especially for five gallons barrel packing production line .It is especially suitable for producing mineral water, distilled water ,purified water .The machine is made of excellent stainless steel ,it is erosion-proof and it is easy to wash. Main electrical appliances have applied SIMENS ,OMRON product .Pneumatic circuit . has applied imported AIRTACT product. It is a automatic barreled equipment with motor ,electric unit and air three in one .


Main Machine Features.

1/Shape structure adopted concave and convex shape,
perfect appearance also reduces the leakage.

2/The thickness of the stainless steel plate which used for 600bph is 3mm.

3/Tank and the heating pipe in tank are removable which become more clean sanitation.

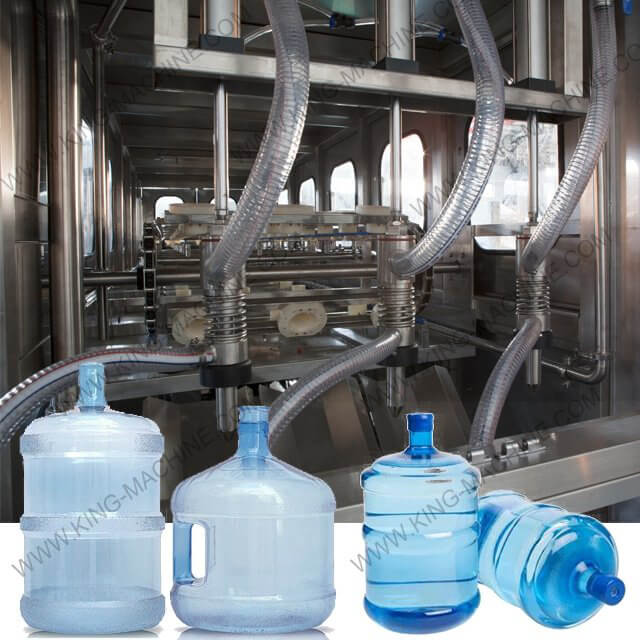

Filling Part Features.

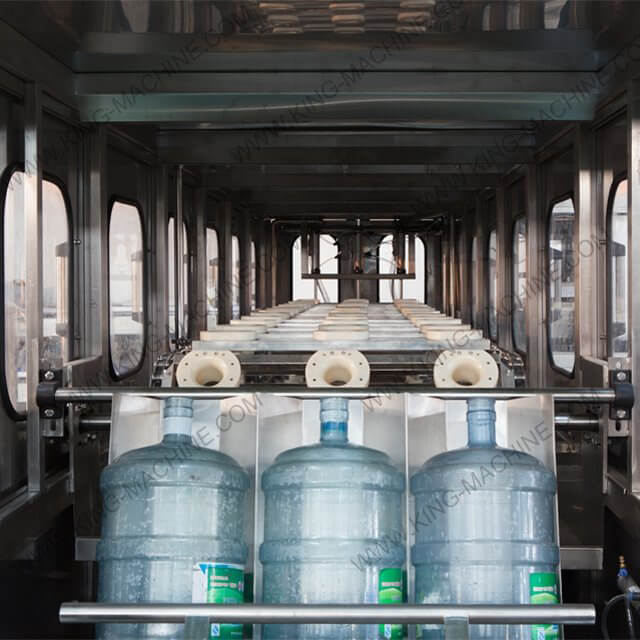

1/Uploading and dropping barrels changed from 45 degree to translatory which is more stable.

2/Nozzle can insert into 10-15cm of the barrel in order to rinse little impurities down. Rinsing pump is separately controlled by different magnetic valves. Pump only work when there is barrel on that. It can avoid the mixture of different cleaning fluid.





Capping Parts.

1/Liquid level difference is controlled in 1cm.
2/Machine is equipped with Cap Sterilization system, which is 1.2m. The system make products more clean and safe by using sterilization and finished water.
3/Customers can choose to equip ABB/SEW motor, GRUNDFOS water pump, FESTO pneumatic component.



Technical parameters:

Model: QGF-450

Rows number: 3rows

Filling Heads:3

Filling Volume: 5 Gallon

Size of Barrel: ф276×490mm

Capacity: 450barrels per hour

Power supply: 380V, 50Hz, Max power consumption 2 kw+ heating 9 kw the Power consumption is only 1.75kw while the machine works as each electrical part starts intermittently

Volume of using water: Filling 9T/H; (hot)alkali washing 1.5T/H; Purified water washing 1.5T/H

There is 12 steps during the washing procedure: 1. pre-washing, 2&3. alkali washing, 4.dropping 5&6 recycle water washing 7. dropping 8&9 disinfect water washing 10&11 finish water washing 12.dropping

Structure type: gear wheel and rack transmission intermittently;

four filling valves

Overall dimension(mm):  3700×1500 ×1600mm

Total weightabout 1.5Tons

Disposal explanation

The whole set of equipment is imported abroad. The shower nozzle for washing is the technology products of American sprayer company

Intellectual management, controlled by OMRON  micro-computer.

Siemens electrical element

AIRTAC pneumatic element

The whole set of equipment is made of stainless steel especially for food

Including system for automatic cap settling and cap transportation

Installment of automatic trouble protected device

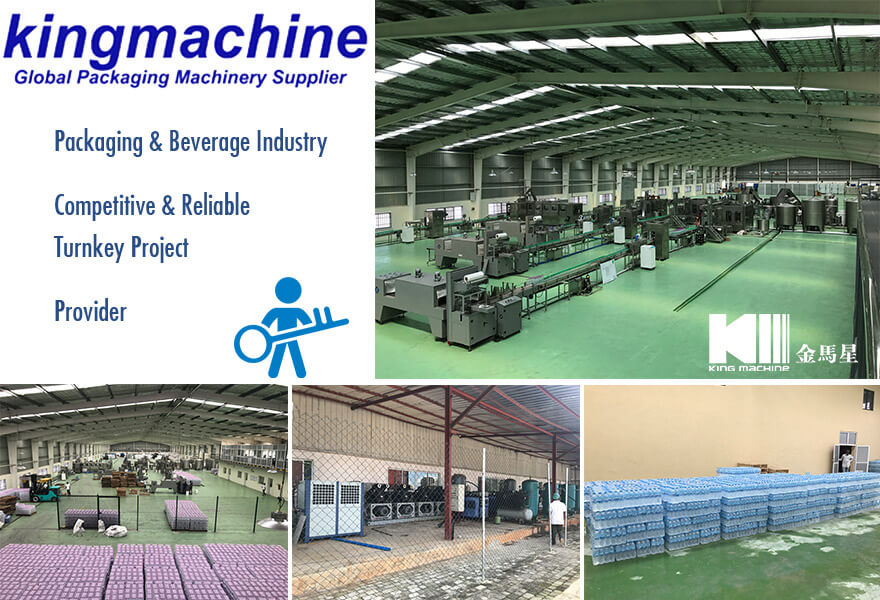

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

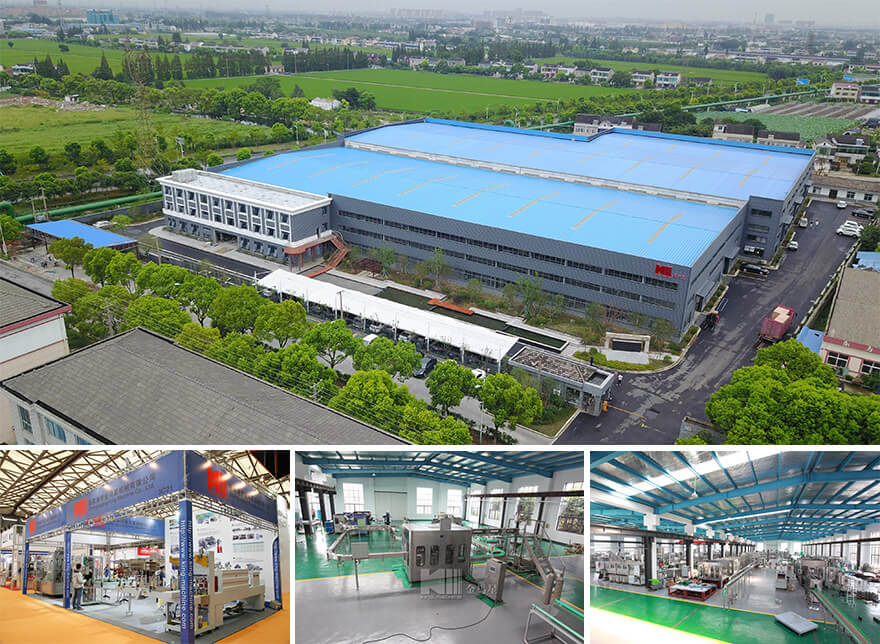

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
×
