8000BPH 500ml 3-in-1 Mineral Water Bottling Equipment CGF18-18-6 8000BPH 500ml 3-in-1 Mineral Water Bottling Equipment CGF18-18-6

CGF18-18-6 8000 B/H Washing Filling Capping Machine (3-in-1) China Supplier is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger.

Quantity:
Share this:
  • Model: CGF18-18-6 8000 B/H
  • Brand: KM
  • Product Description

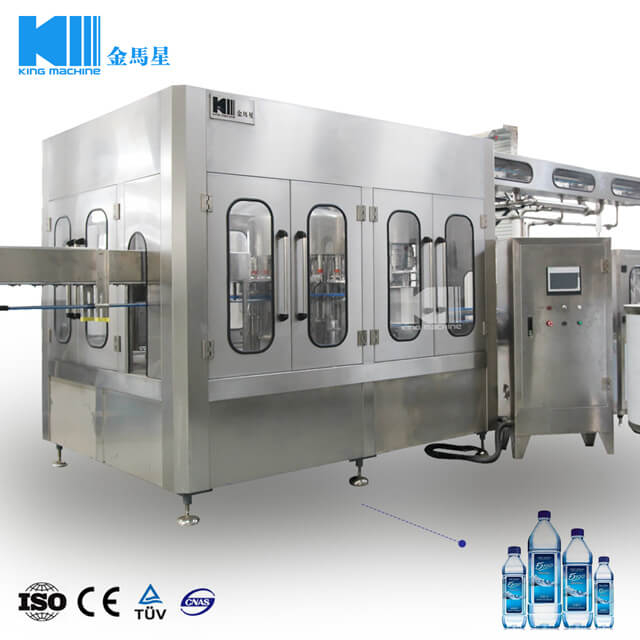

Product Name:CGF18-18-6 8000 B/H Washing Filling Capping Machine (3-in-1) China Supplier

The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger.
The machine adopts advanced OMRON programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.

Washing Workstation                     18
Filling Workstation                     18
Capping Workstation                          6
Production Capacity              8000B/H(500ml)
Machine Power                     3kw
Machine Weight                      5000Kg
External Dimensions (L*W*H) 2800(mm)* 2050(mm) *2200(mm)

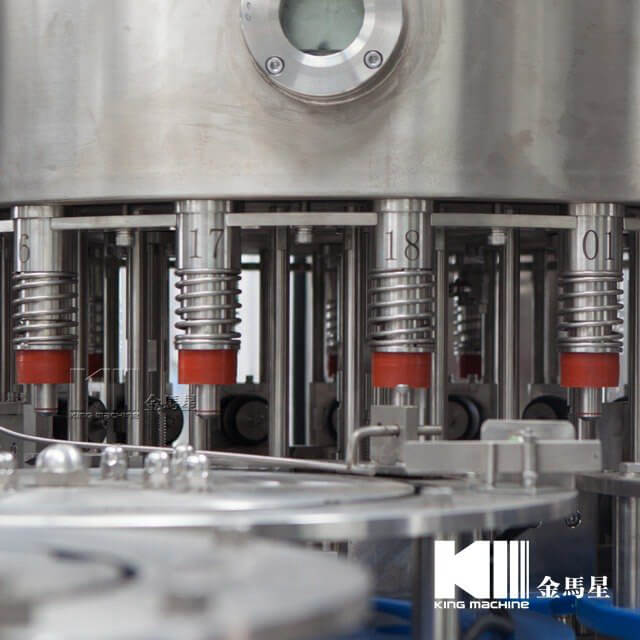

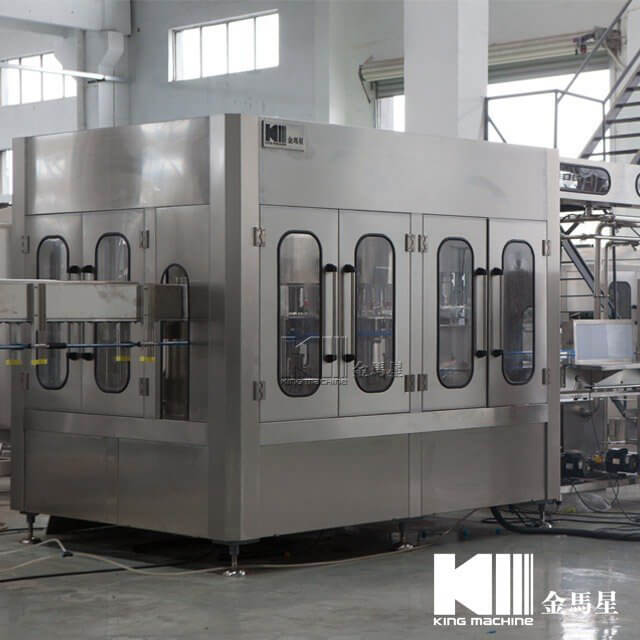

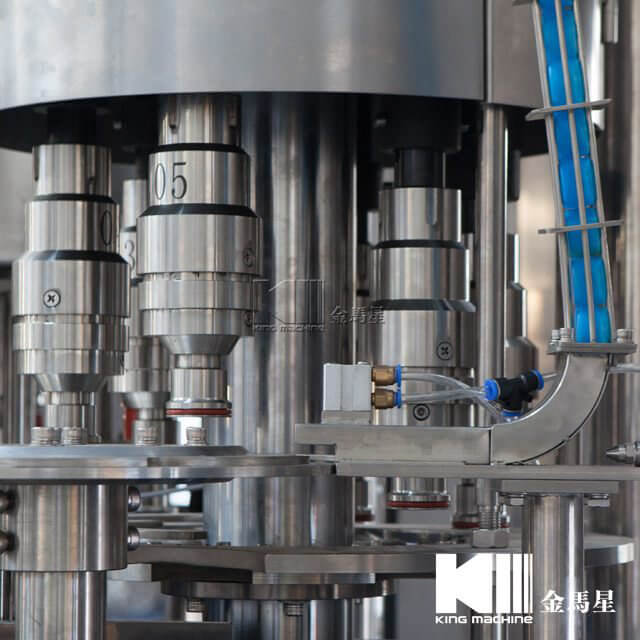

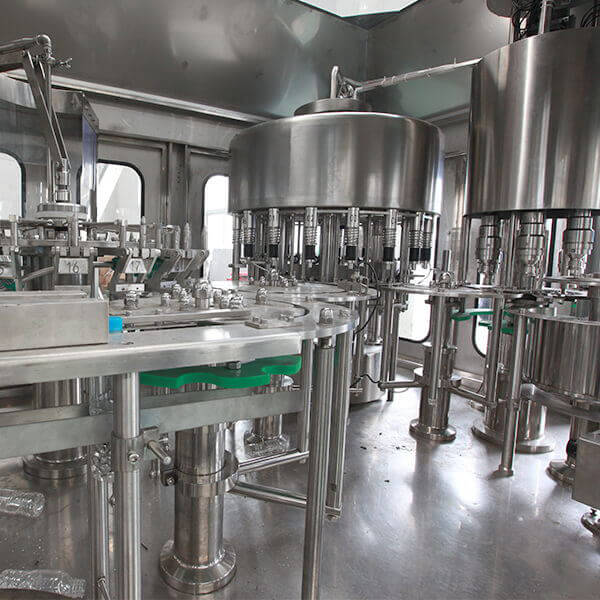

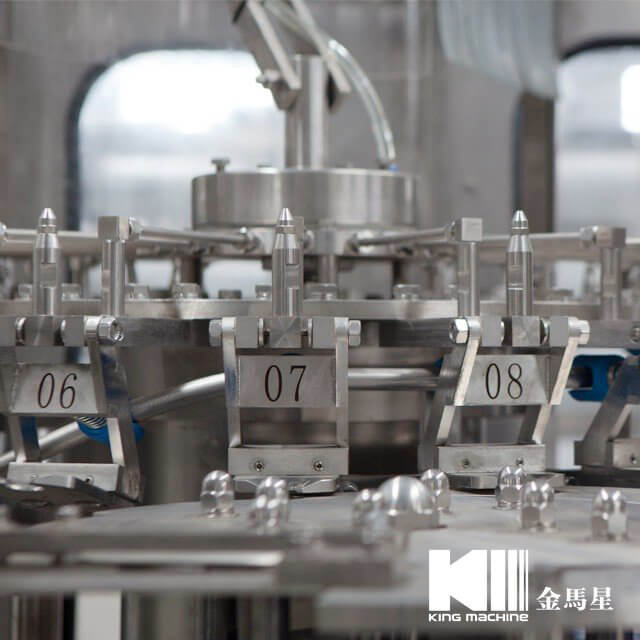

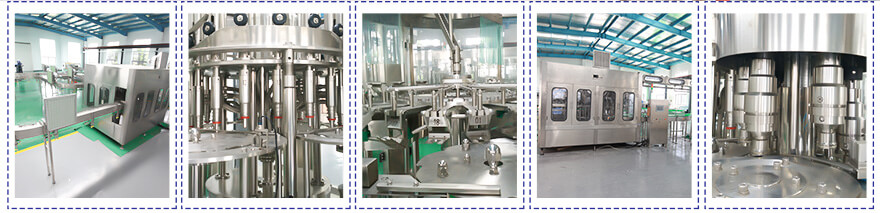

Photos for Machine:

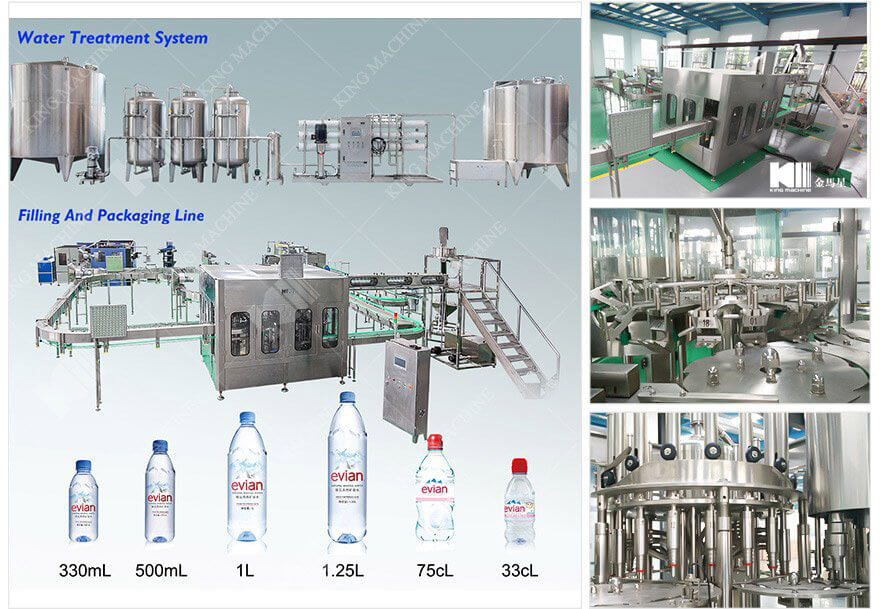

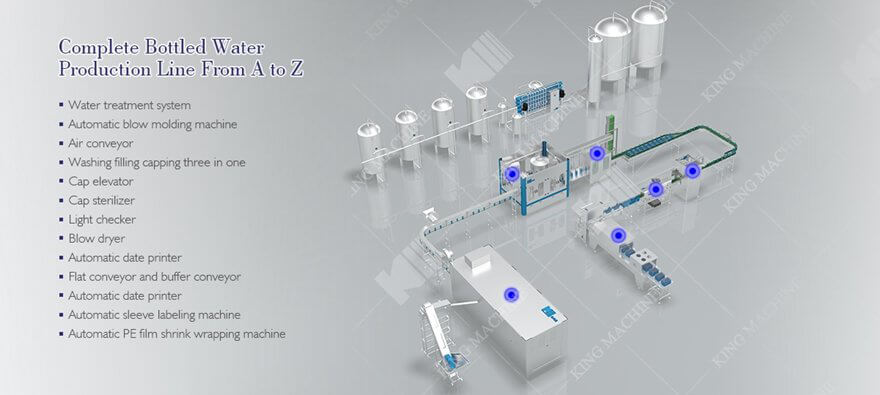

Flow chart: (Pure water filling machine):
A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle
B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank

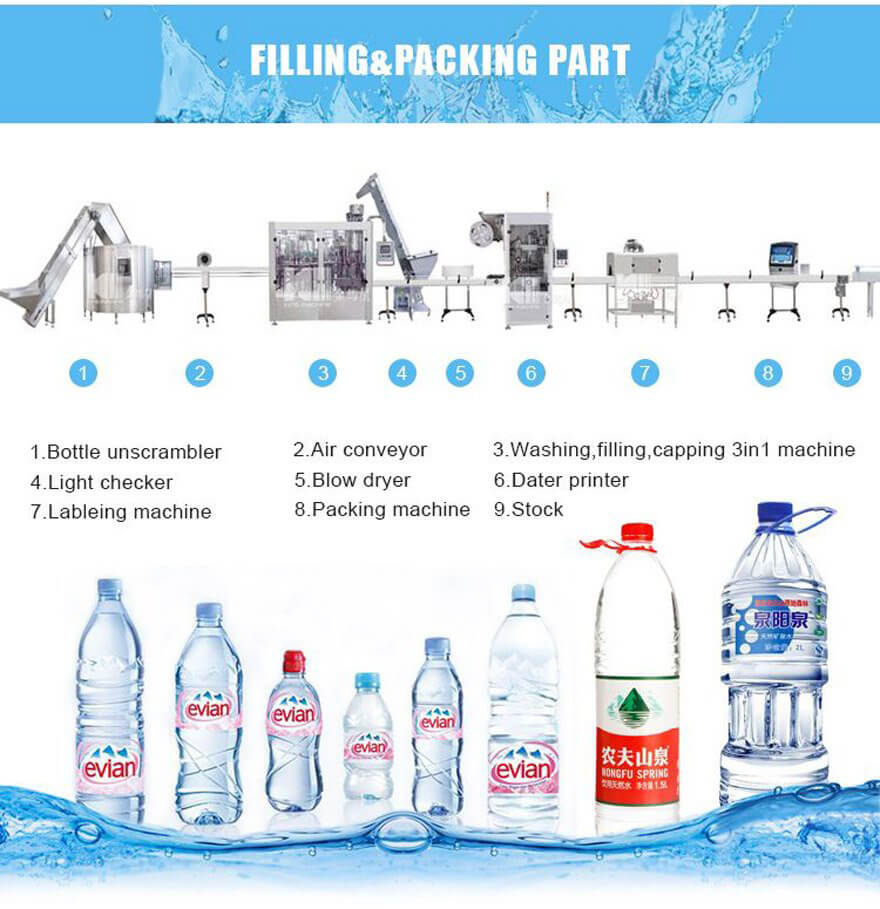

C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock


Q:How about the spare parts?

A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.



Q:How long time for installation?

A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.



Q:How to install my machines when it arrives?how much the cost?

A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.



Q:When can I get my machine after I paid?

A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.



Q:What’s your guarantee or the warranty of the quality if we buy your machines?

A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.



Q:Are you a trading company or a manufacturer?

A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.

×
