Automatic Drinking Water Bottling Machine Automatic Drinking Water Bottling Machine

Automatic Water Filling Machine is used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

Quantity:
Share this:
  • Model: CGF
  • Brand: KM
  • Code: 8422301090
  • Product Description
  • PARAMETER

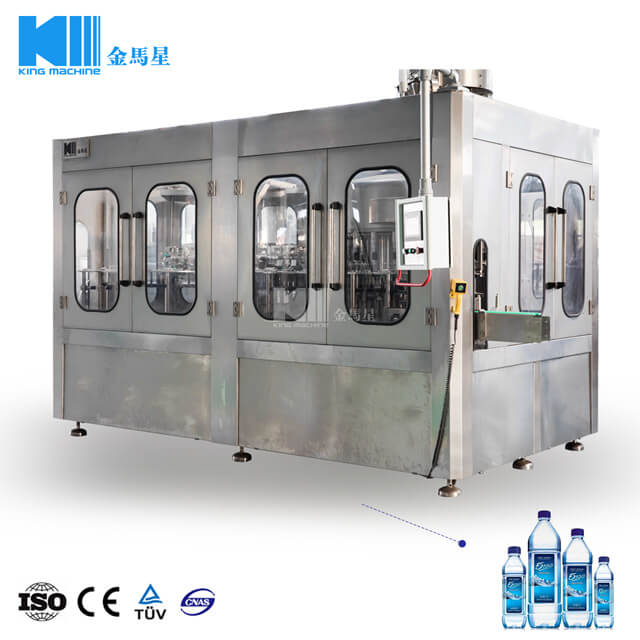

Product Name:CGF24-24-8 12000B/H Washing Filling Capping Machine (3-in-1) China  Factory

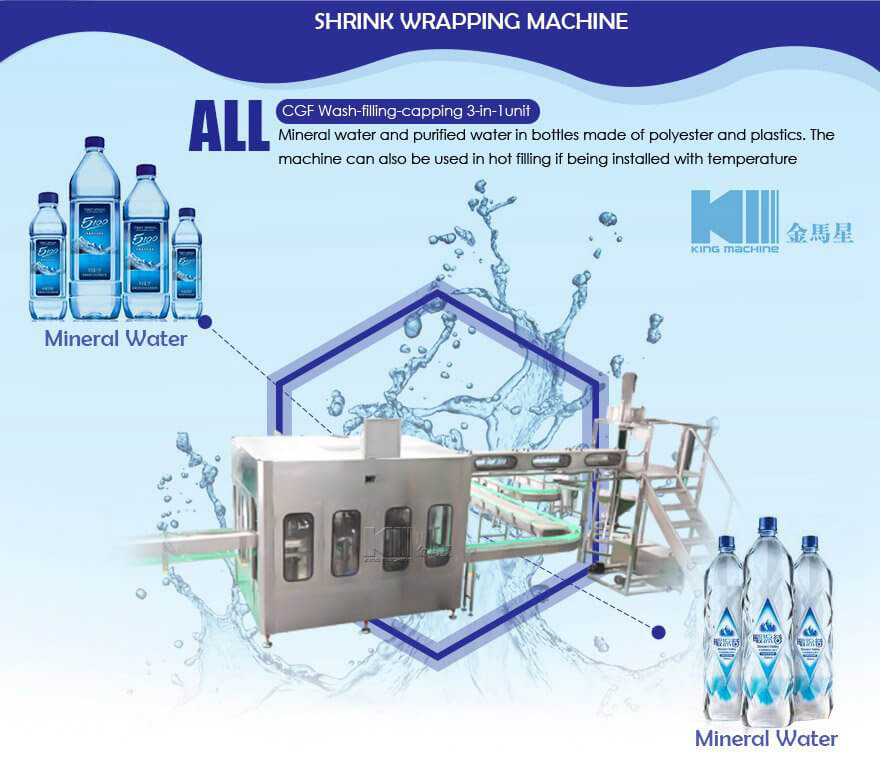

The machine is mainly applied for the filling of beverage. Integrating with washing, filling and sealing, it realizes full automation in the whole process, suitable for polyester bottle and plastic bottle filling of mineral water and purified water. The bottle types applicable for various parts are easily, conveniently and rapidly adjustable. It adopts new micro-negative pressure filling, stable and reliable. Compared with the machines of the same specification, the benefit of this machine is larger.

The water bottling machine adopts advanced OMRON programmable logic controller (PLC) to control the automatic running of the machine. The input bottle adopts air conveying device; the output bottle adopts adjustable speed way, which combines with the transducer of the host machine making the output bottle running more stable and reliable. The photoelectrical inspection of the running condition of various parts makes a higher automation and convenient operation. It is the ideal first-choice equipment of beverage manufacturers.


Containers and specifications

Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production Line

PH≥4.6

drinking water

Material

Shape

Filling volume

Filling levelmm

Neck type

PET Bottle

Square or Round Bottle

100-2000ml

Distance from bottle neck

According request

As request

Adjustable specifications of the bottle type

Middle Mould BaseBottle diameter ≤105mm Bottle Height≤335mm

Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.

Container Label & Control Mode

Packaging system

Palletizing system



Hot Melt Roll-Fed

PVC Shrink Label

Full Label/ Half Label

Manual / Automatic

Packing system

Min, Spec.

Manual
Low position gantry palletizer
Robot Palletizer
High position gantry palletizer
Single Arm Palletizer
Manual Palletizer

Manual
Film shrinker
Wrap Around packer
Robert Packing Machine

1*2
2*3
3*4
4*6
3*5

User Ambient Conditions

Temperature1040℃HumidityNo dew

User Electrical Supply Specification

Voltage380V±5%3phaseFrequency50HZ±1%



Washing Workstation24
Filling Workstation24
Capping Workstation8
Production Capacity12000B/H (500ml)
Machine Power4kw
Machine Weight7000Kg
External Dimensions(L*W*H)2800(mm)*2050(mm)*2200(mm)

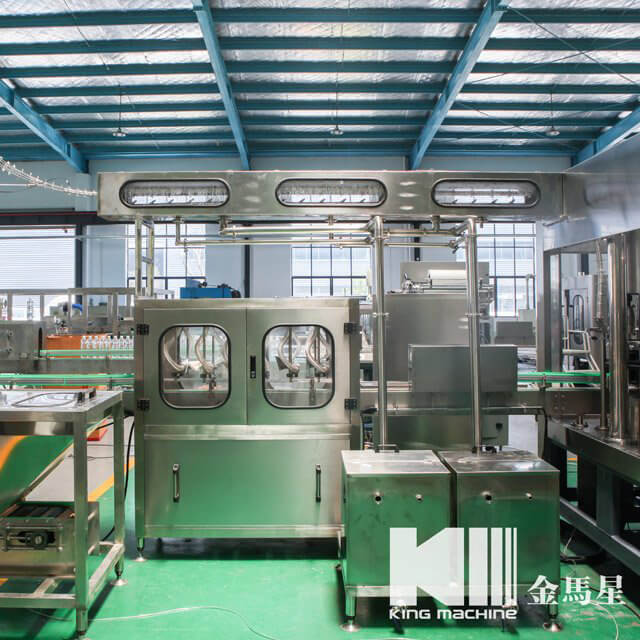

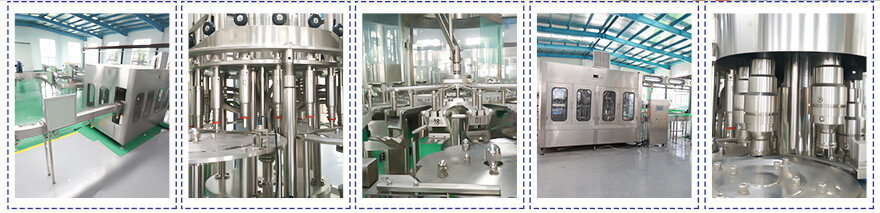

Photos for Machine:

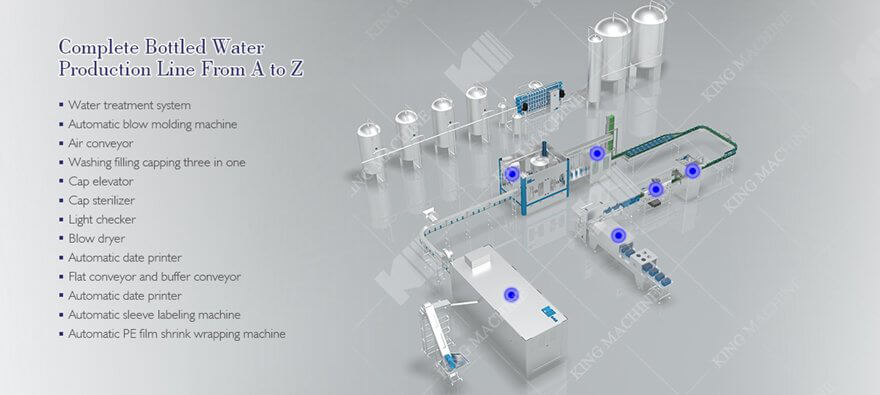

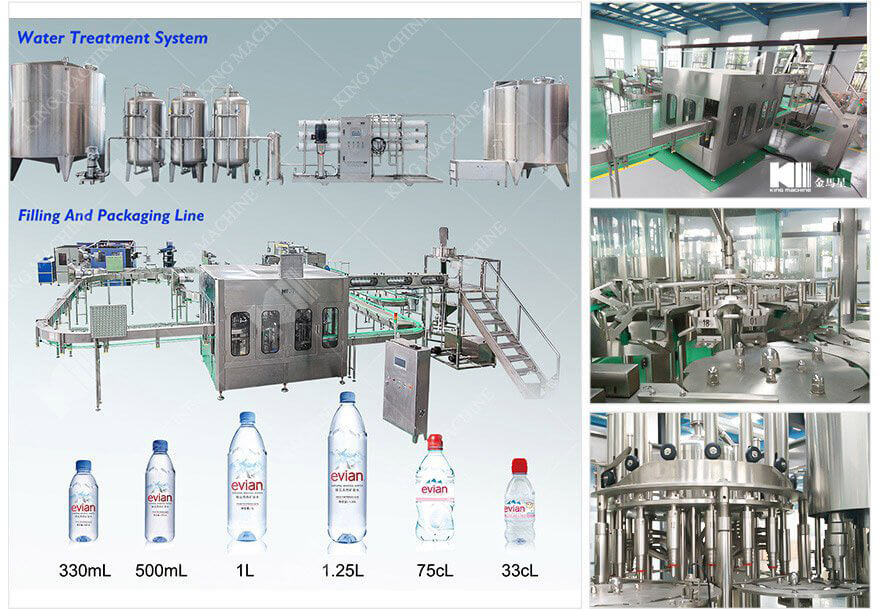

Flow chart: (Pure water filling machine):
A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle
B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank

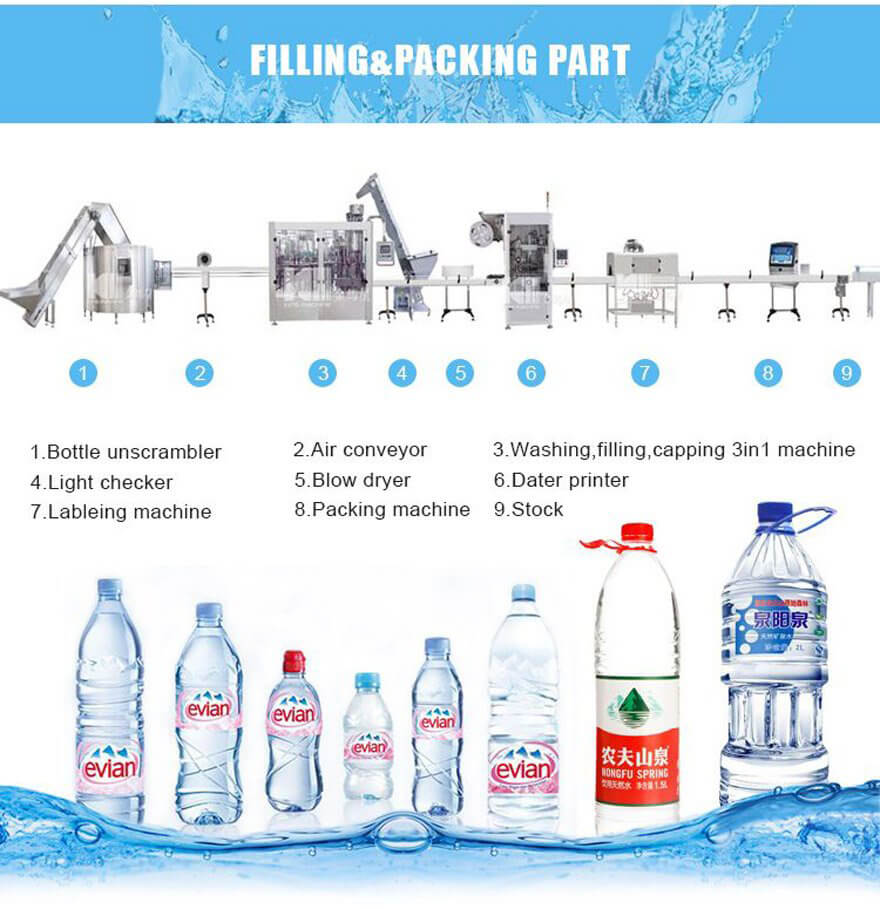

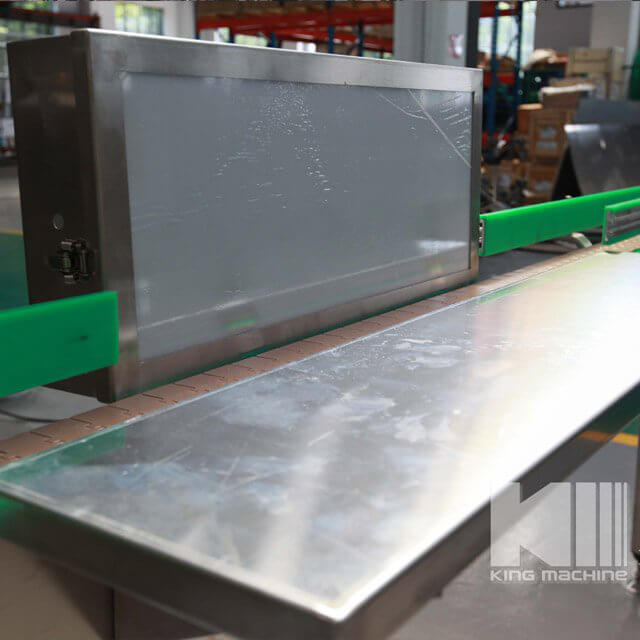

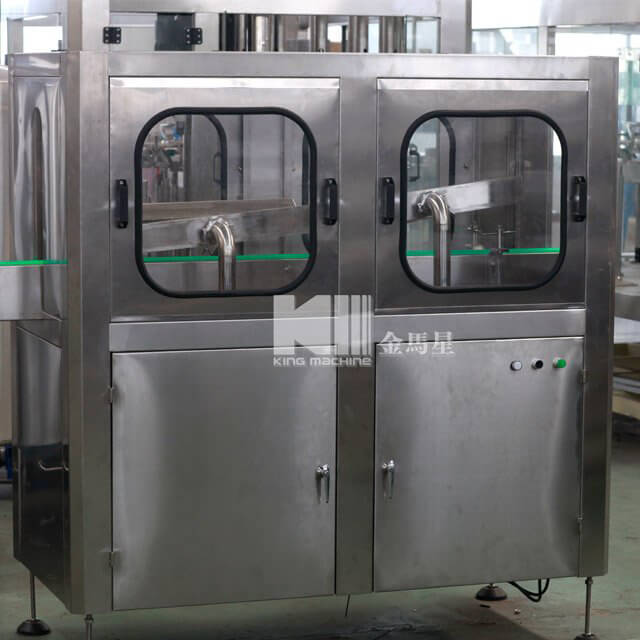

C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock


Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.


ModelCapacity(based on 500ml)Washing headsFilling headsCapping headsWeightOverall dimension(mm)
CGF8-8-32,000 bottles/hour8832800kg2400*1800*2300mm
CGF14-12-43,000 bottles/hour141243200kg2500*1880*2300mm
CGF16-16-54,000 bottles/hour161654000kg2600*1900*2300mm
CGF18-18-66,000 bottles/hour181864500kg2800*2150*2300mm
CGF24-24-88,000 bottles/hour242486500kg3100*2450*2300mm
CGF32-32-101,2000 bottles/hour3232107500kg3680*2800*2500mm
CGF40-40-1216,0000 bottles/hour4040128500kg4100*2800*2300 mm
CGF50-50-1220,000 bottles/hour5050129000kg4500*3300*2350 mm
You can also customize the size you need


×
