Beer Filling Equipment At Equal Pressure 3000BPH Beer Filling Equipment At Equal Pressure 3000BPH

The Beer Bottling Line adopts the advanced international technology .The design is scientific and reasonable ,appearance is beautiful ,operation and maintenance are convenient ,and it is with high degree of automatization. It is the good machine for choosing by the drinking filling factory.

Quantity:
Share this:
  • Model: BGF18-18-6
  • Brand: KM
  • Code: 8422301090
  • Product Description
  • Turnkey Project


We have developed the latest BGF beer washing filling capping 3-in-1 unit in accordance with the technological requirements for packaging beer in glass bottles by adopting advanced technologies both at home and abroad. Meanwhile, we are able to provide complete high-efficiency beer filling production line for the beer breweries.

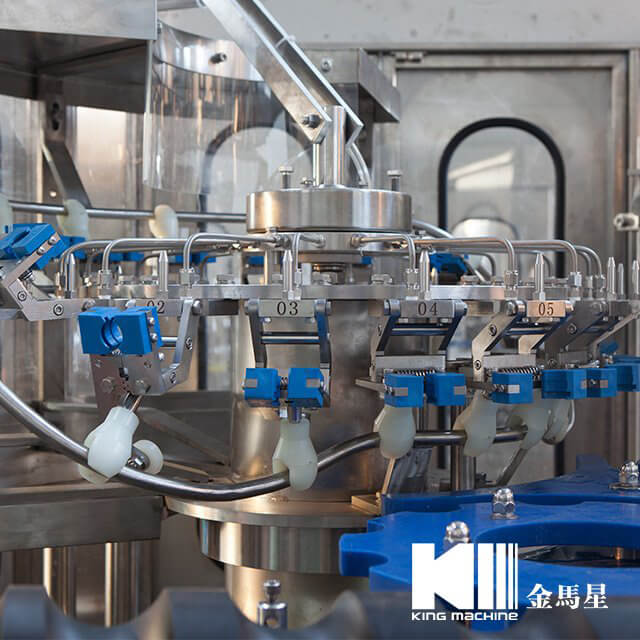

Washing Parts.

Rotatory bottle-rinsing machine has the functions of not opening the valve and rinsing without bottle, which is working from bottle entrance,bottle transportation,bottle clipping,bottle turning around with synchronously rinsing inside of the bottle to water-dropping and exit have the functions of not opening the valve and rinsing without bottles.





Filling Parts.

The Automatic Glass Bottle Beer Filling Machine adopts the advanced international technology .The design is scientific and reasonable ,appearance is beautiful ,operation and maintenance are convenient ,and it is with high degree of automatic. It is the good machine for choosing by the drinking filling factory.

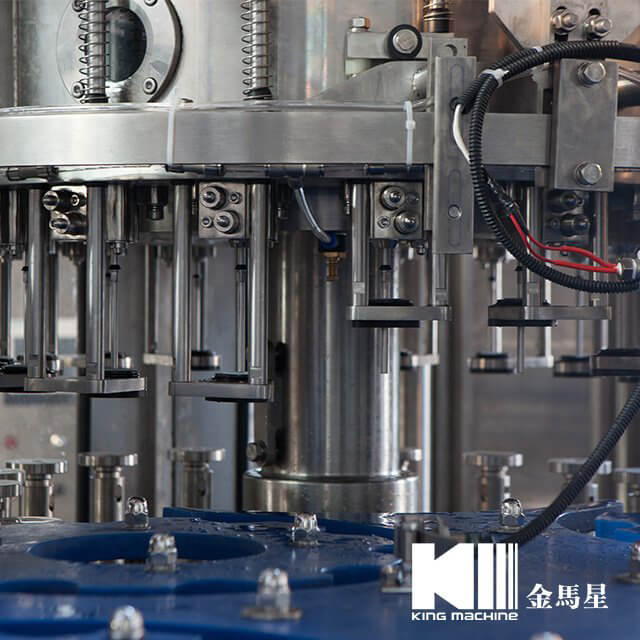

Filling Heads.

Adopting the way of filling by holding the necks of the bottle, plus the function of pre-cover of the centralizing cover with high precise centralization,which ensure the right seating of mouth of the bottle and filling valve,with low liquid loss.

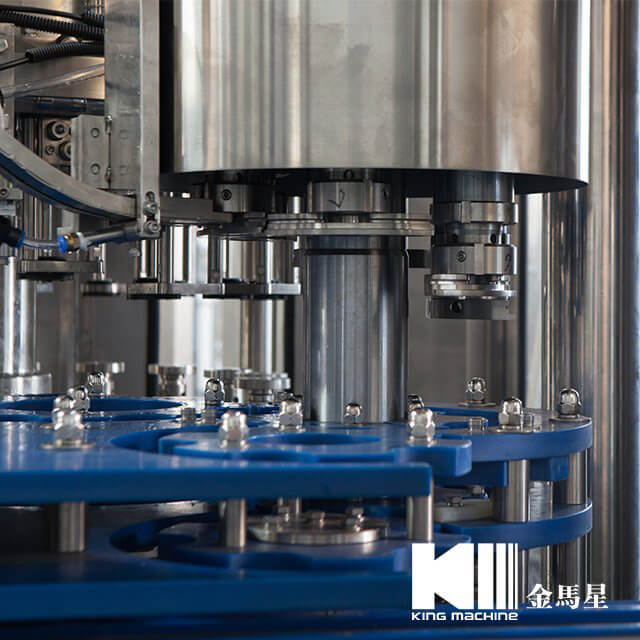

Capping Parts.

This series of Automatic Glass Bottle Beer Filling Machine can meet the filling-sealing requirements of different sealing manners for crown cap /screw cap or others.

Adopting crowning the caps with magnetic force,which passes the torque with powerful and constant magnet,and the torque can be adjusted to meet the need of many kind of caps.


Features:

1. With high precision mechanical filling valves, our BGF beer washing filling capping 3-in-1 unit stops vacuumizing when there are no bottles.
2. The BGF beer washing filling capping 3-in-1 unit is equipped with external mechanical valve, inside which there is no spring or sealing element.
3. With high pressure frothing device, it is capable of double vacuum-pumping.
4. The BGF beer washing filling capping 3-in-1 unit makes use of combined transmission by open gear and gearbox, and adopts frequency conversion stepless speed control, extending the speed modulating scope.
5. The machine has an automatic lubricating device so that the lubrication points can be automatically lubricated regularly in time. Also, our BGF beer washing filling capping 3-in-1 unit has high transmission efficiency, low noise and long life.
6. In case of the blowout due to poor quality of the bottles during gas or beer filling, the filling valve will automatically close and the auto-cleaning device will work to treat the broken bottles.
7. With a full stainless steel magnetic hopper, the unscrambling, feeding and discharging of crown caps are all performed by magnetic force. The caps are free from deforming, and can flow smoothly in large quantities during transmission.
8. The capper has the function of automatic deloading, which helps lower the bottle breakage.
9. For the centering guide of our BGF beer washing filling capping 3-in-1 unit, we adopt double guide-bar mechanism, with the function of pre-covering which allows stable and reliable bottle transferring.
10. The movement of the wine jars and capping heads is driven by electricity in order to fit bottles of different sizes.
11. The material height in the tank is controlled by electric probe so as to ensure precise liquid level and reliable filling.

Technical parameter:

Model BGF18-18-6
Output(BPH) 4000-5000
Way of filling Filling at equal pressure
Filling temperature(°C) 2-7
Bottle type

Glass bottles;Bottle neck:Φ50-90mm;

Bottle height:150-330mm

Power of main motor 2.2
Dimension(L*W*H) 2.4*1.8*2.5
Weight(KG) 3500

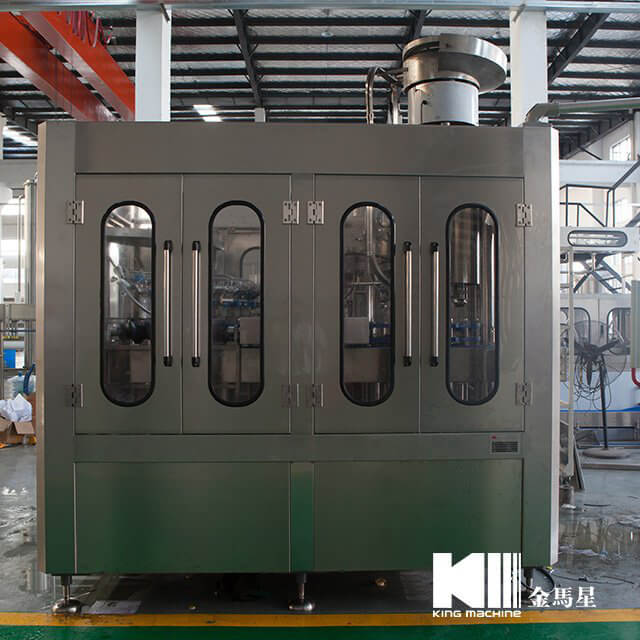

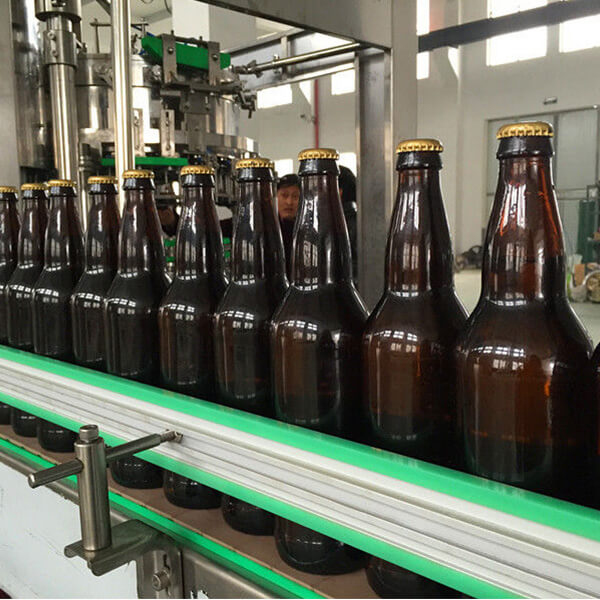

Photos for Machine:


Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.


Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.


×
