10,000BPH Automatic Carbonated Drink Filling Machine DCGF32-32-10 10,000BPH Automatic Carbonated Drink Filling Machine DCGF32-32-10

1. DCGF32-32-10 bottling machine is 10,000BPH
2. Automatic washing filling capping 3 in 1
3. SS304 stainless steel
4. SIEMENS programmed controller (PLC)
5. ISO9001, CE, SGS, BV, SONCAP

Quantity:
Share this:
  • Model: DCGF 32-32-10
  • Brand: KM
  • Code: 8422301090
  • Product Description

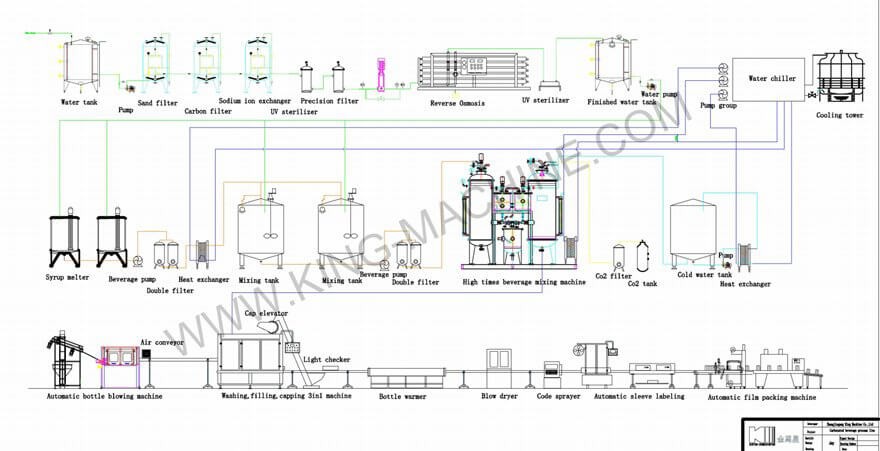

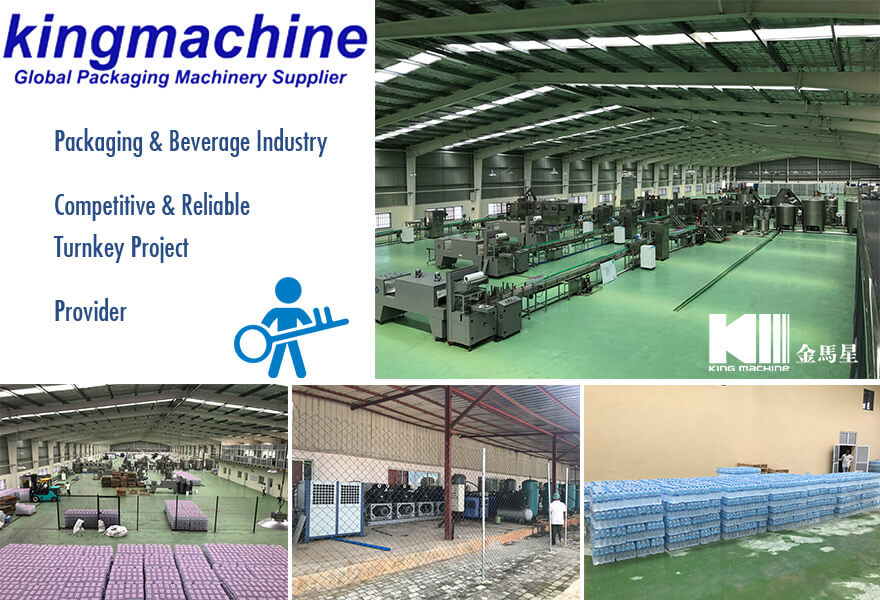

  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ

Product Introduction:

The machine is mainly used for carbonated soft drinks filling and soda water drinks filling and sparkling water filling . It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

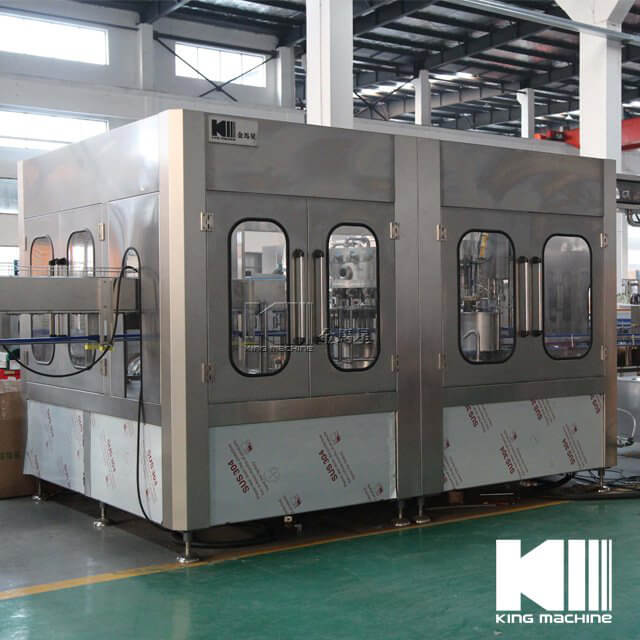

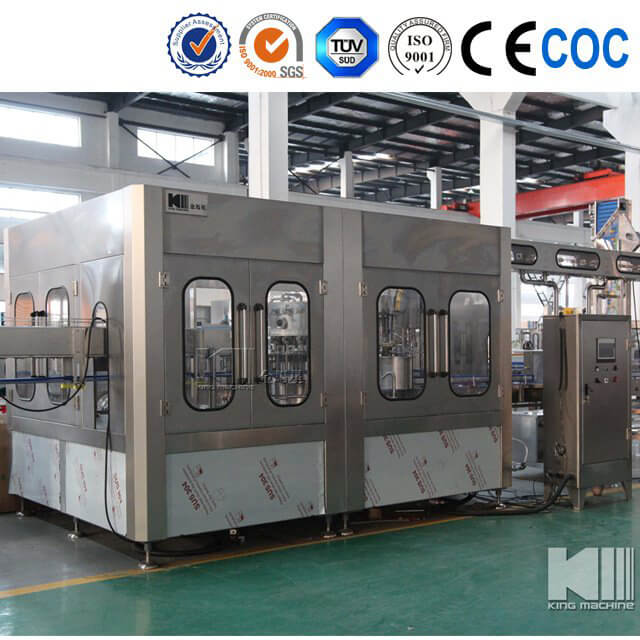

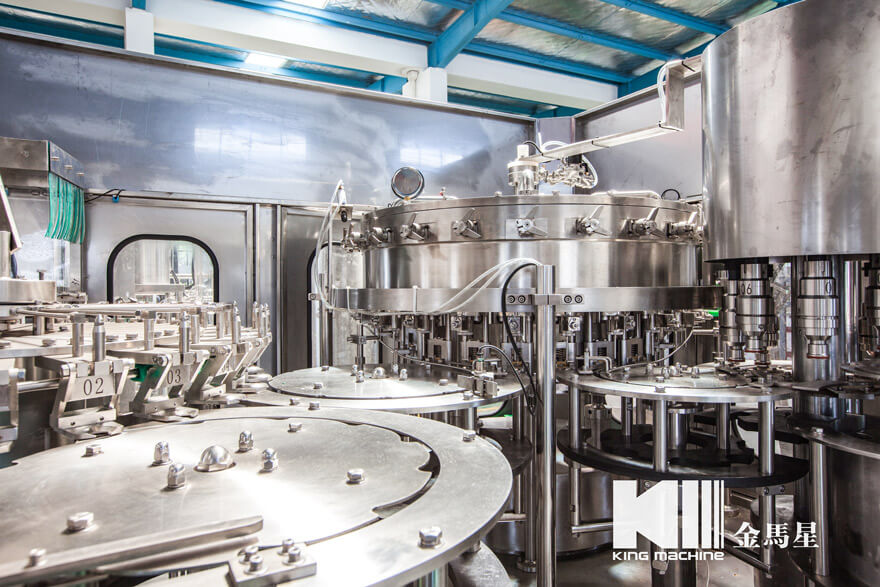

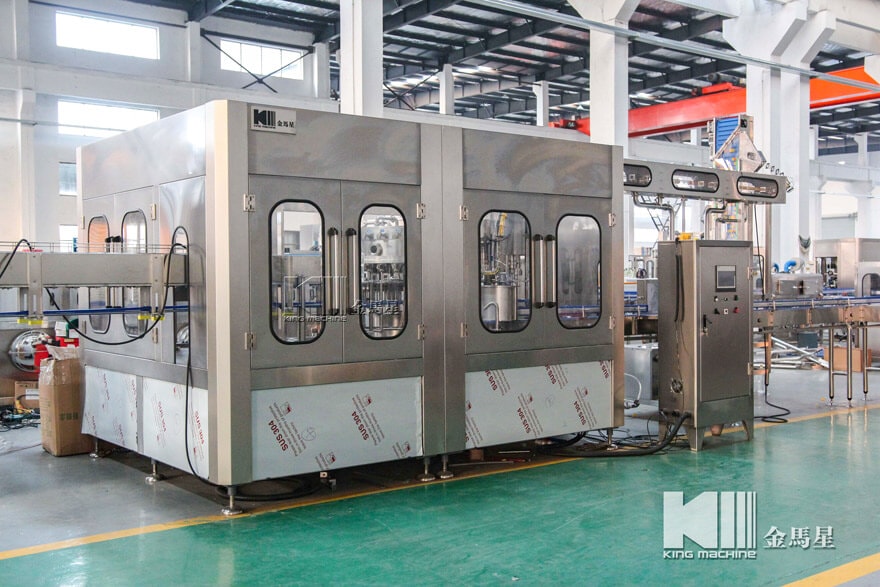

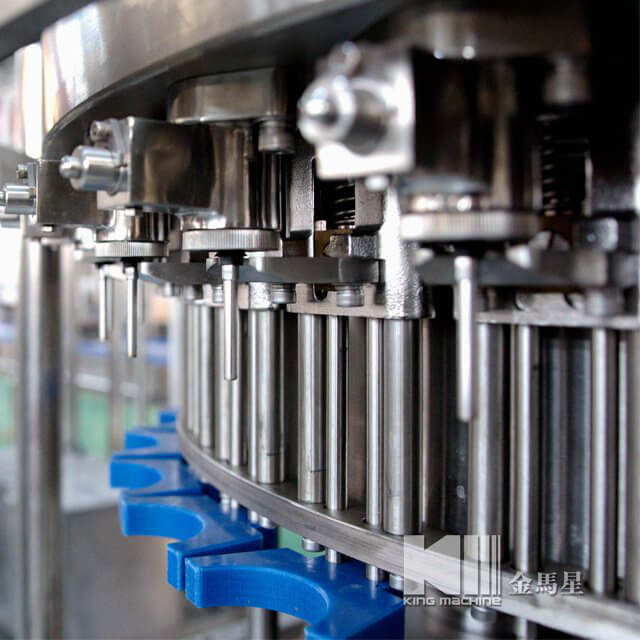

Photos for Machine:

Technical paramter:

Model DCGF14-12-4 DCGF16-16-5 DCGF18-18-6 DCGF24-24-8 DCGF32-32-10
Rinsing head 14 16 18 24 32
Filling head 12 16 18 24 32
Capping head 4 5 6 8 10
Power of main motor 3 kw 3 kw 3 kw 4 kw

 4.8 kw

Total weight 2.8 T 3.2 T 3.6 T 4.5 T 4.8 T
Capacity 2000-3000 3000-5000 6000-8000 8000-12000 12000-15000
Bottle diameter 50-80mm 50-80mm 50-80mm 50-80mm 50-80mm
Bottle height 160-320mm 160-320mm 160-320mm 160-320mm 160-320mm
Method of changing speed Frequency conversion Frequency conversion Frequency conversion Frequency conversion Frequency conversion
Power of unscramble motor
0.37 kw 0.37 kw 0.37 kw 0.37 kw 0.37 kw
Supply presure of rinsing water =0.06Mpa=0.2Mpa =0.06Mpa=0.2Mpa =0.06Mpa=0.2Mpa =0.06Mpa=0.2Mpa =0.06Mpa=0.2Mpa

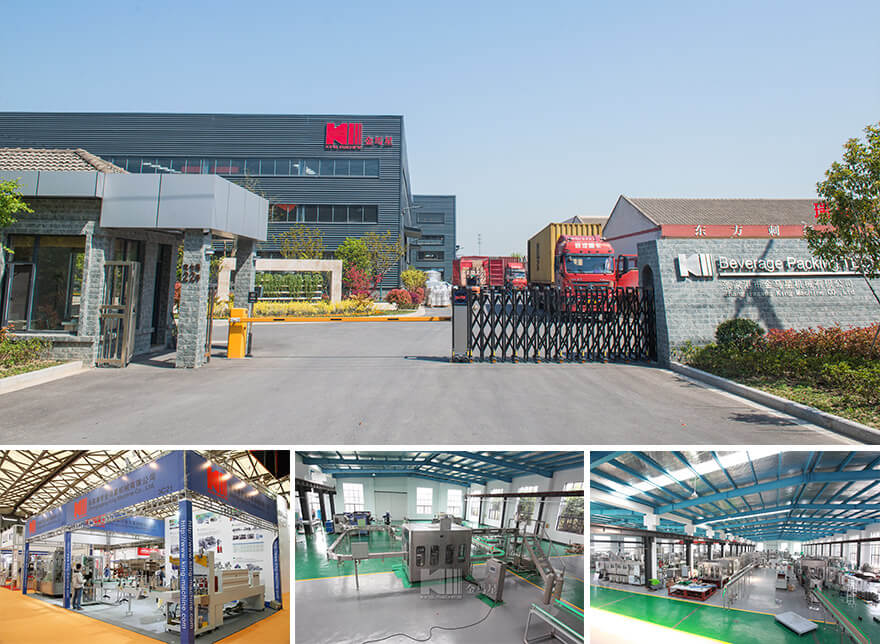

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?

A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

×
