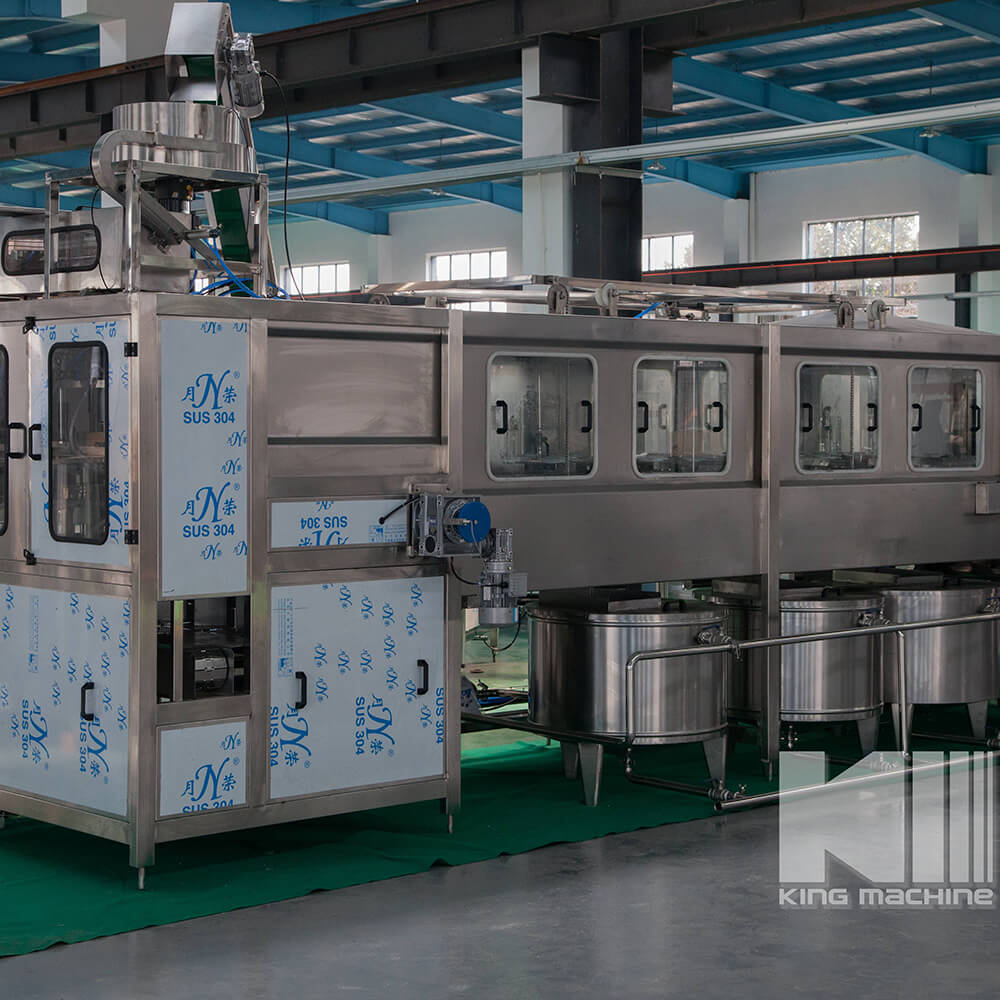

1200BPH Barreled Production Line(QGF-1200) 1200BPH Barreled Production Line(QGF-1200)

Quantity:
Share this:
  • Model: QGF-1200
  • Brand: KM
  • Product Description
  • Technical Data Sheet


1. It is specially used for filling 3 gallon to 5 gallon bottled water.

2. It is a good machine line for the all shapes of bottles.

3. The machine is designed for bottles such as PVC. PE. PET etc. It can be used for different shapes of bottles.

4. The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, hot steam film shrinkage machine top quality line.

5. Filling time is controlled by the PLC.

6. The machine adopts high quality stainless steel frame(No. Z304).

7. The machine design appreance is beautiful, easy operation, maintainence and working stable.

This filling line specially for 3-5gallons barreled drink  water,with type QGF-100,QGF-240,QGF-300,QGF-450,QGF-600,QGF-900,QGF-1200,It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically ,this line equips with water spraying device in order to ensure those caps sterilizer and clean .it also can automatically carry out barrel ,washing,sterilizing ,filling ,capping ,counting and products discharging ,with complete function ,modern design and high degree of automation ,it is a new kind of barreeled water auto-production line ,which intergrates mechanism ,electricity and pneumatics technologies together .

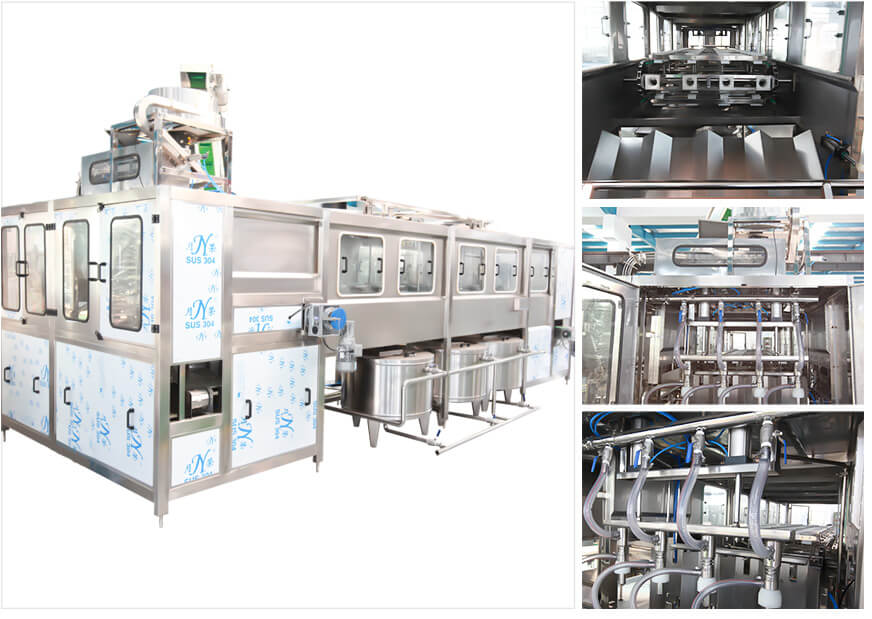

5Gallon water filling machine

It intergrates bottle washing,filling and capping into one unit ,In order to achieve the purpose of washing and sterilizing ,The washing machine use multi-washing liquid spray and-thimerosal spray,This thimerosal can be used circularly,The capping machine can cap barrel automatically.


Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.

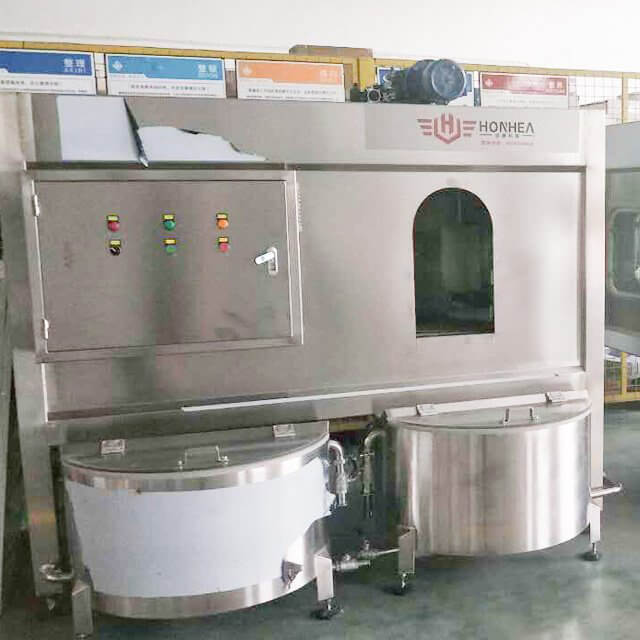

   Rinsing Part:








           Item




           Date




           Over size




           6000*2400*2200mm




           Power Heating




           18kw




           Power Other




           6kw




           Air consumption




           0.6m3/min




           Pressure




           0.6Mpa




           Material




           stainless steel 304




























   Filling and Sealing Part:




           Item




           Date




           Over size




           3800*2400*2200




           Power




           5kw




           Filling Head




           12head rotary working




           Sealing type




           Chain Press




           Capacity




           1200bph




           Speed adjutment




           Frequency adjustable




           Frame




           1.5-2mm SS304











×
