3-5 Gallon Pet Bottle Blowing Machine 3-5 Gallon Pet Bottle Blowing Machine

Small PET Bottle Blowing Machine(0.2-2L bottle) is suitable for producing PET plastic containers and bottles from 0.01-25L. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.

Quantity:
Share this:
  • Model: KM-Y
  • Brand: KM
  • Product Description
  • PARAMETER

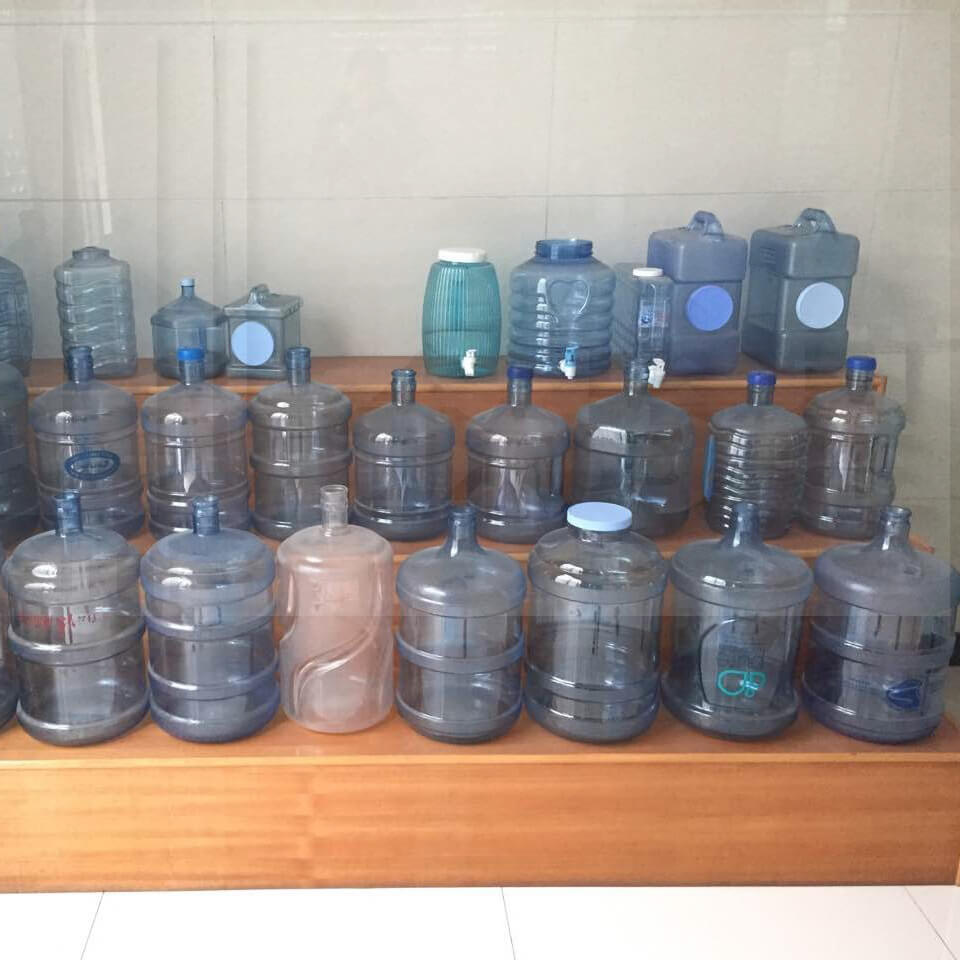

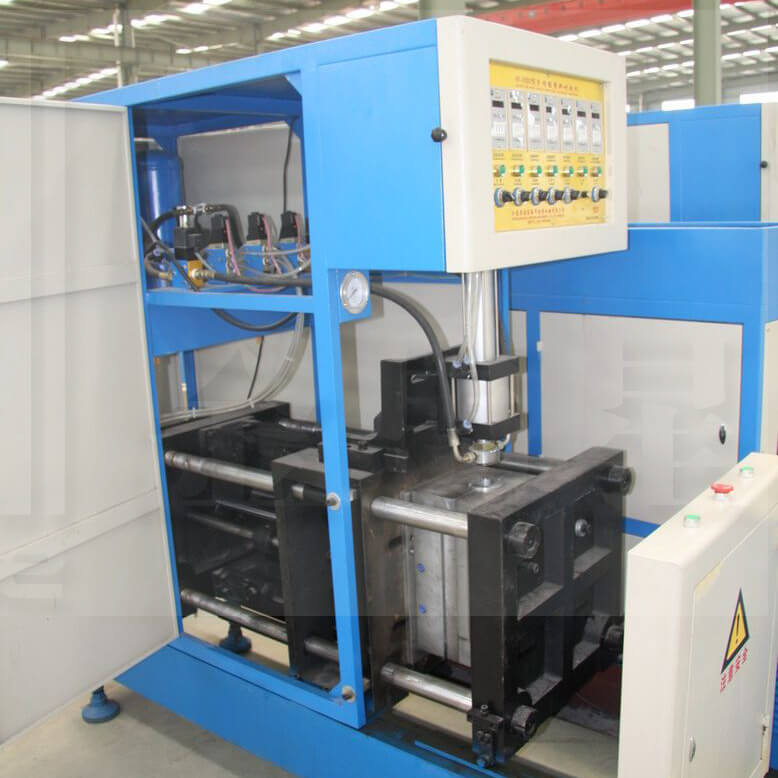

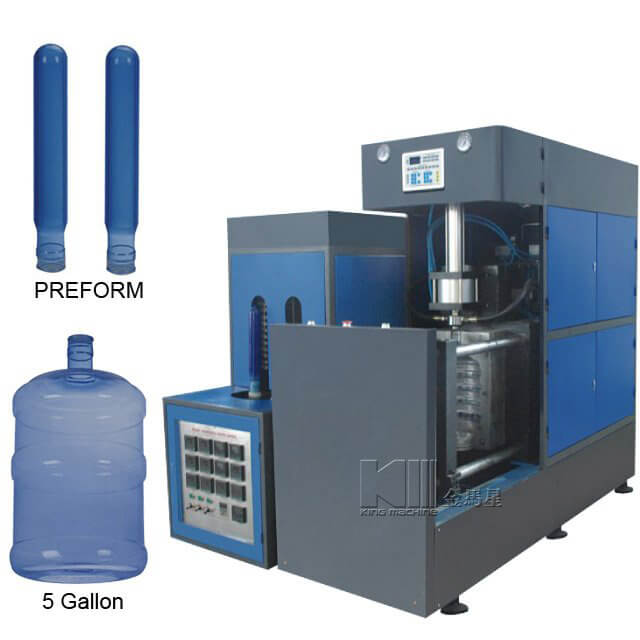

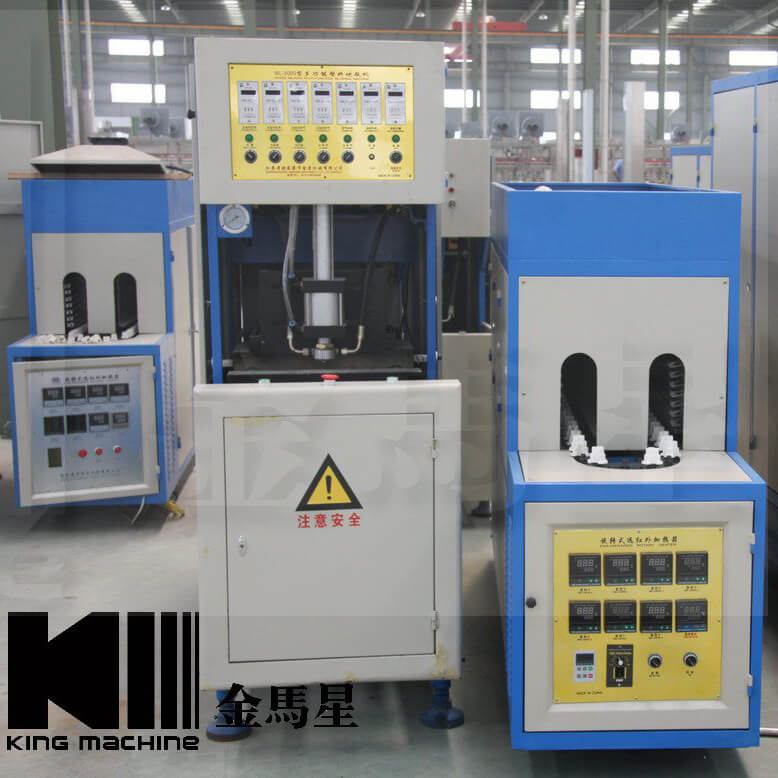

KM- 3-5 gallon pet bottle blowing machine is especially used to produce 3 gallon and 5 gallon bottles and is widely used to produce any shape of plastic from PET with neck finishes from 15mm-200mm.
● Perfect function with economic investment.
● Small size and compact construction with no space waste.
● Easy to operate and maintain ,operation by one person .
● Saving power and uneasy to worn out ,Adopting new double crank four bars to lock mould, the cross fixed. Providing high pressure blowing system.

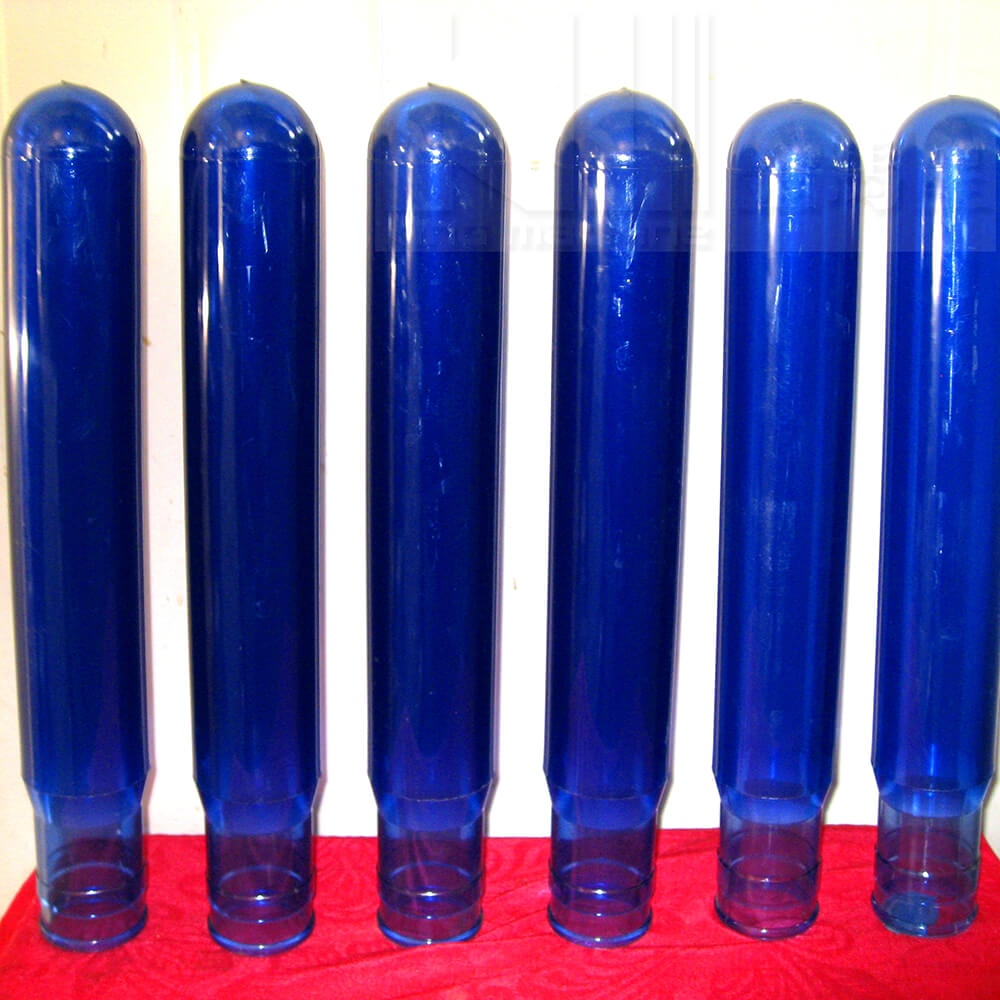

● We can provide performs and various bottle& cap molds for 5 gallon and 3gallon bottles to meet customer’s requirements.

Technique Parameter of blow molding machine:

Main parameter:

Model

KM-12

Container

Product material

PET


Volume

10L-25L3-5Gallon


Theoretical output

90-180PCS/H


Preform length

15mm-460mm


Preform inner diameter

φ5mm-200mm

Moulding

Max.mould plate Dimenstion(L x W)

420x500mm


Max.mould thickness

400mm


Clamping force

330KN


Mould opening stroke

380mm

Machine size and weight

Main machine (L x W x H)

218*77*196cm


Main machine weight

1000Kg


Heater (L x W x H)

237*68*165cm


Heater weight

380Kg


Power

40kw

Functions of auxiliary equipments:

(1) Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.

(2) Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.

(3) Air filter is to clear up the impurities out of the compressed air, like carbon-hydrogen, tiny dust and solid particles.

(4) Air tank is to receive and supply air for the machine as storage.

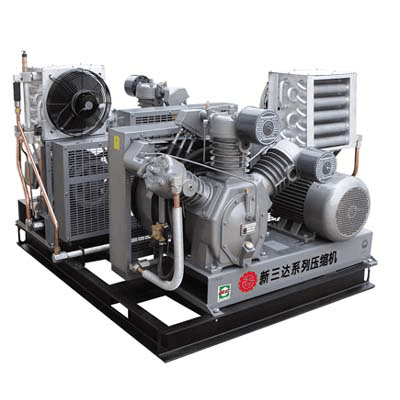

HP air compressor:


Air compressor

Unit

1.58M3/min 30KG

Volume

M3

1.58

Pressure

Kg

30

Speed

r/min

850

Power

KW

18.5

Overall Dimension

mm

1100*1100*1850

Weight

kg

650

Air Cooling Drier


Refrigeration Air Dryer

Unit

2.0M3/min 3.0Mpa

Flow capacity

Nm3/min

2.0

W.P

Mpa

3.0

Inlet Temp.

80

Dew point

23

Ambient Temp.

38

Power supply

V/HZ

220/50

Compressor power

Kw

0.75

Cold Medium

mm

1050×650×1100

Weight

Kg

120

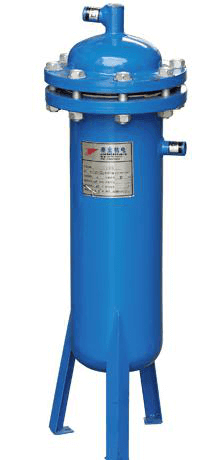

Air Filter


Refining-Filter

Unit

2.0M3/min 30Kg

Flow Capacity

M3/Min

2

Max. work pressure

Mpa

3.0

Inlet Temp.

50

Cold Medium

mm

750*350*350

Weight

Kg

20

Air Storage Tank

Air storage tank

Unit

0.6M3/3.0Mpa

Volume

M3

0.6

Pressure designed

Mpa

3.3

Temp. designed

100

Work pressure

Mpa

3.0

Test pressure

Mpa

4.13

Weight

Kg

400

Overall Dimension

mm

1200*1100*1650



Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.

technical parameters of Small PET Bottle Blowing Machine(0.2-2L bottle) :

Item

Model

Capacity Per hour

Volume

Preform inner diameter

Bottle height

1

KM-8Y1

800bph

0.1-2L

≥12mm

≤300mm

2

KM-8Y

1600bph

0.1-2L

≥12mm

≤300mm

3

KM-9A

500bph

2-5L

≥16mm

≤350mm

5

KM-9B

300bph

5-10L

≥16mm

≤390mm

6

KM-12

70bph

10-25L

≥16mm

≤500mm


×
