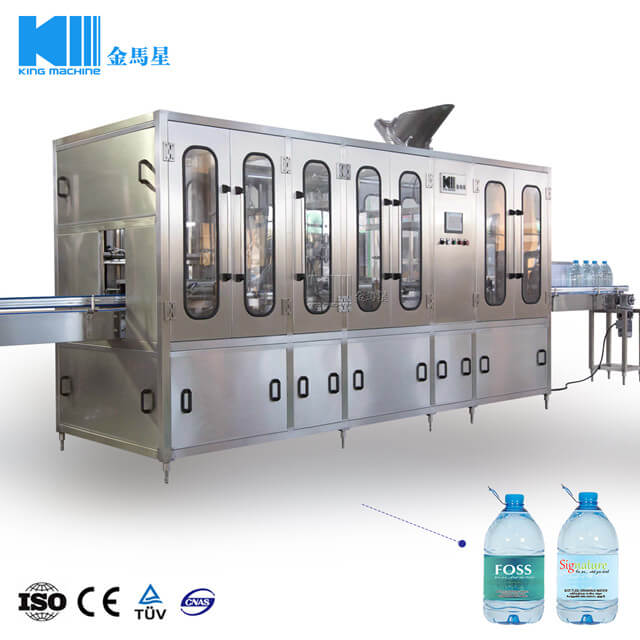

700BPH 3L-10L PET Bottle washing filling capping machine 700BPH 3L-10L PET Bottle washing filling capping machine

3L-10L PET Bottle washing machine from the washer, filling ,capping and conveyor line, linear motion and pneumatic operation, PLC control, high degree of automation is a square bottle, irregular bottle is the ideal equipment, production may be appropriate to adjust the equipment package the materials used in all high-quality stainless steel.

Quantity:
Share this:
  • Model: XGF
  • Brand: KM
  • Code: 8422303090
  • Product Description
  • Technical Data Sheet


1.When the bottles straight from the chain of humanitarian sent to the first machine rinser; the machine in motion, in the Under the action of cam, so that folder open bottle clip and contraction of the bottle rotated 180 degrees for washing and disinfection.

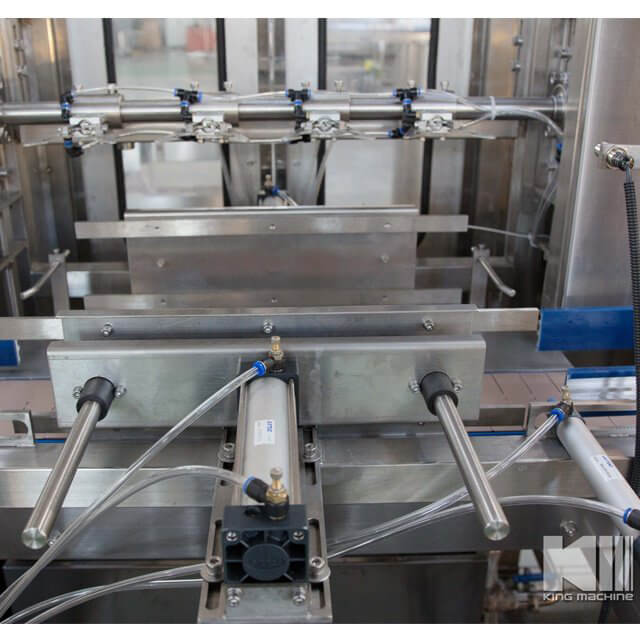

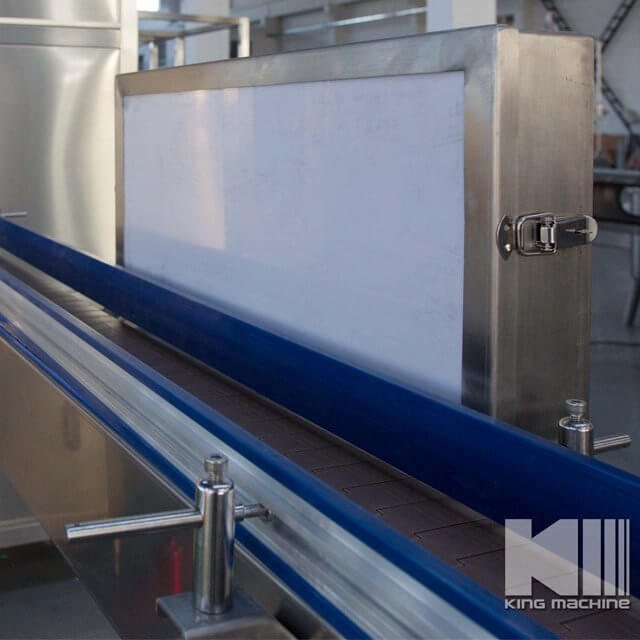

2.Continue to operate, the bottle returned to the original point of view. And the open clip, under the influence of the bottle in the Jog Dial to enter delivery systems. Then transported to the filling machine parts, filling machine parts has a photoelectric detection, when the bottle is only through the Ba, the optical data into information to the PLC, PLC had instructed the cylinder block to block bottles .

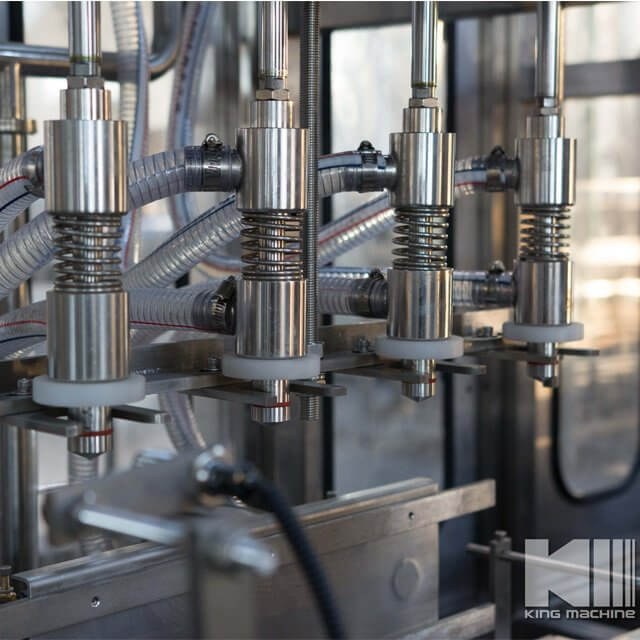

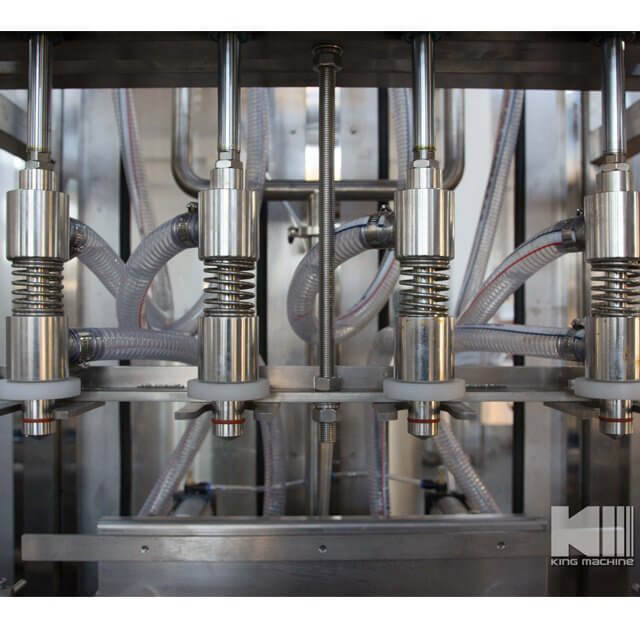

3.Also, bottle filling machine rear cylinder block has also played, keep an empty bottle into the capping machine. Under the action of the program, filling the cylinder downward movement, so that within the filling valve into the bottle filling, until a certain time to stop filling, the cylinder block bottles back. Filled bottle into the capping machine, capping machine from the rack, the justifications for cover device, and even the composition of gland. Gland it is connected to the horizontal section of the dump under a certain angle, the constant movement when the bottle, put on caps. Then, the bottles with catchy article closely aligns with the gland, gland play a role.

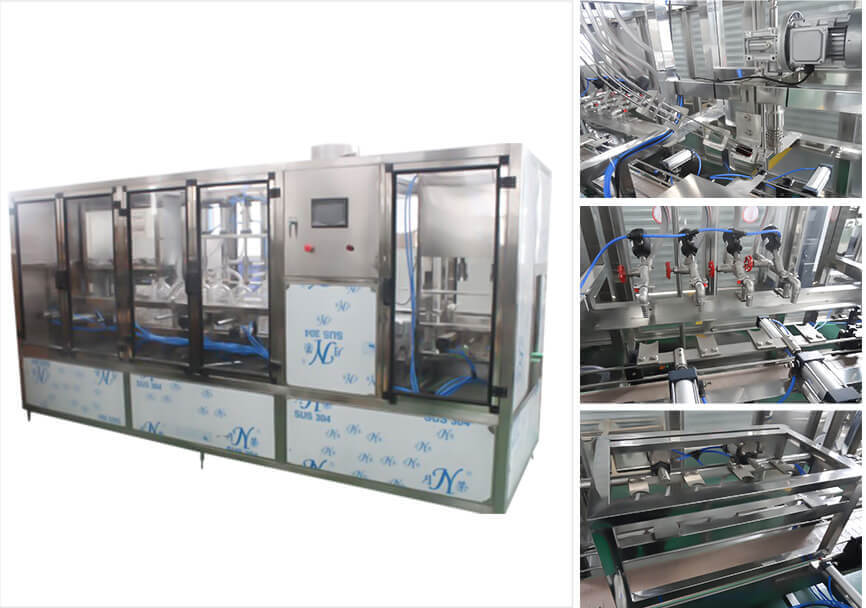

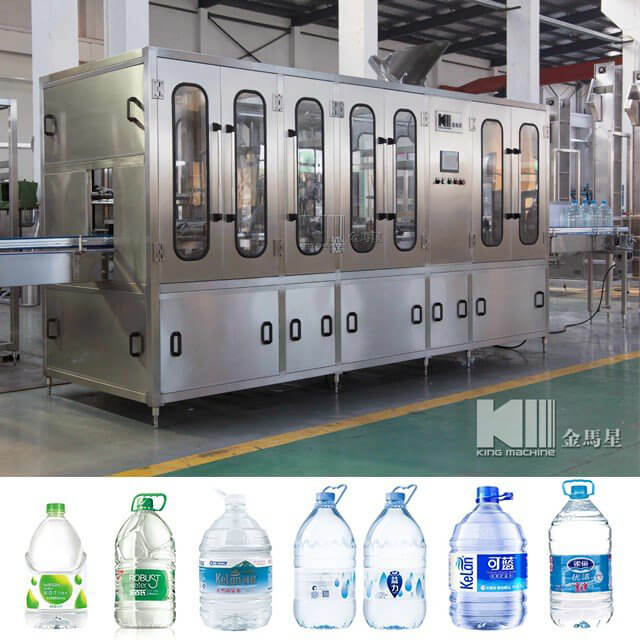

3L-10L PET Bottle washing filling capping machine.

3L-10L PET Bottle washing machine from the washer, filling ,capping and conveyor line, linear motion and pneumatic operation, PLC control, high degree of automation is a square bottle, irregular bottle is the ideal equipment, production may be appropriate to adjust the equipment package the materials used in all high-quality stainless steel.




Model XGF 4-4-1 XGF6-6-1 XGF8-8-3
Capacity 700bph 5L 1000bph 5L 1200bph 5L
Washing head 4 6 8
Filling head 4 6 8
Capping head 1 1 3
Power 2.5 kw 4.5 kw 5.5 kw
Dimension 2800mm*1100mm*1800mm 3500mm*1100mm*1800mm 4200mm*1100mm*1800mm

3L-10L WATER FILLING MACHINE

Mainly used for liquid filling, it is moderate, simple structure, easy maintenance.




Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.

 Bottle volume : 3-11L

 Bottle shape: round or square type

 Size: according capacity and bottle volume



×
