Automatic Shrink Sleeve Labeling Machine Automatic Shrink Sleeve Labeling Machine

Automatic Shrink Sleeve Labeling Machine: the whole machine is waterproof as well as rustless. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life. Single positioning centre guide pillar: a more stable for label delivery. Synchronous bottle divider: a more stable transmission for bottle. Bottom set of label brush:a more precision for casting label. Label-controlling electric-eye shelf:

Quantity:
Share this:
  • Model: SPC-150B
  • Brand: KM
  • Product Description

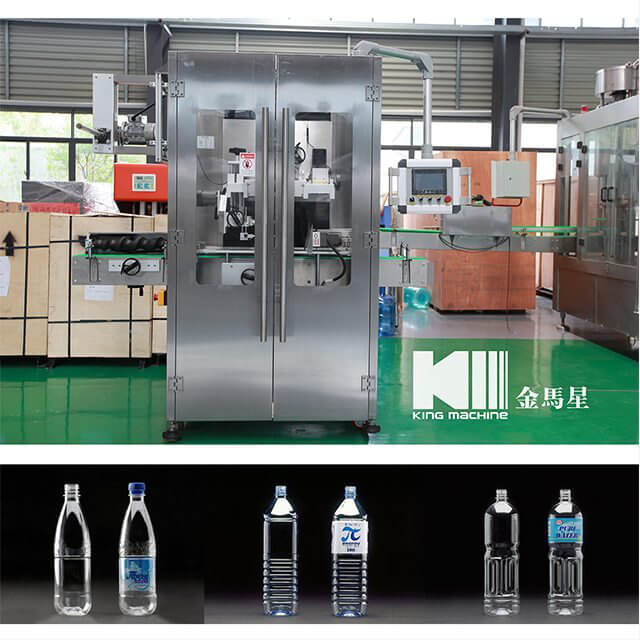

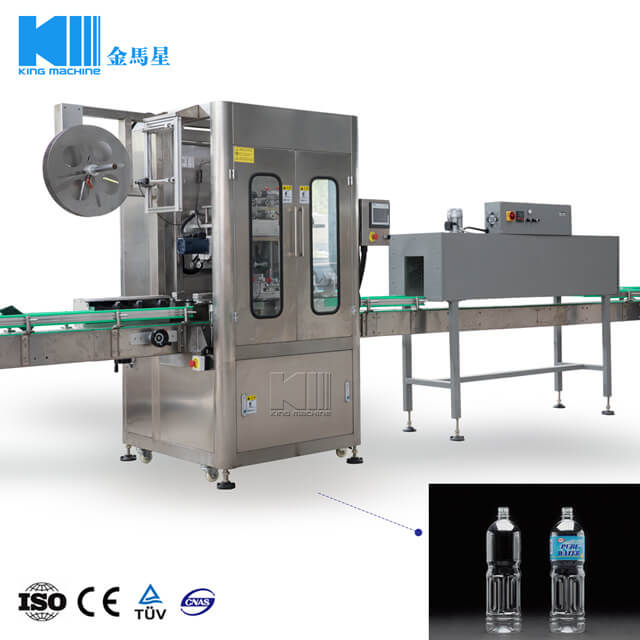

1.Automatic Bottle Sleeve Labeling Machine
Function:

All-cover type stainless steel host machine: The whole machine is waterproof as well as rustless.

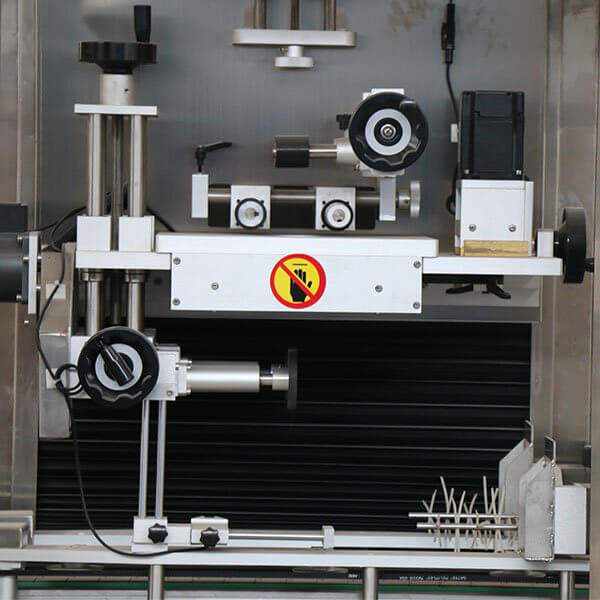

Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.

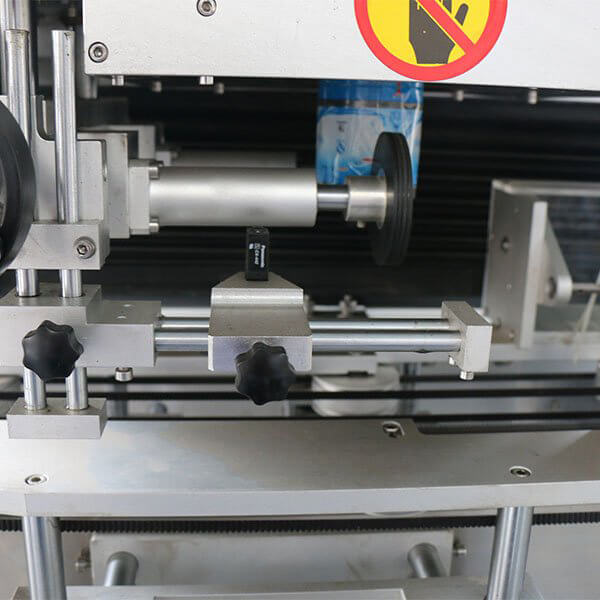

Single positioning centre guide pillar: A more stable for label delivery.
Synchronous bottle divider: A more stable transmission for bottle.
Bottom set of label brush: A more precision for casting label.
Label-controlling electric-eye shelf: Unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials.

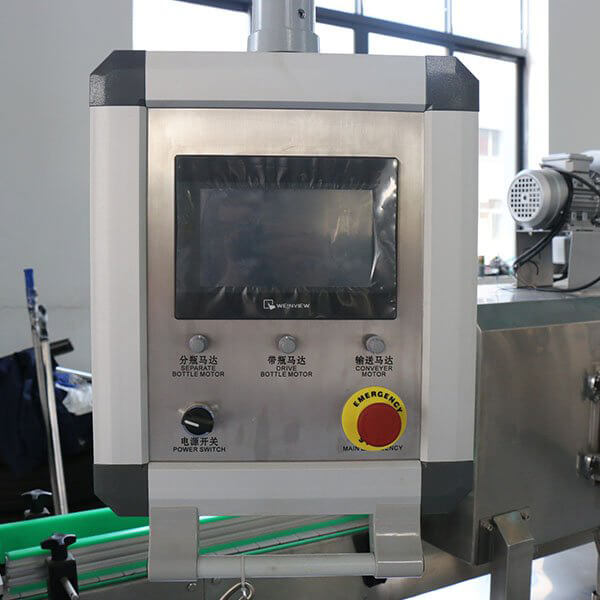

Push-button control cabinet: A more humanized operation.
Independent feeding material shelf: The position of the material shelf is optional at will.
Electrical Appliance Configuration Specification:
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; Besides, it dopts The positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types:

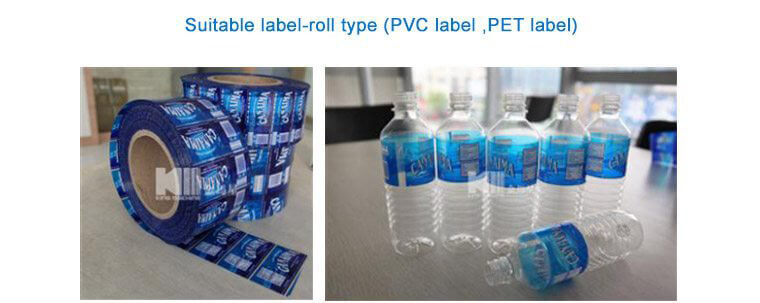

Various kinds of bottle types, for example: Round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.

Technical parameter:

Model SPC-150B SPC-200B SPC-300B SPC-450B
Host size 2100L*850W*2000H 2100L*850W*2000H 2100L*1100W*2200H 2500L*1200W*2200H
Production speed 150B~170B 200B~220B 300B~350B 450B~500B
Power Supply 1ø/220V, 3ø/220V 1ø/220V, 3ø/220V 1ø/220V, 3ø/220V 1ø/220V, 3ø/220V
Host Power 2KW 2KW 2KW 6KW
Framework material stainless steel stainless steel stainless steel stainless steel
Length of the label 30mm~260mm 30mm~260mm 30mm~180mm 30mm~180mm
Thickness of the label 0.03mm~0.13mm 0.03mm~0.13mm 0.03mm~0.13mm 0.03mm~0.13mm
Diameter of bottles 28mm~125mm 28mm~125mm 28mm~125mm 28mm~125mm
High of bottles 50mm~280mm 50mm~280mm 50mm~280mm 50mm~280mm
shape of bottles Square, round, oval, flat bottle Square, round, oval, flat bottle Square, round, oval, flat bottle Square, round, oval, flat bottle
Contraction furnace power 13~15KW(Or steam) 13~15KW(Or steam) 13~15KW(Or steam) 13~15KW(Or steam)

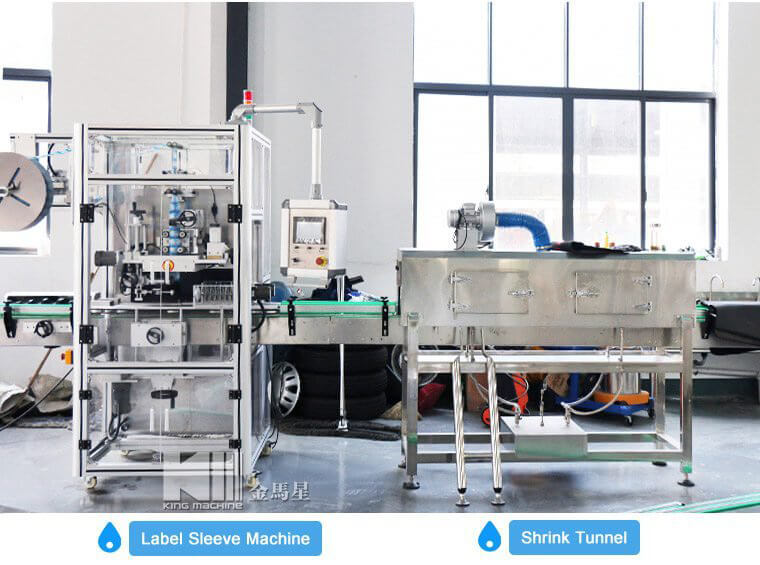

Photos:

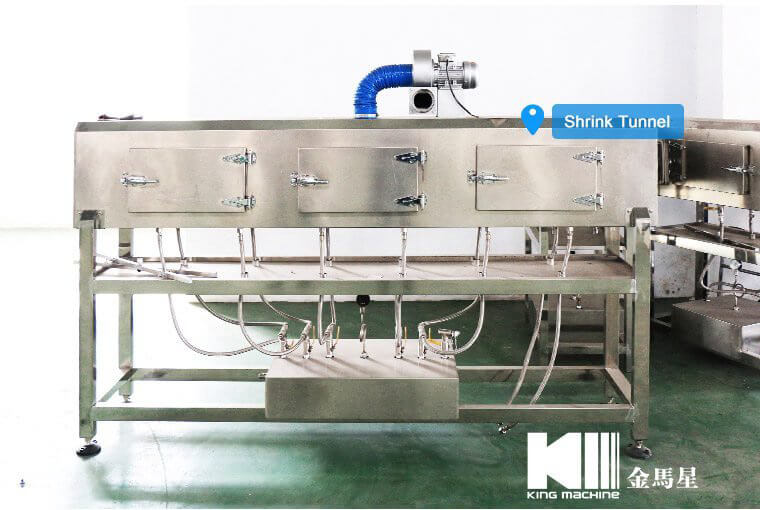

2.Shrink Tunnel

In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.
Special Manufacture
Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.

Input Power Supply of Blower

1 220VAC 1.1KW

Working Pressure

0.1Mpa

Weight

230Kg

Steam Consumption

10-20Kg/h

Size of Oven Body

L2300mm x W400mm x H450mm

Transporting Speed

0-35m/min

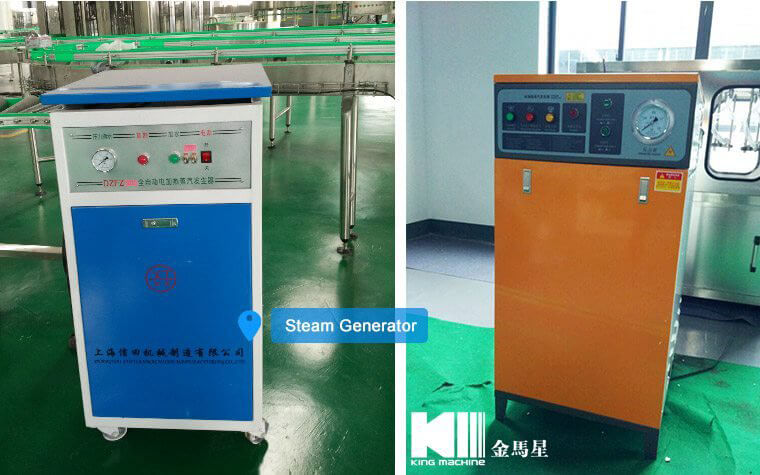

3.Steam generator

  The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

Project

Unit

Specification

Steam capacity

kg/hr

50

Input power

KW

36

Rated working pressure

Bar

7

Saturated Steam Temperature

°C

170

Efficiency

/

98%

Power source-Voltage

/

As customer required

Main steam valve diameter

DN

15

Safety valve diameter

DN

15

Water inlet  diameter

DN

15

Blow down valve caliber

DN

15

Overall dimension(L*W*H)

mm

680*600*1060

Weight

Kg

130

We can provide customized products for specific power supply in the world.




×
