Automatic Stretch Wrapping Machine Automatic Stretch Wrapping Machine

Quantity:
Share this:
  • Product Description

Stretch wrapping machines are used to wrap stretch film around a loaded pallet. Film provides extra support while the products are being transported & storaged to protect them from tip, spill or from being damaged. Additionally , wrapped loads can easily be separated and identified. Stretch pallet wrapper is widely used in chemical industry electronic industry building materials home appliances papermaking foodstuff & drink etc

Automatic Stetch Wrapping Machine

Automatic Stetch Wrapping Machine


Stetch Wrapping Machine

Stetch Wrapping Machine

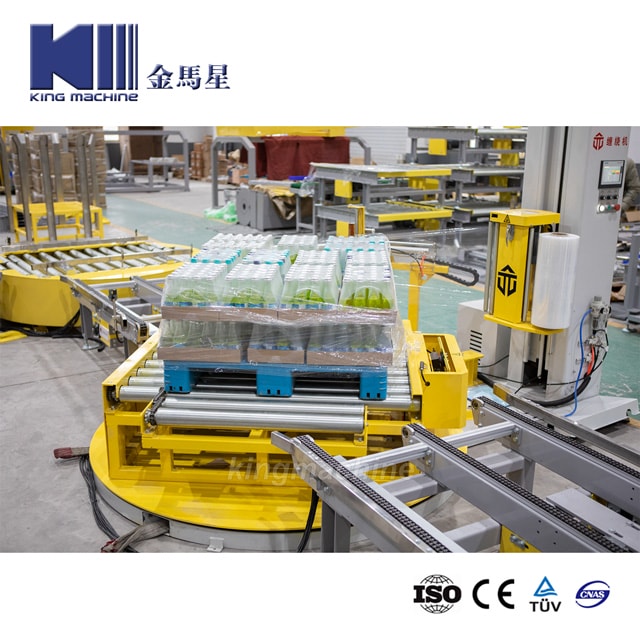

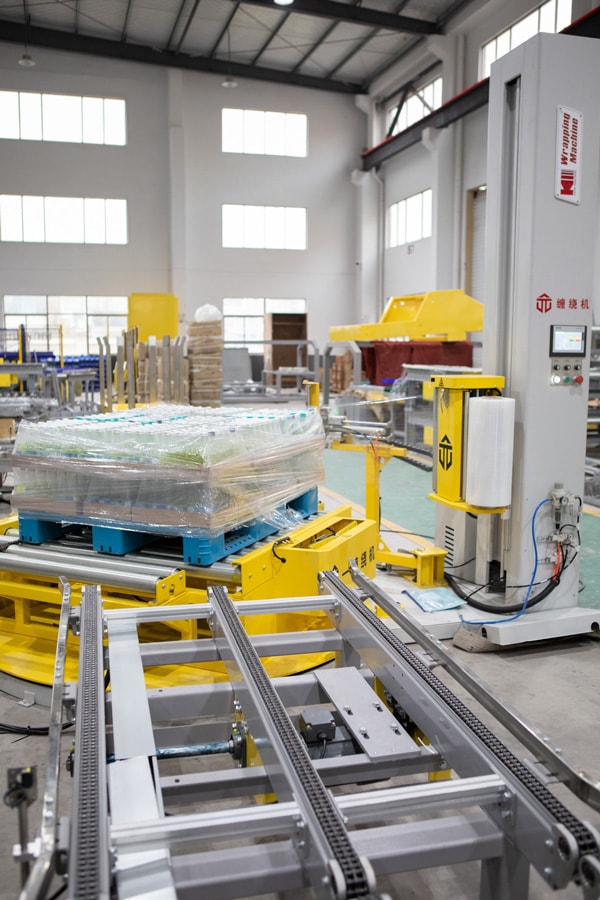

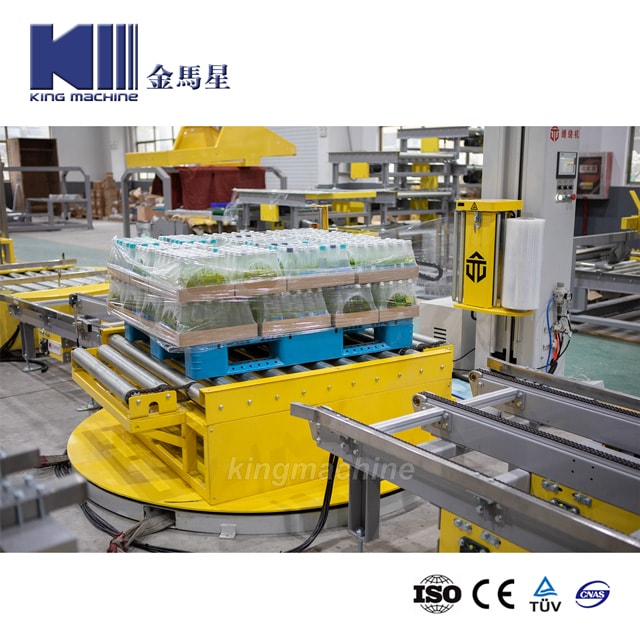

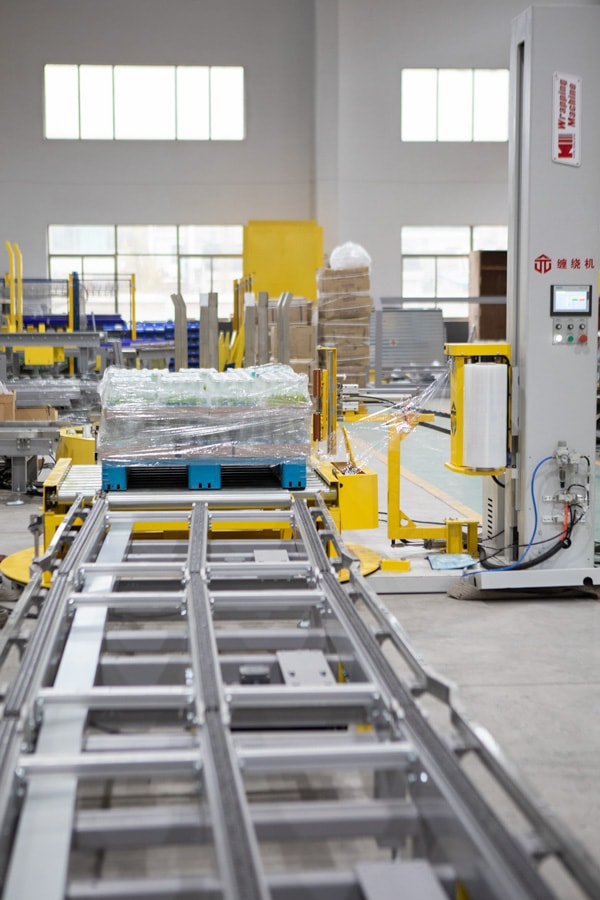

MFC-00A Automatic stetch wrapping machine with Remote Controlled

Size of the product to be wrapped

Min load size(L XWxH)

500 X 500 X 500 mm

Max load size(LXW)

1200 X 1200 mm , or custom made

Max load height

2100mm  (Option: 2500mm, 3000mm)

Max weight

2000kgs    (Option: 3000kgs)

Film Carriage

Carriage

Power pre-stretch film carriage, stretch ratio up to 300%

Carriage door opens for effortless roll change and thread film

Film tension adjustable

Machine Specification

Turntable rotation speed:

3-15 rpm adjustable

Turntable diameter

1800mm / 2000mm

Loading weight

2000kg / 3500kg

Carriage Up/down speed

0 - 5.5 meters/min adjustable

Power supply voltage

3PH 380VAC or 440VAC

Power

2.5Kw

Packing efficiency

25 - 35 loads/hour

Forklifting

Front & Rear

Stretch Film Roll detail

Max. external diameter (D):

230 mm

Internal diameter (d):

76 mm

Film roll height (h):

500 mm

Film thickness:

17-35 µm

 Standard Options

Pneumatic top platen

Machine color

Turntable diameter: 1800mm, 2000mm

Weight Capacity:3500kgs

Packing height:  2500mm ; 3000mm

×
