Beer Carbonated Soft Drink Beverage Can Filling And Sealing Machine Beer Carbonated Soft Drink Beverage Can Filling And Sealing Machine

This equipment is the appropriative filling machine of (Aluminum Can) carbonated drinks;
Introduction, digestion and absorption of foreign advanced technology as the foundation. According to the requirement of beverage filling process in our country, it is a kind of filling equipment with advanced technology. It is mainly used for filling gas beverage containing beer, soft drinks, cola, sparkling wine, mineral water and so on. Filling and capping are integrated in one machine.

Quantity:
Share this:
  • Model: GDF
  • Brand: KM
  • Code: 8422
  • Product Description
  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ



Aluminum Can Carbonated Soft Drink Beverage Filling and sealing machine
* we provide the complete pop cans / tin can filling and package solution ,from juice processing system , water treatment plant , can depalletizer ,can rinsing machine ,can filling & sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,juice , CSD industry and so on.

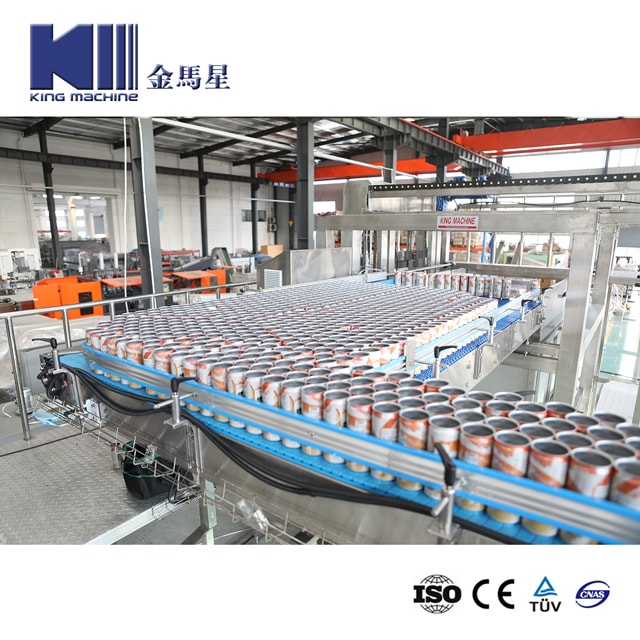

canning lines.jpg

Technical parameter :beverage drink can filler machinery
ModelGDF12-1GDF18-4GDF24-4GDF32-6GDF40-8
Capacity(cans/hour)20008000120001500020000
Suitable containerAluminum Can / Tin Can / Plastic Can
Can diameterDia50 ~ dia99mm
Can height (mm)70-133mm
Compressor airIsobaric filling / normal pressure filling
ApplicationBeverage Can Filling Machine
Total power (kw)2.4kw4.4kw5.2kw6.2kw7.2kw
Overall dimensions2.5*1.9m2.8*1.9m3.2*2.15m3.5*2.5m3.8*2.8m
Height2.3m2.5m2.5m2.5m2.5m
Weight(kg)2500kg3200kg4000kg4500kg6500kg


Cola, , Soda, speaking water, cocktail, flavored water...the variety of carbonated beverage is ever changing. New trend, new products and new packaging are emerging continuously.
For carbonated filling machines, how to rise up the filling temperature to reduce energy consumption? How to reduce foaming? How to keep accurate filling?How to avoid the residuals in the neck? How to preserve the CO2...it is not an easy task to handle all these challenges. However, no matter what products, King Machine will achieve your target with the best technology.
Meanwhile, King Machine filling machine can realize multiple functions in one equipment. One machine can do water, carbonated drinks and hot filling products.


Beer Canning Line.jpg

counter pressure canning line

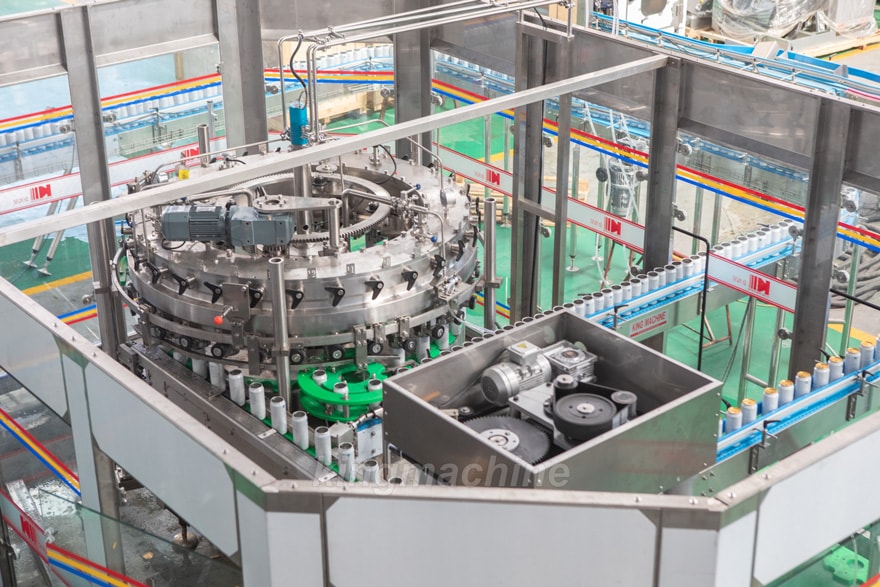

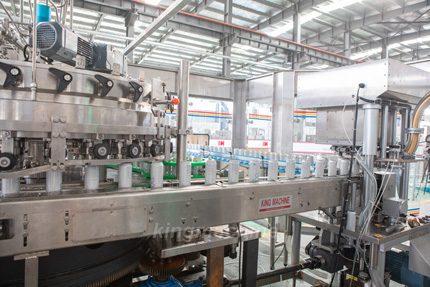

Can filling & sealing monoblock machine

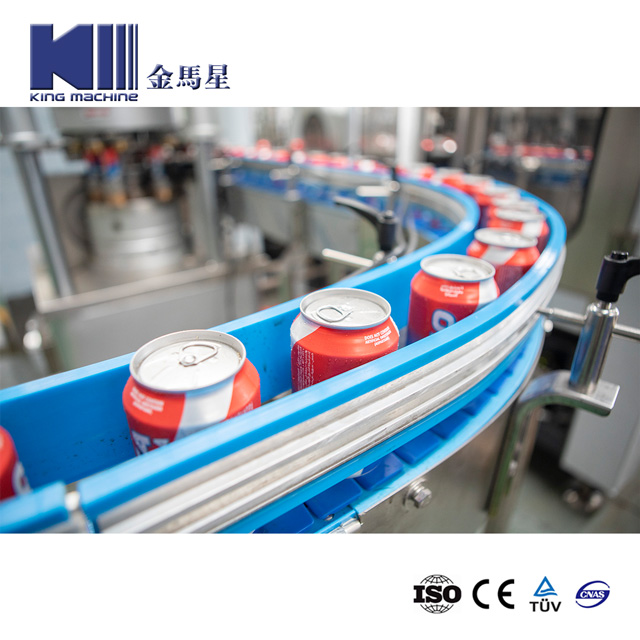

Canning Line

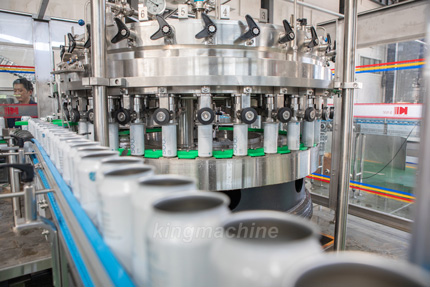

Can filling machine

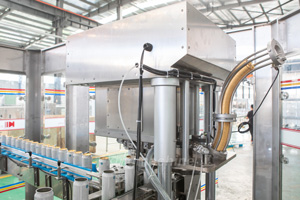

can sealing machine

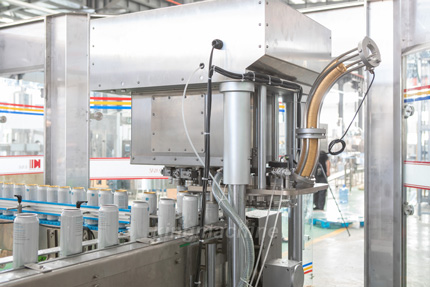

Can sealing machine


counter pressure canning line

The equipments constitute

Mainly the filling machine is from the filing urn and the filling valve. After can is washed, it is transferred to the filling machine through the middle spider. The star wheel will stuck can and sent them into the filling machine. The base will support the can to rotate around the filling machine, and the roll will open, the liquid will into can.

Canning Line

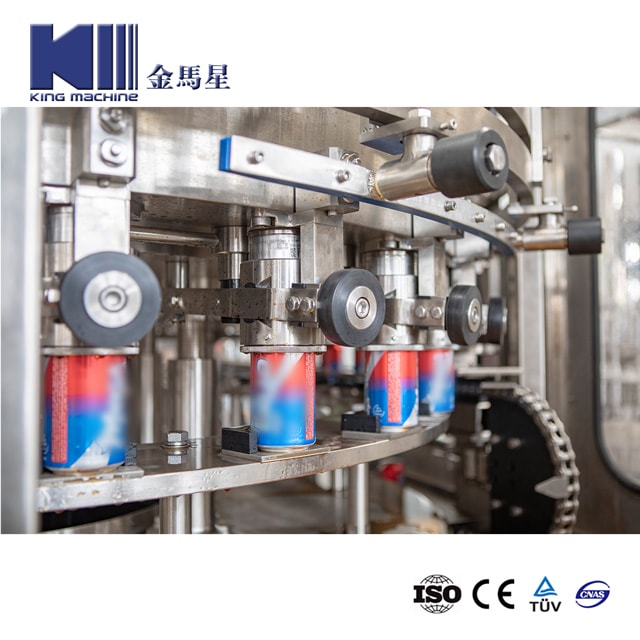

The filling valve

The filling valve is one of the key parts that the filling machine, the filling valve is make up of the valve core, valve body ,valve seat , umbrella?wide liquid valve---etc---
1. When can from in the center the star round enters a can-base of board, the filling valve taking the valve coat, the valve core is together up move, at this time 0 type roll 1 take off with the valve seat to open, enter the filling district.
2.The material continue downflow, until the bottle filling up ,when the rolls round to carry on the cam, the filling valve to move up,0 type circle 1compress tightly the valve body, make the material no longer enter the valve tube of the valve core.

can sealing machine

Cap screwing Machine

The cap screwing machine is composed of frame, slide way, cap screwing device, transmission and others.
The transmission of the cap screwing machine is drive to the gear by the reduce, the power is transferred to the cap screwing head through the hollow main axle.
The can is not rotating, the four small rolls will rotate and press cap. The cam is fixed. The cap is sent into the gear ring of the screwing cap head through the stirring device and slide way. When there is a can on the convey belt, a cap will move down with the rotating of the screwing cap head and screw the cap on the can mouth.


Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.


1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

×
