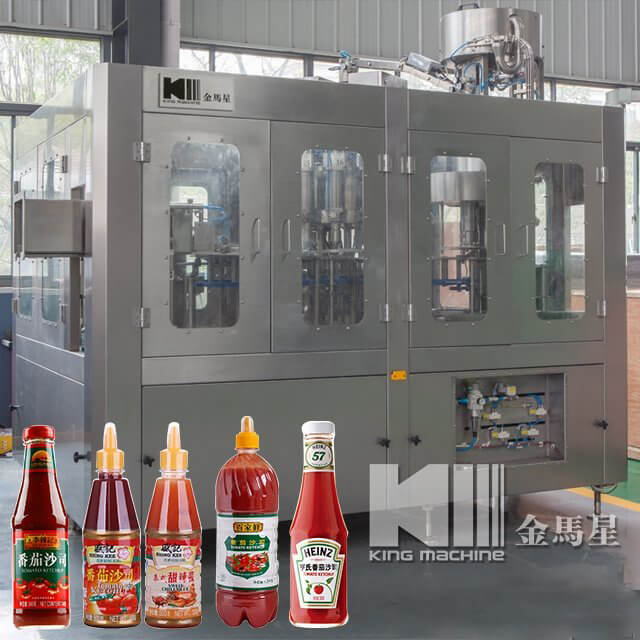

Glass/Pet Bottled Sauce Filling Machine Glass/Pet Bottled Sauce Filling Machine

PET bottled Water Sauce Filling Machine
Rated Capacity:40-60BPM(based on 750ml, with 300ml, 500ml included, PEscrew cap)
Application: Sauce Jam
Filling temperature: about 82℃

Quantity:
Share this:
  • Brand: King Machine
  • Product Description

Product name:PET bottled Water Sauce Filling Machine

Rated Capacity:40-60BPM(based on 750ml, with 300ml, 500ml included, PEscrew cap)

Product: Sauce Jam

Filling temperature: about 82

Packing specification:

Containers and specifications

Material

Shape

Filling volumeml

Filling levelmm

Neck type

PET

Round Bottle

750, with 500 and 300 included

Distance to Bottle neck25mm

PCO28

Adjustable specifications of the bottle type

Customers need to buy additional change-over parts for the different bottles.

If using square bottles, then bottle separating system will be added.

Packaging system

Container Label & Control Mode

PVC shrink labeler

Palletizing system

Hot Melt Roll-fed

Half-label

Packaging system

Min.Spec

Palletizing requirement

Min.Spec

Full Label

Automatic

------

-----

Manual palletizer

——

Manual

------

Note: above data needs to be confirmed with customer.

User Ambient Conditions

Temperature1040

HumidityNo dew

User Electrical Supply Specification

Three-phase five-wire system

F class insulation



Raw material





















Volumetric filling

Blow molder

Preform





Air purification unit










Capping

Sterile air drying

Sterile water rinsing

Cap sorter

Cap elevator











Air blow dryer







Cap













Bottle body ink jet





















Light





















Sleeve labeling machine

Label

















Light





















Full bottle conveying system

Film Shrinker

Case conveyor

Manual palletizer

Finished product storage












NoteAbove flow chart is only for reference, which can be amended by customer’s requirement.

Main Design Parameters:

Item

Design parameters

Product sterilization

Tubular UHT sterilization

 By the customer

Cap Sterilization condition

Ozone rinsing

≥10s

Sterile compressed air drying

2bar,≥2s

Filling Temperature

Ambient temperature

Use of filling recycle water

Customers determine

Use of cap rinsing recycle water

Customers determine

Note

Above technical parameters are basic data for equipment model determination and configuration in this proposal;

       Any adjustment to these data,will lead the change of equipment model and configuration

×
