High Speed Carbonated Drink Mixing Machine High Speed Carbonated Drink Mixing Machine

The High Speed Carbonated Drink Mixing Machine is the most advanced mixer which is used to all kinds of carbonated beverage(such as coke, Lemonade product) according to requirement scale mix water , syrup, carbon dioxide well. It is necessary and key equipment for soft drink product especially for medium to high requirement .

Quantity:
Share this:
  • Model: QHS
  • Brand: KM
  • Code: 84223010.90
  • Product Description

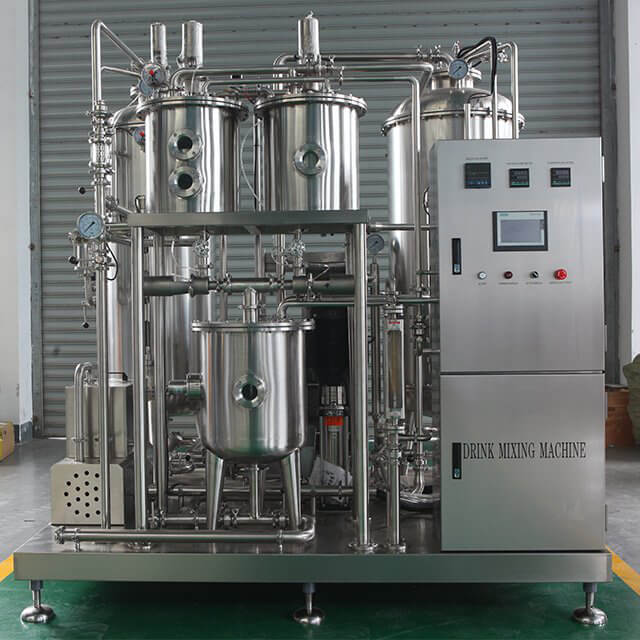

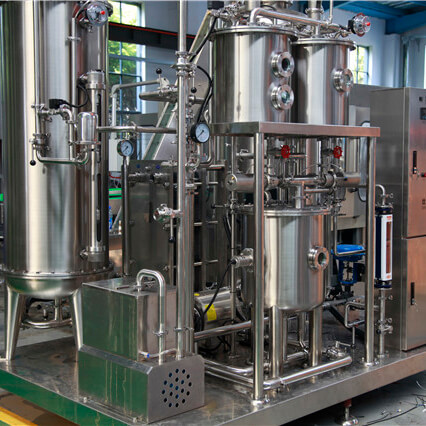

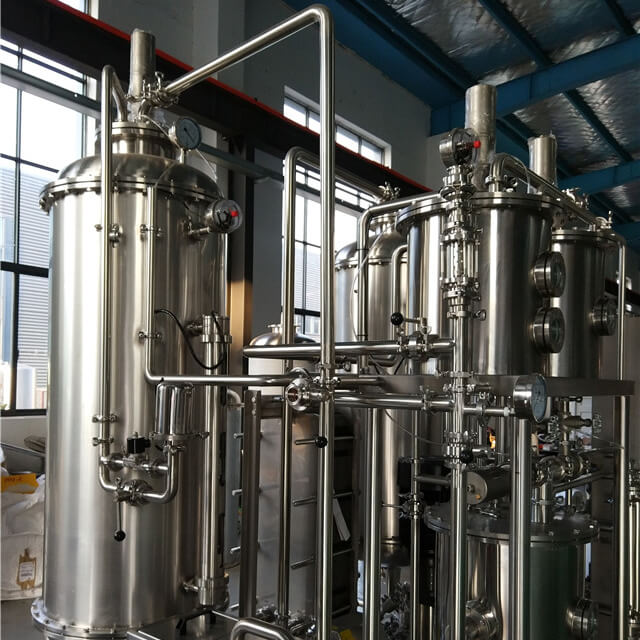

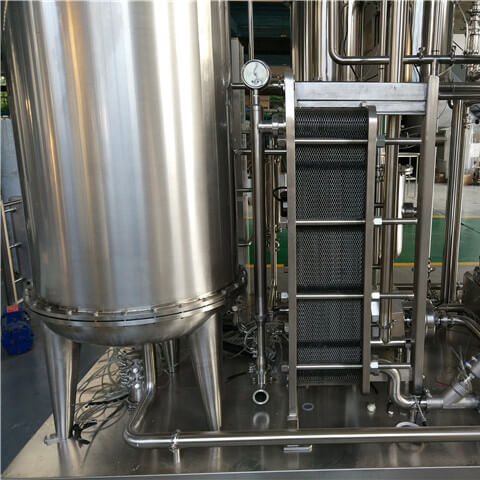

Description of the machine:
QHS series drink mixer is designed and made for improving the proportion of water, syrup and carbon dioxide. It adopts foreign advanced technology—static mixer to lighten water layer, increase carbonizing time, assure mixing result and deoxying. It adopts high-quality water pump and

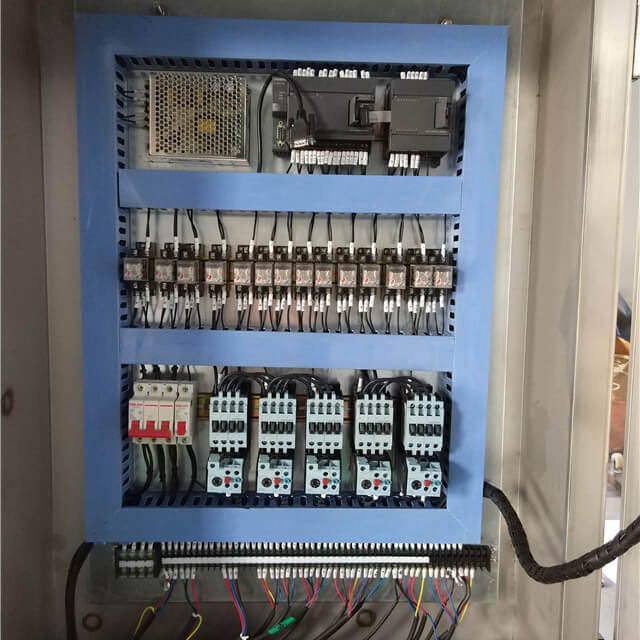

SEIMENS electrical equipment and other parts to form complete automatic control system. It has coordinating action, beautiful appearance, convenient washing, high automatic level and other
advantages. It is suitable for mixing all kinds of drink, such as soda water, fruit juice, cola and other soft and hard drink.

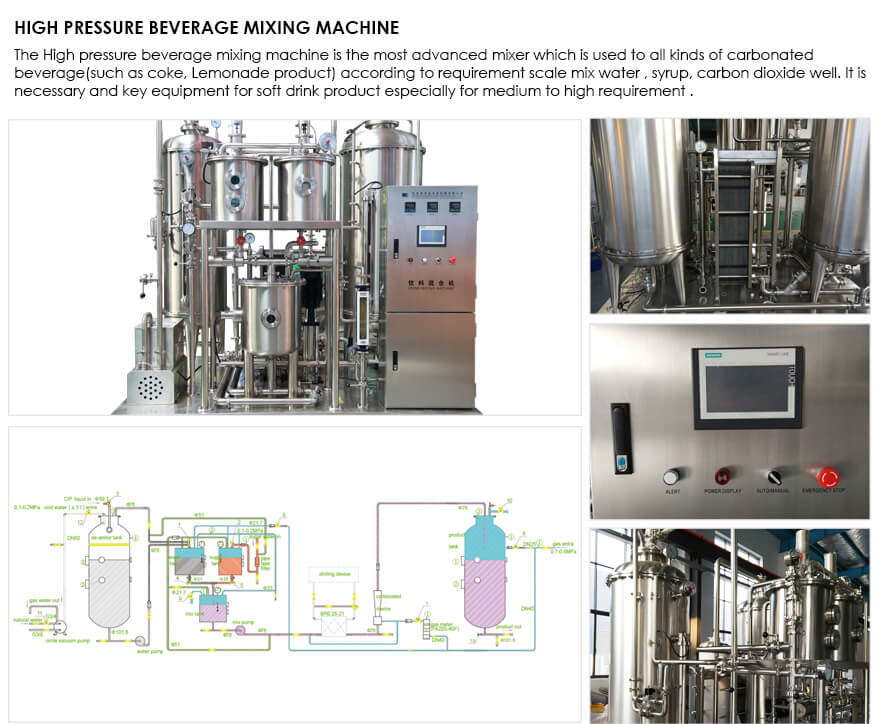

The High Speed Carbonated Drink Mixing Machine is the most advanced mixer which is used to all kinds of carbonated beverage(such as coke, Lemonade product) according to requirement scale mix water , syrup, carbon dioxide well. It is necessary and key equipment for soft drink product especially for medium to high requirement .


Characteristic

1.the machine is adopted the most advanced technology in chemical industry---- static mixer( namely carbonizer) , big area mixing  and small resistance, high efficiency and low energy consumption, uses stable function and low noise multi-stage centrifugal pump to guarantee smooth machine operation .

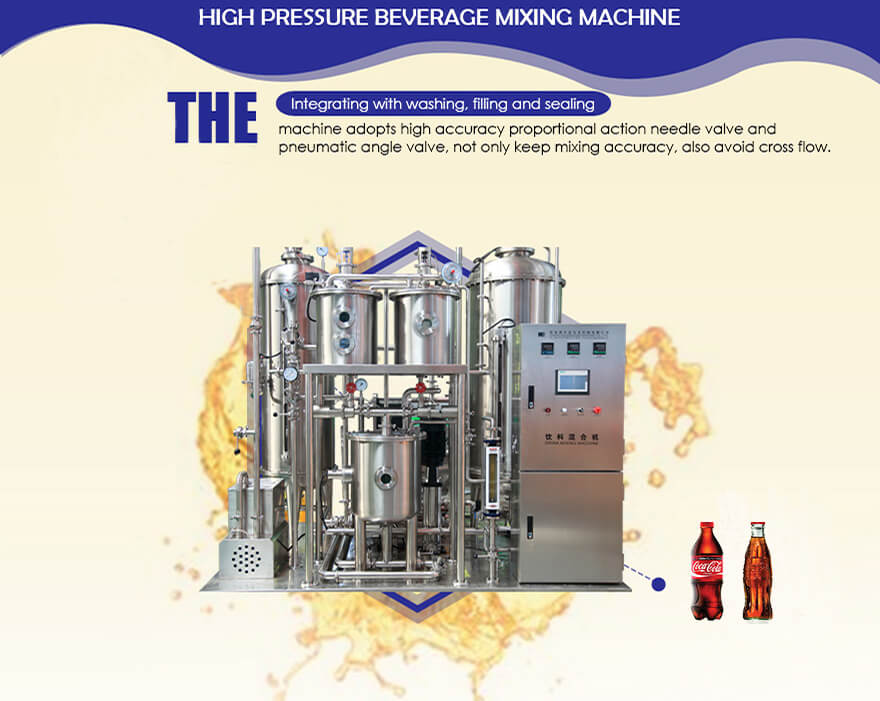

2.the machine adopts high accuracy proportional action needle valve and pneumatic angle valve, not only keep mixing accuracy, also avoid cross flow.

3.the machine uses carbon dioxide flow back to replace oxygen, save carbon dioxide at same result.

4.The machine is convenient to change air content, according to requirement to operate and adjust .

5.Has prefect automatic control system, with advantages of simple structure, continue working, match well and totally automatic .

6.The machine has reasonable structure to use CIP system, so easy cleaned by chemical material , steam sterilization and clean by water , totally meet sanitary requirement .


Function and parameter

Capacity

3000Kg/h

Ration   Range (syrup :water)

13—110

Air   content

CO₂H2O≥3.5

Error

≤2

Inlet Temperature(cooling   Water)

0—4℃

Inlet   pressure(cooling water)

0.01—0.08MPA

Inlet   temperature(cooling syrup)

2—8℃

Syrup   Pressure

0.01—0.08MPA

Inlet   pressure(carbon dioxide)

0.7—0.8MPA

CO₂   purity

≥99.9

pre   carbonized tank, syrup tank pressure

0.09—0.12MP

store   tank pressure

0.2—0.5MPA

power

6KW

dimensionL×W×H

3000×1800×2700MM

weight

2000KG


Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.
×
