Juice/Tea Hot Filling Machine 3000BPH RCGF 14-12-4 Juice/Tea Hot Filling Machine 3000BPH RCGF 14-12-4

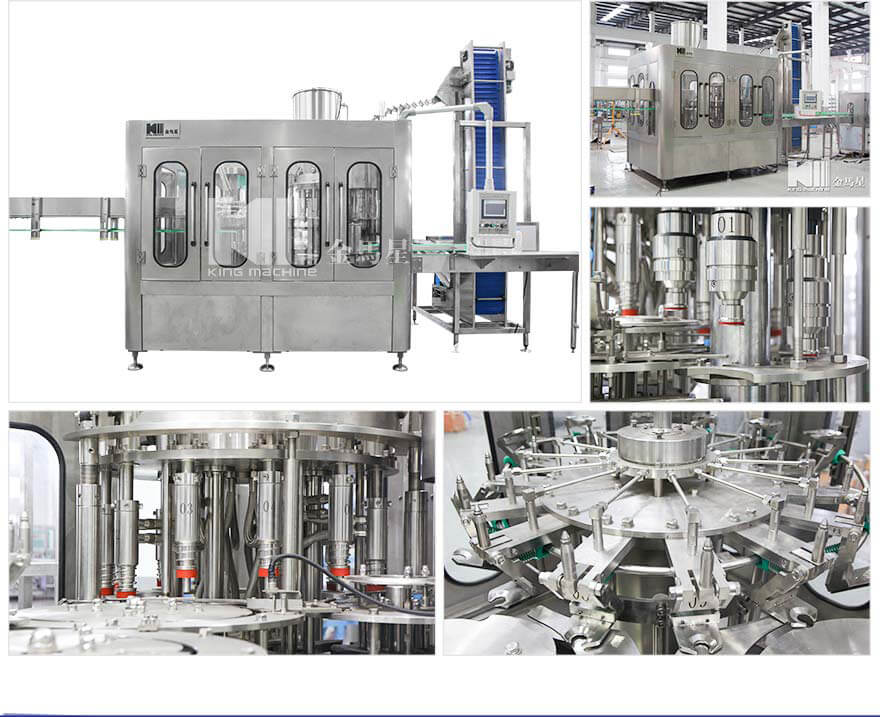

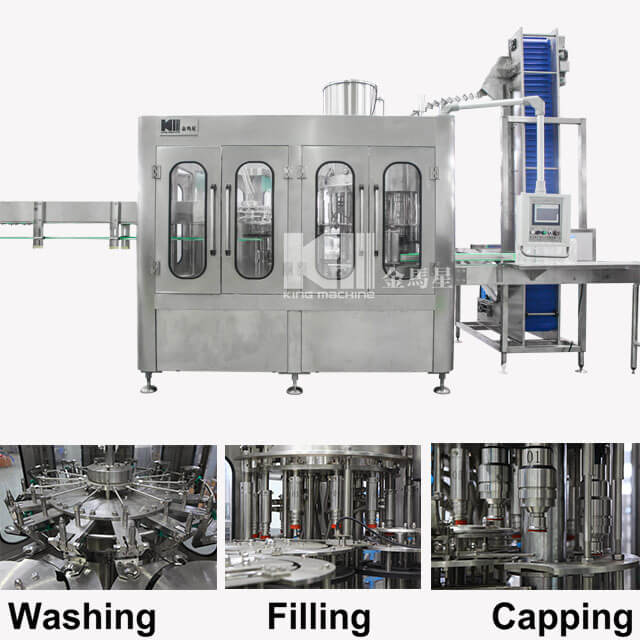

RCGF series 3-in-1 set of machine is mainly used in the beverage filling process. The machine combines washing, filling and capping with complete automation, suitable for filling juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling process adopts hot filling technology with water-supplying system under constant pressure, which makes filling process faster and more stable. Compared with other equipment of same kind, this machine with a better quality and thus enjoys a high ratio of function against price. The hot filling type machine works with balanced tank and vacuum system.

Quantity:
Share this:
  • Model: RCGF 14-12-4
  • Brand: KM
  • Code: 8422301090
  • Product Description


3000BPH Juice/Tea Hot Filling Machine RCGF 14-12-4 working principle and technology:

1). 1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

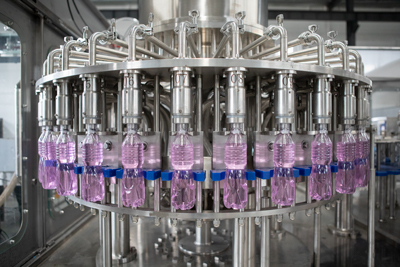

4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.


Containers and specifications

Project Name: Full Automatic Complete Juice 2000-20000bph Production Line

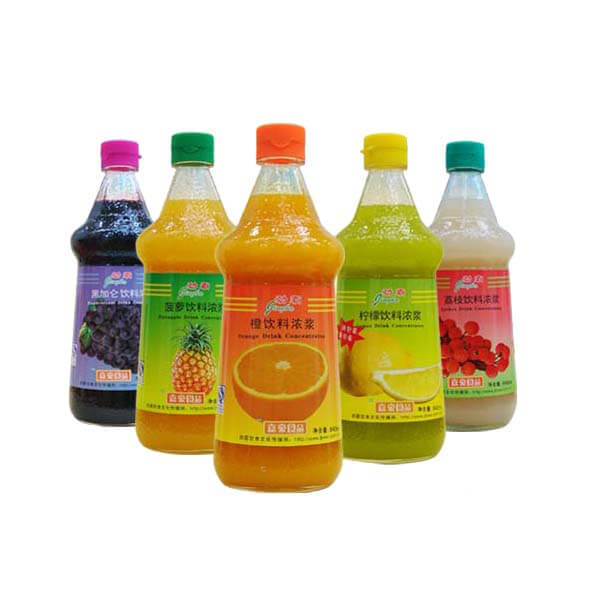

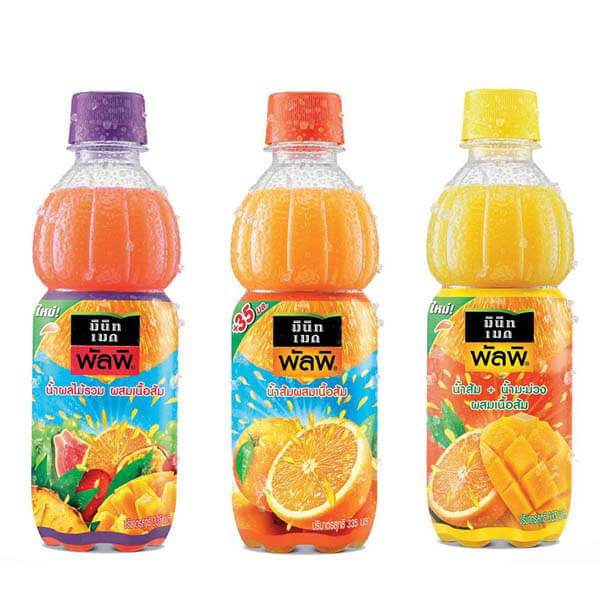

Hot Filling Fruit Juice

Material

Shape

Filling volume

Filling levelmm

Neck type

PET Bottle

Square or Round Bottle

100-2000ml

Distance from bottle neck

According request

As request

Adjustable specifications of the bottle type

Middle Mould BaseBottle diameter ≤105mm Bottle Height≤335mm

Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.

Juice Preparation

Fruit , Concentrate, Powder mixing .....

Container Label & Control Mode

Packaging system

Palletizing system



Hot Melt Roll-Fed

PVC Shrink Label

Full Label/ Half Label

Manual / Automatic

Packing system

Min, Spec.

Manual

Low position gantry palletizer

Robot Palletizer

High position gantry palletizer

Single Arm Palletizer

Manual Palletizer

Manual

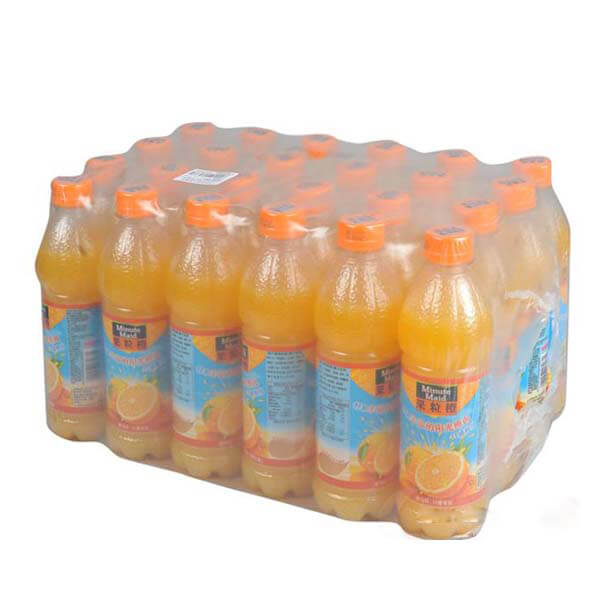

Film shrinker

Wrap Around packer

Robert Packing Machine

1*2

2*3

3*4

4*6

3*5

User Ambient Conditions

Temperature1040℃HumidityNo dew

User Electrical Supply Specification

Voltage380V±5%3phaseFrequency50HZ±1%




Model Washing heads Filling heads Capping heads Capacity 500ml(bph) Bottle size (L)
RCGF14-12-4 14 12 4 1500 bph 0.25-2L
CGF16-16-5 16 16 5 3000 bph 0.25-2L

CGF18-18-6

CGF24-24-8

18

24

18

24

6

8

4000-5000 bph

8000-9000 bph

0.25-2L

0.25-2L

CGF32-32-10 32 32 10 10000-12000bph 0.25-2L
CGF-40-40-12 40 40 12 14000-15000 bph 0.25-2L
                                                             You can also customize the size you need


Juice Filling Machine

Automatic juice filling machine is suitable for filling juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. then the filling speed as quickly as different liquids.



Q: How about the spare parts?
A: We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q: How long time for installation?
A: According your machines order,we will send one or two engineers to your plant for installation, it will take about 10 days to 25 days.

Q: How to install my machines when it arrives? how much the cost?
A: We will send our engineers to your factory to install the machines and train your staff how to operate the machines. Customer pay air tickets go and back, accommodation and USD80/day/person.

Q: When can I get my machine after I paid?
A: Normally production time is around 30-60days, the exactly date depend on what kind of machine you order. The shipping time is based on your destination port.

Q: What's your guarantee or the warranty of the quality if we buy your machines?
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q: Are you a trading company or a manufacturer?
A: We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
×
