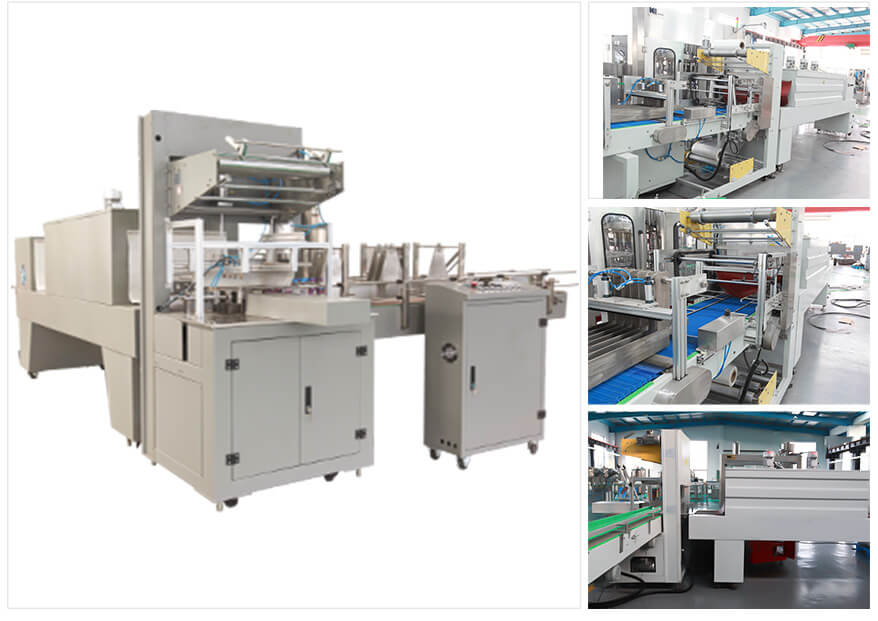

Linear Type Automatic PE Film Shrink Wrapping Machine Linear Type Automatic PE Film Shrink Wrapping Machine

Linear Type Automatic PE Film Shrink Wrapping Machine is specially designed and manufactured for the high-speed packing requirements of drinks (pure water, beverage, fruit juice and milk product ).

Quantity:
Share this:
  • Brand: KM
  • Code: 8422303090
  • Product Description


1.Up and down magnetic switch prevent sealing mistakes, and protect the operators.
2.The input position is adjustable, base on the size of products packaged.
3.Schneider PLC, Schneider AC contractor, and intelligent temperature controller performs stable.
4.Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.
5.Up and down large power fan system ensures the excellent effect of shrinking in one time.
6.Super cooling system cools the packing and makes the figuration perfectly.
7.The size of tunnel can be customized as your request.


         Specification:
   Voltage:220V  50HZ
   Power:2KW
   Max.packing size:420 280  350mm  L W H
   Package speed:17-25bags/min
   Air source pressure:0.5-0.7Mpa
   Equipped with infrared ray hot air circle shrink tunnel
   Power:22KW
   Conveyor speed:0-15m/min
   Shrink tunnel size:2465  840 1700mm L W H
   Note:the machines packing size and shrink tunnel is designed according customer requested speed and bottle size.

It is specially designed for bundle packing of beer,drinks and beverage,fruit juice,bottle water,dairy,condiment and so on with or without bottom support.
Unique film layoff mechanism and constant tension film conveyor are adopted,featuring instantaneous film cutting,automatic film connecting and wrapping and higher strength after shrinking packing.
Equipped servo motor control system,bottle-feeding,film feeding,film cutting and film wrapping are accurate,synchronous,stable and reliable.
The LCD touch-screen has a friendly operation interface,and it is rapid for parameter setting and convenient for human-machine communication,operation and control.
Shrink tunnel uses unique air circulation configuration,transfer belt runs smooth,wearable and with longer service life.
Use air circulation technology,the shrinkage chamber features unique structure,heat insulation,high precision for temperature control and better packing effects.
This machine can increase the printing film packaging system.


Application
heat shrink wrap packaging machine can apply to the full automatic packaging production line of beer, beverage,pure water,fruit juice, dairy products, etc.



Technical Parameters

KM--25B

Technical Parameters

Dimension for The Whole Unit

L13200mm x W1200mm x H2100mm

Main machine

L3200mm x W1200mm x H2100mm

Tunnel oven size

L4000xW1100XH1840mm

Conveyor

L4800xW1080xH920(+100mm)

Thermal shrinkage passage dimension

L2400mm xW680mmx H450mm

Max. Package Dimension

L600mm x W400mm x H350mm

Packaging Speed

25-35Pcs/min

Transfer Belt Dimension

720mm

Sealing and Cut Time/Temperature

0.5-1s 180°C-260°C

Operating Power Supply/Power

(TN-S) 380V 36KW

Operating Air Pressure

0.6-0.8Mpa

Weight

3000kg


Pe Film Shrink Wrapping Machine
Plastic film packaging machine can apply to the full automatic packaging production line of beer, beverage, pure water, fruit juice, dairy products, etc.

Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.

×
