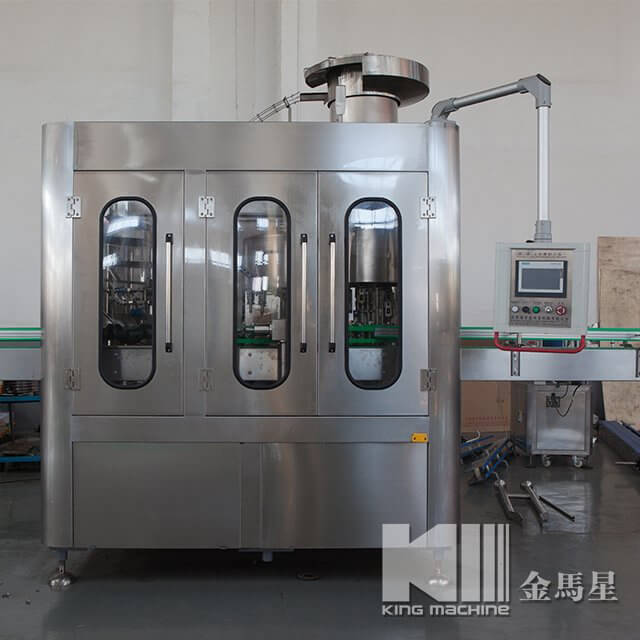

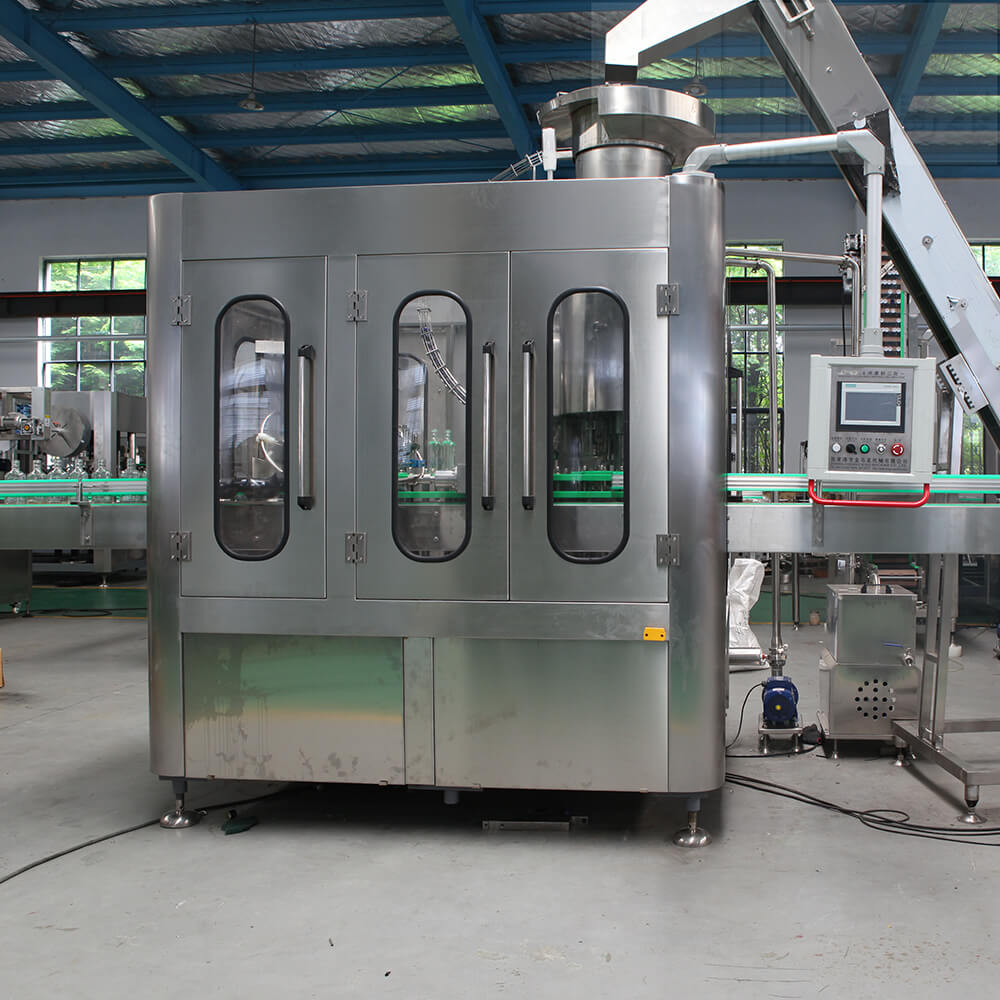

Negative Pressure Glass Bottle Filling Machine Negative Pressure Glass Bottle Filling Machine

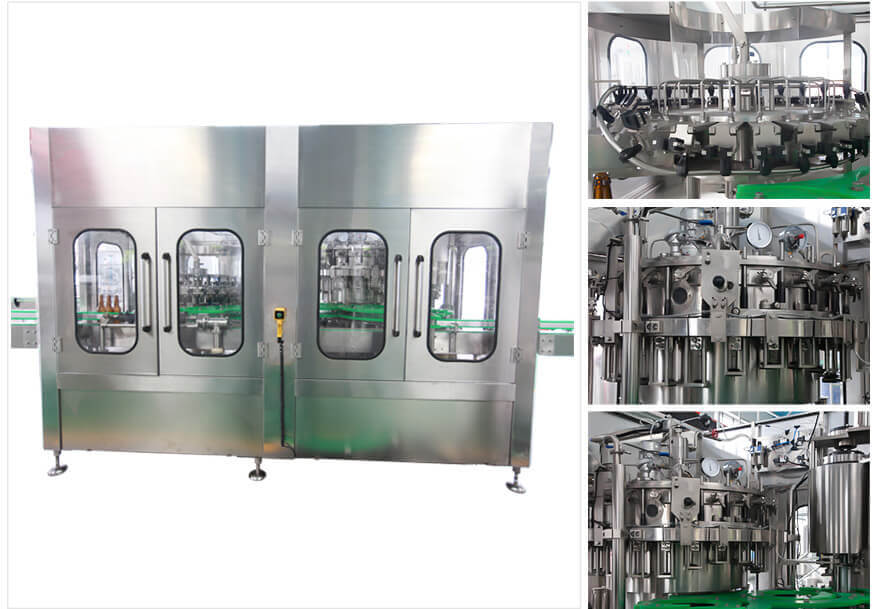

Beer Filling Machine adopts advanced “Secondary Vacuum and High Pressure Bubble Injection” technology to decrease oxygen content and improve the taste of beer; with precise pressure control and automatic defective bottle detection function, final product of Beer Filling Machine realizes perfect quality at all times.

Quantity:
Share this:
  • Model: KM
  • Brand: KM
  • Code: 8422301090
  • Product Description



Turnkey Project for glass bottle spirits
High-quality filling designed for high-proof products

-Micro-negative pressure, hygienic, accurate: the glass filler with fill level correction
-fills glass containers with still wine, sparkling wine and spirits.
-uses a Micro-negative pressure filling method which is gentle on the product.
-guarantees highly precise fill quantities.
-operates reliably while simultaneously generating low investment and production costs.

King Machine Beverage Production lines are equipped with high-quality, technologically sophisticated single machines and process components: Whether you prefer a standardized solution or an individual solution, come and talk to us and we will be happy to help.

Model BGF16-12-6 BGF18-18-6 BGF24-24-8 BGF32-32-8 BGF40-40-10
Heads of washing,filling,sealing 16-12-6 18-18-6 24-24-8 32-32-8 40-40-10
Production capacity(bottle/hour) 1500-2500 2500-4500 4500-6000 6000-8000 8000-9000
Suitable bottle height(mm) H=170-320,D=50-100(330-1500ml)
Total power(kw) 1.5+0.37 2.2+0.37 3+0.45+0.25 5.5 7.5
Overall dimension(L*W*H)(mm) 2300*1680*2650 2500*1760*2650 3100*2100*2650 3800*2800*2650 4000*3300*3400
Weight(kg) 2600 3500 4650 6800 8500

Characteristics of Used  Negative Glass Bottle Filling Machine  :

1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

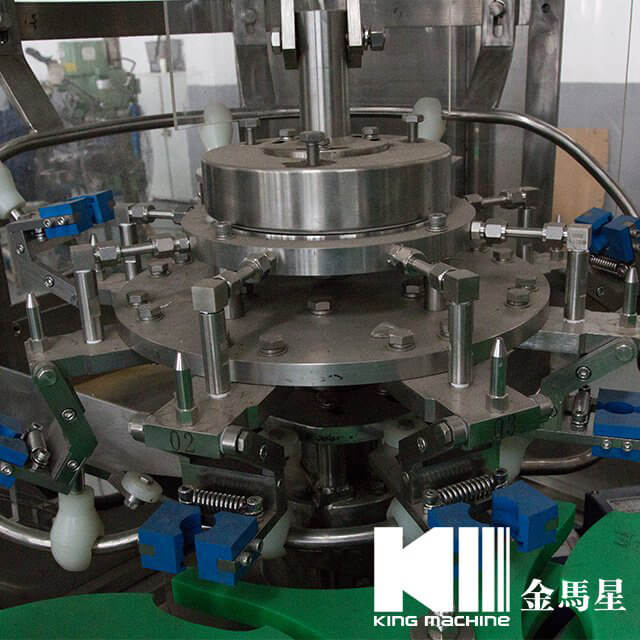

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

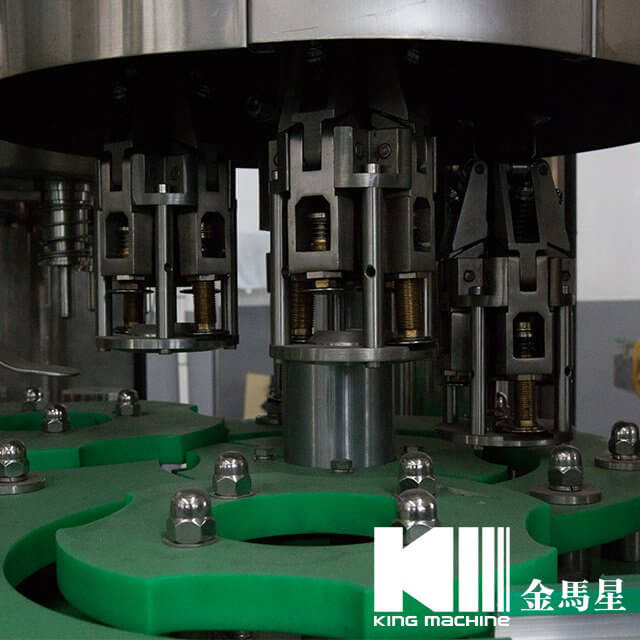

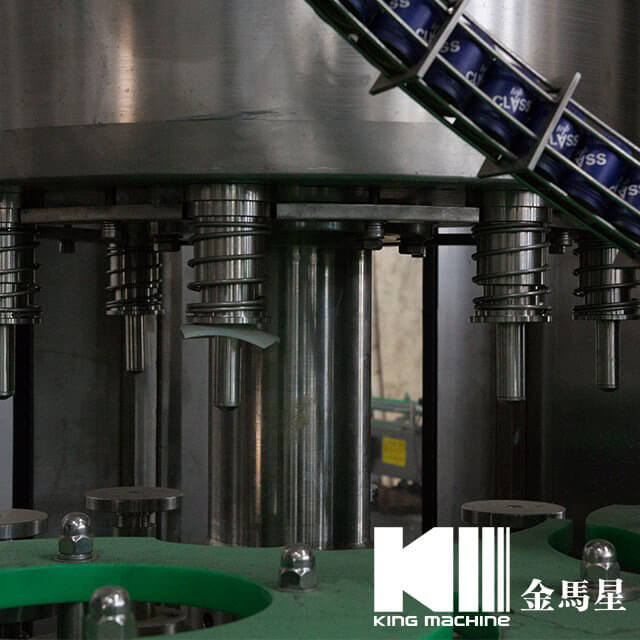

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON




    Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.
×
