Working principle of machine:


1, When empty cans go into the first set automatically by conveyor, gas tubes (carbon dioxide) automatic down to the bottom of the cans and inject carbon CO2(carbon dioxide), which exchange the air inside the can due to the density different of carbon dioxide and air.


2, The can Injected co2 goes into the second set automatically by conveyor,, beer tube automatic down to the bottom of the cans and filling beer.


3, Filled cans go into the sealing machine automatically by conveyor, before sealing, inject CO2

again then start sealing, which ensure there’s no air inside of the can.




Model

BJM4/4/1

Capacity

1500BPH

Inflatable   head

4

Filling   head

4



Sealing   head

1

Suitable   can diametermm



Suitable can diameter: φ50-φ90mm

Suitable can height:   100-160mm

Motor   powerKW

1.65

Outside   dimension

2200*1000*2000

Machine total weight(Kg)

500



Configuration:


Main electrical components

No

Name

Producer

1

PLC

Japan Mitsubishi

2

Inverter

Japan Mitsubishi

3

Touch screen

Taiwan WEINVIEW

4

button ,light

Schneider France

5

Low pressure circuit breaker

Schneider France

6

Control relay

Schneider France

7

AC contactor

Schneider France



Detail information:



CUSTOMER: IPS

PRODUCT SIZE: 355ml 211Diameter/202Neck x 413Height Aluminum Can

PRODUCTION RATE: 1,500cph or (25cpm - Can Per Minute)

FILL PRODUCT: Beer



CAN UPLOADING TABLE

·         Used for can storage before rinsing



GRAVITY TRACK RINSER

·         Declining Twist Rinser Arrangement

                    o   Twist Rinse Decline Angle 30

o   Rinser Spray Nozzles Piping have Single Point Connection

o   Track and Rinser are supported

·         Trackwork Rinser Infeed and Trackwork Rinser Discharge

·         Fully Enclosed Spray Area to contain Spray Mist and Water Runoff

·         Under Track Drip Pan with Drain

·         Rinser manufactured with 304 stainless steel

·         This unit has a solenoid to shut down water when machine is not operating

·         Capable of 1500 (cph) Cans Per Hour or 25 (cpm) Cans Per Minute



Fully Enclosed Spray Area

Capacity

1500 cans per hour

Suitable can diameter

φ50-φ90mm

Suitable can height

100-160mm

Weight

200kg

Length

1500mm

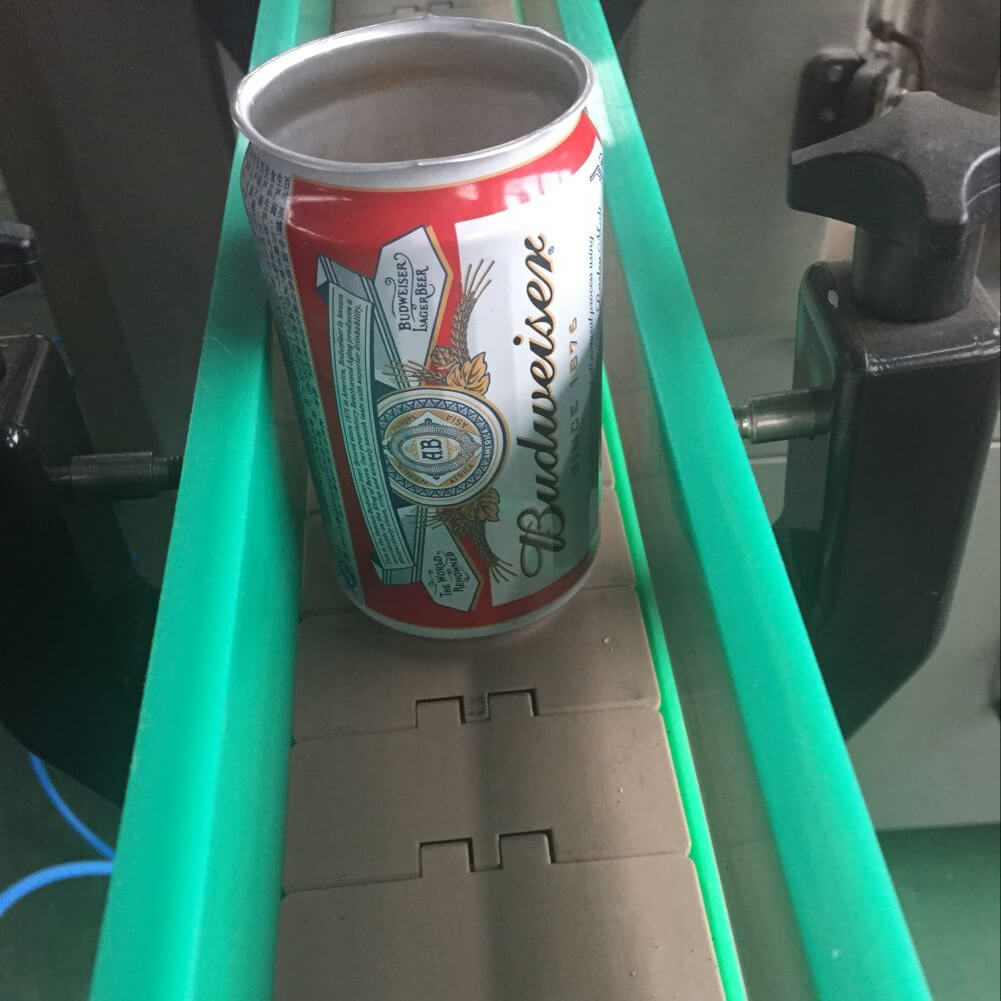

INFEED CONVEYOR

·         Approximately 5 feet (1524mm) Single Lane Filler/Seamer Infeed Conveying Trackwork from the Rinser will Sweep onto the Filler/Seamer Infeed Conveyor

·         Conveyor have Support Legs

·         Conveyor Side Body manufactured with 304 stainless steel

·         Should be single drive motor for entire conveyor mounted on discharge conveyor

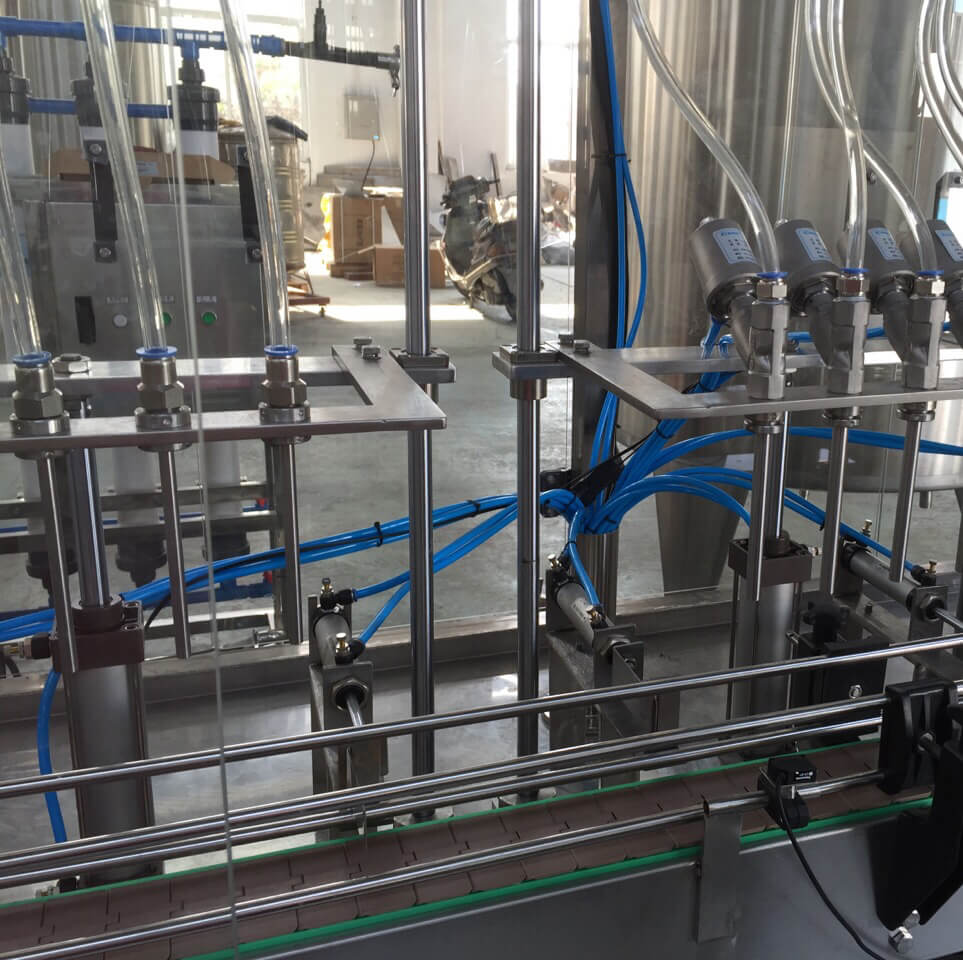

FOUR HEAD CO2 INJECTION & FOUR HEAD LIQUIID FILLER UNIT

·         Filler/Seamer Unit approximately 86” long x 39” wide & 78” high

o   2200mm Long x 1000mm Wide x 2000mm High

·         Capable of 1500 (CPH) Cans Per Hour or 25 (CPM) Cans Per Minute

·         4 Head CO2 Inflatable Head for CO2 (carbon dioxide) Introduction for Oxygen evacuation

·         4 Head Liquid Filling Station

·         Adjustable guide rails for can stability.

·         Filler/Seamer have full 360 degree Plexiglas Shielding with doors.

·         Full Controls Package

o   One Controls Cabinet for Filler, Seamer, Conveyor and other Ancillary Devices

·         Filler manufactured with 304 stainless steel

·         There be a drain pan under the main machine

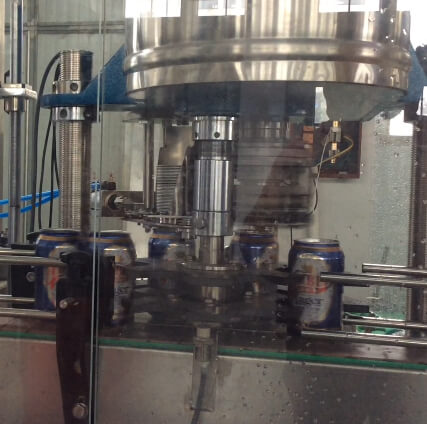

SINGLE STATION DOUBLE SEAMING OPERATION

·         Single Station Double Seaming Operation

·         Before Lid Dropper applies Ends CO2 dose is Injected

·         Before Seaming Operation Automatic Lid Dropper

·         Off Line Can Seamer Station

o   Cans are positioned to engage the Seaming Chucks

o   The Seamer Tooling Head while Spinning Lowers Down to the Can to engages the Seamer Tooling

·         2 Stage Seaming Operation (Seaming Chucks Included)

o   Stage 1 folds the End Curl around the Can Flange

o   Stage 2 irons the double seam into it final shape creating the airtight seal.

·         Automatic Lid Dropper

·         Seamer manufactured with steel plate and 304 stainless steel (see below picture).



DISCHARGE CONVEYOR

·         Approximately 5 feet (1524mm) Single Lane Filler/Seamer Discharge Conveyor

·         Conveyor Section have Support Legs

·         One Single Motor drive the belt from the Infeed Conveyor through the Filler/Seamer to the end of the Discharge Conveyor

o   PLC: Mitsubishi

o   Motor Power: 0.55kw

·         Conveyor Side Body manufactured with 304 stainless steel



DISCHARGE PACKING TABLE

·         Discharge conveyor is capable of pushing onto Packing Table

·         90 degrees to the discharge conveyor and cable of holding 70 cans minimum

·         There are rails to avoid Filled Cans from falling off



ADDITIONAL INFORMATION REQUESTS

·         Power:

o   60 Hertz for USA Power Requirements

o   220VAC 3 phase preferred

·         Compressed Air Requirements 0.5m3/min

·         Single Cabinet Controls Package for Filler & Seamer

·         Conveyor Belt Drive Motor

·         Warranty

·         1 year Warranty

·         Warranty includes: The components are warranted against manufacturing defective parts for a period of fourteen months from the date of delivery basing on eight hours/shift of five day working week. This warranty does not cover consumption parts and parts failure due to improper use of equipments, abuse normal wear parts and etc.

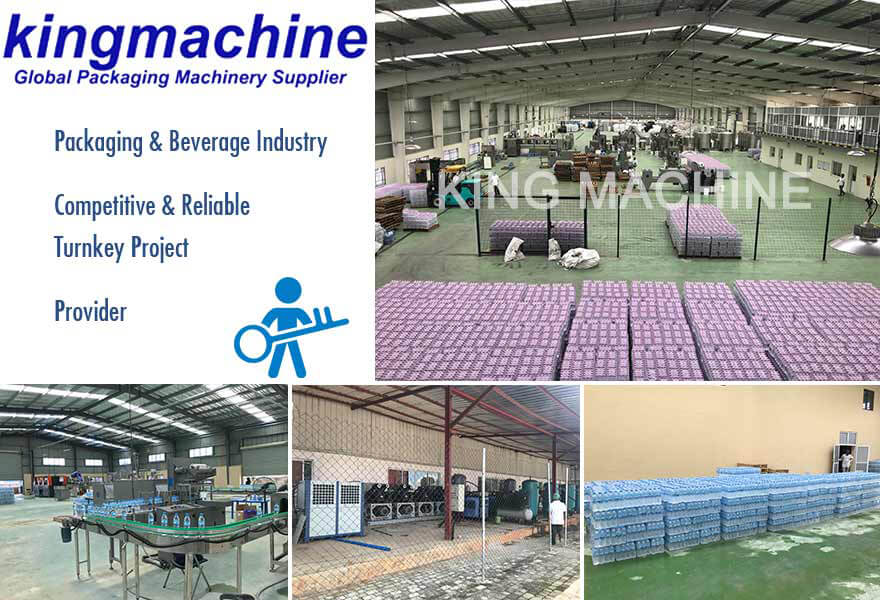

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

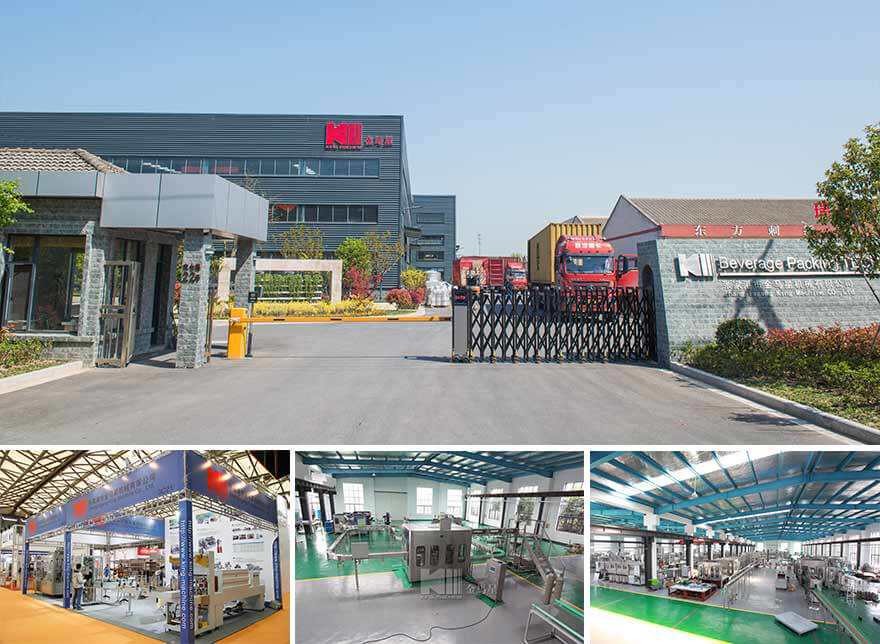

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.
To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.
Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
×
