2000-24000B/P Beer Canning Line Carbonated Soft Drink / Energy Drink / Tea Drink / Juice Aluminum Can Filling Production Line 2000-24000B/P Beer Canning Line Carbonated Soft Drink / Energy Drink / Tea Drink / Juice Aluminum Can Filling Production Line

Quantity:
Share this:
  • Model: GDF
  • Brand: KM
  • Code: 8422
  • Product Description
  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ

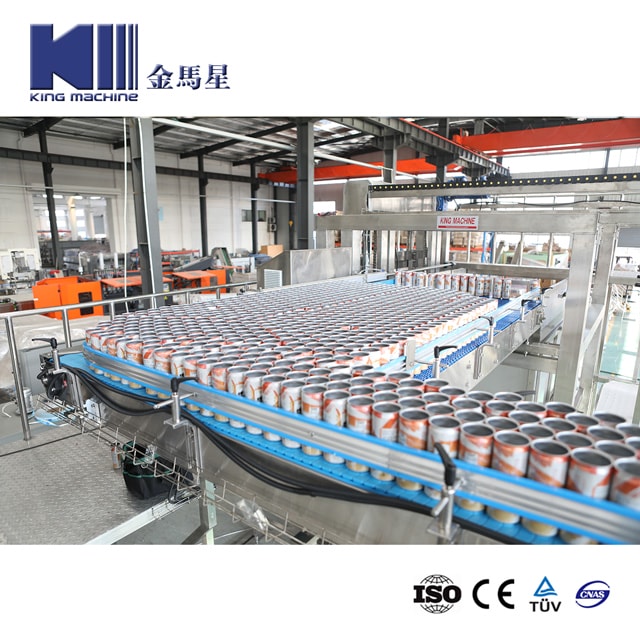

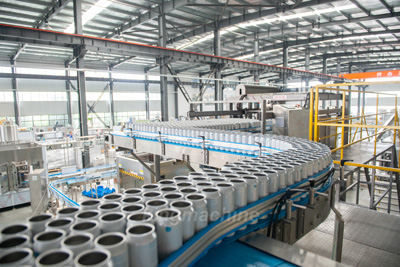

2000-24000B/P Carbonated Soft Drink Aluminum Can Beer Canning Line

canning lines.jpg


Aluminum Can Line.jpg

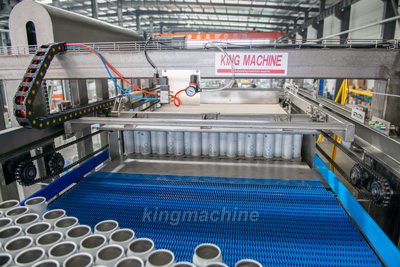

Can de-palletizer
•replace the manual can arrangement
•increase production efficiency

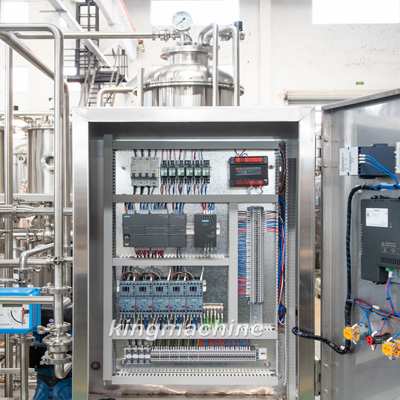

•plc programmable computer automatic controller ,photo-electricity switch,over travel-limit switch.

Can de-palletizers

Can de-palletizer


Can de-palletizer

Can de-palletizer


de-palletizer

Can de-palletizer

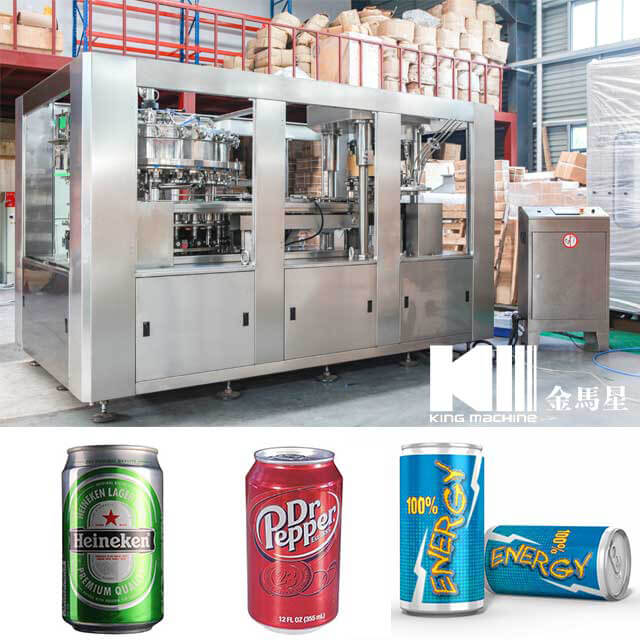

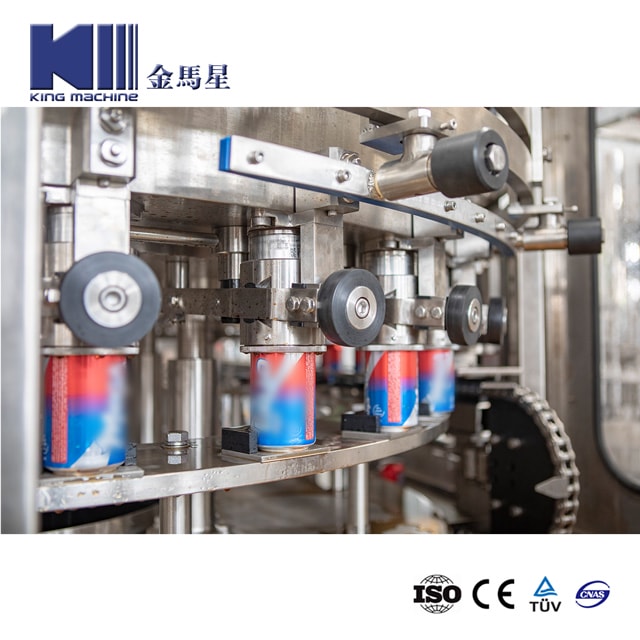

Can filling & sealing monoblock machine

1.The equipments constitute
Mainly the filling machine is from the filing urn and the filling valve. After can is washed, it is transferred to the filling machine through the middle spider. The star wheel will stuck can and sent them into the filling machine. The base will support the can to rotate around the filling machine, and the roll will open, the liquid will into can.

2.The filling principle:
In this machine of infuse and filling valve for equal take press the pressure type to filling, the speed is slow, the accuracy is high and thus guarantees to the filling quantity.

3.The filling valve
The filling valve is one of the key parts that the filling machine, the filling valve is make up of the valve core, valve body ,valve seat , umbrella?wide liquid valve---etc---
3.1. When can from in the center the star round enters a can-base of board, the filling valve taking the valve coat, the valve core is together up move, at this time 0 type roll 1 take off with the valve seat to open, enter the filling district.
3.2.The material continue downflow, until the bottle filling up ,when the rolls round to carry on the cam, the filling valve to move up,0 type circle 1compress tightly the valve body, make the material no longer enter the valve tube of the valve core.

(II) Cap screwing Machine
1.Equipment composition
The cap screwing machine is composed of frame, slide way, cap screwing device, transmission and others.
The transmission of the cap screwing machine is drive to the gear by the reduce, the power is transferred to the cap screwing head through the hollow main axle.
The can is not rotating, the four small rolls will rotate and press cap. The cam is fixed. The cap is sent into the gear ring of the screwing cap head through the stirring device and slide way. When there is a can on the convey belt, a cap will move down with the rotating of the screwing cap head and screw the cap on the can mouth.


counter pressure canning line

Can filling & sealing monoblock machine

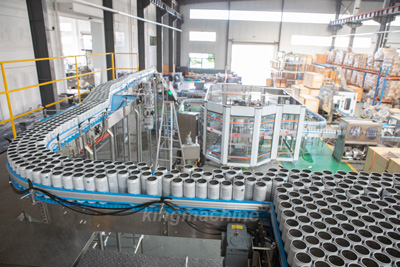

Canning Line

Can filling machine


can sealing machine

Can sealing machine

Technical Parameter:

ModelGT14-4(A)GT18-4(A)GT24-6(A)
Can sizeDepends customerDepends customerDepends on customer
Filling Temperature0-4℃0-4℃0-4℃
Filling head121824
Sealing Head446
Capacity100-120cans/min120-150cans/min150-200cans/min
Power5.5kw5.5kw7.5kw
Overall size2800×1600×20003000×1700×20003200×1800×2000
Weight3500kgs4000kgs

4500kgs

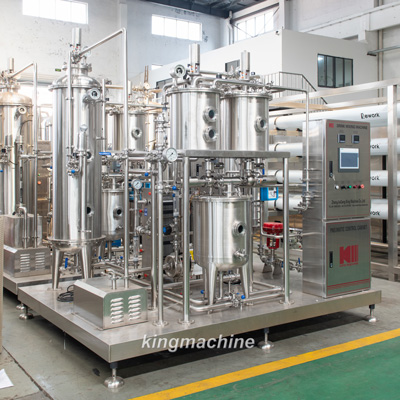

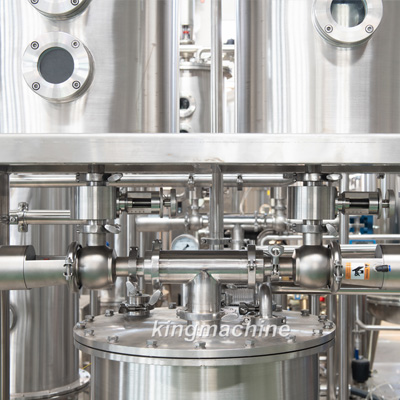

Carbonated Drink Mixing Part

•Wide range of uses - The system can handle a wide range of products such as carbonated drinks, juice drinks, etc.
•Structural Hygiene - All parts in contact with fluids are of high quality stainless steel, all tanks are equipped with CIP ball for easy cleaning.

drink mixer

drinks mixing machine


drinks mixing machine

drinks mixing machine


mixing machine

drinks mixing machine

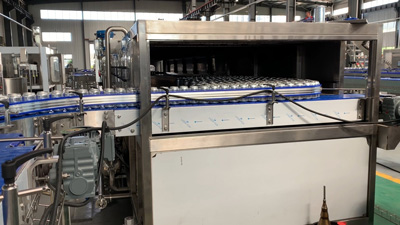

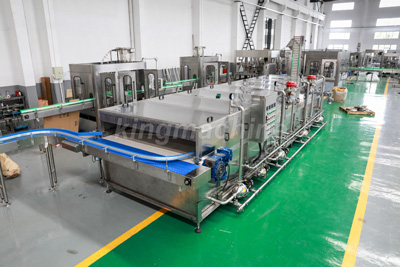

Can cooling Tunnel
•Mainly for cooling and sterilization
•Nozzles are manufactured using U.S. technology and spray water evenly
•Conveyor belt adopts Rexnor technology, flat surface with small wear
•Overload protection mechanism to effectively ensure the safety of the machine

Can cooling Tunnel

Can cooling Tunnel


cooling Tunnel

Can cooling Tunnel

For Aluminum can

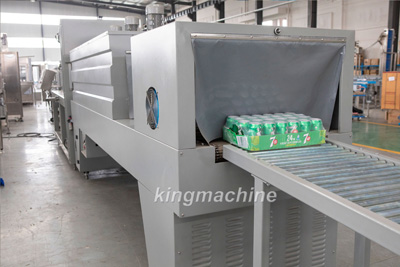

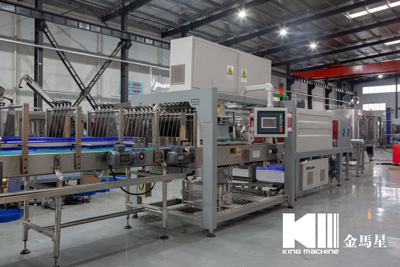

Shrink wrapping machine with carton tray

1.Packing speed: 25-30 packages/min
2.Shrink chamber:L×W×H=2500×700×450(mm)
3.Shrink temperature:160℃~230℃

wrapping machine

Shrink wrapping machine with carton tray


Shrink wrapping machine

Shrink wrapping machine with carton tray


Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.


1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

×
