2018 New Technology Juice High
Temperature Processing System and Filling
Packaging Machine Project

——King Machine

BRIEF INTRODUCTION

OF HOT FILLING JUICE PRODUCTION LINE

Juice, tea, milk based product, liquid food, energy drinks, milk tea, coffee and so on are all hot filling products. The product variety is ever increasing with flavors and textures preferred by customers.

The variation of beverage has extremely high requirements for the production equipment. King Machine filling machines will provide different solutions for different products. Every one of your products will have its optional solution.

KEY
FEATURES

OF
JUICE LINE

Automatic Juice Filling Machine adopt Rinsing / Filling / Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304/ SUS316.

It can apply to fill hot fruit juice, tea and other beverageinto thermal proof glass bottle by changing few spare parts.

Its usual production capacity is in 1,000-32,000bph, 0.25-2L glass bottle is available.

Pivotal electrical parts use Mitsubishi, OMRON, and SIEMENS.

Filling accuracy is more or less than 1%.

The filling solution giving attention to the color and taste and keeping natural, green , health, nutrition flavor without preservatives and additives brings consumers brand-new and visual sense and comfortable drinking pleasure.

Production Line
CAD Configuration
_0000_IMG_2078-HDR
cad

For Specail Layout  Contact for Advanced Customization!

Glass Bottle Juice Filling Machine

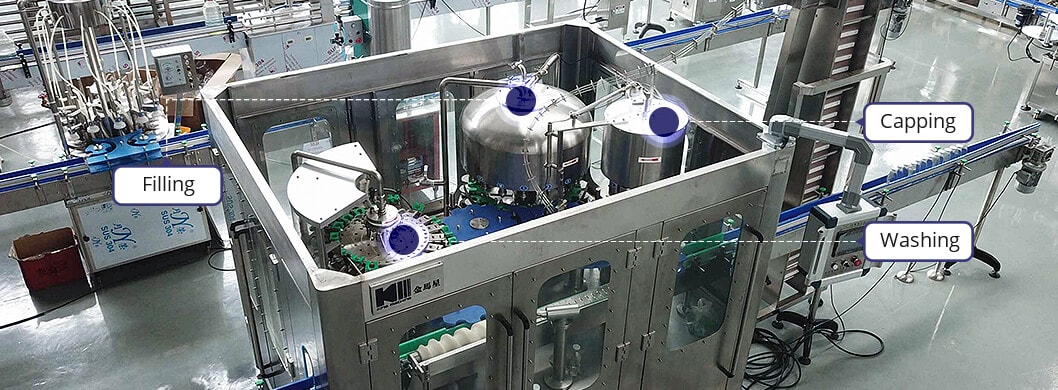

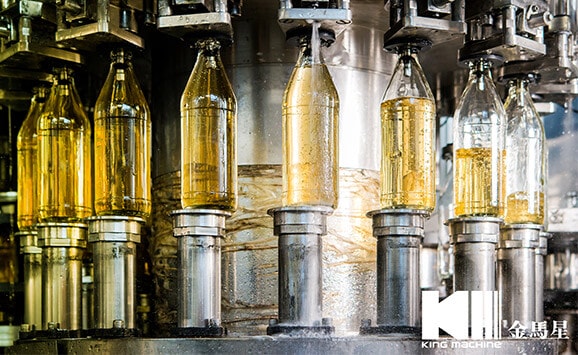

RCGF Wash-filling-capping 3-in-1 monobloc for Glass Bottle: The automatic fruit juice packaging machine is used in hot filling and sealing of green tea, black tea, wu-long tea and fruit juice drink, energy drinks, milk drinks, Dairy drinks. This machine integrates washing, filling and capping together. The design is scientific and reasonable. Its appearance is beautiful. Its operation and maintenance is convenient. The automation is high.

Pet Fruit Juice Filling Machine
  • Washing Heads

  • Filling Heads

  • Capping Heads

  • Flat Conveyor

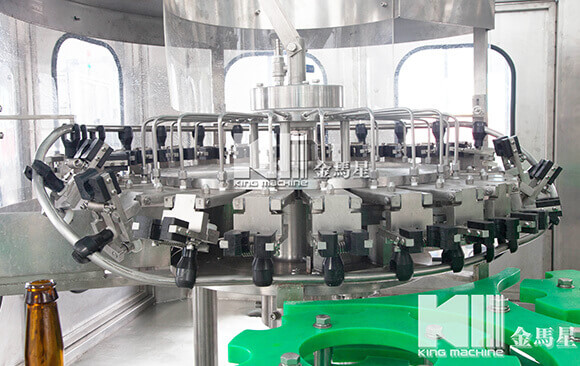

WASHING HEADS

DESCRIPTION

- Into bottle way is air conveyor direct connection with Bottle dial.

- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.

- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

- 304/316 stainless steel washing pump make the machine more durable.

Washing heads of csd machine line

FILLING HEADS

DESCRIPTION

- 304/316 Stainless steel high precision filling nozzle

- Filling volume adjustable in fine rank, same liquid level after filling

- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

- 304/316 stainless steel filling pump

- Effective control of pollution during the filling time

Filling heads of csd machine line

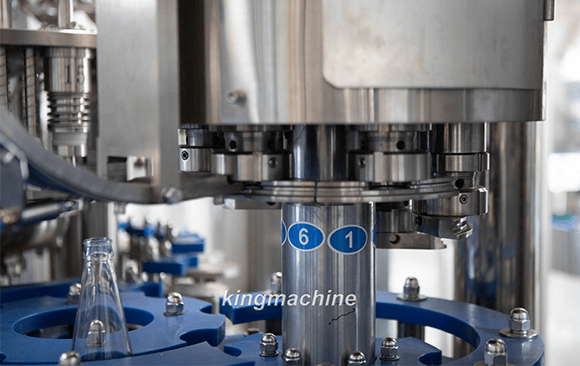

CAPPING HEADS

DESCRIPTION

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

- All 304/316 stainless steel construction

- No bottle no capping

- Automatic stop when lack of bottle

- Capping effect is stable and reliable, Defective rate ≤0.2%

capping

FLAT CONVEYOR

DESCRIPTION

- Energy saving. High efficient. Adapt to customer factory layout

- Special lubrication system, keep products clean, health, safety

- Extended service life

- Electric eyes design keep whole line running safety and quickly

- Overload protection mechanism to effectively ensure the safety of the machine

1
AUXILIARY EQUIPMENT

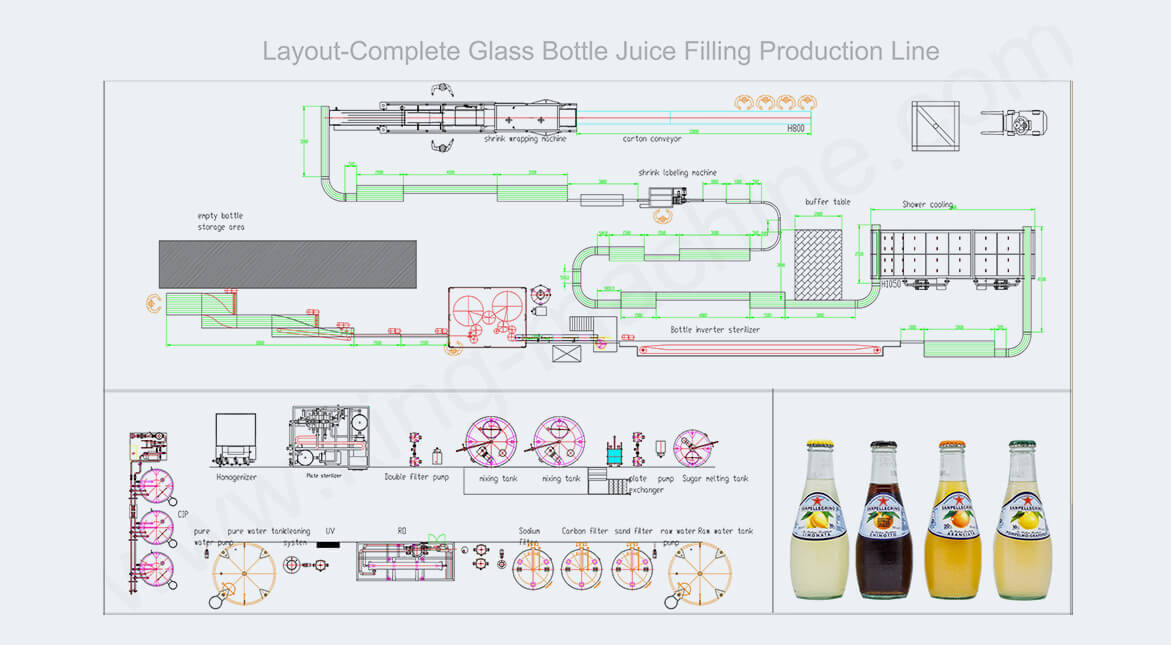

OF LAYOUT - GLASS BOTTLE JUICE FILLING LINE
Pre-process system

Pre-process system

  • The demand for hot drinks such as milk nutrition drinks, juice, tea, energy drinks, coffee is increasing worldwide. In order to meet different taste requirements, King Machine is engaged in providing high quality hot drink preparation system to diversify the products.

Contact Us

Water Treatment System
Water Treatment System
  • Raw water tank + Raw water pump

  • Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter

  • Reverse Osmosis (one level)

  • UV sterilizer

  • Finished water tank + Pure water pump

  • Stainless steel high pressure film shell

  • All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system

  • Online type pressure auto self-protection device

  • Online type electricity indicator (with stable compensation)

  • System safe protecting and alarm system

  • System frame

Bottle Invert Sterilizer

Bottle Invert Sterilizer

  • Use juice own high temperature to kill the bacterial inside cap.

  • Use juice own high temperature to improve sealing of bottle to extend warranty time.

  • Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.

Bottle Cooling Tunnel

Bottle Cooling Tunnel

  • Mainly for cooling and sterilization

  • The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation

  • Nozzles are manufactured using U.S. technology and spray water evenly

  • Conveyor belt adopts Rexnor technology, flat surface with small wear

  • Smooth and reliable operation with low energy consumption

Cold-Glue-Labeling-Machine-圆弧透明底

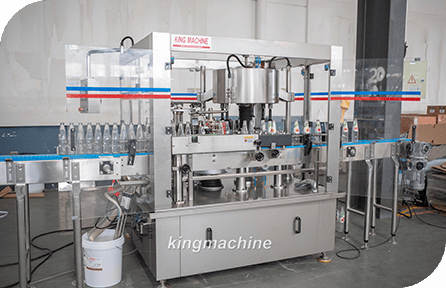

Cold Glue Labeling Machine

  • The KM Cold-Glue is an automatic rotary labeling machine for the application of pre-cut (cut & stack) paper labels (or aluminium foil) on either cylindrical or shaped containers made of glass, plastic or metal.

  • The KM Cold-Glue is an automatic rotary labeling machine to apply, with maximum reliability and precision, pre-cut paper labels (or aluminium foils) on either cylindrical or shaped containers made of glass, plastic or metal.

  • The wide range of models available offers the possibility to apply a number of Cold-Glue labels on the same container. Additional applications (tax or seal label, partial/total aluminium foil are possible). Production speeds up to 72.000 BPH.

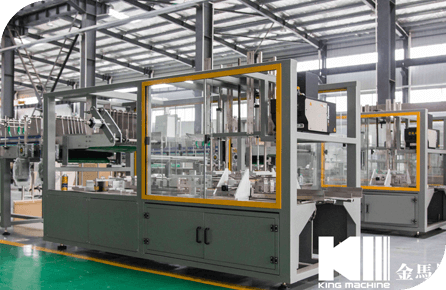

Automatic Carton Packaging Machine

Automatic Carton Packaging Machine

  • Applicable to pack glass bottle

  • Increase production capacity

  • Saving production costs

  • It is a drop-in compatibility, applicable to different specifications carton packing machine, the bottle effectively stand in line to the top of the carton, in accordance with the packing requirements, automatic positioning device to ensure that the bottle is packed by product fall into the carton, this machine adopts PLC + touch display control, alarm device .no bottle no packing security.

More detailed equipments info  Click here

CUSTOMER TESTIMONIAL
OF LAYOUT - GLASS BOTTLE JUICE FILLING LINE
Before 4years we ordered 24-24-8 filling line from king machine, until now it works fantastic, and now we plan to start juice filling line, we still choose King machine as our supplier.
MOHAMED TUTLA -OWNER OF COOL DROP WATER
Malawi
×

Contact Us
