We use a wide variety of filling valve (Gravity,
negative pressure, isobaric, piston type etc.)

——King Machine

CHOOSE YOUR SOLUTION

COMEPLETE PRODUCTION LINE

BRIEF INTRODUCTION
OF SAUCE JAM PRODUCTION LINE

KEY
FEATURES

OF HOT FILLING LINE

Round bottle,Contact-type volumetric filling method

Vacuum suction after filling to avoid dripping

S/S 304 frame, top plate

S/S 304 frame, top plate

Sterile product connection interface provided by customer

FLOW CHAT - Plastic Bottle
  • Water Treatment

  • Sauce processing system

  • Bottle Blowing Machine / Bottle Unscrambler

  • Air Conveyor + Flat Conveyor

  • Rotary Type 3 in 1 Filling Machine

  • Light Checking

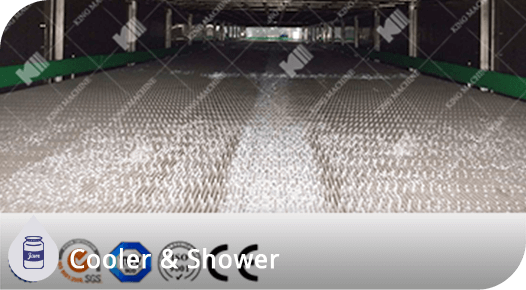

  • Cooler & Shower

  • Labeling Machine

  • Date Code Printer

FLOW CHAT - Glass Bottle
  • Water Treatment

  • Sauce processing system

  • Bottle Unscrambler

  • Flat Conveyor

  • Rotary Type 3 in 1 Filling Machine

  • Light Checking

  • Cooler & Shower

  • Labeling Machine

  • Date Code Printer

  • Bottle Packaging Machine

3D Virtual Show
CAD Configuration

For Specail Layout  Contact for Advanced Customization!

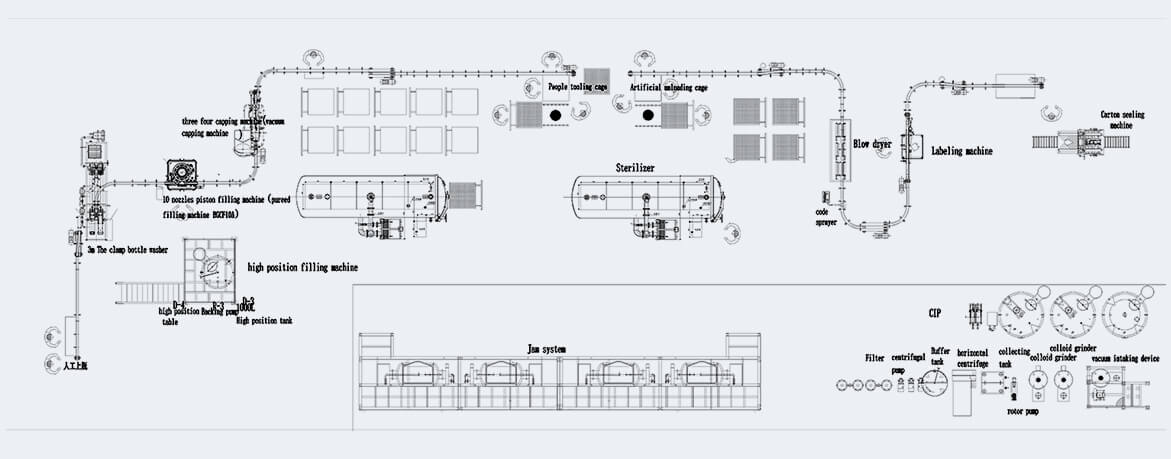

Layout - Rotary Jam Filling Machine

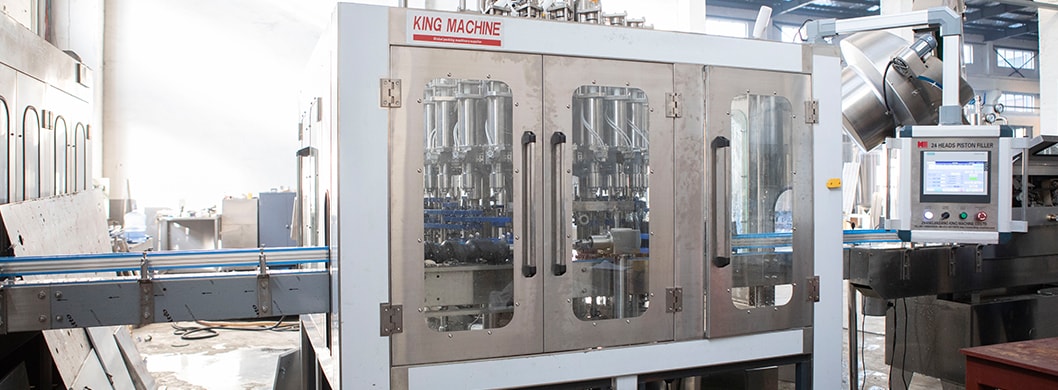

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

washing filling capping machine

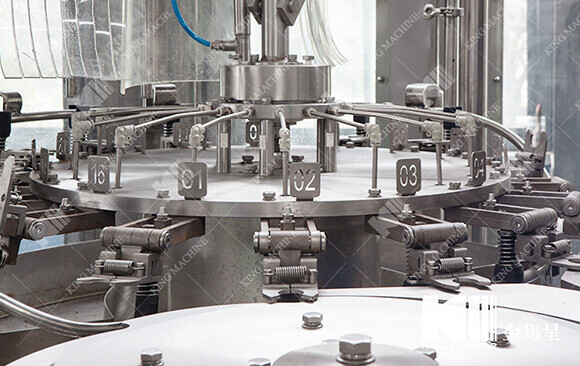

  • Washing Heads

  • Filling Heads

  • Capping Heads

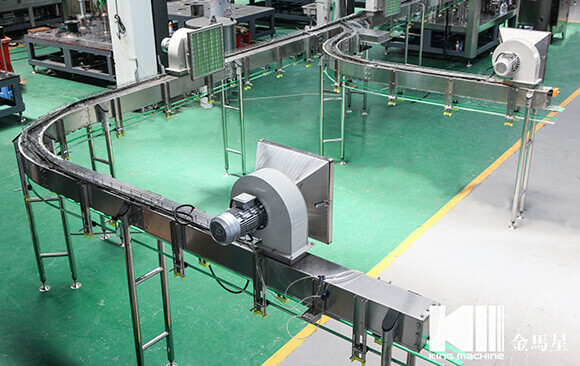

  • Air Conveyor

  • Flat Conveyor

WASHING HEADS

DESCRIPTION

- Into bottle way is air conveyor direct connection with Bottle dial.

- All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean.

- 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.

- 304/316 stainless steel washing pump make the machine more durable.

Washing heads of water filling machine

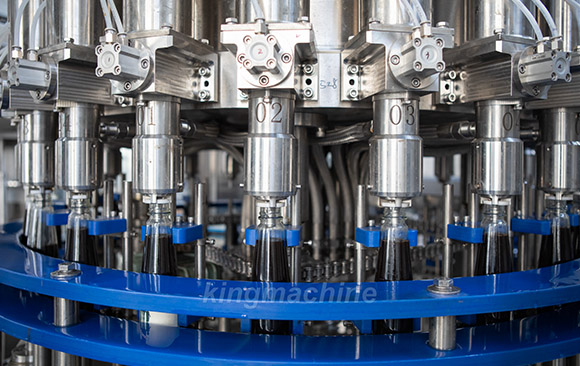

FILLING HEADS

DESCRIPTION

- Round bottle, contact-type volumetric filling method

- Vacuum suction after filing to avoid dripping

- S/S 304 frame, top plate

- Main electronic components, famous brand, touch screen, PLC by Mitsubishi

- Sterile product  connection interface provided by customer

Washing heads of water filling machine

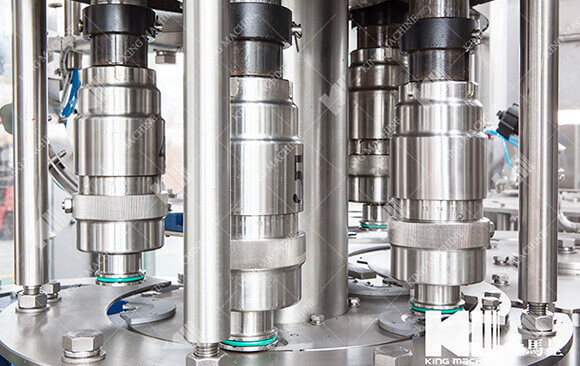

CAPPING HEADS

DESCRIPTION

- Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

- All 304/316 stainless steel construction

- No bottle no capping

- Automatic stop when lack of bottle

- Capping effect is stable and reliable, Defective rate ≤0.2%

Washing heads of water filling machine

AIR CONVEYOR

DESCRIPTION

- 304/316 Stainless steel high precision filling nozzle

- Filling volume adjustable in fine rank, same liquid level after filling

- All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

- 304/316 stainless steel filling pump

Washing heads of water filling machine

FLAT CONVEYOR

DESCRIPTION

- Energy saving. High efficient. Adapt to customer factory layout

- Special lubrication system, keep products clean, health, safety

- Extended service life

- Electric eyes design keep whole line running safety and quickly

- Overload protection mechanism to effectively ensure the safety of the machine

Washing heads of water filling machine

AUXILIARY EQUIPMENT

OF LAYOUT - ROTARY JAM PRODUCTION LINE

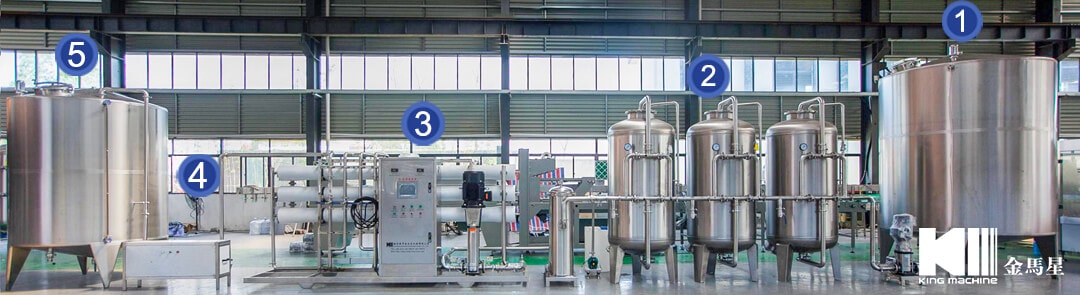

Water Treatment System
water treatment system
  • Raw water tank + Raw water pump

  • Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter

  • Reverse Osmosis (one level)

  • UV sterilizer

  • Finished water tank + Pure water pump

  • Stainless steel high pressure film shell

  • All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system

  • Online type pressure auto self-protection device

  • Online type electricity indicator (with stable compensation)

  • System safe protecting and alarm system

  • System frame

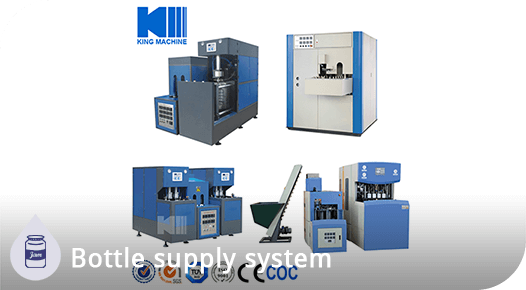

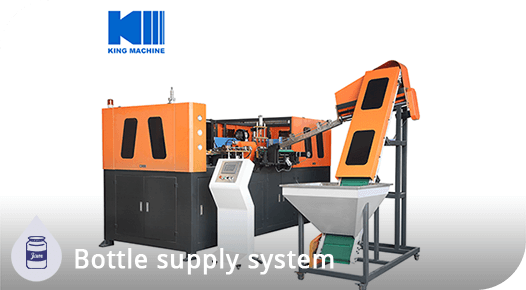

1 Semi-auto Blowing System
2 Full-auto Blowing System
3 Bottle Unscrambler

Picture for full automatic blow molding machine , is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

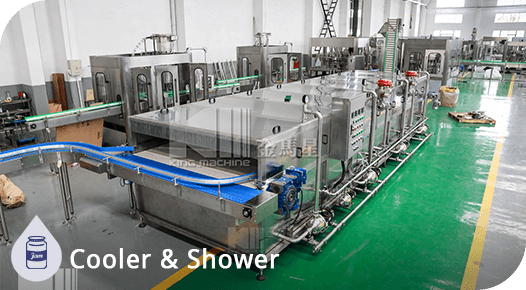

- Mainly for cooling and sterilization
- The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
- Nozzles are manufactured using U.S. technology and spray water evenly
- Conveyor belt adopts Rexnor technology, flat surface with small wear
- Smooth and reliable operation with low energy consumption

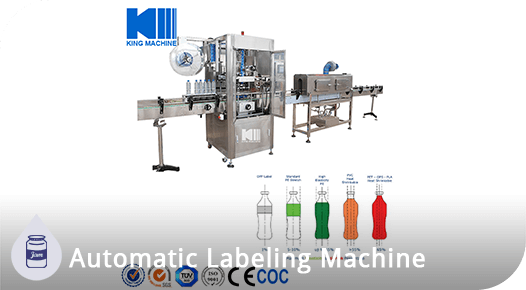

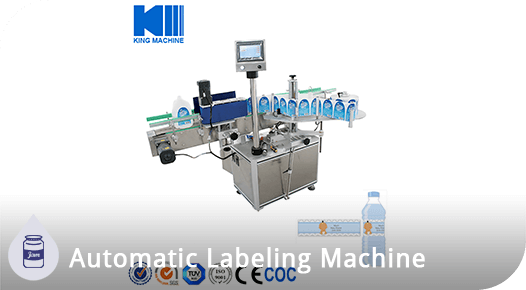

1 Heat shrink sleeve labeling machine
2 OPP Hot melt labeling machine
3 PVC/Paper label stick labeling machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

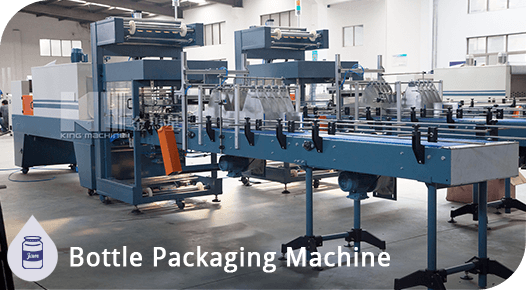

1 PE film shrink wrapping machine
2 Half-tray shrink wrapping machine
3 Carton box packaging machine

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

More detailed equipments info  Click here

CUSTOMER TESTIMONIAL
OF SAUCE JAM PRODUCTION LINE
Before 4years we ordered 24-24-8 filling line from king machine, until now it works fantastic, and now we plan to start juice filling line, we still choose King machine as our supplier.
MOHAMED TUTLA -OWNER OF COOL DROP WATER
Malawi
×
