Glass bottle wine filling line working system is important to know. Bottles driven by variable pitch screw are transferred to rinsing part through bottle-inlet star wheel. Nylon bottle holders nip the bottle necks and rotate 180°along a slideway to make the necks upside down. In certain area of rinsing part, the spraying nozzles spray water to rinse the internal surface of the bottles. After rinsing and dripping, bottles are rotated 180°again along a slideway to make the necks upward. Then bottles are transferred to filling part through the star wheel. Bottles will contact and lift the filling valves by bottle holder lifting device, thus filling passages are opened.
Wine filling bottle machine uses vibration type cap unscrambler. By vibrating, disordered caps will be transferred to the cap tunnel in a good order. The ordered caps will be transferred to the position above the bottle-inlet star wheel. By adjusting the position, cap picking and cap sleeving will start before bottles enter the capping part.

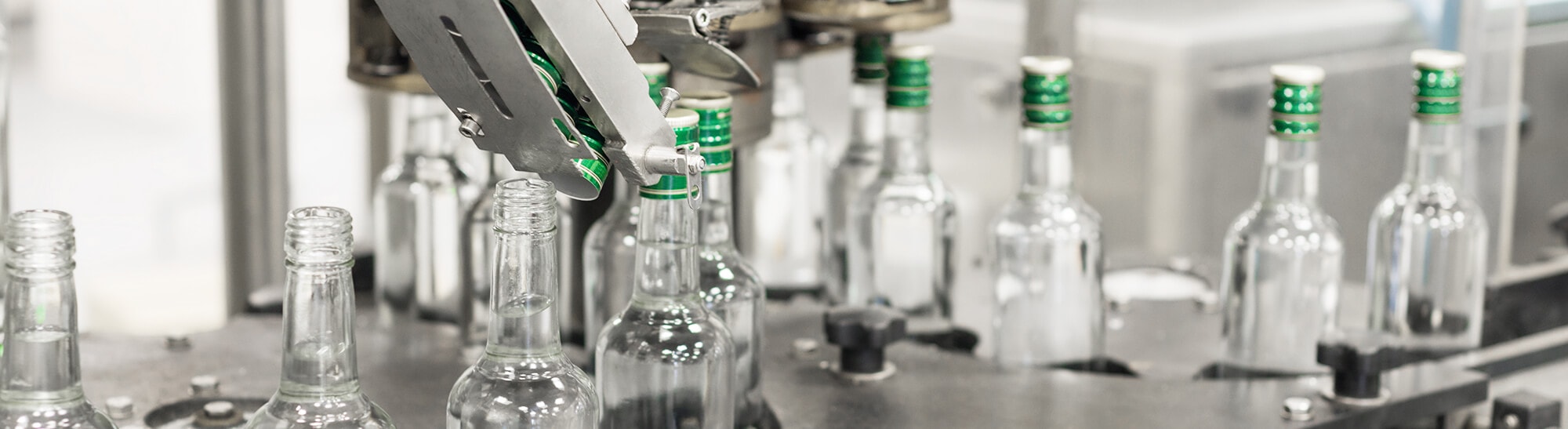

The cap pressing head will press the cap under the cam slideway. After cap pressing finishes, the pressing head will lift and the bottles will be transferred to the conveyor by bottle-outlet star wheel and go into the next process.
100,000 original spare parts manufactured annually
Own service station and spare parts stock in Middle east and Africa
Many successful stories and customer reference
We employ 100 packaging scientists, engineers and designers
800 new bottle designs and drawings created every year
Manufacturer can give you best price and reliable support on service and spare parts supply
DescriptionCompact structures, perfect control system, simple operation, and high automation
It’s easy to change different bottle sizes by changing star wheels and guide rings, and adjust related height.
The whole machine adopts corrosion-resistant, long life-span and lubrication-free structures to reduce running cost. The part contacting product uses good quality stainless steel.
It adopts trough type sieving cap unsrambler, which can make caps in the same diretion. Caps (cap lacking and cap full) are controlled automatically by installing sensors on cap barrel and slideway.
Overload protection devices are installed on bottle-inlet and bottle-out star wheel to ensure the safe running of the equipment
It adopts touch screen to realize human-computer interaction and it has strong expansibility. The running of the equipment can be clear at a glance.
| Item | Subject | Parameter |
|---|---|---|
| 1 | Name | Washing filling capping two in one |
| 2 | Washing heads | 12heads - 70heads According customer demand, we supply double washing system , One for water, one for aseptic air washing |
| 3 | Filling head | 12heads - 70heads |
| 4 | Sealing head | 1head- 25heads |
| 5 | Productivity | 3000-54000bph |
| 6 | Product | Alcohol drink, Wine, Beverage |
| 7 | Motor power | 2.5lw-13.5kw |
| 8 | Applicable bottle size | Glass bottle Diameter: ф50-92mm Bottle height: 150～340mm volume: 350～2000ml |
| 9 | Applicable cap | Crown Cap, Aluminum screw cap, T shape press on decorative plastic cap, T shape press on decorative plastic cap, T Shape press on wood/cork, Plastic press on for vodka, Sport cap, Crown twist, Metal twist of, Easy open cap, Press on plastic T shape, Natural cork caps for still wine, Natural cork for champagne and sparkling wine |
| 10 | Timing type | Transducer |
| 1 | Cap Sorter motor power | 0.37Kw |
| 12 | Valve space between | 104.72mm or customized |
| 13 | Filling temperature | Room temperature |
| 14 | Filling type | Gravity filling with low vacuum system |
| 15 | Compress air wastage | 20NM³/hour |
Aluminum screw cap
Model: 28x18
T shape press on decorative plastic cap
Model: CAMUZ
T shape press on decorative plastic cap
Model: CAMUZ
T Shape press on wood/cork
Model: stopper
Plastic press on for vodka
Model: Guala
Metallic crown cap
Sport cap
Crown twist
Metal twist of
Model: Pop Rock
Easy open cap
Press on plastic T shape
Natural cork caps for still wine
Natural cork for champagne and sparkling wine
The EquipmentsBottles driven by variable pitch screw are transferred to rinsing part through bottle-inlet star wheel. Nylon bottle holders nip the bottle necks and rotate 180°along a slideway to make the necks upside down. In certain area of rinsing part, the spraying nozzles spray water to rinse the internal surface of the bottles. After rinsing and dripping, bottles are rotated 180°again along a slideway to make the necks upward. Then bottles are transferred to filling part through the star wheel. Bottles will contact and lift the filling valves by bottle holder lifting device, thus filling...
Successful CasesThe market demand for alcohol drinks in Uzbekistan is on the growing trend. New enterprises are proliferating. At the same time, the small and medium-sized enterprises are also expanding their production capacitiy. It is the same case with Elsun near Tashkent.As early as several years ago, Elsun had decided to build a new alcohol filling plant to meet the increasingly demand for alcohol drinks.
A glass bottle wine filling line is a fully automatic production system designed specifically for filling wine and alcoholic beverages into glass bottles. The line integrates bottle rinsing, filling, and capping processes into one unit, aiming to achieve efficient, hygienic, and stable wine bottling production.
The filling line is suitable for various alcoholic beverages, including still wine, fruit wine, spirits, baijiu (Chinese liquor), and other glass-bottled drinks. Different filling and capping solutions can be customized according to product characteristics and packaging requirements.
The production capacity of King Machine's glass bottle wine filling line ranges from approximately 3,000 to 54,000 BPH (bottles per hour), depending on bottle size, filling head configuration, and customers' production requirements.
The glass bottle wine filling machine is designed to accommodate glass bottles of different specifications, capable of handling bottles with a diameter of approximately 50-92 mm, a height of approximately 150-340 mm, and a capacity between 350 ml and 2000 ml. Customized solutions are also available for special bottle designs.
Glass bottle rinsing system
Wine filling system
Capping system (screw cap or cork)
Bottle conveying system
Labeling machine
Packaging equipment
The rinsing, filling, and capping processes can be integrated into an automatic filling system to improve production efficiency and hygiene.
Aluminum screw cap
Crown cap
Natural cork
T-shape decorative cap
Plastic press-on cap
Other customized sealing methods
The corresponding capping system can be configured according to the customer's bottle type and cap type.
The glass bottle wine filling machine adopts gravity filling combined with a low-vacuum system, which helps achieve stable filling performance and reduces product oxidation during filling. The filling temperature is typically designed for ambient-temperature filling processes.
Integrated system: automatic bottle rinsing, filling, and capping
Efficiency: high production efficiency and stable operation
Compatibility: compatible with various bottle types and caps
Material: food-grade stainless steel structure
Control: touch screen control for easy operation
Flexibility: supports quick changeover between bottle specifications
Cost: low maintenance cost and long service life
The main structure and all parts in contact with the product are made of food-grade stainless steel, featuring corrosion resistance and easy cleaning, ensuring reliable performance in beverage and wine production environments.

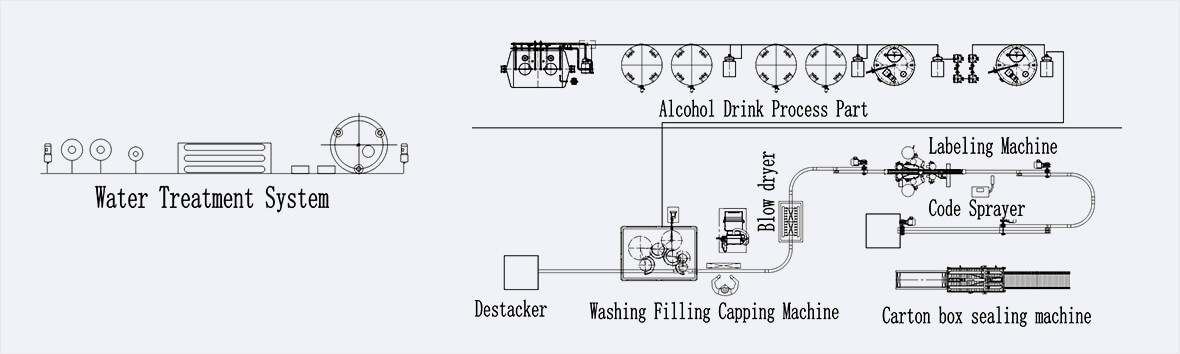

Yes. King Machine can provide a complete turnkey solution covering bottle conveying systems, wine filling machines, capping equipment, labeling machines, packaging systems, and other auxiliary equipment, helping customers establish a complete wine bottling plant.
