Regular Liquid Bleach Plastic Bottle Filling Machine for 121oz Bottle
The corrosive liquid packaging line processes bottles less than 1,000ml in voiume with an automatic bottle unscrambler filling machine, rotary capping machine, gluing/self-adhesive labeling machine, the crossive liquid production line is a complete production line that packages and seals cartons. This fast and efficient bottle packaging machine processes strong acids and bases,bleach, Clorox, and other low viscous and corrosive liquids and applies anti-theft caps.
The corrosive liquid packaging line processes bottles less than 1,000ml in voiume with an automatic bottle unscrambler filling machine, rotary capping machine, gluing/self-adhesive labeling machine, the crossive liquid production line is a complete production line that packages and seals cartons.

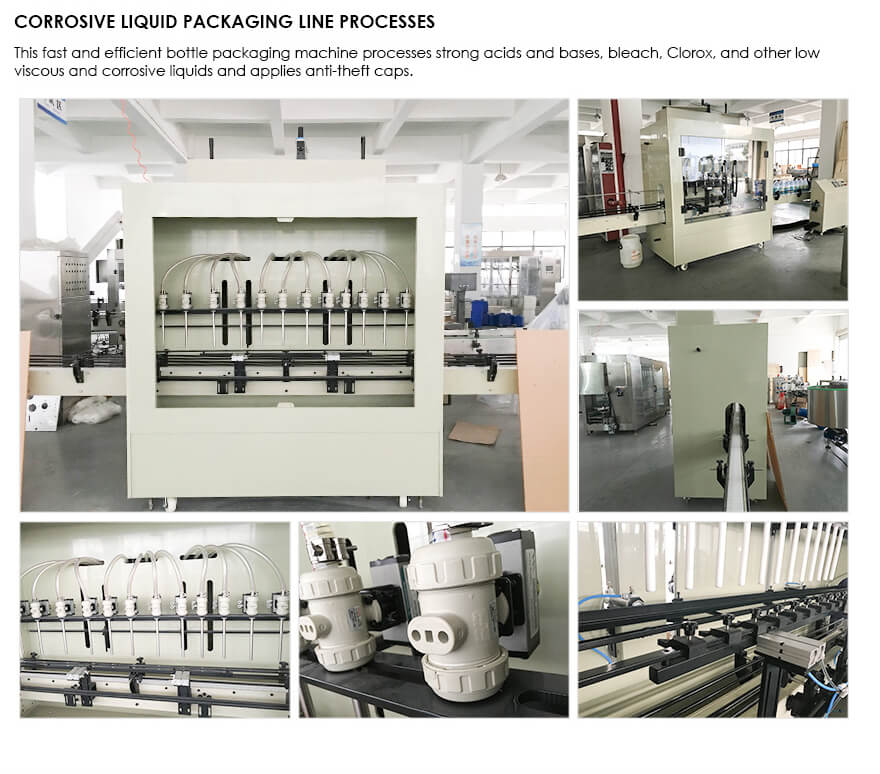

This fast and efficient bottle packaging machine processes strong acids and bases,bleach, Clorox, and other low viscous and corrosive liquids and applies anti-theft caps.
1 Brief Introduction
1.1 Suitable material: Bleach, acid liquid, 84 disinfectant, gel water,
toilet cleaner, especially used in the liquid filling of strongly corrosion liquid and cosmetics which can’t touch the metal.

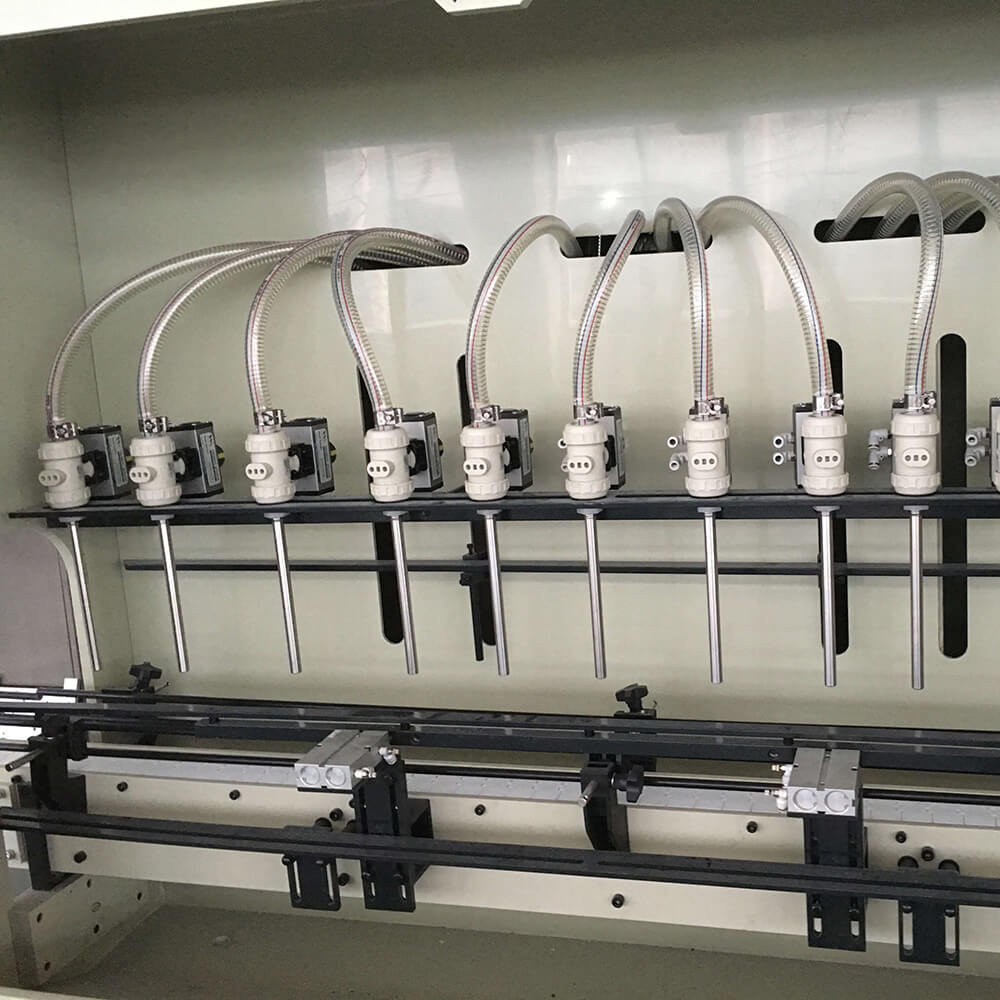

1.2 Contact liquid parts are use anticorrosive non-metallic material and
with diving function.
1.3 This Verticalfiller is a high-tech filling equipment integrating on the
PLC microcomputer programmable control, and photo electricity transduction pneumatic action.
1.4 The machine suits for the filling of different sizes of vessel may
change the filling sizes within a few minutes.Short filling circle, high production capacity.
1.5 User may choose the filling volume and decide the filling heads per
own production capacity.
1.6 The precision time of the pneumatic valve filling may set to 0.01
second, can make the measurement precision control within ±1%, to decrease unnecessary material loss and enhance the economic efficiency.
1.7 Each filling-head’s measurement may be individually adjusted to
realize the same filling measurement.
1.8 The machine set such function: having counting program of
bottle-feeding, doesn’t fill as there is not bottle or the counting doesn’t attain a predetermined position, can start filling only when the counter records that the bottle number is same as the setting filling number.
1.9 More or less of the filling volume, may initially adjust to the needed
filling volume, then micro adjust, can get the ideal filling measurement precision.
2 Technical Parameter
No.
Item
Technical Data
1
Capacity
1000BPH for 350ml bottles
2
Filling Range
50ml-500ml
3
Accuracy
±1%
4
Power
1.1KW
5
Voltage
220V 50HZ
6
Weight
850KG
7
Dimension
2000*1300*2300MM
3 Main Configuration
1
Touch Screen
WEINVEIW
Taiwan
2
PLC
Mitsubishi
Japan
3
Sensor
OPTEX
Japan
4
Solenoid Valve
SHAKO
Taiwan
5
Cylinder
AIRTAC
Taiwan
6
Angle Seat Valve
BURKERT
Jointed
7
Frequency Converter
Schneider
France
8
Button
Schneider
France
10
Magnetic switch
AIRTAC
Taiwan
Only three people(one operator, two assistants)are needed to operate this production line,
Fast and efficient unscrambler suitable for flat and round bottles and easy to adjust for size. Fallen bottles will be returned to the elevator and the unscrambler will alert operator to unfilled bottles.
Servo volumetric filling machine is highly precise. Filling nozzles automatically adjust to different bottles and reduce foam.
The rotary capping machine is 100% qualified and rejects dented or broken caps.
The automatic carton opening and sealing machines are easy to operate and speed up production.
Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.
