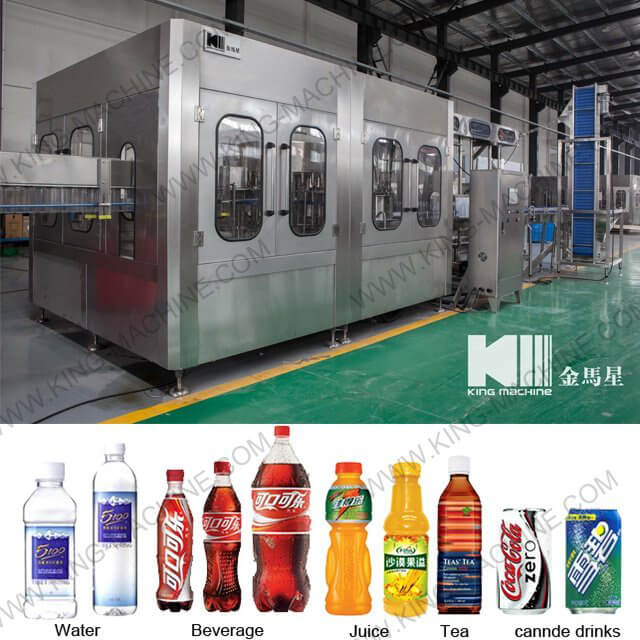

Automatic Beverage Drinking Water Bottling Machine CGF 32-32-10
The machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. Therefore the output and benefit of the machine is higher than the machines of the same specifications. The advanced Mitsubishi programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably . It is convenient to operate with higher automat
Quantity:
Share this:
Model: CGF
Brand: KM
Product Description
Products Introduction: Washing, filling and capping 3-in-1 Machine The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted.
Characteristic:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. 2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.. 3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. 4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose. 5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains. 6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.
Containers and specifications

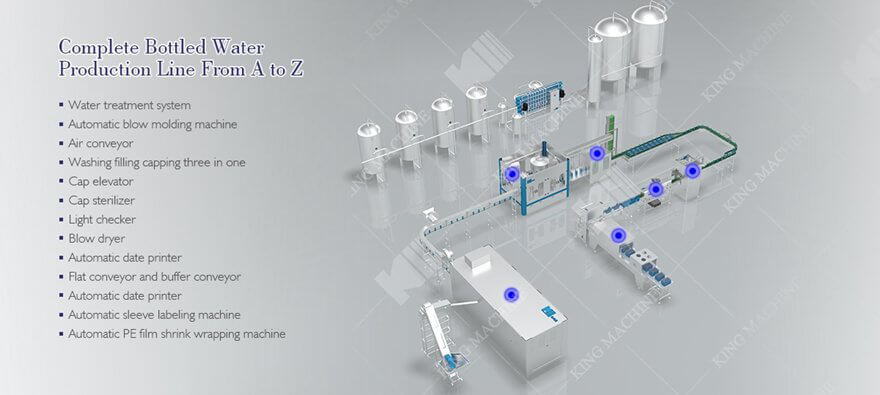

Project Name: Full Automatic Complete Mineral Water 2000-20000bph Production Line

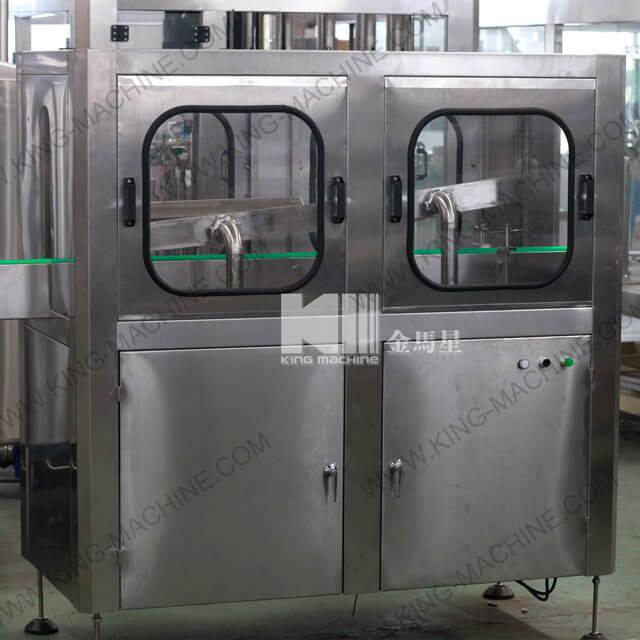

Flow chart (pure water filling machine): A)Bottle production line PET Resin --Injection moulding machine -Botlte blowing machine --PET bottle B)Water treatment system Raw water--Pump--Silica sand filter--Carbon filter--Water softner--Reverse Osmosis -UV sterilizer-Ozone generator--Finished water tank C)Filling&Packing part Bottle unscrambler--Air conveyor--Washing,filling,capping 3in1 machine--Light checker--Blow dryer--Dater printer--Lableing machine --Packing machine -Stock
Auxiliary machines
RO water treatment system
We
adopt different equipment to produce pure water, mineral water etc. The
main equipment of RO Water Treatment Plant are silica sand filter,
active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse
osmosis), UV sterilizer, precision filter, ozone generator, water tank
etc. It can effectively get rid of muddy organic matter, iron, manganese
etc, reduce the hardness of the water to make all specifications of the
water quality fully meet the state fresh water standard of fresh drink
water.

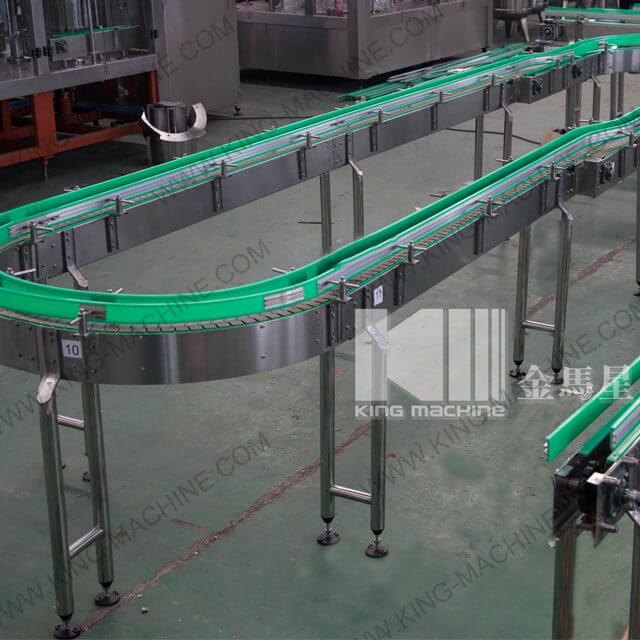

Flat conveyor
·The
bottle belt is synchronously tracked with the host or the upstream and
downstream equipment, which are connected to control system. ·The bottle does not fall, does not jam, and does not block during the conveying process. ·According
to the user's needs, the buffer platform can be set in front of the
labeling machine (the buffering time is usually about 1-2 minutes).
Automatic labeling machine
1.Hot melt glue labeling machine is widely used for different material of container . 2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. 3.It is the most economical models in cost to make mass production and intergrated operating. 4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.
PE film packaging machine
Automatic
PE film heat shrink wrapping machine is suitable for wrapping of such
products as pop top, mineral water , bottles. beer, drinks etc. Working
with PE film shrink tunnel to pack the goods perfectly , the whole
production process adopts the Germany advanced technics, and the main
parts are imported from international famous companies. It consists of
seven actuating motor, through cooperation with 7 actuating motor to
form the product packed with plastic film and several bottles as a group
out from the hot shrinking packing machine.
