Automatic Lube/ Lubricating/ Lubricant Oil Filling and Packing Machine for HDPE Bottles Automatic Lube/ Lubricating/ Lubricant Oil Filling and Packing Machine for HDPE Bottles

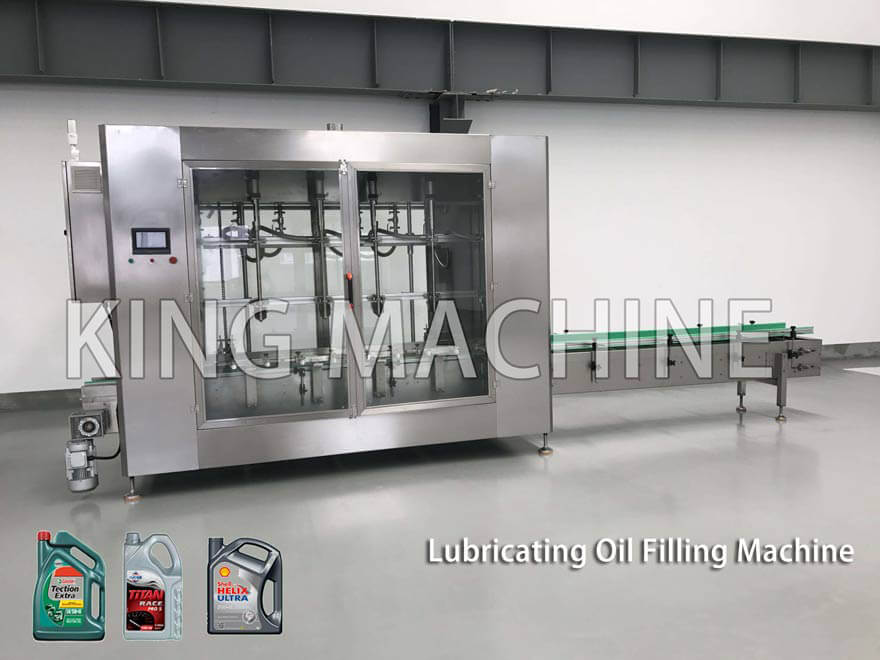

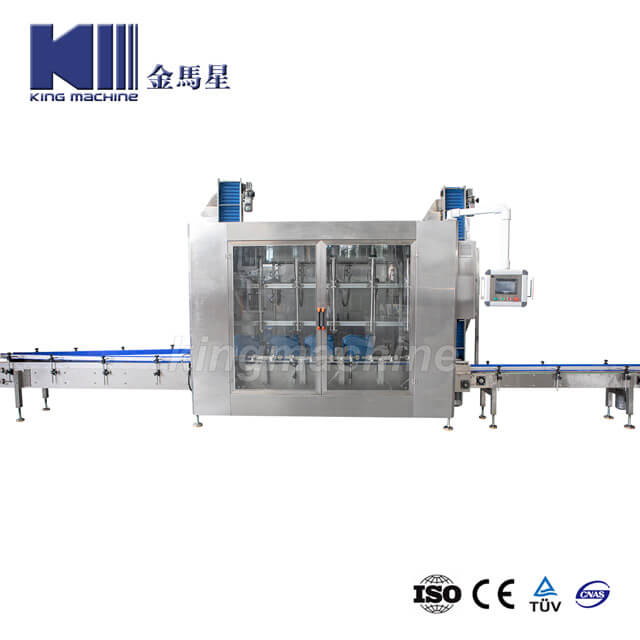

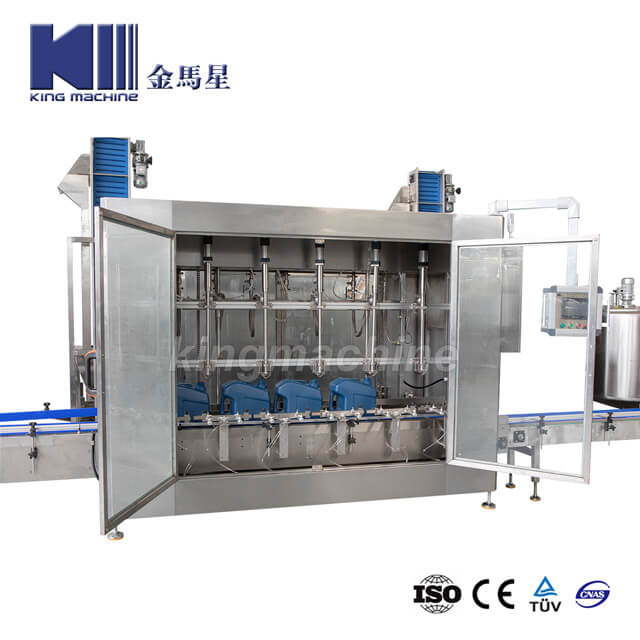

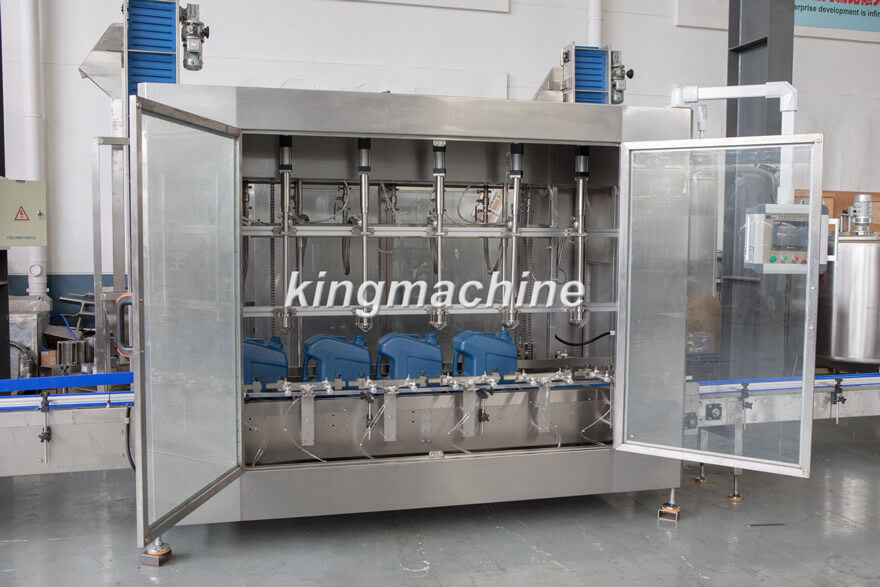

Full-automatic Viscous Liquid Filling Machine < Servo>
Type: ZSP-8A/1000 (With 8 filling heads )

Quantity:
Share this:
  • Model: ZSP-8A/1000
  • Brand: KM
  • Product Description


1 Brief Introduction

1.1  Suitable material: Lubricant oil ,Lube oil ,Lubricating oil, very viscous.

1.2  This filling machine is a high-tech filling equipment controlled by

microcomputer PLC programmable, equip with photo electricity transduction and pneumatic action.

1.3  Accurate measurement: adopt servo control system, ensure the

piston can always reaches constant position.

1.4  When close to target filling capacity can be applied to realize speed

slow filling, prevent the liquid spill bottle mouth cause pollution.

1.5  Convenient adjustment: replacement filling specifications only in

touch screen can be changed in parameters, and all filling first change in position, fine-tuning dose it in touch screen adjustment.

2 Technical Parameter

No. Item Technical Data
1 Capacity 1,000BPH for 4L bottles
2 Filling Range 50ml-1000ml
3 Accuracy ±0.5%
4 Power 3KW
5 Voltage 3 Phase 380V 50HZ
6 Weight 1000KG
7 Dimension 2300*1500*2300MM

×
