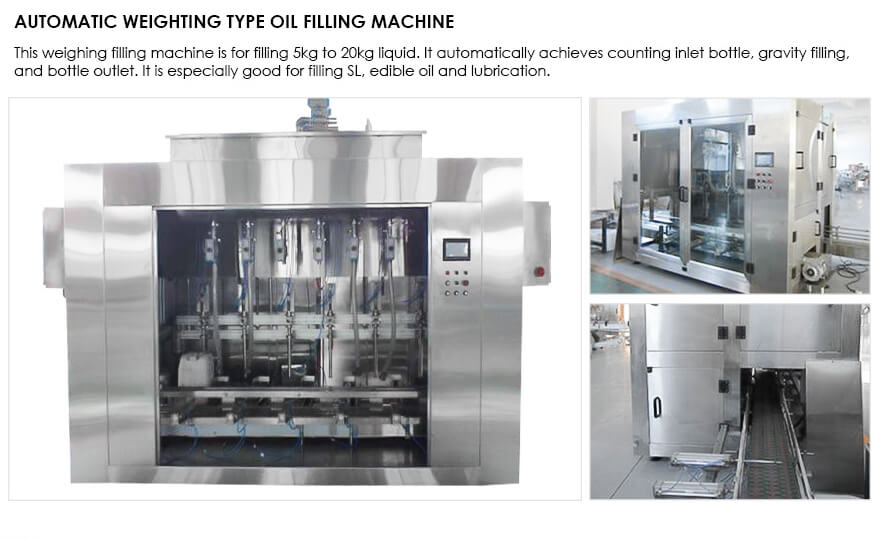

Automatic Weighting Type Oil Filling Machine
Filling range Maximum: 20L
Capacity 150BPH (20L with 4 filling heads)
Machine Technical Parameters and Introduction
1 Full-automatic Weight Filler
Type: KM-4 / 20000
1. This weighing filling machine is for filling 5kg to 20kg liquid..
2. Each filling head has the weigh and feedback system, each filling head can be regulated
3. This type filler adopts PLC to control, touch screen control panel
4. It applies dive method to fill and it reduces foam.
This weighing filling machine is for filling 5kg to 20kg liquid. It automatically achieves counting inlet bottle, gravity filling, and bottle outlet. It is especially good for filling SL, edible oil and lubrication. It is a nice choice for foodstuff pharmacy, cosmetic and chemical industries.
1. This machine adopts PLC and touch screen control panel, so it is convenient to set.
2. Each filling head has the weigh and feedback system, each filling head can be regulated.
3. Photoelectric sensor, approximate switch and other electric elements are of the international famous brands. It ensures no container miss filling. The host machine will alarm if there is any container blocked.
4. It applies dive method to fill and it reduces foam; it is suitable for various kinds of filling products.
5. The whole machine meets GMP standard, it is easy to clean and maintain, and the parts which contact with the filling material are made of high quality stainless steel. The whole machine is safe, eco-friendly and sanitary. It adapts to various kinds of working places.

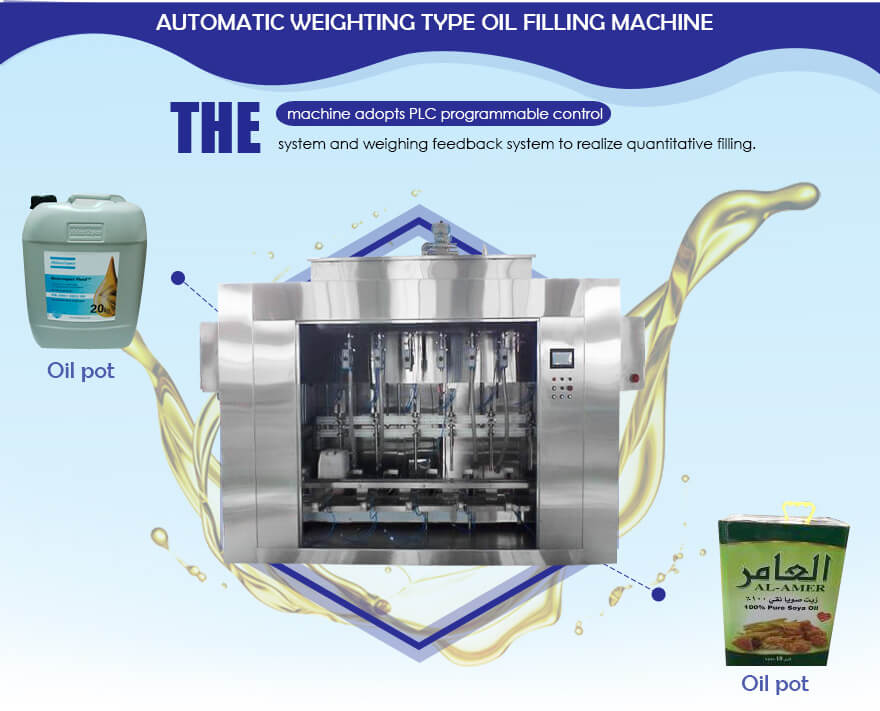

The machine adopts PLC programmable control system and weighing feedback system to realize quantitative filling. Applicable to pesticide, chemical, chemical industries and no bubble water fluid filling.
The Chinese patent application,. It is s the most ideal filling equipment. for 5L- 20L - wide adjustable
Parameter Unit MODEL SNYG SERIES
Number of heads PCS 12 10 8 6 4
Filling volume ML 200-6000
Productivity BPH 1600-4000 1400-3200 1200-2600 1000-1900 720-1300
Filling tolerance % <0.5%
Power sonsumption KW 1.5 1.5 1.5 1.2 1.0
Gas pressure MPA 0.55-0.8mpa
Gas consumption M3/MIN 1.6 1.4 1.2 1.0 0.8
1.Control system---- Mitsubishi PLC control system
2.Operation interface----Two rows of the color operation interface, Convenient operation, stable and reliable.
3.Function improvement----The feeding nozzle is equipped with filling blocker. This machine can realize diving filling according to the material properties.(this function can be selected)
4.Filling show---the filling result is displayed in the unit of weight ,intuitive and clean
5.Real-time alarm----Automatic alarming when the fault happens, automatic stopping and alarming when the system appears serious breakdown.
6.Electrical elements----Adopting international famous brand to ensure the remarkable quality, stability and high precision.
Machine elements----The parts contacted with the material use the 316 high-quality stainless steel and non-poisonous, anti-corrosive PTEF hose. Other machine parts use the 304 high-class stainless steel.
7.Expansion function----- We can carry out special configuration according to the customers’ requirements.(material airtight, heating and sterilizing etc.)
8.Counting detection----Real- time counting, reflecting the output directly.
9.Filling detection----No-bottle no-filling, it will not conduct filling if the bottles are not enough.
10.Function upgrading---We have designed intelligent weighing feedback system to realize the unmanned debugging function.
11.Environmental protection configuration----Equipped with eco-friendly frame, realizing more clean and sanitary operation environment.(this environmental protection configuration can be selected)
12.Interval filling---Minimum filling volume can reach 40ml. We can realize interval filling.(this function can be selected according to the customers’ requirements)
13.Maintenance condition----Fully accords to the GMP requirements, easy to disassemble and clean.
Function upgrading---We have designed intelligent weighing feedback system to realize the unmanned debugging function. Filling dose is more accurate, the original ± 1% of filling accuracy increased about 10 times
14.Changing specification--According to the changing of market specifications 5L 20L large-dose packaging range, only in the same machine operation. To save the equipment cost for the customer. when changing filling specifications, just adjust, no need to change any components. easily done.
1, Number of filling Head: 4
2 Filling range :5-20kg
3 Bottle size range : L: 160mm~360mm
(Min: 140 × 200 × 320 mm , Max: 260 × 290 × 500 mm)
4 Diameter of bottle mouth:≥Φ40mm
5 Power Supply: ~ 220 V, 50 Hz
6 the total power: 1 kW
7 Weight: about 1250 kg
8 measurement accuracy: ± 0.2% (Note: Filling accuracy depends on the viscosity of the material as well as the continuity and stability of the material supply);
9 Production capacity: ≤ 400bottles/hour
10. Outline Dimension (L×W×H):2500mm×1700mm×2300mm
