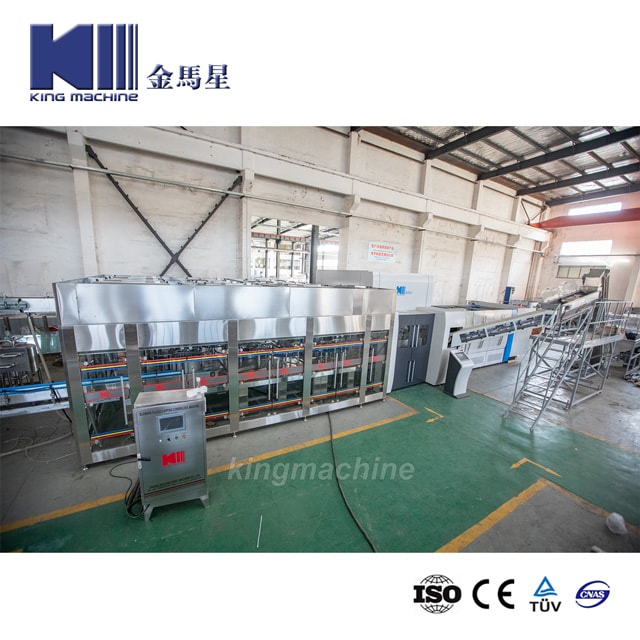

24000BPH High-Speed Automatic Combiblock Water Filling Line

A to Z Pure Water Beverage Drink Blow/ Fill/ Cap Combiblock Filling Machine

Product Description

We have developed a multi-functional blowing filling and capping combination block, through the applicant of optical , mechanical, electrical and pneumatic integration, it adopts servo system for synchronous control, realize the comprehensive control and production of multiple equipment, improve the production efficiency of the entire production line , and reduces the investment cost , energy consumption and maintenance cost. It is suitable for the production of carbonated drink, juice and water , and other products .

Our combi block machine capacity can reach
for example like water production
0.5l bottle capacity is 12,000bph to 54,000bph
And 4l 5l Capacity is 4000bph to 6000bph
15L 19l Capacity is 1500bph to 3600bph
Our combi block machine single cavity capacity can reach 2000bph to 2500bpb .

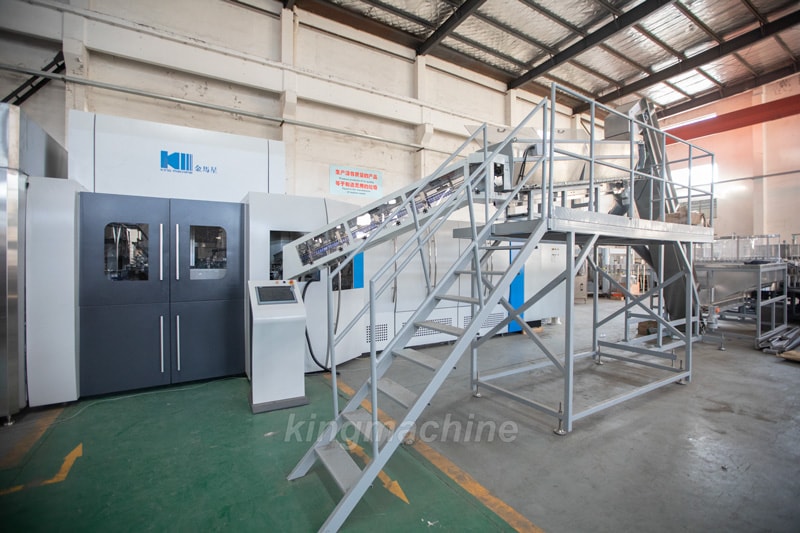

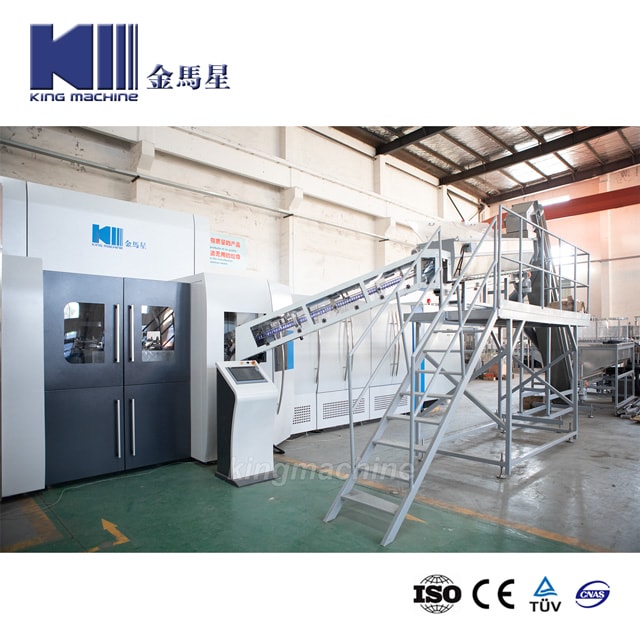

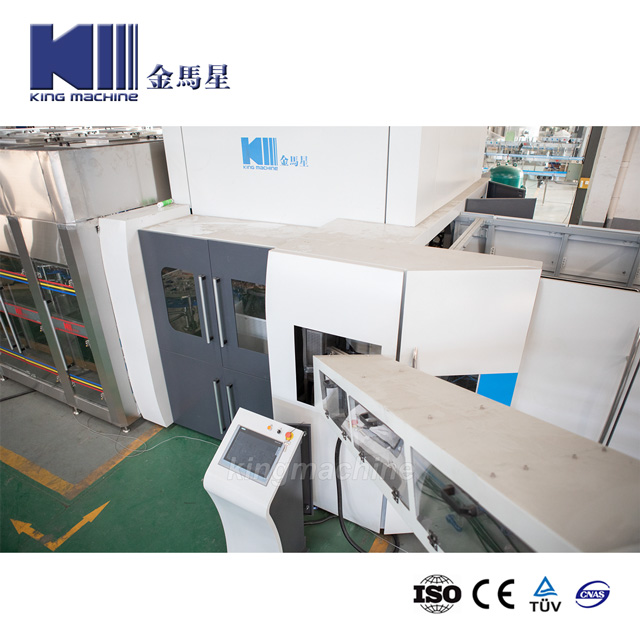

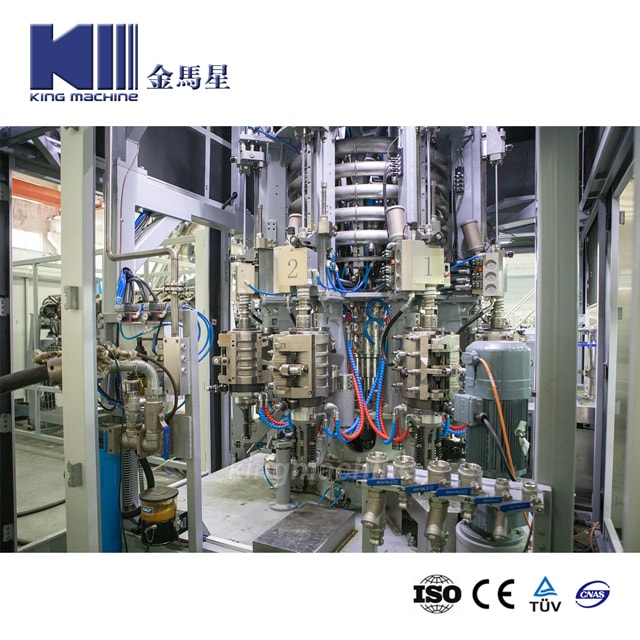

Blowing part

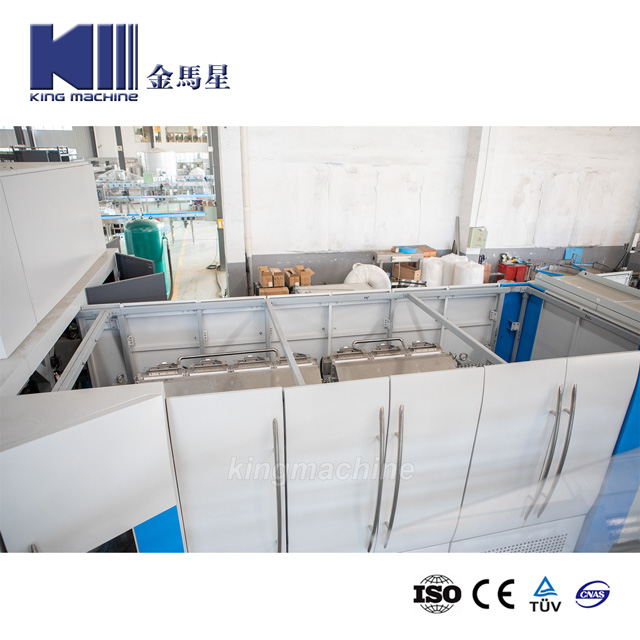

The automatic rotary blow molding machine has five major technical advantages. The quasi-guaranteed blow molding machine can produce a variety of PET bottles that meet customer requirements with high yield and low consumption. Compared with the linear blow molding machine, the sealing and stretching of the rotary blow molding machine are separate and independent, and the clamping force is strong, so the adjustment of the bottle is relatively stable, the bottle strength is more uniform, and the mold clamping line is thinner. Great improvements have been made in frame reinforcement, track optimization, etc. The equipment has less vibration and more stable operation; the heating distance has been reduced again to reach the distance of a certain international brand, and the same heating distance can be reduced by 1/ 4 energy consumption.

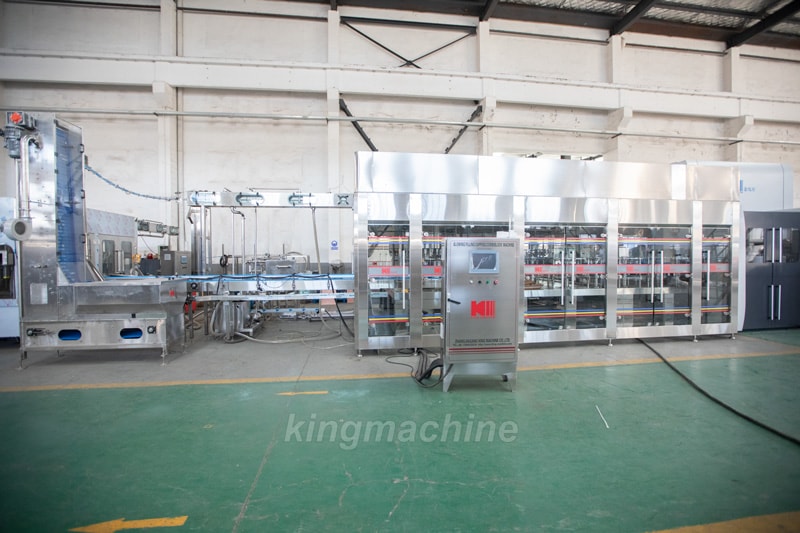

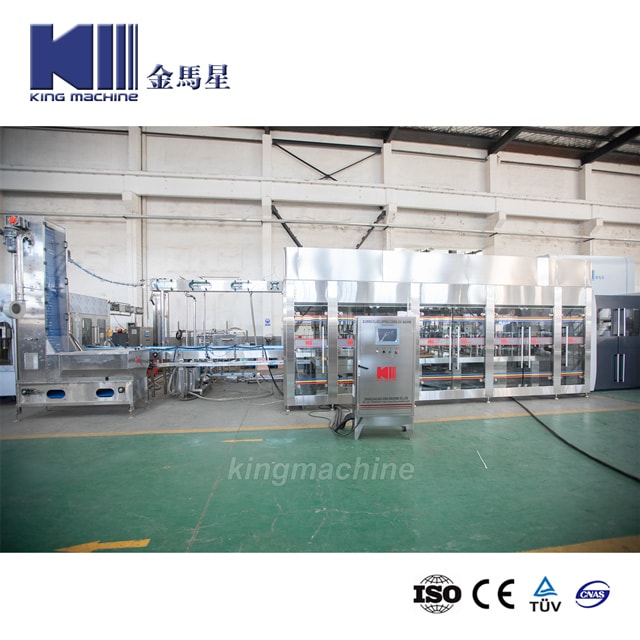

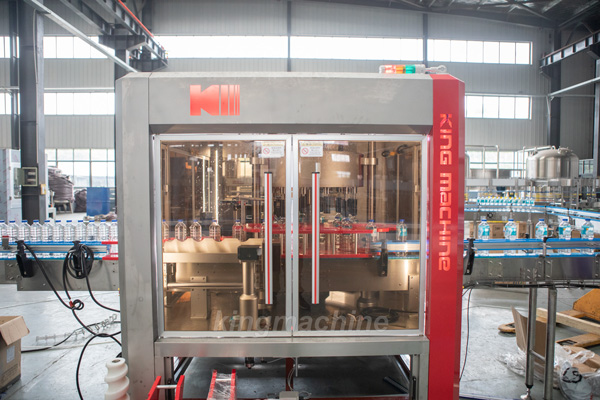

Washing Filling Capping

The machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics.

Washing heads The rotary disk is fully made of SUS304 stainless steel. Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle. Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance. Washing part moves by a frame in the transmission system through the gear transmission.

Filling heads The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods. The rotating disk is all made of SUS304 stainless. Filling method is fravity filling. Filling valve manufactured by SUS304. The filling valve structure design is reasonable, the filling quantity is accurate.

Capping heads The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiao Tong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.

Auxiliary machines

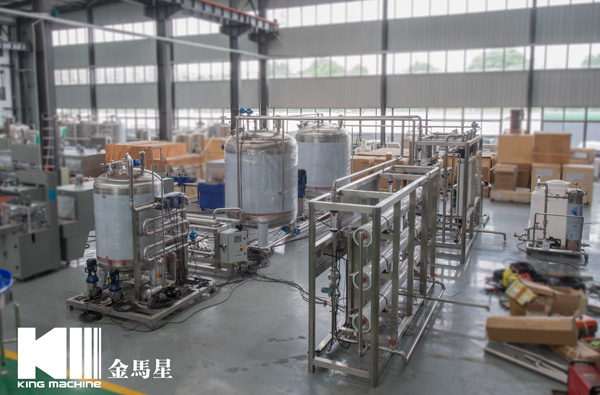

RO water treatment system We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

Flat conveyor ·The bottle belt is synchronously tracked with the host or the upstream and downstream equipment, which are connected to control system. ·The bottle does not fall, does not jam, and does not block during the conveying process. ·According to the user's needs, the buffer platform can be set in front of the labeling machine (the buffering time is usually about 1-2 minutes).

Automatic labeling machine 1.Hot melt glue labeling machine is widely used for different material of container . 2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers. 3.It is the most economical models in cost to make mass production and intergrated operating. 4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.

PE film packaging machine Automatic PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.
