Hollow Fiber Filter Hollow Fiber Filter

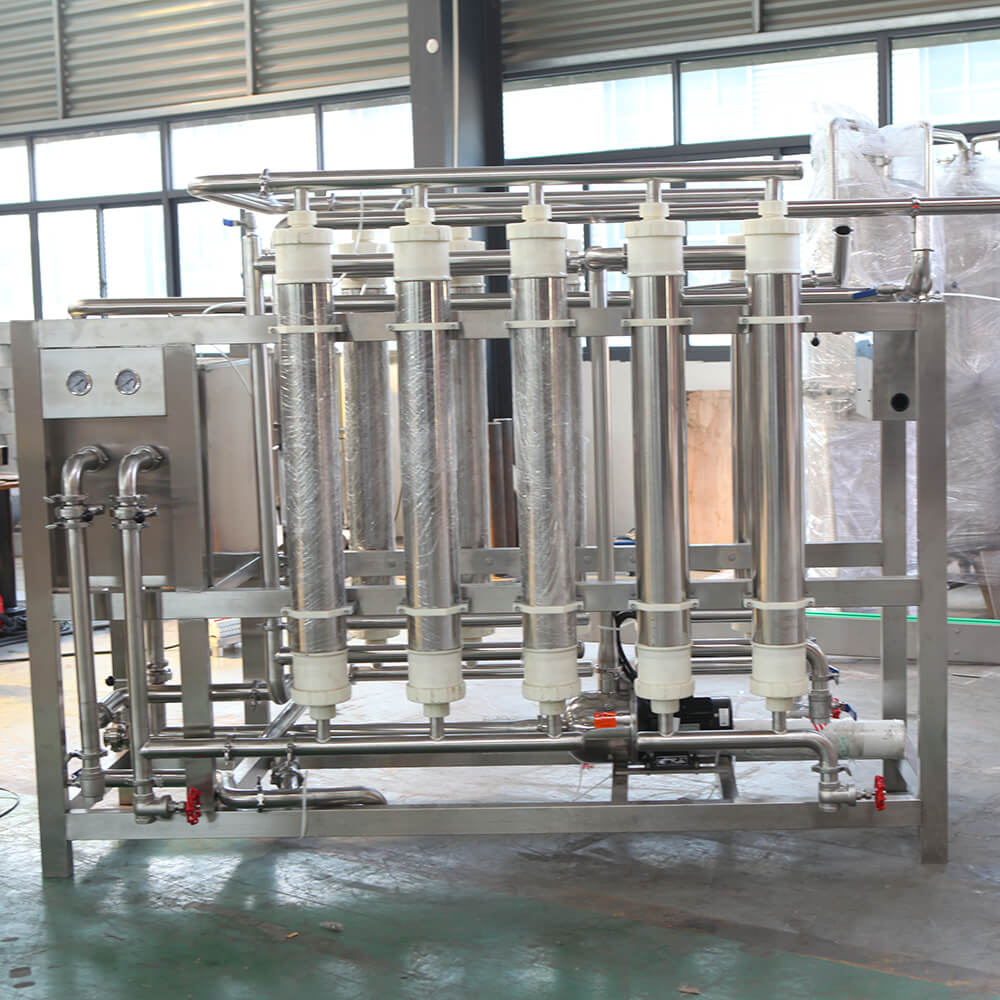

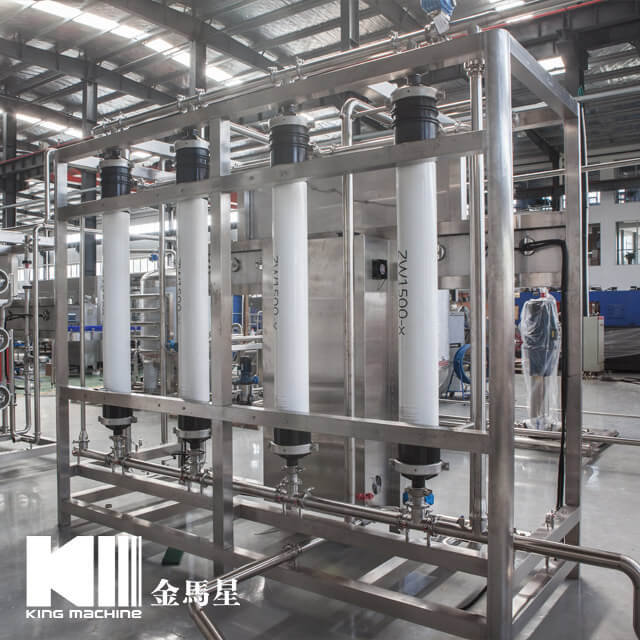

Hollow Fiber Filter adopts screw slip-joint. It mainly separates organic material, colloid, ultra small particle, bacterium. It has good effect on cleaning, sterilizing and concentrating big-molecule material.
The equipment has two types: ultrafilter and concentration. Its output is from 0.3 cube/hour to 20 cube/hour.

Quantity:
Share this:
  • Brand: KM
  • Code: 8421299090
  • Product Description
  • FAQ

Hollow Fiber Filter adopts screw slip-joint. It mainly separates organic material, colloid, ultra small particle, bacterium. It has good effect on cleaning, sterilizing and concentrating big-molecule material.
The equipment has two types:ultrafilter and concentration. Its output is from 0.3m3/hour to 20m3/hour.

       Model        YF-1        YF-2        YF-3        YF-4        YF-5
       Model of membrane  Hollow-fiber  inner pressure-----I(A、B、C、D、E)
       The amount molecule being held off  10000------80000(MW)
       The production of purified water        1T/H        2T/H        3T/H        4T/H        5T/H
       PH                        2--------13
       Working temperature          5--------45℃
       Working pressure             ≤0.15MPa
       Working utilizing  rate        ≥90%
Model

Treatment volume m³/h

Type Working pressure Pipe(mm) Working weight(kg) Power(kw)
UF-3 2-3.0 Outer pressure hollow fiber 0.1-0.15Mpa Dg25 300 0.75
UF-6 5-6.0 Outer pressure hollow fiber 0.1-0.15Mpa Dg40 600 1.1
UF-10 8.0-10 Outer pressure hollow fiber 0.1-0.15Mpa Dg50 800 1.5
UF-15 12-15 Outer pressure hollow fiber 0.1-0.15Mpa Dg65 1000 1.5

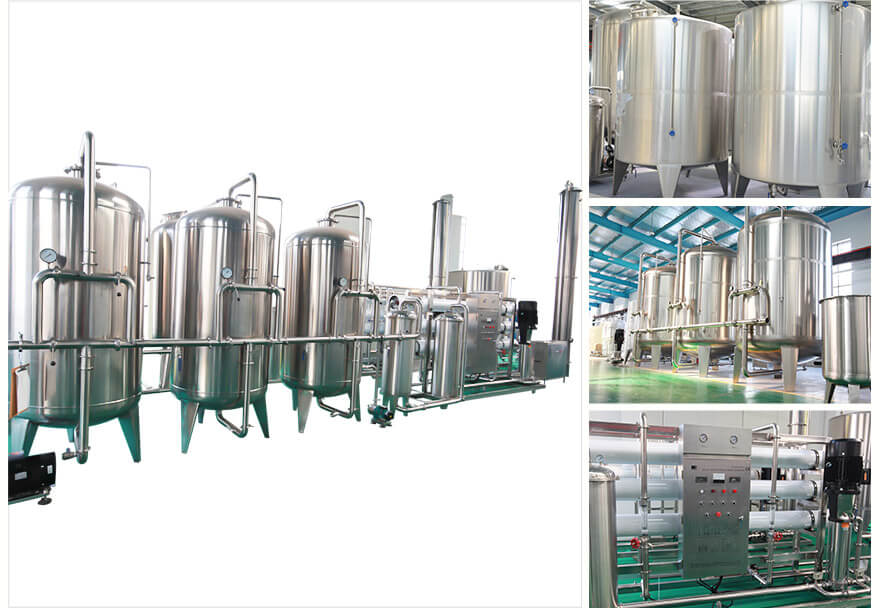

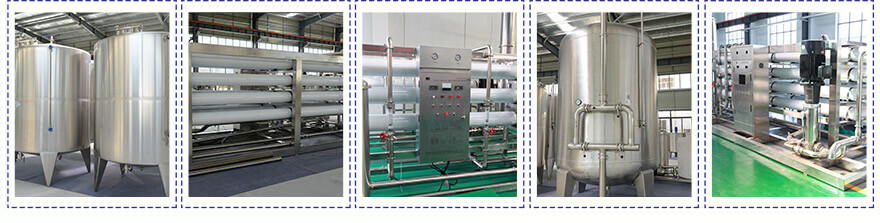

We adopt different equipment to produce pure water, mineral water etc. The main equipment are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. The treatment capacity is 0.5-50 ton/hour. It can effectively get rid of muddy organic matter, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.
It can effectively get rid of muddy organic matter, iron, manganese and oxide, filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.



Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
×
