Linear Type Aluminum Can Filling And Sealing Machine Linear Type Aluminum Can Filling And Sealing Machine

Beverage Can Machinery / Equipment usually works with other line rinsing machine, sealing machine as a straight linear line .This production line is suitable for the production of all kinds of carbonated drinks contained in aluminum 2-piece pop-top can, such as cola, aerated water, ice tea, etc, It is an ideal machine for small-and medium-sized beverage factories.

Quantity:
Share this:
  • Brand: KM
  • Product Description

Description:

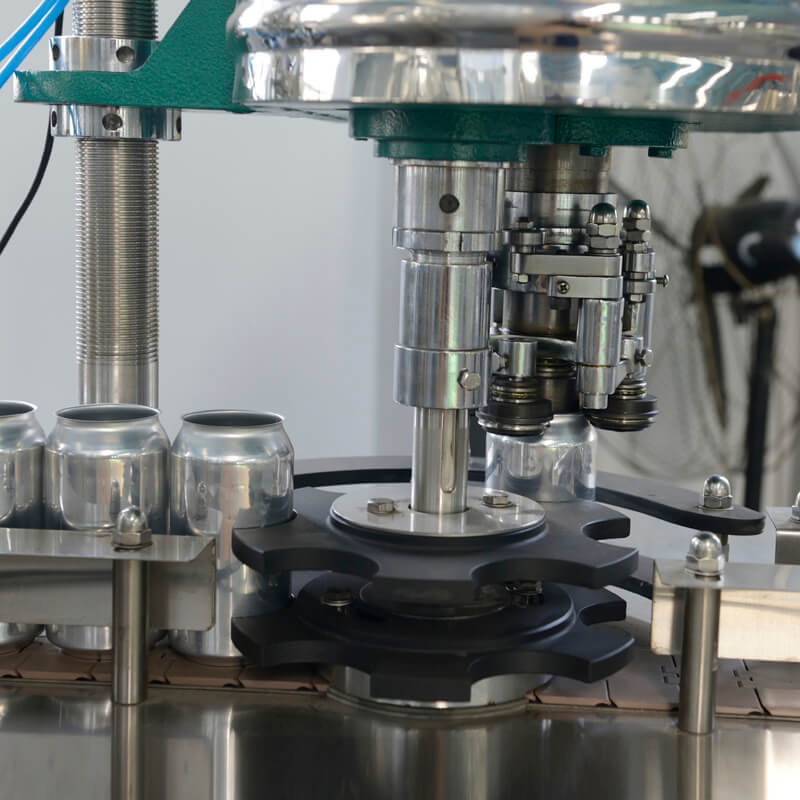

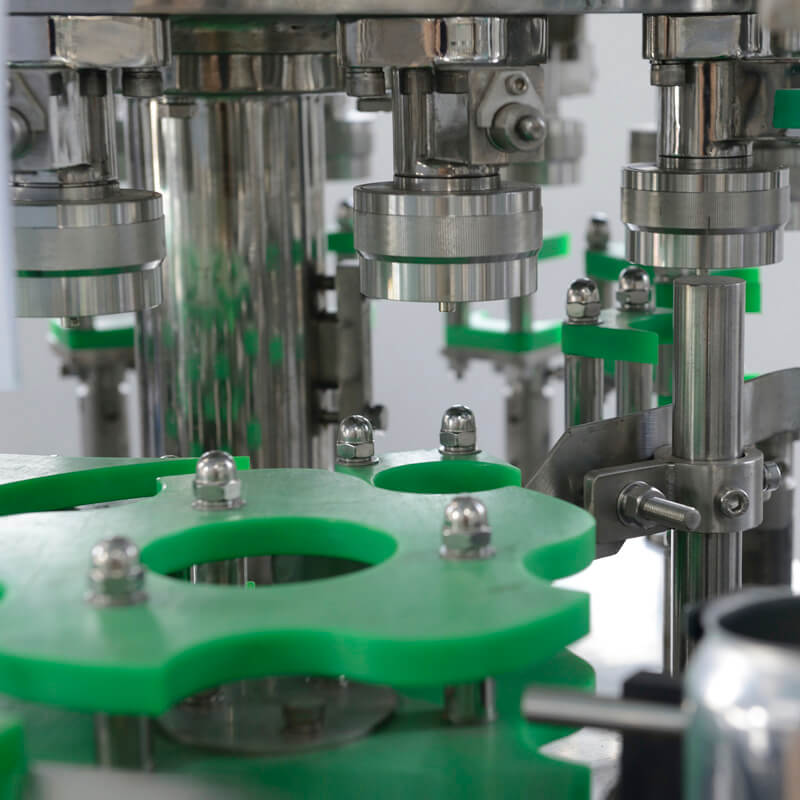

Linear Type Aluminum Can Filling And Sealing Machine is a straight linear line composed with automatic rinsing machine, which included a automatical water spraying nozzel, and automatical rotary Filling machine and autoamtic rotary can sealing machine.

This production line is suitable for the production of all kinds of carbonated drinks contained in aluminum 2-piece pop-top can, such as cola, aerated Water, ice tea, etc, It is an ideal machine for small-and medium-sized beverage factories.

1. This carbonated beverage can filling machine is used for filling carbonated beverage in cans , such as beer, cola, energy drinks and soda water.



2. This carbonated beverage can filling machine can be used for different material of cans, such as plastic, iron, aluminum and so on ,and the different size of cans is allowed.We can design the euipment according to your requirements



3. This carbonated beverage can filling machine is applicable for equal pressure filler and capper of carbonated drinks in beer and drink industry.



4. The carbonated beverage can filling machine is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machine on the basis of independent development of the can filling, sealing unit.



5. Filling and sealing is the overall designed, power system by filling sealing system to Ensure that both the absolute synchronization and coordination.



6. carbonated beverage can filling machine adopts the advanced machine, electrical equipment, and Pneumatic control technology.



7. The carbonated beverage can filling machine has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss.



Technical parameters:

Type & Name

QSG-16

GFP-12

FBZ-1

Production capacity(bottle/hour)

1000-3000

1000-2500

1000-2500

Heads of washing, filling, sealing

16

12

1

 Power (kw)

0.37

0.75+0.75

0.75

(mm)Overall dimension(LxWxH)

1900x530x1100

1000x1000x2100

1200x720x1900

 Weight (kg)

480

800

650




                             Type & Name


                             QSG-16


                             GFP-12


                             FBZ-1


                             Production capacity(bottle/hour)


                             1000-3000


                             1000-2500


                             1000-2500


                             Heads of washing, filling, sealing


                             16


                             12


                             1


                             kw) Power


                             0.37


                             0.75+0.75


                             0.75


                             (mm)Overall dimension(LxWxH)


                             1900x530x1100


                             1000x1000x2100


                             1200x720x1900


                             kg) Weight


                             480


                             800


                             650



×
