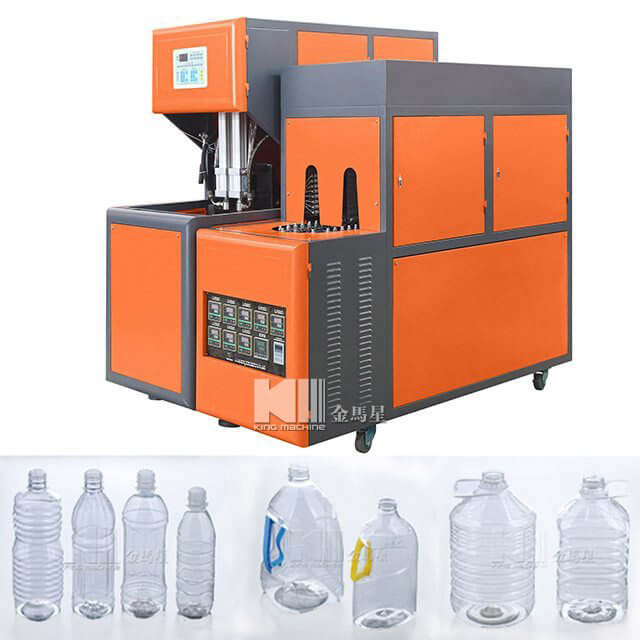

120 BPH Semi Automatic PET Bottle Blowing Machine For 5-10L 120 BPH Semi Automatic PET Bottle Blowing Machine For 5-10L

KM-8Y1 semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the Sodabottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.

Quantity:
Share this:
  • Model: KM-8Y1
  • Brand: KM
  • Product Description

Description:

KM-9B semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 5000-10000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi- auto mode.
● The machine is small with low investment, easy and safe to operate by one person.

Technique Parameter of blow molding machine:

Main parameter:

Model

KM-9B

Container

Product material

PET

Volume

5L-10L

Theoretical output

300-500PCS/H

Preform length

15mm-460mm

Preform inner diameter

Φ15mm-200mm

Moulding

Max.mould plate Dimenstion(L x W)

470x500mm

Max.mould thickness

370mm

Clamping force

100KN

Mould opening stroke

350mm

Machine size and weight

Main machine (L x W x H)

193*72*183cm

Main machine weight

800Kg

Heater (L x W x H)

187*63*145cm

Heater weight

250Kg

Power

17.5kw

Functions of auxiliary equipments:

(1) Air compressor is the air source for PET stretch blow molding machine, carrying out the process of compressing air from atmosphere to the required pressure.

(2) Air dryer is to remove the moisture from the compressed air and lower temperature of the compressed air in the heat exchanger.

(3) Air filter is to clear up the impurities out of the compressed air, like carbon-hydrogen, tiny dust and solid particles.

(4) Air tank is to receive and supply air for the machine as storage.

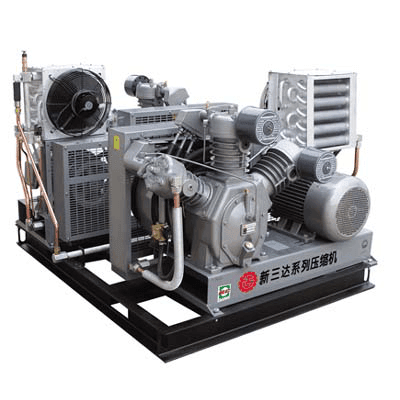

HP air compressor

Air compressor

Unit

1.58M3/min 30KG

Volume

M3

1.58

Pressure

Kg

30

Speed

r/min

850

Power

KW

18.5

Overall Dimension

mm

1100*1100*1850

Weight

kg

650

Air Cooling Drier

Refrigeration Air Dryer

Unit

2.0M3/min 3.0Mpa

Flow capacity

Nm3/min

2.0

W.P

Mpa

3.0

Inlet Temp.

80

Dew point

23

Ambient Temp.

38

Power supply

V/HZ

220/50

Compressor power

Kw

0.75

Cold Medium

mm

(1050×650×1100)

Weight

Kg

120

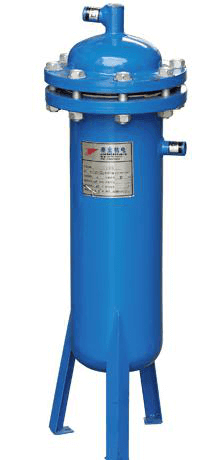

Air Filter


Refining-Filter

Unit

2.0M3/min 30Kg

Flow Capacity

M3/Min

2

Max. work pressure

Mpa

3.0

Inlet Temp.

50

Cold Medium

mm

750*350*350

Weight

Kg

20



×
