15000b/p High Speed Automatic PVC Label Shrinking Machine 15000b/p High Speed Automatic PVC Label Shrinking Machine

Automatic Shrink Sleeve Labeling Machine: the whole machine is waterproof as well as rustless. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life. Single positioning centre guide pillar: a more stable for label delivery. Synchronous bottle divider: a more stable transmission for bottle. Bottom set of label brush:a more precision for casting label. Label-controlling electric-eye shelf:

Quantity:
Share this:
  • Model: KM
  • Brand: KM
  • Code: 8422
  • Product Description
  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ


1.Automatic Bottle Sleeve Labeling Machine
Function:

All-cover type stainless steel host machine: The whole machine is waterproof as well as rustless.

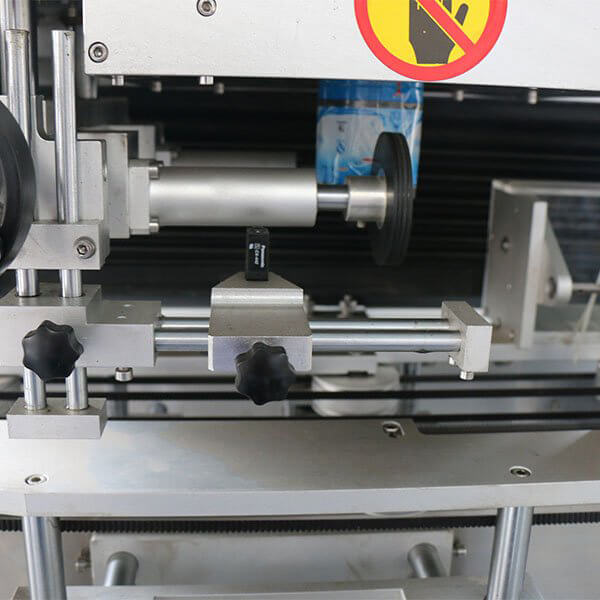

Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: A more stable for label delivery.
Synchronous bottle divider: A more stable transmission for bottle.
Bottom set of label brush: A more precision for casting label.
Label-controlling electric-eye shelf: Unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials.

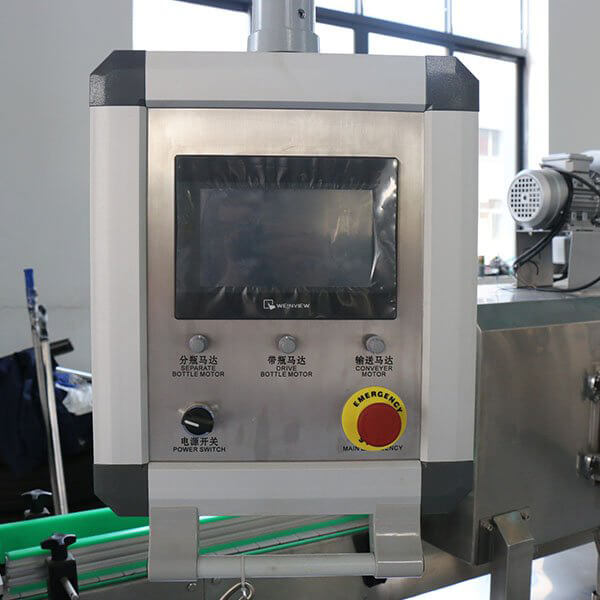

Push-button control cabinet: A more humanized operation.
Independent feeding material shelf: The position of the material shelf is optional at will.
Electrical Appliance Configuration Specification:
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; Besides, it dopts The positioning module to ensure the casting label precise, rapid and stable.
Applicable Bottle Types:
Various kinds of bottle types, for example: Round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.

Technical parameter:

Model SPC-150B SPC-200B SPC-300B SPC-450B
Host size 2100L*850W*2000H 2100L*850W*2000H 2100L*1100W*2200H 2500L*1200W*2200H
Production speed 150B~170B 200B~220B 300B~350B 450B~500B
Power Supply 1ø/220V, 3ø/220V 1ø/220V, 3ø/220V 1ø/220V, 3ø/220V 1ø/220V, 3ø/220V
Host Power 2KW 2KW 2KW 6KW
Framework material stainless steel stainless steel stainless steel stainless steel
Length of the label 30mm~260mm 30mm~260mm 30mm~180mm 30mm~180mm
Thickness of the label 0.03mm~0.13mm 0.03mm~0.13mm 0.03mm~0.13mm 0.03mm~0.13mm
Diameter of bottles 28mm~125mm 28mm~125mm 28mm~125mm 28mm~125mm
High of bottles 50mm~280mm 50mm~280mm 50mm~280mm 50mm~280mm
shape of bottles Square, round, oval, flat bottle Square, round, oval, flat bottle Square, round, oval, flat bottle Square, round, oval, flat bottle
Contraction furnace power 13~15KW(Or steam) 13~15KW(Or steam) 13~15KW(Or steam) 13~15KW(Or steam)

Photos:


2.Shrink Tunnel

In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.
Special Manufacture
Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.

Input Power Supply of Blower

1 220VAC 1.1KW

Working Pressure

0.1Mpa

Weight

230Kg

Steam Consumption

10-20Kg/h

Size of Oven Body

L2300mm x W400mm x H450mm

Transporting Speed

0-35m/min


3.Steam generator

  The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

Project

Unit

Specification

Steam capacity

kg/hr

50

Input power

KW

36

Rated working pressure

Bar

7

Saturated Steam Temperature

°C

170

Efficiency

/

98%

Power source-Voltage

/

As customer required

Main steam valve diameter

DN

15

Safety valve diameter

DN

15

Water inlet  diameter

DN

15

Blow down valve caliber

DN

15

Overall dimension(L*W*H)

mm

680*600*1060

Weight

Kg

130

We can provide customized products for specific power supply in the world.




Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
×
