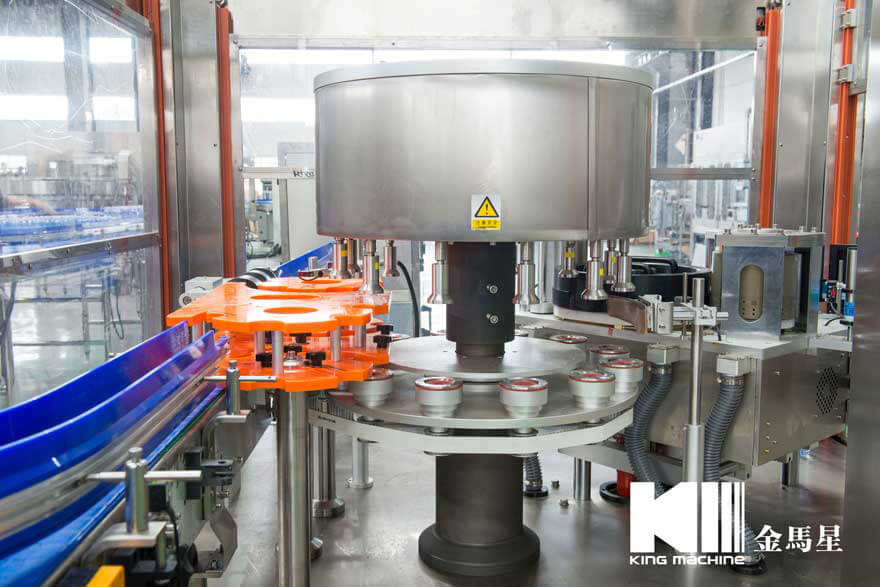

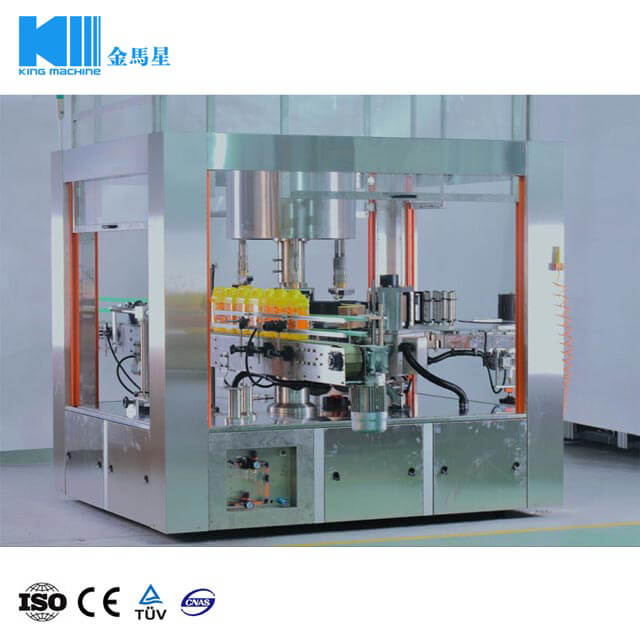

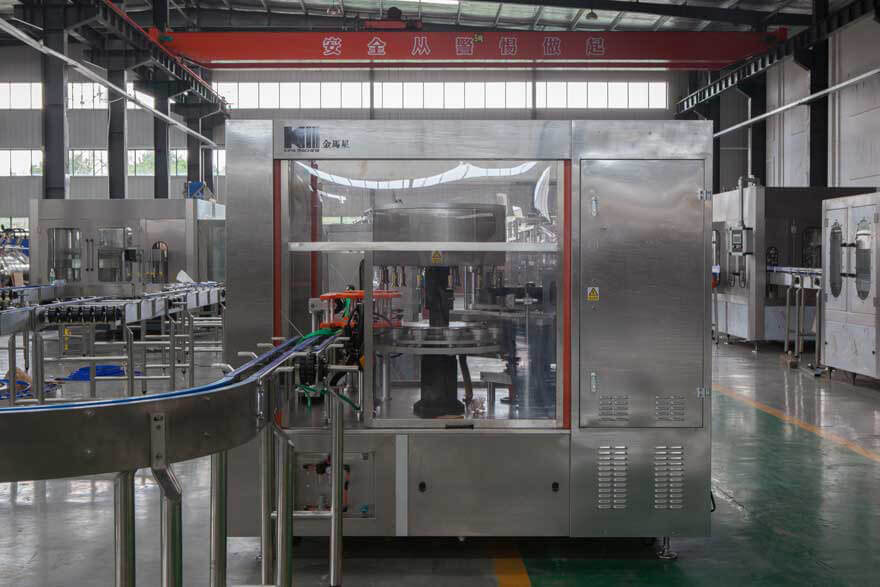

4,000-6,000b/p Rotary Type Automatic OPP Hot Melt Glue Labeling Machine 4,000-6,000b/p Rotary Type Automatic OPP Hot Melt Glue Labeling Machine

Automatic Shrink Sleeve Labeling Machine: the whole machine is waterproof as well as rustless. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life. Single positioning centre guide pillar: a more stable for label delivery. Synchronous bottle divider: a more stable transmission for bottle. Bottom set of label brush:a more precision for casting label. Label-controlling electric-eye shelf:

Quantity:
Share this:
  • Model: KM-0608FD
  • Brand: KM
  • Product Description

Process:  Infeed bottle → pre-position →label cutting → gluing → labeling→ label by press out → finish

Name Opp Hot Melt Round Bottle Labeling Machine
Power supply Three-phase 380V 50 Hz 8000W
Machine dimensions: 3000mm×2500mm(can be adjusted by customer requirements)
Method of speed adjustment: uninterrupted - adjust rate
Max speed of labels feed: maximum speed of 100 meters labels / min
Labeling precision: ±1mm
Maximum label width: 200mm(standard width, can be adjusted )
The maximum outer diameter of label 600mm
Paper core Hot melt 152 mm
Labeling glue: glue at both ends of each label with hot melt
Gluing temperature: 120~160℃
Labeling type for products: suitable for round or square containers made of plastic, metal, glass
Type of label: opp label、paper-plastic composite film label 、paper label
Labeling stations: (8 per cycle )
Machine weight: about 2000 kg

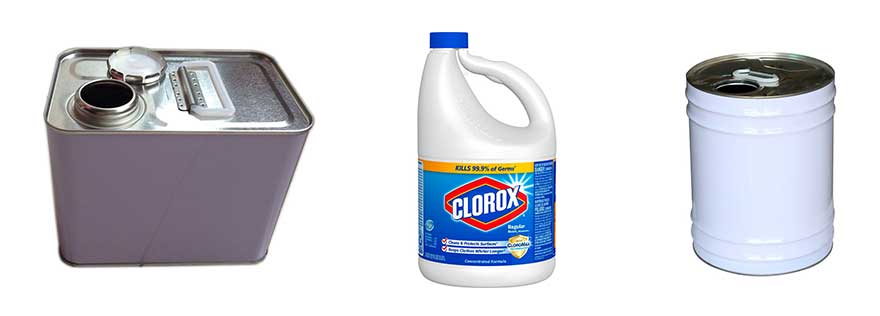

This labeling machine can be applied to: shaped bottles such as tinplate square barrels, square bottle cleaners, paint buckets, etc.

×
