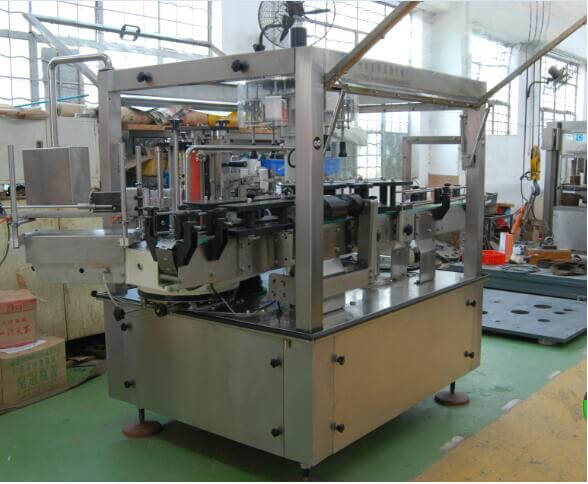

Double Side Stick Labeling Machine (Rotary type) Double Side Stick Labeling Machine (Rotary type)

Quantity:
Share this:
  • Brand: KM
  • Product Description

1,Product Overview:


a) The machine was updated last year, the new rotary model, its stability, reliability, accuracy, durability, scalability, and other older models than in the past with varying degrees of improvement and increased.

b) the aircraft: to close, back, neck three labels can be affixed to glass, plastic, ceramic, metal, bottles; can be attached to an ordinary round, square, flat, partly shaped bottles; quick new bottle changer devices.

c) reasonable structure, small footprint, the surface of a large selection of stainless steel and non-metallic materials. The machine uses a photodetector, with accurate labeling, high precision advantages; while no bottle no labeling, no standard automatic stop standard, automatic detection and other functions. It can be used with inkjet printer, etc. together to achieve continuous and accurate printing of the label.

d) the use of asynchronous motors and worm gear box primary drive, and equipped with electronic control system, so the machine can be used for continuously variable speed control can be performed according to production requirements to adapt to changes in yield, and can ensure the machine safe operation.

e) operating system focus on the machine before the operation box, control circuit uses low-pressure circuit.

f) In order to ensure quality labeling on the bottle label paper as well as specifications and quality requirements and so comply with relevant national standards.


2, Main components of the machine:

a) The main components of the model consists of the following parts, equipment rack, bottle conveying apparatus, the pressure bottle turntable means of propping turntable device, labeling station apparatus, and a host of electrical control systems.


3, labeling principles:

a) arranged in order of the bottles by the conveyor belt into the machine, by the next sub-bottle screw bottle pull a certain distance from the bottle into the bottle star wheel means regularly sent turret, turret there 12 stations, through mechanical transmission settings, and to ensure that the bottle into the card-digit mating star wheel.


b) Each station turret controlled fan gear cam mechanism, the formation of revolution and rotation motion, rotation labeling requirements set in accordance with the law. However, after setting a good law of motion, and then not be able to change.


c) label station components are installed on the periphery of the rotary table, when a predetermined requirement to label the bottles by certain indexing label away. At the same time in the rotary table comes standard sweep assist device, by means of these auxiliary labels affixed to different parts of the full bottle. After treatment in the rotary table a good label, by the bottle on the conveyor belt star reincarnation to continue to the next process.


Configuration Specification
Capping station 12
Capacity(bottles / hr) Max 15000b/h
Bottle diameter(mm) φ30-100
Bottle height(mm) 100-350
Bottle material  Glass, plastic, ceramic, metal
Stick label height(mm) 10-150
Stick label width(mm) 30-120
Stick quantity for each bottle 2
Label Material Coated paper, plastic, paper, aluminum foil
Reel label backing sheet material Glassine paper, PET transparent paper
Label tissue paper thickness ≥0.05(mm),And labeled paper width direction of better stiffness
Label Type Stickers
Power (KW) 4.0
Labeling accuracy ±1.5mm
power supply 380V/50Hz Three-phase AC
Compressed air pressure 0.6Mpa
Device dimensions (mm) 3200*2400*1900
Net weight 2.3t



Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.
×
