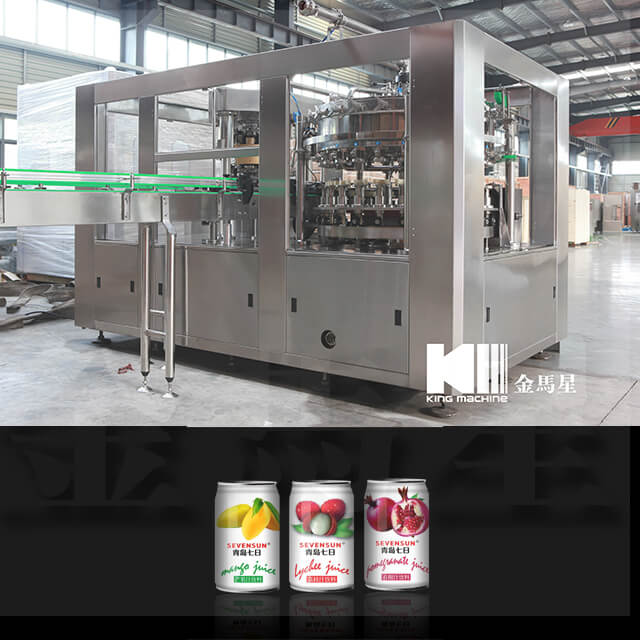

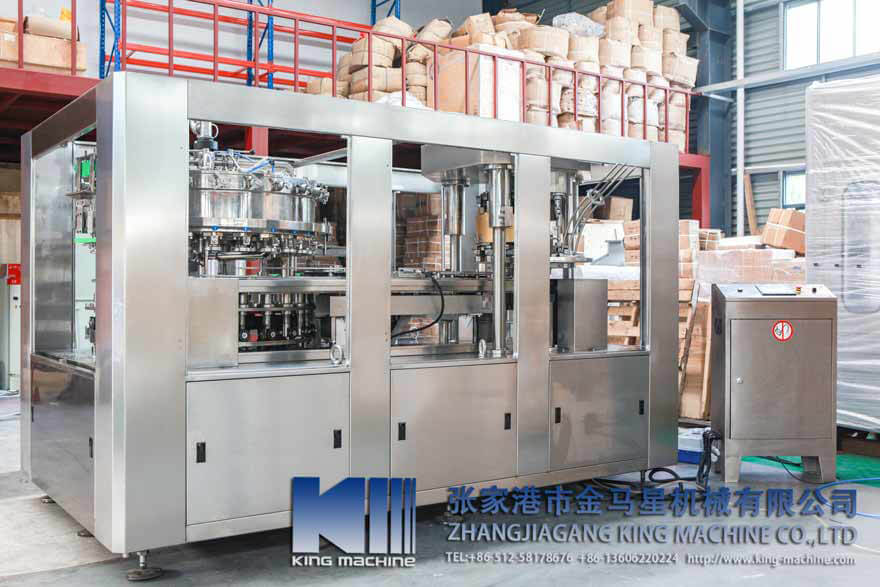

This equipment is the appropriative filling machine of (Aluminum Can) carbonated drinks;
Introduction, digestion and absorption of foreign advanced technology as the foundation. According to the requirement of beverage filling process in our country, it is a kind of filling equipment with advanced technology. It is mainly used for filling gas beverage containing beer, soft drinks, cola, sparkling wine, mineral water and so on. Filling and capping are integrated in one machine.

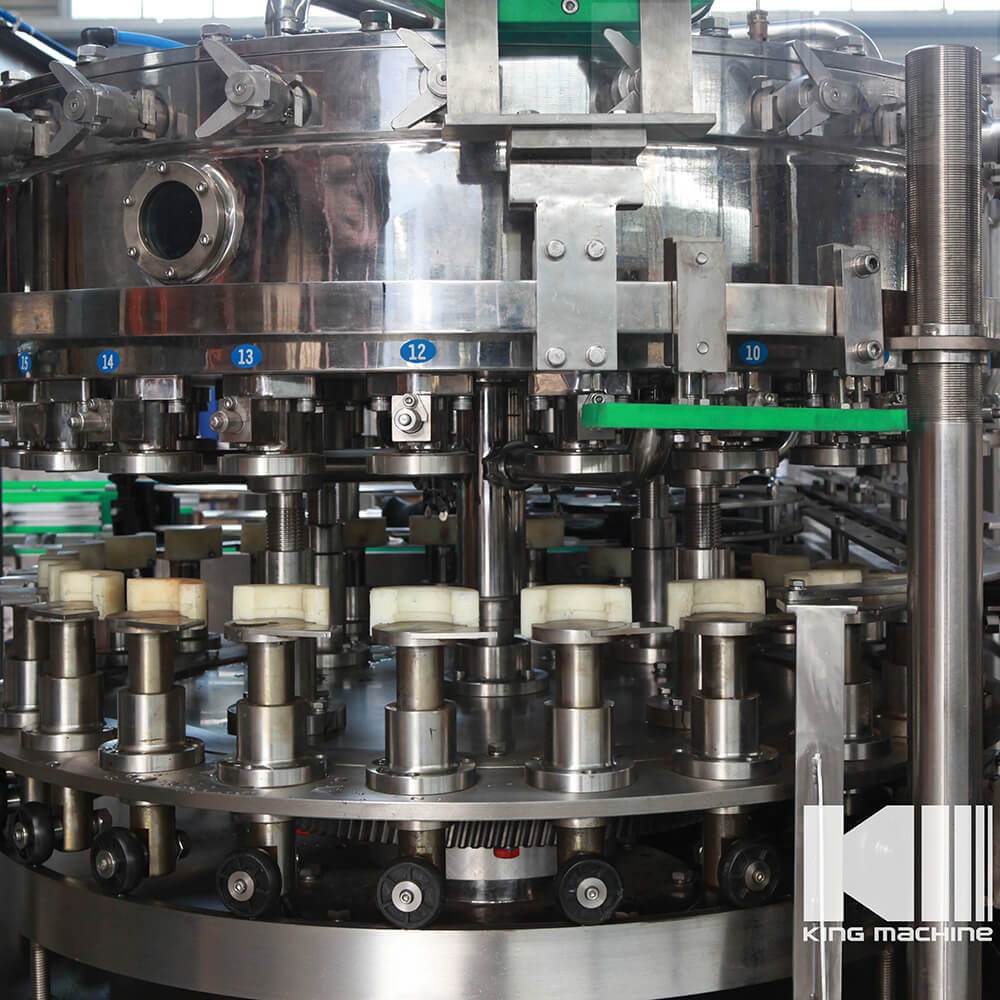

(I) FILLING MACHINE
1.The equipments constitute
Mainly the filling machine is from the filing urn and the filling valve. After can is washed, it is transferred to the filling machine through the middle spider. The star wheel will stuck can and sent them into the filling machine. The base will support the can to rotate around the filling machine, and the roll will open, the liquid will into can.
2.The filling principle:
In this machine of infuse and filling valve for equal take press the pressure type to filling, the speed is slow, the accuracy is high and thus guarantees to the filling quantity.

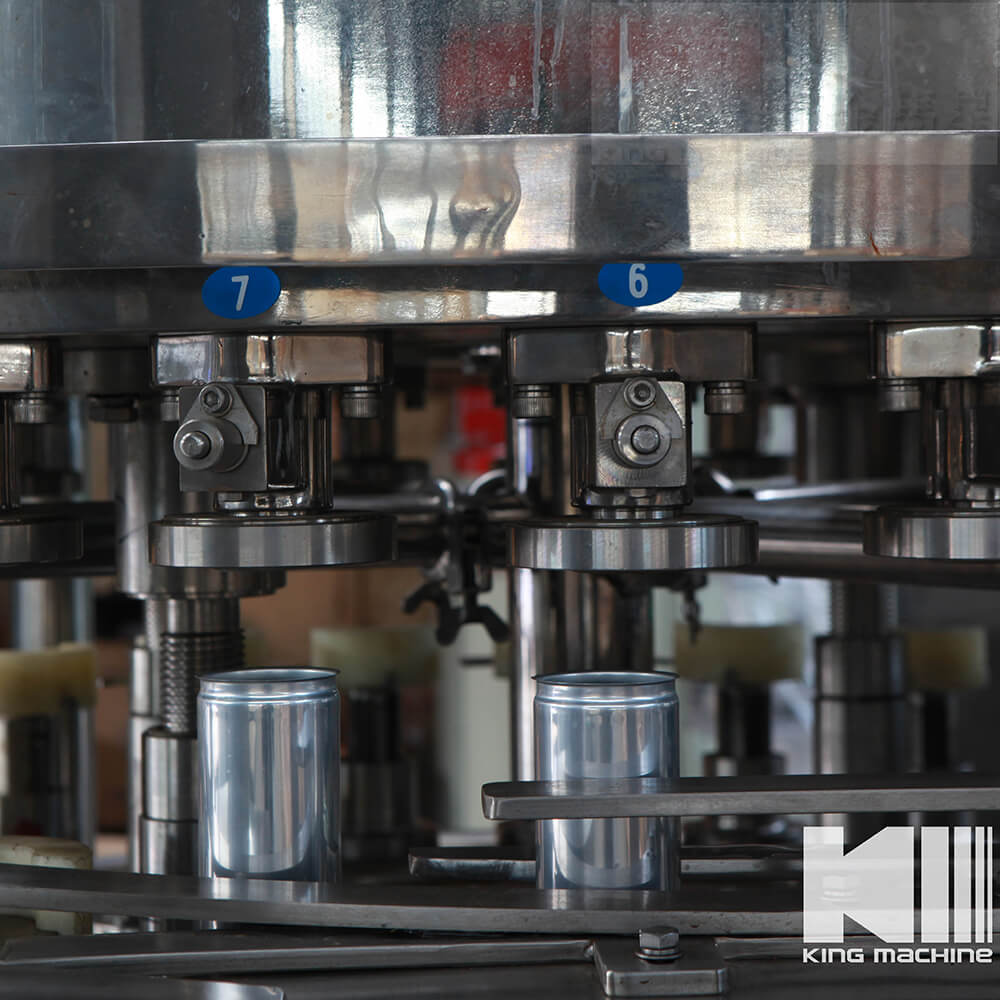

3.The filling valve
The filling valve is one of the key parts that the filling machine, the filling valve is make up of the valve core, valve body ,valve seat , umbrella?wide liquid valve---etc---
3.1. When can from in the center the star round enters a can-base of board, the filling valve taking the valve coat, the valve core is together up move, at this time 0 type roll 1 take off with the valve seat to open, enter the filling district.
3.2.The material continue downflow, until the bottle filling up ,when the rolls round to carry on the cam, the filling valve to move up,0 type circle 1compress tightly the valve body, make the material no longer enter the valve tube of the valve core.

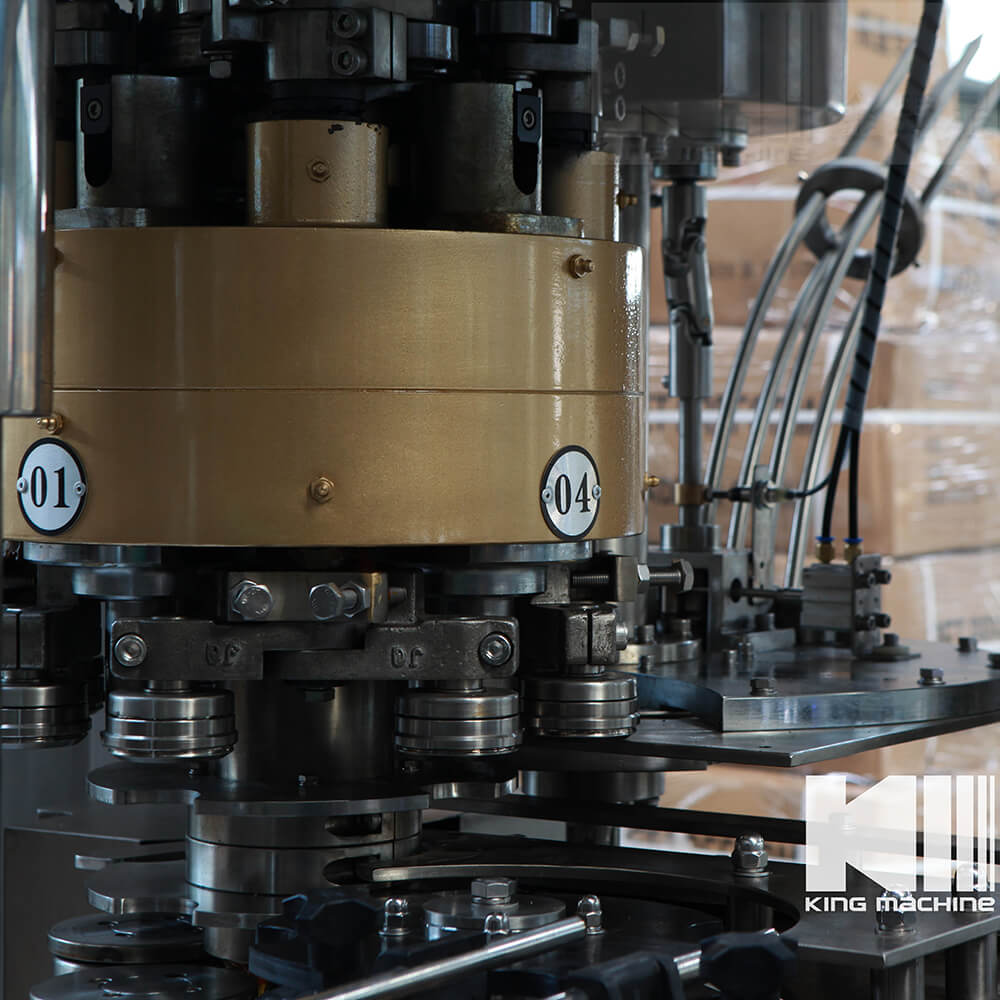

(II) Cap screwing Machine
The cap screwing machine is composed of frame, slide way, cap screwing device, transmission and others.
The transmission of the cap screwing machine is drive to the gear by the reduce, the power is transferred to the cap screwing head through the hollow main axle.
The can is not rotating, the four small rolls will rotate and press cap. The cam is fixed. The cap is sent into the gear ring of the screwing cap head through the stirring device and slide way. When there is a can on the convey belt, a cap will move down with the rotating of the screwing cap head and screw the cap on the can mouth.
|Can size||Depends customer||Depends customer||Depends on customer|
