5000BPH Juice Can Filling And Sealing Two In One Machine 5000BPH Juice Can Filling And Sealing Two In One Machine

Quantity:
Share this:
  • Model: GDF
  • Brand: KM
  • Product Description
  • FAQ




Base on the advanced assembling machine model from abroad, the design of GT series filing machine assembling machine incorporated the real demands from the local market, which propositions the best fit to local beverage industry, especially for cans filling and sealing.

This assembling machine utilizes quantitative filling valve under constant pressure with single chamber which was invented and registered as national patent product independently by our firm.

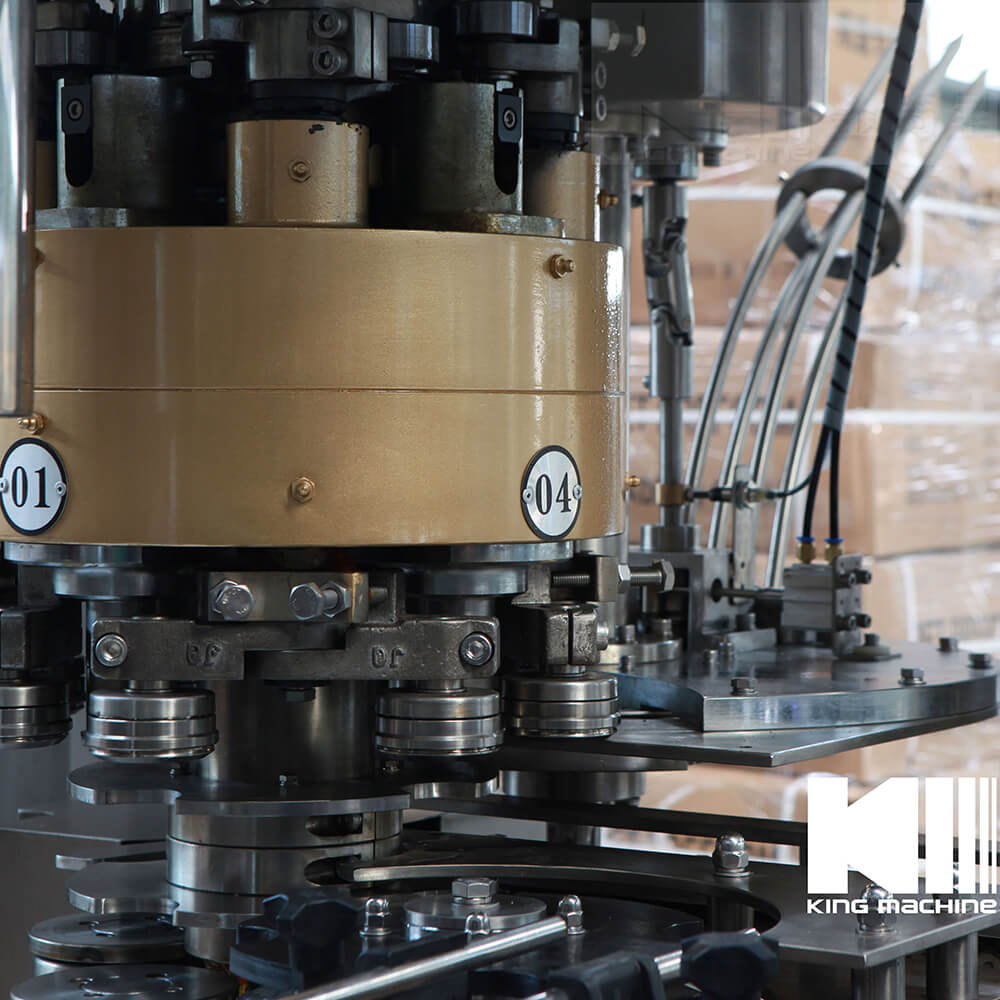

Sealing applies double hemming, spinning and adjustable speeding control that provides steady fluid flow with high speed filling, large and accurate quantity set. The storage cylinder has automatic depth control and self-cleaning and sterilizing. The machine equipped high quality sensor that enable the filling process to be completed accurately and promptly. Due to the advanced design and functions,this machine can be applied to all kinds of cans filling and sealing.


Model GT12-4 GT18-4 GT24-6 GT36-6
Filling Heads 12heads 18heads 24Hheads 36heads
Sealing Heads 4heads 4heads 6heads 6heads
Production Capacity 150cans/min 250cans/min 300cans/min 400cans/min
Applicant of can size

φ53-φ72.9mm

height 65-190mm

φ52.5-φ83.3mm

height 70-133mm

φ52.5-φ83.3mm

height 70-133mm
Air Pressure 0.6Mpa
Mechanical power 7.5KW 11kw 11kw
Overall Size 2850X1650X2000mm 3050 X1800 X2100mm 3500 X1950 X2200mm 4300 X2400 X2000mm

Material:

a. Transmission parts: fine carbon steels

B. filling valve parts: SUS 304 stainless steel, Silicone rubber

C. Storage cylinder: SUS 304 stainless steel

D. Filling parts: pneumatic control, SUS304 stainless steel;

E. Conveyor parts: side plate is made with SUS 304 stainless steel, conveying chain is POM flat-top chain;

F. working station parts: carbon steels frame with SUS 304 stainless steel surface

G. sealing parts: fine carbon steel, bearing steel, and tool steel


Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
×
