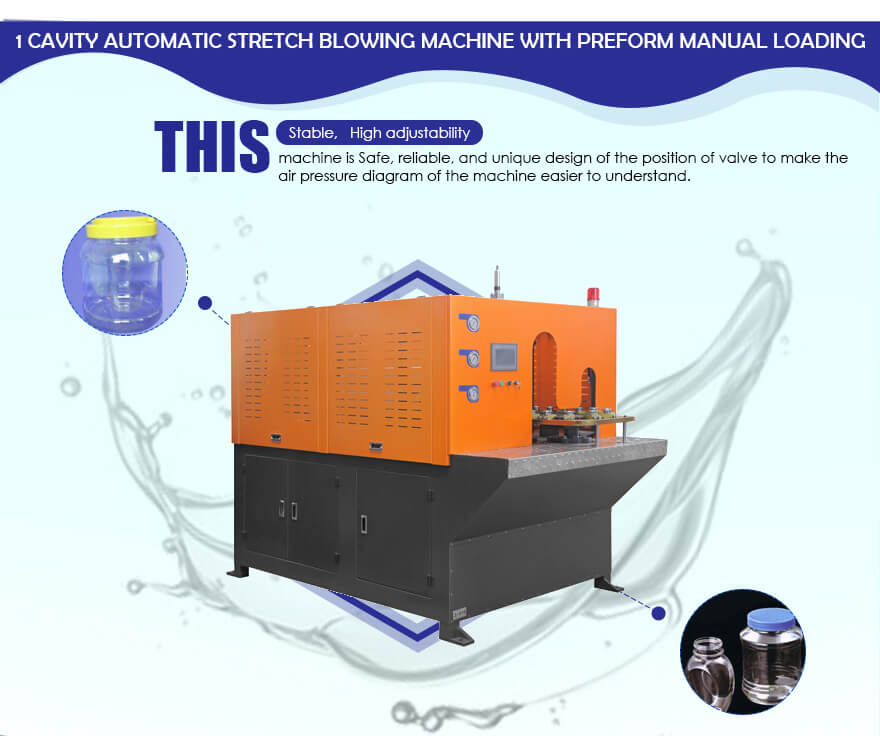

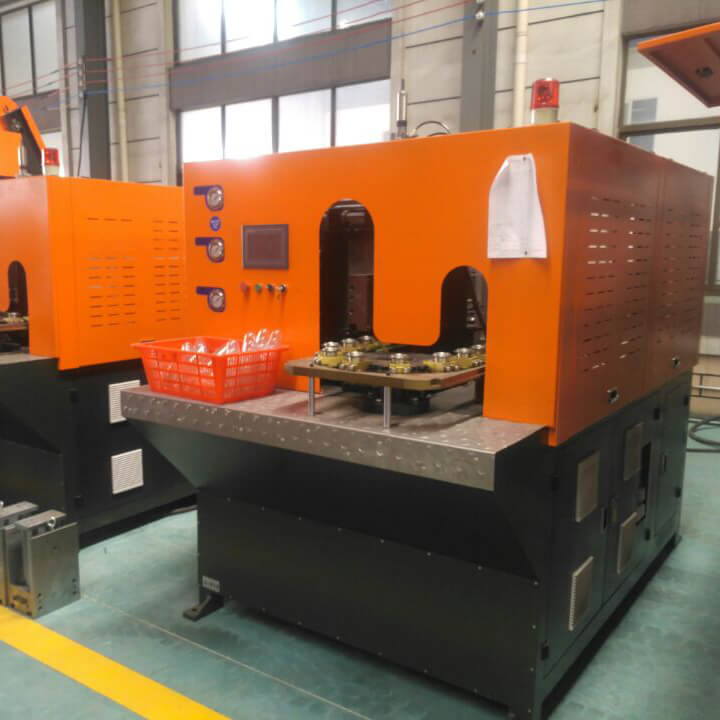

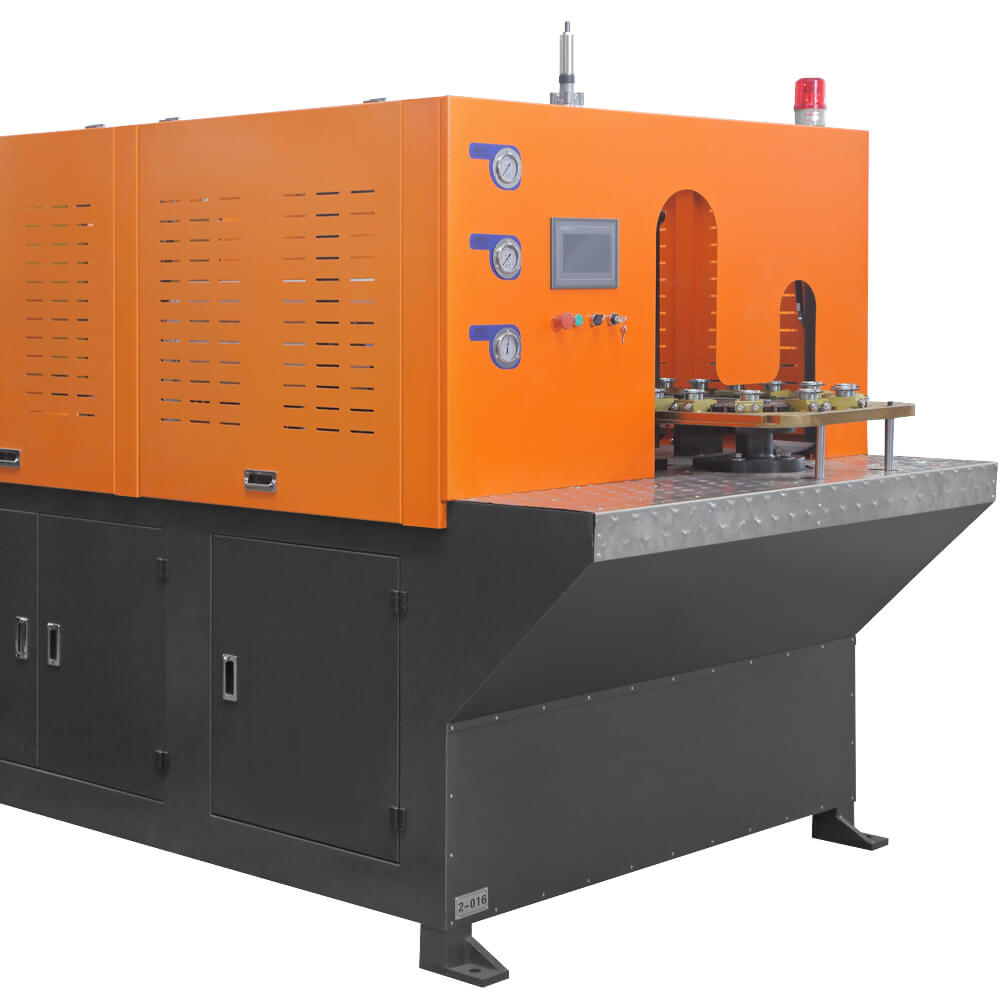

1 CAVITY Automatic Stretch Blowing Machine With Preform Manual Loading 1 CAVITY Automatic Stretch Blowing Machine With Preform Manual Loading

Quantity:
Share this:
  • Brand: KM
  • Product Description

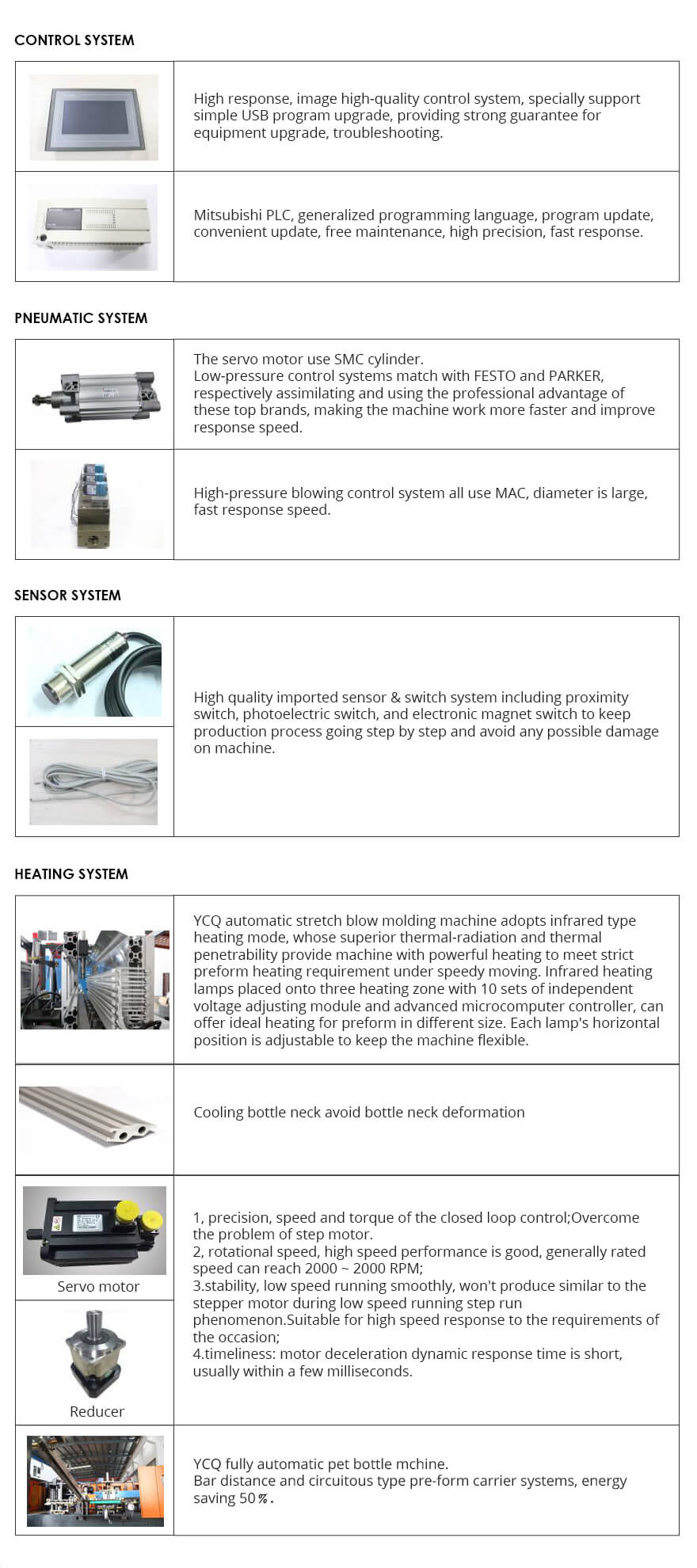

A. Stable performance with advanced PLC.

B. Conveying preforms automatically with conveyor.

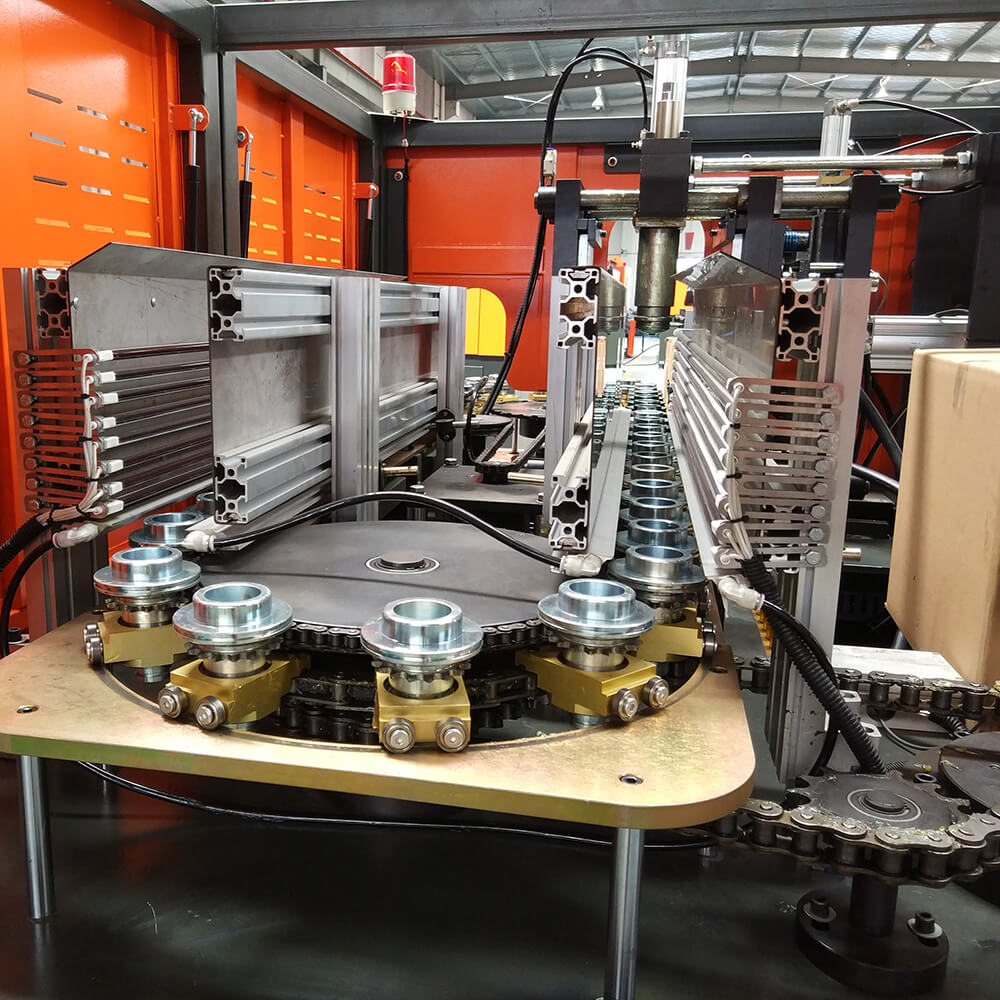

C. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.

D. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.

E. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.

F.No contamination and low noise with the air cylinder to drive the action instead of the oil pump.

G. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

H. Strong clamping force with high pressure and double crank links to lock the mold.

I. Two ways of operating: automatic and manual.

J. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.

K. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.

L. Contamination is avoided for the bottle body.

M. Ideal effect of the chilling with the chilling system.

N. Easy installation and starting

O. Low rejection rate: less than 0.3percent.

Item

KM-5L-1

Bottle type specification

Cavity

1

Theory output

500-1000

Max.volume

5L

Bottle mouth maximum overall diameter

150mm

Bottle biggest diameter

180mm

Bottle maximum height

400mm

Power specifications

Light tube quantity

32pcs

Light tube power

1KW

Maximum heating power

32KW

All electric machine installation

35KW

Actual consumption

17.5KW

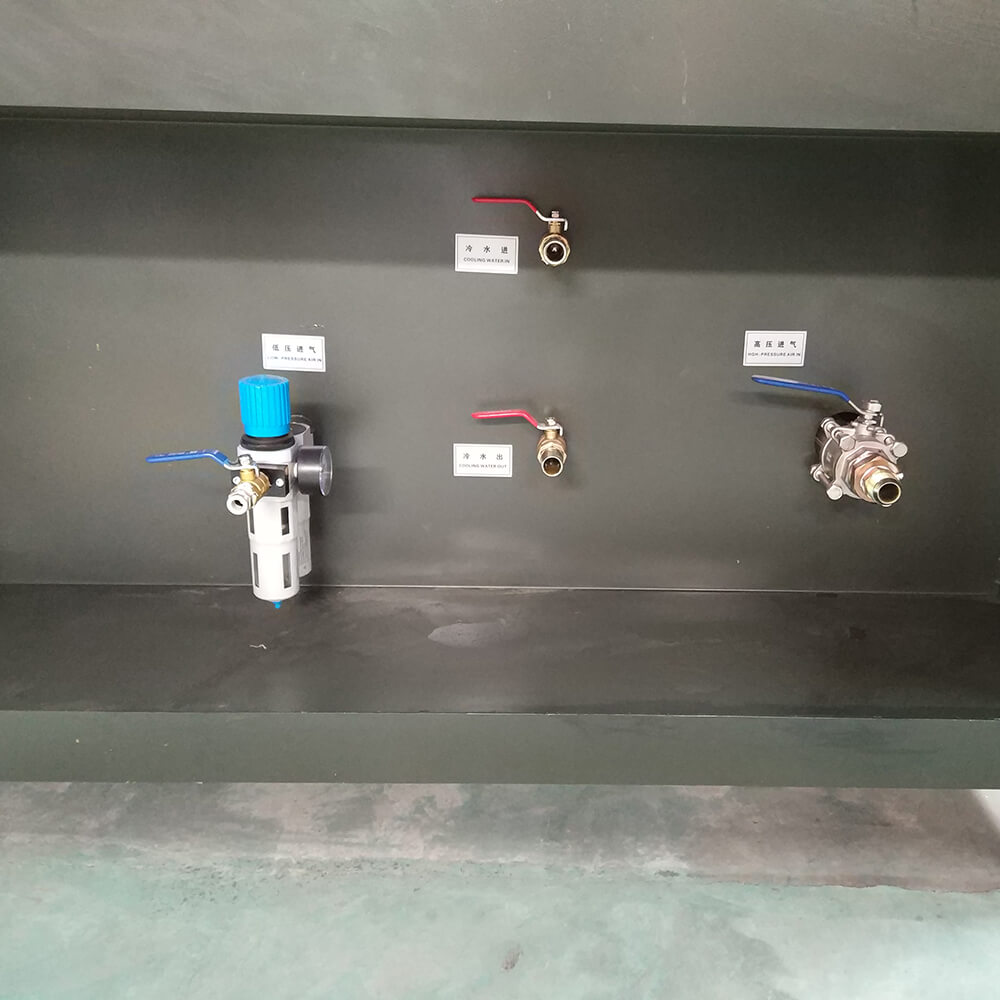

Air pressure specification

Work pressure

7-9kg/c

Low-pressure gas consumption

1200L/min

Blow bottle pressure

25-35kg/c

Higher -pressure gas consumption

2000-2500Ltr/min

Forzen water specification

Work pressure

5-6 kg/c

Temperature range

10℃

Consumption

4000kcal/hr

Forzen water flow

30L/min

Machine specification

Size of the machine

2.4x1.5x1.7

Weight of the machine

2ton

NUMBER

NAME

QTY/SET

1

Lamp

10

2

Seal ring

10

3

Tool box

1

4

stop button

1

5

starting switch

1

6

connector

20

7

Detection switch

1

8

Magnetic switch

4

9

Pressure regulating table

1

10

Temperature control module

2


NUMBER

NAME

QTY/SET

1

Lamp

10

2

Seal ring

10

3

Tool box

1

4

stop button

1

5

starting switch

1

6

connector

20

7

Detection switch

1

8

Magnetic switch

4

9

Pressure regulating table

1

10

Temperature control module

2


Q:How about the spare parts?

A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.



Q:How long time for installation?

A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.



Q:How to install my machines when it arrives?how much the cost?

A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.



Q:When can I get my machine after I paid?

A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.



Q:What’s your guarantee or the warranty of the quality if we buy your machines?

A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.



Q:Are you a trading company or a manufacturer?

A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.

×
