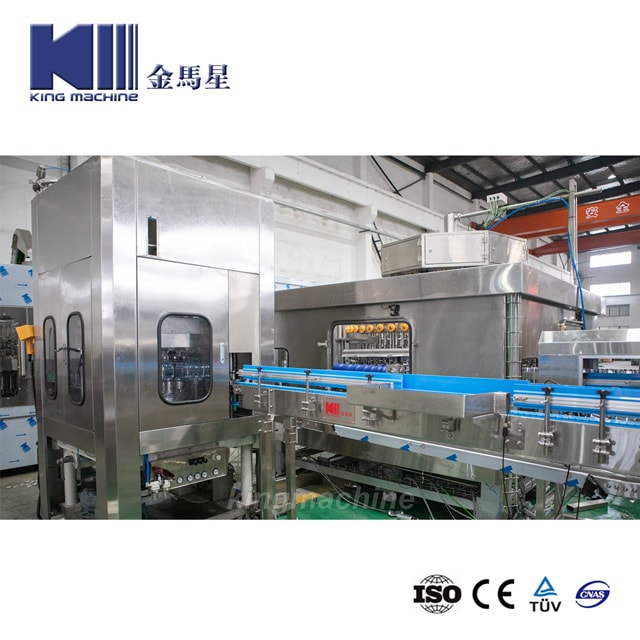

Fully Automatic Flowmeter Type Canning Machine Filling For CSD Fully Automatic Flowmeter Type Canning Machine Filling For CSD

This equipment is the appropriative filling machine of (Aluminum Can) carbonated drinks;
Introduction, digestion and absorption of foreign advanced technology as the foundation. According to the requirement of beverage filling process in our country, it is a kind of filling equipment with advanced technology. It is mainly used for filling gas beverage containing beer, soft drinks, cola, sparkling wine, mineral water and so on. Filling and capping are integrated in one machine.

Quantity:
Share this:
  • Model: GDF
  • Brand: KM
  • Code: 8422
  • Product Description
  • Turnkey Project
  • Company Information
  • Our Customer
  • FAQ

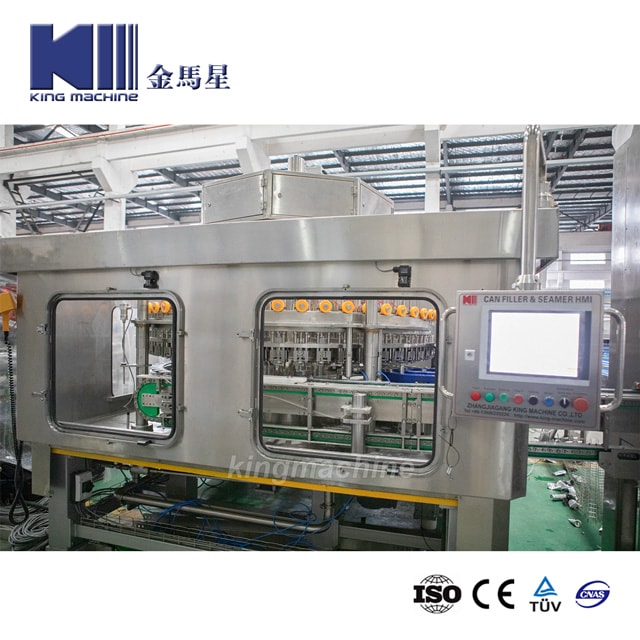

Flowmeter type Can Filler/Seamer for CSD

* we provide the complete pop cans / tin can filling and package solution ,from juice processing system , water treatment plant , can depalletizer ,can rinsing machine ,can filling & sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,juice , CSD industry and so on.

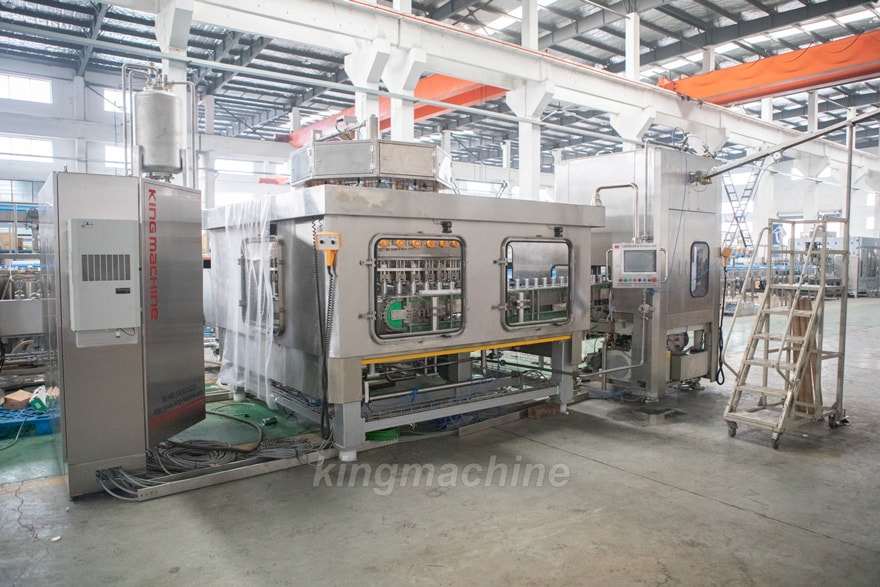

canning machine.jpg

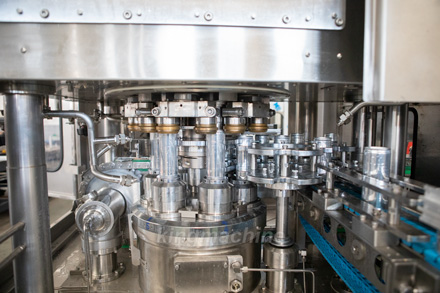

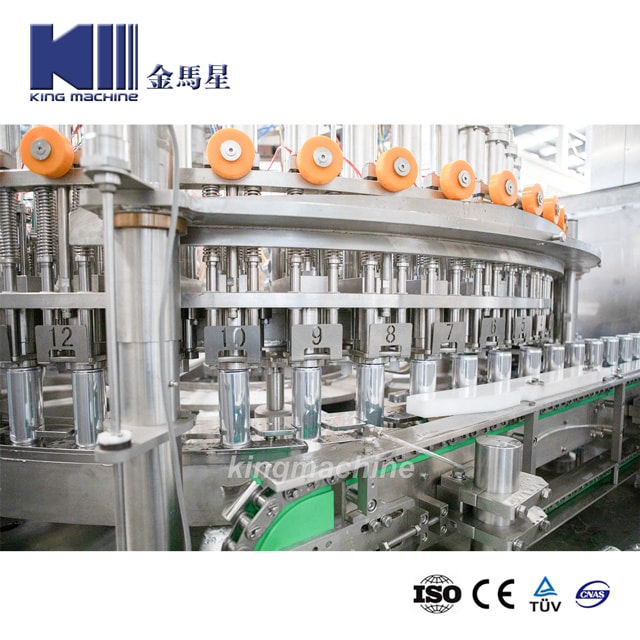

The filling valve

This canning filler uses float-ball cylinder type volumetric filling, the filling is controlled with electronic valve, so that ensure the filling is accurate, difference can be controlled < ±1ml (Actual of single valve ±0.5ml). In additions, the filling volume can be adjusted on line without shutdown the machine.

The machine is equipped with cleaning cups, can do CIP circulation rinsing.

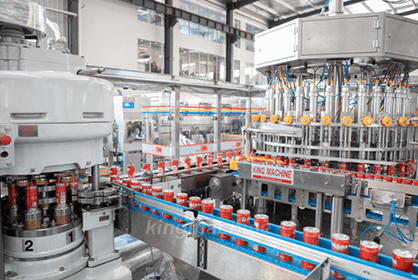

can filling sealing machine

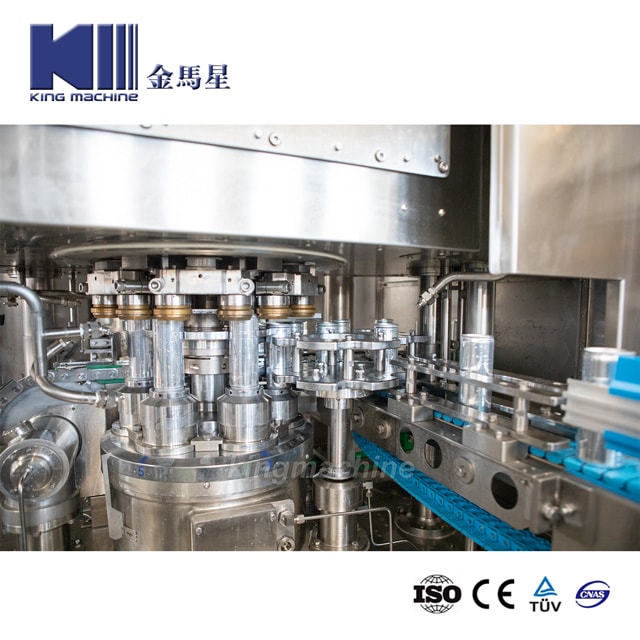

can seamer machine

Cap screwing Machine

The cap screwing machine is composed of frame, slide way, cap screwing device, transmission and others.

The transmission of the cap screwing machine is drive to the gear by the reduce, the power is transferred to the cap screwing head through the hollow main axle.

The can is not rotating, the four small rolls will rotate and press cap. The cam is fixed. The cap is sent into the gear ring of the screwing cap head through the stirring device and slide way. When there is a can on the convey belt, a cap will move down with the rotating of the screwing cap head and screw the cap on the can mouth.

CSD Drink Can filling machine series



For can filling machine ,King machine company provides models with different output, from 2000-3000 cans per hour, 5000-8000 cans per hour, 15000 cans per hour, 20000 cans per hour, to 36000 cans per hour and so on. According to the different output, filling method is also different.



According to the types of filling valves, we roughly divide the filler into three generations:



First is the traditional pop can filling machine with aerated beverage filling valve. The number of filling valve heads is 12 and 18, and the production capacity is 2000 cans per hour and 5000 cans per hour respectively. This model is characterized by compact structure, strong practicability and high cost performance, because it belongs to our mature product and many users are currently in use, It is an ideal choice for many customers who are just beginning to make beverage production.



The second can filling machine with 18 cans, 24 cans and 32 cans. The stable output is 5000 cans per hour, 8000 cans per hour and 12000 cans per hour respectively. The filling method adopts beer filling technology. This kind of filling valve solves the problem of filling bubbles and effectively solves the problem of liquid level deviation in the production process, The accuracy of filling and the working efficiency of the whole production line are improved.

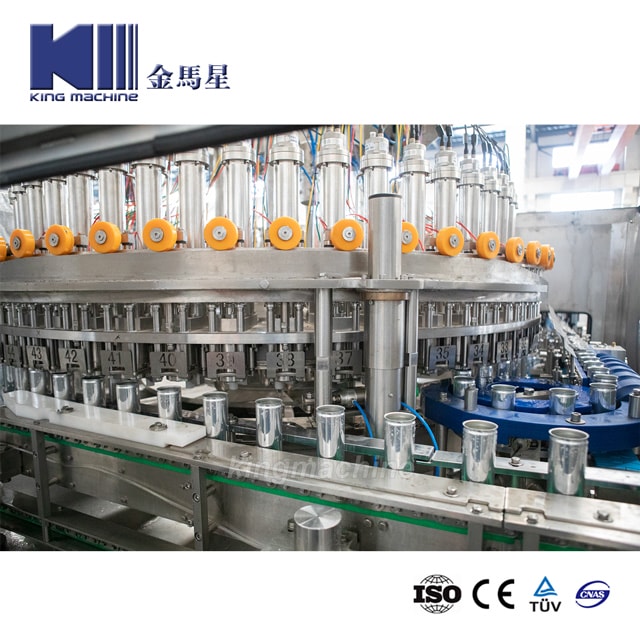

The third generation of king machine can filling machine. It is characterized by compact structure and very convenient maintenance and operation. However, the remarkable feature is that the filling machine is equipped with floating ball measuring cylinder electronic pneumatic valve. It is the most first-class technology for gas filling of cans in the world. It adopts floating ball measuring cylinder fixed volume filling. The filling process is controlled by electronic valve and the filling capacity is constant.



1st Generation Can filler

2nd Generation Can filler

3rd Generation Can filler



Filling Head

12heads 18heads

12heads 18heads 32heads

32heads 40heads 54heads 80heads etc

Capacity

2000cans/h-5000cans/h

5000cans/h-12000cans/h

15000cans/h- 60000cans/h

Filling Type

Isobaric filling

Isobaric filling beer type

Floating ball volumetric type

Structure

Integral cleaning table

Easy to clean

All stainless steel

Integral cleaning table

Easy to clean

All stainless steel

Integral cleaning table

Easy to clean

easy Operation and

 maintenance



Machine Advantage

High cost performance,

low output

suitable for customers who have just entered beverage area

Compact, stable foam free filling with high yield.

Beer filling valve has stable performance and high cost performance.

High degree of humanization



Beautiful atmosphere



Online remote assistance



The filling capacity can be adjusted online without shutdown, which can be adjusted as a whole or by a single valve



High filling accuracy



Filling steps can be set


Our beverage filling machine has sold to many customers all around the world as below.

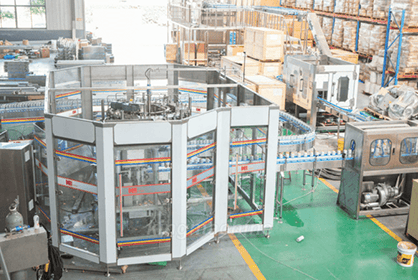

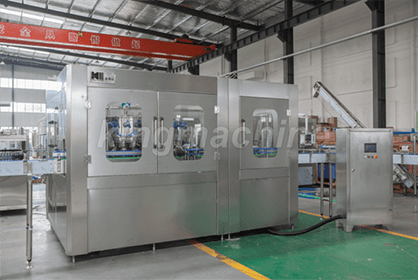

The first generation: Has sold to Uzbekistan, USA, Liberia beverage filling manufacture.
1646362733437532
1646362743861850

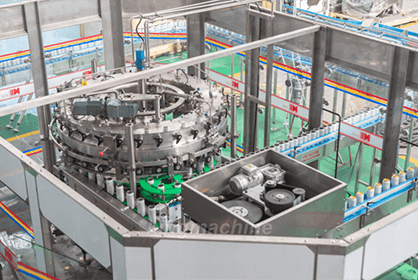

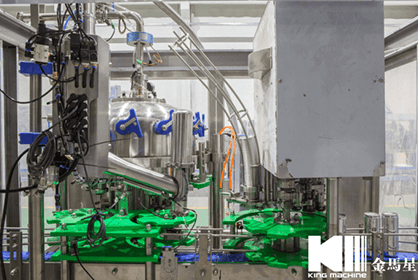

The Second generation: Have sold to Poland, Syria, Nepal ,India CSD DRINK FACTORY Etc.

1646362777684678
1646362790164992

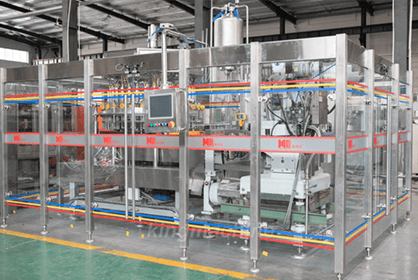

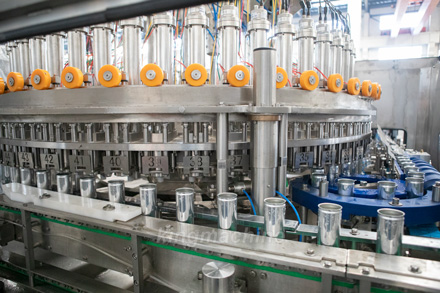

The third generation: Guinea Israel food and beverage factory etc.
1646362809799290
1646362820413791


When the can enters the can filling machine and is positioned below the can. When pressing, the filling valve is pneumatically pressed on the can. With the help of the pressure chamber, the can is very flexible in the alignment and compression of the filling valve. Low carbon dioxide consumption purging is completed through an independent sanitary group channel, and the filling process is carried out. The electronic floating ball measuring cylinder is used to control the amount of liquid flowing in. The filling accuracy can reach ± 1.0m, which is closed when the set filling capacity is reached. Using an independent pressure relief channel, the pressure at the top of the can is reduced to the ambient pressure again, and then the filling valve is raised from the can through pneumatic control.


Purchase premium can filling machine from King-Machine

King Machine as one of the leading, beverage-packing machine manufacturers has provided quality equipment and amazing service to many of our customers worldwide.If you are looking fo r can filling machine for your plant, we will absolutely be your best choice. Please contact us for more information.


Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.


1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

×
