Semi-automatic Lid Feeding Machine For Canning Line

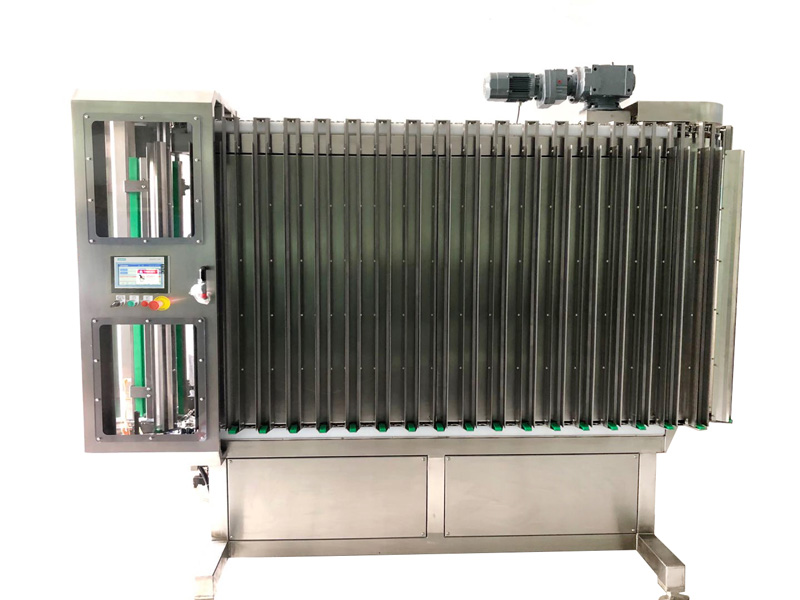

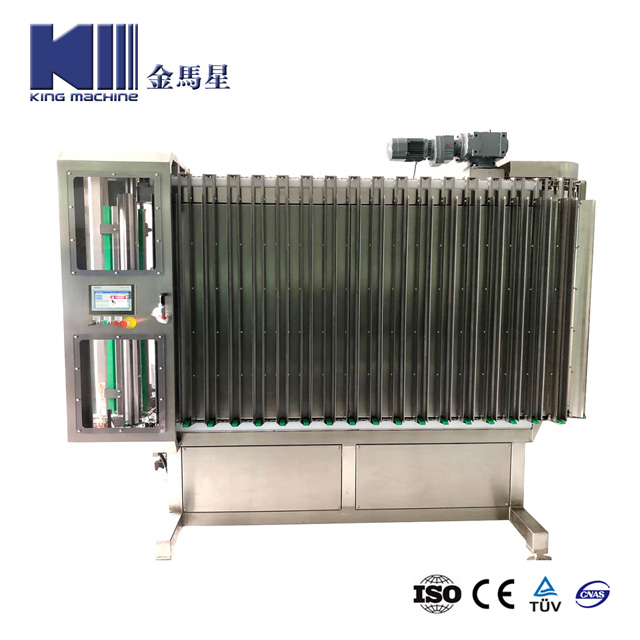

Lid Feeding Machine.jpg


Product Description

The lid feeding machine is equipped with 50 lid storage slots. Each lid storage slot can hold about 600 pieces of lids. When starting up, the operator needs to put each piece of lid into the lid storage slot one by one and take away the paper bag; the end of the main machine There is a cache channel, and the covers in the cover storage tank will enter the cover transport channel from the buffer channel. The cache channel is equipped with an upper and lower detection sensor for detecting the inventory of covers in the channel. There is a set of auxiliary mechanisms at the bottom of the cache channel. The mechanism plays an auxiliary role in transferring the lid; a push plate device is installed directly in front of it. This device is an important mechanism for sending the lid from the lid storage tank to the cache channel.
When the equipment is running, the program will detect whether there is a cover in the cache channel, and also detect whether a cover has been added to the storage tank. If there is a lack of cover in the cache channel, the auxiliary mechanism below will close and wait for the addition of a new cover strip; when the storage tank The lid has been added to the lid. The main drive detects the presence of the lid during operation and stops when it is in the synchronized position to ensure that the pushing device, lid storage tank and cache channel are in the centered position. At this time, the pushing device moves and the lid storage tank is The lid inside is pushed to the cache channel; after the cache channel detects that the lid is fed in, the auxiliary device below opens, the lid is sent into the conveying channel, the pushing device returns, the main drive starts again, and enters the next cycle. When the main drive continuously detects that no caps have been added to the cap storage tank during operation (the number can be set on the human-machine interface), the system will issue an alarm to prompt the operator to add cap rolls.
There is a lid feeder at the outlet of the main machine of the capping machine. A damper is installed at the end of the cap conveying channel and the sealing machine. A gap control sensor is installed on the damper. The function of the damper is to maintain a constant conveying cap in the conveying channel. pressure, and is isolated from the cover at the front end of the sealing machine to ensure that the pressure in the conveying channel is not transmitted to the sealing machine, thereby affecting the cap separation; the operation signal of the cap pusher comes from the gap control sensor. When the sensor cannot detect the cover, push The capping device automatically pushes the lids and stops conveying immediately when the caps are delivered and filled. The capping device can automatically adjust the conveying speed according to the actual usage of the sealing machine.


Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.


1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

×
