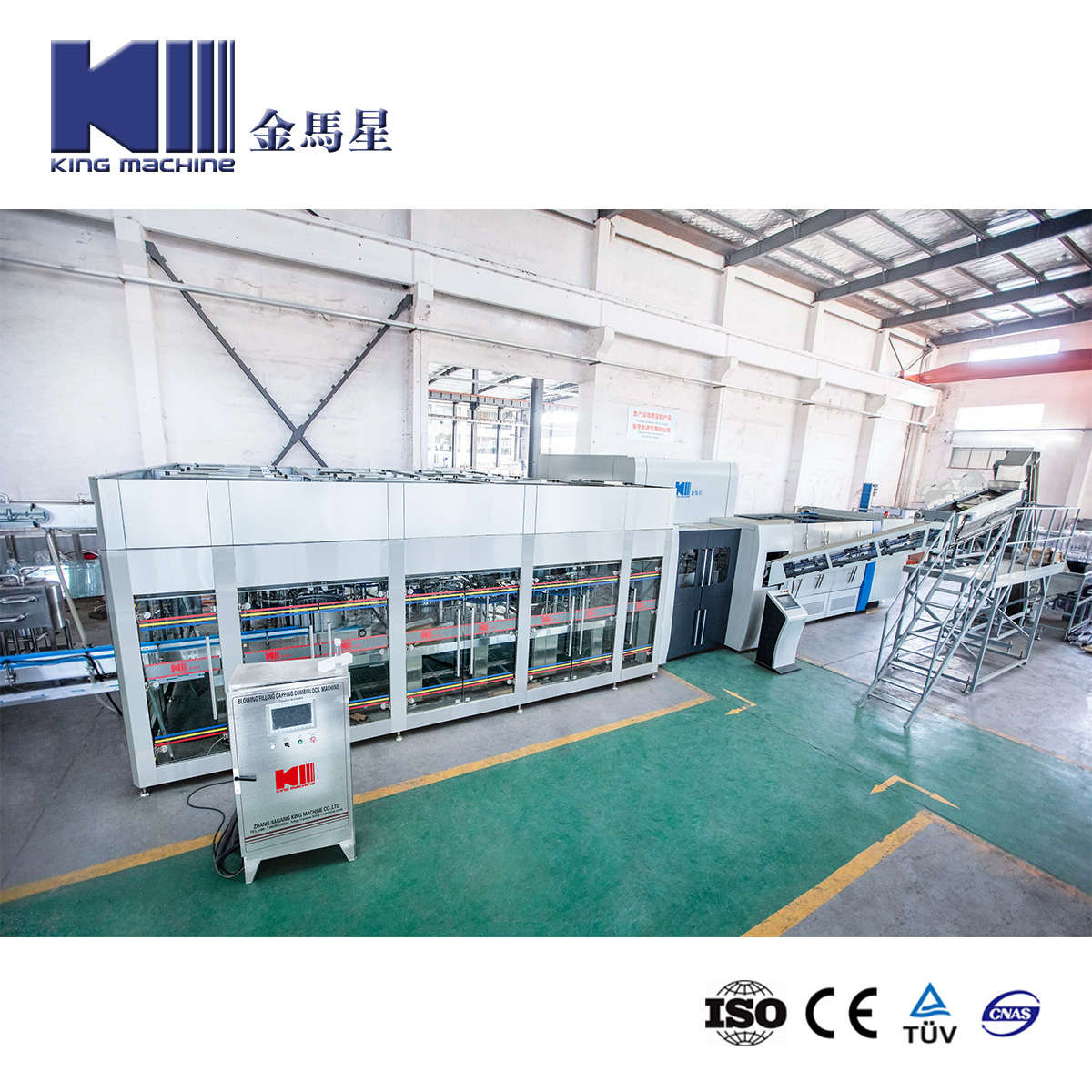

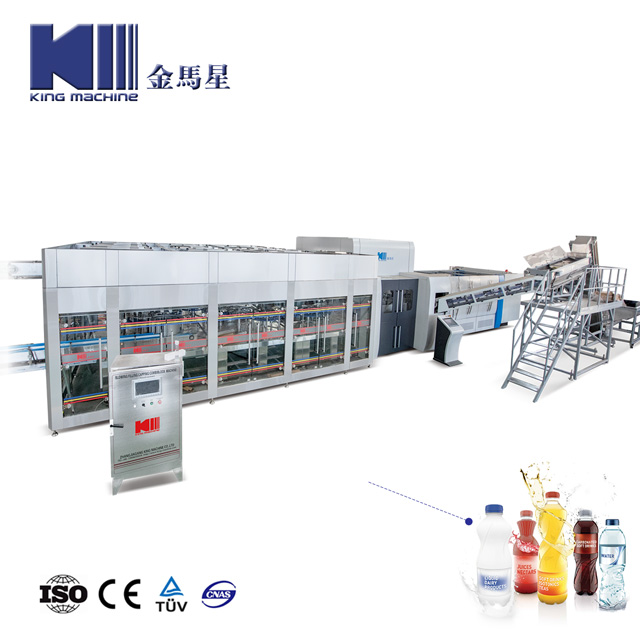

18000BPH Automatic Blowing Filling Capping Water Filling Line

18000BPH Automatic Blowing Filling Capping Water Filling Line

Our combi block machine capacity can reach for example like water production 0.5l bottle capacity is 12,000bph to 54,000bph And 4l 5l Capacity is 4000bph to 6000bph 15L 19l Capacity is 1500bph to 3600bph Our combi block machine single cavity capacity can reach 2000bph to 2500bph .

Quantity:

A to Z Pure Water Beverage Drink Blow/ Fill/ Cap Combiblock Filling Machine

Water Filling Machine.jpg

Product Description

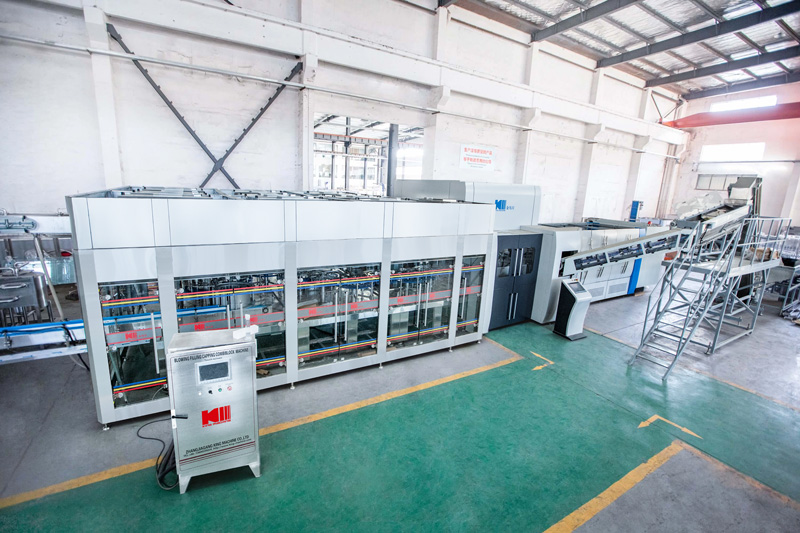

We have developed a multi-functional blowing filling and capping combination block, through the applicant of optical , mechanical, electrical and pneumatic integration, it adopts servo system for synchronous control, realize the comprehensive control and production of multiple equipment, improve the production efficiency of the entire production line , and reduces the investment cost , energy consumption and maintenance cost. It is suitable for the production of carbonated drink, juice and water , and other products .

blowing filling and capping.jpg
Our combi block machine capacity can reach
for example like water production
0.5l bottle capacity is 12,000bph to 54,000bph
And 4l 5l Capacity is 4000bph to 6000bph
15L 19l Capacity is 1500bph to 3600bph
Our combi block machine single cavity capacity can reach 2000bph to 2500bpb .

Water Filling Packaging Machine Combi.jpg

Blowing part

Fully automatic blow molding machine ensures excellent and stable product quality. It features a reliable infrared heating system (with infrared lamps that can be individually controlled) and a high-precision bottle mold clamping system. The machine uses a specialized air-blowing valve designed and manufactured by a dedicated company, while the other pneumatic and electrical components are sourced from well-known brands. Additionally, the stretching guide rail is specifically designed according to the product requirements, ensuring accuracy and consistency in the bottle-blowing process. This guarantees the stability of product quality and overall reliability.

Fully automatic blow molding machine boasts high output efficiency. Each cavity has a production capacity of 1,800 to 2,000 units per hour.

blow molding machine.jpg

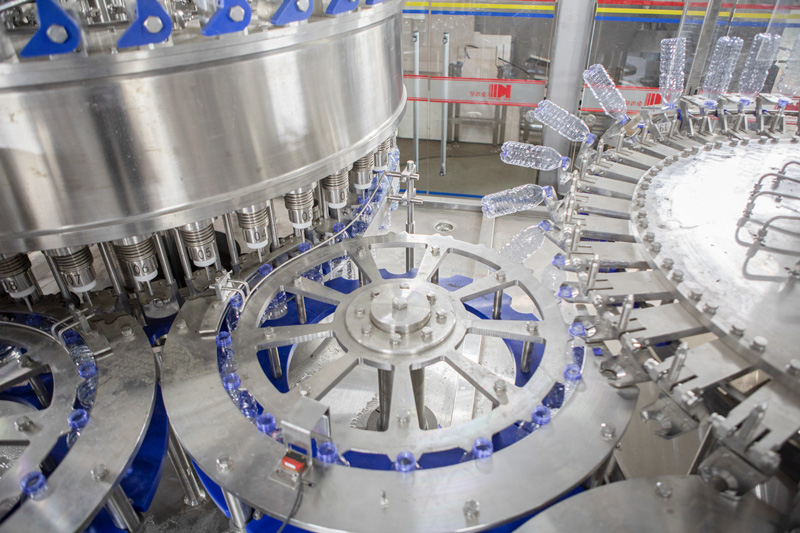

Washing Filling Capping

The machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics.

Water Bottling Machines.jpg

Washing heads

The rotary disk is fully made of SUS304 stainless steel.
Using imported special efficient spray nozzle, the washing water will be sprayed in a particular angle, can wash any part of the inner wall, rinse with water thoroughly and save flush bottle.
Bottle clamp and lifting mechanism of sliding sleeve adopts Germany Igus corrosion resistant bearing without maintenance.
Washing part moves by a frame in the transmission system through the gear transmission.

Filling heads

The washing bottle, filling, sealing are connecting with the thumbwheel card bottleneck transportation methods.
The rotating disk is all made of SUS304 stainless.
Filling method is fravity filling.
Filling valve manufactured by SUS304.
The filling valve structure design is reasonable, the filling quantity is accurate.

Capping heads

The capping machine is the highest precision in 3-in-1 unit machine, on the reliability of equipment operation, has enormous influence on the defective rate of the product.Introduced the world's most advanced Italian AROL capping machine technology, combining with the filling machine production experience improvement, and ask college of Shanghai Jiao Tong university mechanical engineering institute of electrical and mechanical design and automation technology of experts and professors to help design.

Auxiliary machines

RO water treatment system

We adopt different equipment to produce pure water, mineral water etc. The main equipment of RO Water Treatment Plant are silica sand filter, active carbon filter, sodium ion exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc. It can effectively get rid of muddy organic matter, iron, manganese etc, reduce the hardness of the water to make all specifications of the water quality fully meet the state fresh water standard of fresh drink water.

Flat conveyor

·The bottle belt is synchronously tracked with the host or the upstream and downstream equipment, which are connected to control system.
·The bottle does not fall, does not jam, and does not block during the conveying process.
·According to the user's needs, the buffer platform can be set in front of the labeling machine (the buffering time is usually about 1-2 minutes).

Automatic labeling machine

1.Hot melt glue labeling machine is widely used for different material of container .
2.The label cost is comparatively lower, it can meet the requirements of those users who have diverse kinds of the containers.
3.It is the most economical models in cost to make mass production and intergrated operating.
4.The equipment has massively used modularization design concept to make it easy and simple for users to change the bottles.

PE film packaging machine

Automatic PE film heat shrink wrapping machine is suitable for wrapping of such products as pop top, mineral water , bottles. beer, drinks etc. Working with PE film shrink tunnel to pack the goods perfectly , the whole production process adopts the Germany advanced technics, and the main parts are imported from international famous companies. It consists of seven actuating motor, through cooperation with 7 actuating motor to form the product packed with plastic film and several bottles as a group out from the hot shrinking packing machine.

Nearly 15 years, King Machine has provided bottling & packing equipments of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

1.Standardized workshop of total 20,000 square meters.
2.Verification Certificates of equipments: ISO9001:2001; CE Certificate, SGS Certificate, BV Certificate, standard organisation of nigeria , cnca certificate, Logo trademark registration, etc.
3.The equipments will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.
4.Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
5.The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.
6.Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

We control the quality of our equipments by manufacturing and machining ourselves. Pay attention to each assembly detail, and our experienced technicians monitor each key point efficiently during assembly, to ensure that the performance and appearance of each product be pefect.

To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: diversified production range, high-class packaging forms. Meanwhile market competitivness has been improved because of the efficient operation mode of equipments.

Q1: Do you have reference project?
A1: We have reference project in most countries,If we get the permission of the customer who has brought the machines from us ,we can tell you their contact imformation,you can go to vist their factory.
And you are always welcome to come to visit our company,and see the machine running in our factory,we can pick you up from the station near our city.
Contact our sales people you can get video of our reference running machine

Q2: Do you have agent and after-service stations?
A2: So far we have agent in Yemen,Nigeria,Dubai,India,Kenya,Dubai welcome to join us!

Q3: Do you provide customized service
A3: We can design the machines according your requirements(materil ,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

Q4: What's your guarantee or the warranty of the quality if we buy your machines?
A4: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q5: How long time for installation?
A5: According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
