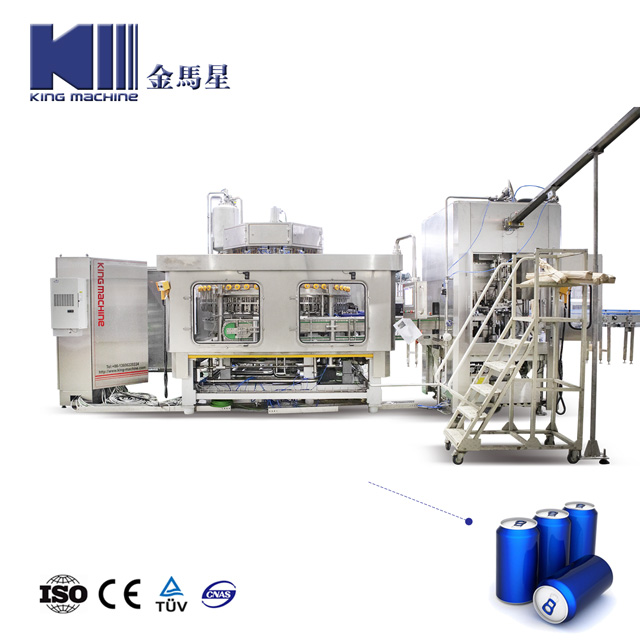

30000CPH 500CPM Can Filling Machine For Carbonated Soft Drinks

500cpm Can Filling Machine For Carbonated Soft Drinks

* We provide the complete pop cans / tin can filling and package solution ,from juice processing system , water treatment plant , can depalletizer ,can rinsing machine ,can filling & sealing monoblock machine ,leakage check,liquid nitrogen dosing machine ,pasteurizer tunnel ,blow dryer ,carton package ,film package system ,which is widely used for the beverage ,beer ,juice , CSD industry and so on.

* At King Machine company, we offer individual equipment or a combination of different equipment as a solution for your factory needs. Equipped with the expertise and professionalism, We will confirm more details with you as soon as possible to offer customized solution for you .

The filling valve This canning filler uses float-ball cylinder type volumetric filling, the filling is controlled with electronic valve, so that ensure the filling is accurate, difference can be controlled < ±1ml (Actual of single valve ±0.5ml). In additions, the filling volume can be adjusted on line without shutdown the machine. The machine is equipped with cleaning cups, can do CIP circulation rinsing.

Cap screwing Machine The cap screwing machine is composed of frame, slide way, cap screwing device, transmission and others. The transmission of the cap screwing machine is drive to the gear by the reduce, the power is transferred to the cap screwing head through the hollow main axle. The can is not rotating, the four small rolls will rotate and press cap. The cam is fixed. The cap is sent into the gear ring of the screwing cap head through the stirring device and slide way. When there is a can on the convey belt, a cap will move down with the rotating of the screwing cap head and screw the cap on the can mouth.

CSD Drink Can filling machine series

For can filling machine ,King machine company provides models with different output, from 5000-8000 cans per hour, 15000 cans per hour, 20000 cans per hour, 36000 cans per hour, to 60000 cans per hour and so on. According to the different output, filling method is also different.

According to the types of filling valves, we roughly divide the filler into three generations:

First is the traditional pop can filling machine with aerated beverage filling valve. The number of filling valve heads is 12 and 18, and the production capacity is 2000 cans per hour and 5000 cans per hour respectively. This model is characterized by compact structure, strong practicability and high cost performance, because it belongs to our mature product and many users are currently in use, It is an ideal choice for many customers who are just beginning to make beverage production.

The second can filling machine with 18 cans, 24 cans and 32 cans. The stable output is 5000 cans per hour, 8000 cans per hour and 12000 cans per hour respectively. The filling method adopts beer filling technology. This kind of filling valve solves the problem of filling bubbles and effectively solves the problem of liquid level deviation in the production process, The accuracy of filling and the working efficiency of the whole production line are improved.

The third generation of king machine can filling machine. It is characterized by compact structure and very convenient maintenance and operation. However, the remarkable feature is that the filling machine is equipped with floating ball measuring cylinder electronic pneumatic valve. It is the most first-class technology for gas filling of cans in the world. It adopts floating ball measuring cylinder fixed volume filling. The filling process is controlled by electronic valve and the filling capacity is constant. The number of filling valve heads is 32 heads can filling machine and 40 heads can filling machine and 54 heads can filling machine and 80 heads can filling machine, and the production capacity is 15000 cans per hour can filling line and 20000 cans per hour can filling line and 30000 cans per hour can filling line and 60000 cans per hour can filling line respectively.

	1st Generation Can filler	2nd Generation Can filler	3rd Generation Can filler
Filling Head	12heads 18heads	12heads 18heads 32heads	32heads 40heads 54heads 80heads etc
Capacity	2000cans/h-5000cans/h	5000cans/h-12000cans/h	15000cans/h- 60000cans/h
Filling Type	Isobaric filling	Isobaric filling beer type	Floating ball volumetric type
Structure	Integral cleaning table Easy to clean All stainless steel	Integral cleaning table Easy to clean All stainless steel	Integral cleaning table Easy to clean easy Operation and  maintenance
Machine Advantage	High cost performance, low output suitable for customers who have just entered beverage area	Compact, stable foam free filling with high yield. Beer filling valve has stable performance and high cost performance.	High degree of humanization   Beautiful atmosphere   Online remote assistance   The filling capacity can be adjusted online without shutdown, which can be adjusted as a whole or by a single valve   High filling accuracy   Filling steps can be set

Our beverage filling machine has sold to many customers all around the world as below.

The first generation: Has sold to Uzbekistan, USA, Liberia beverage filling manufacture.
The Second generation: Have sold to Poland, Syria, Nepal ,India CSD DRINK FACTORY Etc.
The third generation: Guinea Israel food and beverage factory etc.

When the can enters the can filling machine and is positioned below the can. When pressing, the filling valve is pneumatically pressed on the can. With the help of the pressure chamber, the can is very flexible in the alignment and compression of the filling valve. Low carbon dioxide consumption purging is completed through an independent sanitary group channel, and the filling process is carried out. The electronic floating ball measuring cylinder is used to control the amount of liquid flowing in. The filling accuracy can reach ± 1.0m, which is closed when the set filling capacity is reached. Using an independent pressure relief channel, the pressure at the top of the can is reduced to the ambient pressure again, and then the filling valve is raised from the can through pneumatic control.

Purchase premium can filling machine from King-Machine

King Machine as one of the leading, beverage-packing machine manufacturers has provided quality equipment and amazing service to many of our customers worldwide.If you are looking fo r can filling machine for your plant, we will absolutely be your best choice. Please contact us for more information.
