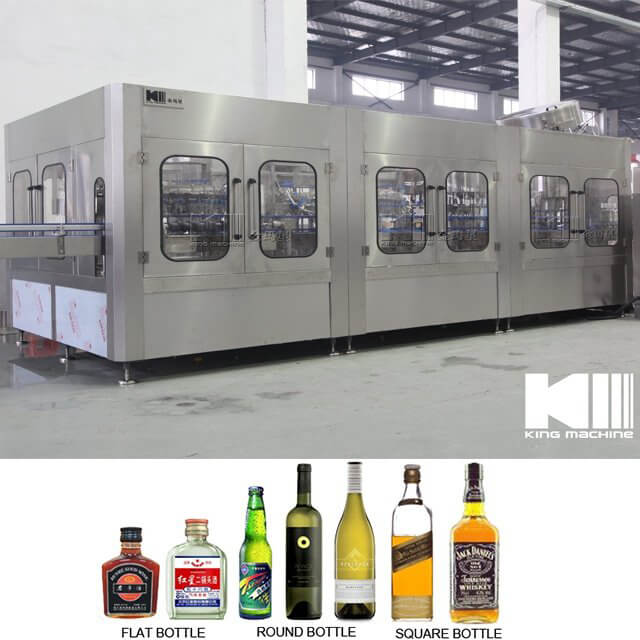

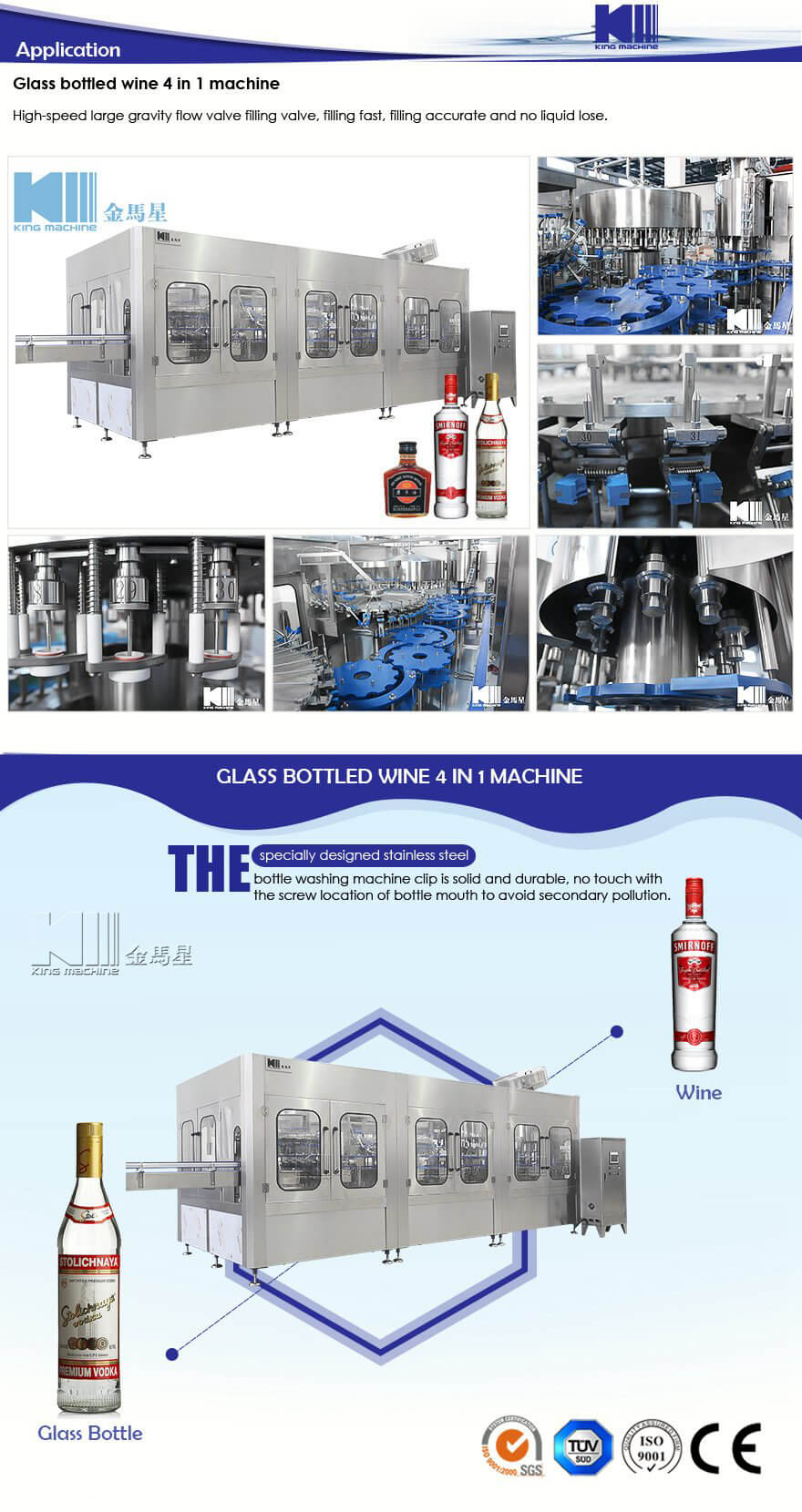

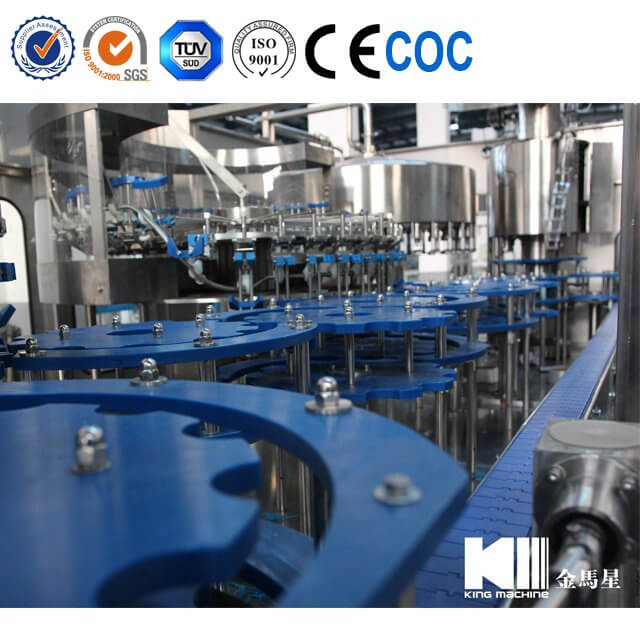

Automatic 4 in 1 Glass Bottle Wine Filling Production Line Automatic 4 in 1 Glass Bottle Wine Filling Production Line

BCGF series 4-in-1 set of machine is mainly used in the beverage filling process. The machine combines washing, filling and capping with complete automation, suitable for filling juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling process adopts hot filling technology with water-supplying system under constant pressure, which makes filling process faster and more stable. Compared with other equipment of same kind, this machine with a better quality and thus enjoys a high ratio of function against price. The hot filling type machine works with balanced tank and vacuum system.

Quantity:
Share this:
  • Model: BCGF
  • Brand: KM
  • Code: 8422301090
  • Product Description
  • Turnkey project
  • FAQ


Item Subject Parameter
1 Name Washing filling capping two in one

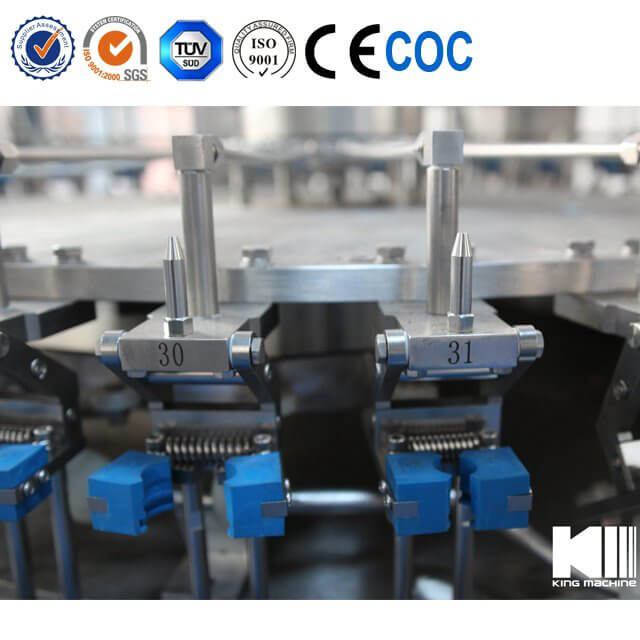

Washing heads 12heads - 70heads

According customer demand, we supply double washing system , One for water,

one for aseptic air washing

2 Filling head 12heads - 70heads
4 Sealing head 1head- 25heads
5 Productivity 800-36000bph
6 Product Alcohol drink, Wine, Beverage
7 Motor power 2.5lw-13.5kw
8 Applicable bottle size glass bottle
Diameter:ф50-92mm
Bottle height:150~340mm                    volume: 350~2000ml
9 Applicable cap

Crown Cap,  Aluminum screw cap, T shape press on decorative plastic cap,

T shape press on decorative plastic cap, T Shape press on wood/cork, Plastic press on for vodka, Sport cap, Crown twist, Metal twist of,  Easy open cap, Press on plastic T shape, Natural cork caps for still wine, Natural cork for champagne and sparkling wine

10 Timing  type Transducer
11 Cap Sorter  motor power   0.37Kw
12 Valve space between 104.72mm or customized
13 Filling temperature Room temperature

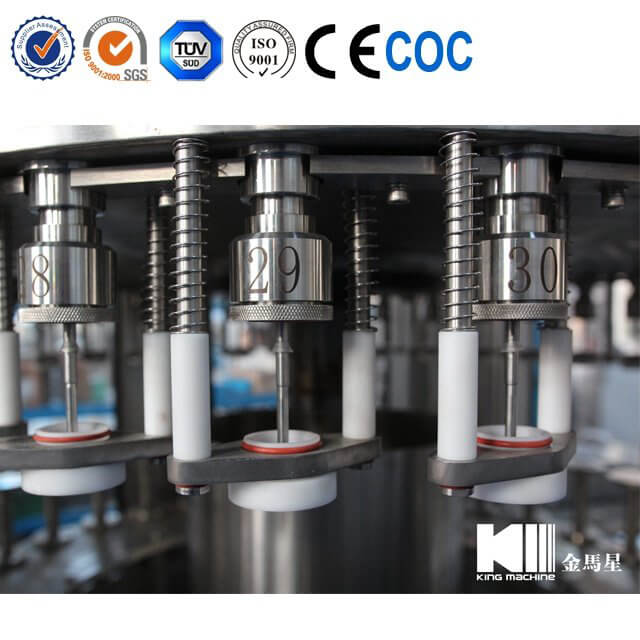

14 Filling type Gravity filling with low vacuum system
15 Compress air wastage 20NM3/hour

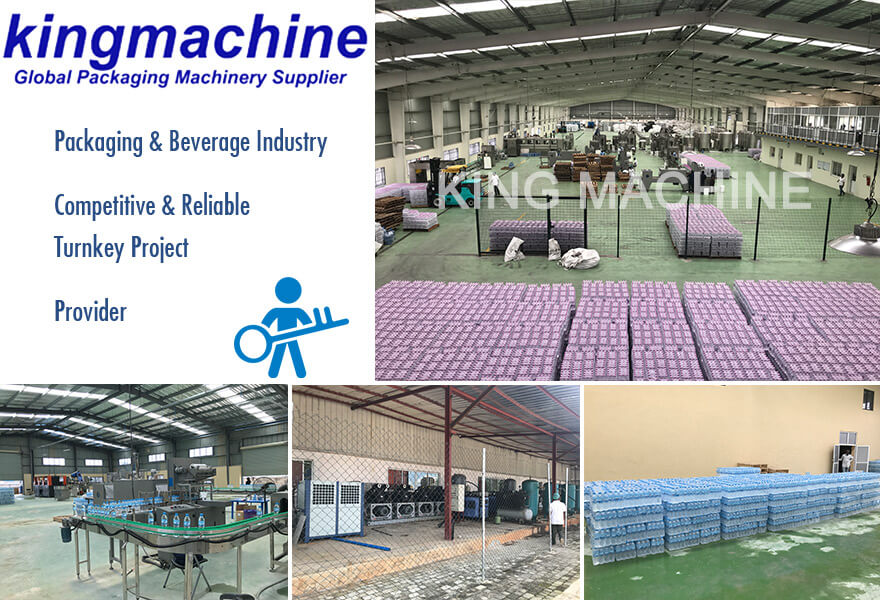

Turnkey Project for glass bottle spirits
High-quality filling designed for high-proof products

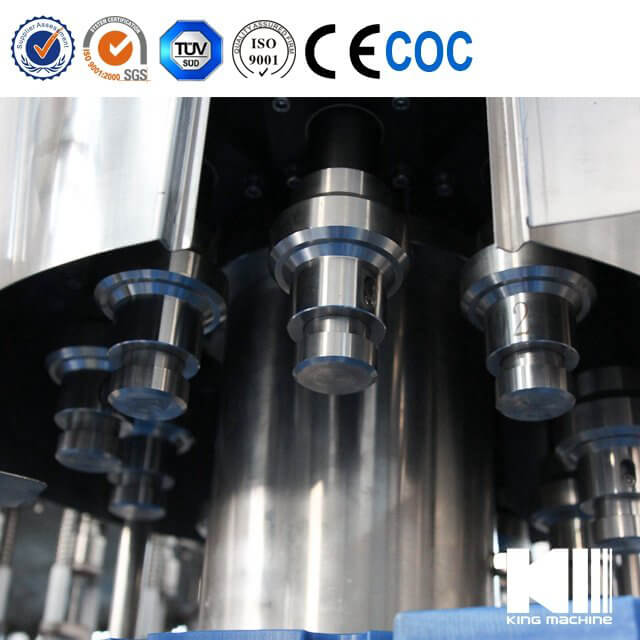

-Micro-negative pressure, hygienic, accurate: the glass filler with fill level correction
-fills glass containers with still wine, sparkling wine and spirits.
-uses a Micro-negative pressure filling method which is gentle on the product.
-guarantees highly precise fill quantities.
-operates reliably while simultaneously generating low investment and production costs.

King Machine Beverage Production lines are equipped with high-quality, technologically sophisticated single machines and process components: Whether you prefer a standardized solution or an individual solution, come and talk to us and we will be happy to help!


Glass Bottle Cap samples, names and Photos

English

Russian

Model


Aluminum screw cap

Алюминиевая винтовая крышка

28x18


T shape press on decorative plastic cap

Т образная пластиковая декоративная пробка типа «Пресс он»

CAMUZ


T shape press on decorative plastic cap

Т образная пластиковая декоративная пробка типа «Пресс он»

CAMUZ

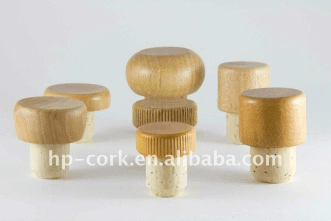

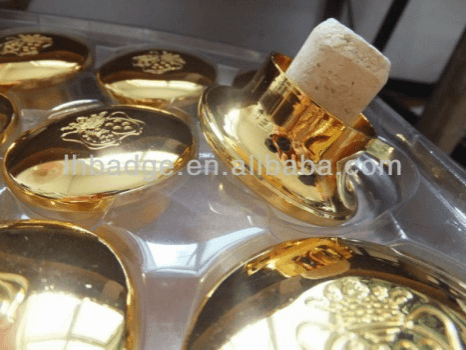

T Shape press on wood/cork

Т образная деревянная/корковая пробка

stopper

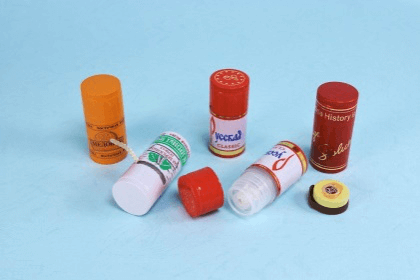

Plastic press on for vodka

Пластиковая пробка для водки

Guala


Metallic crown cap

Металлическая Краун крышка

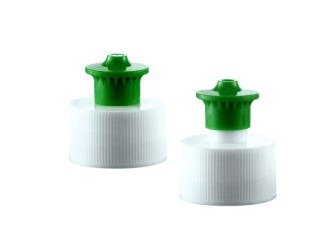

Sport cap

Спортивная крышка

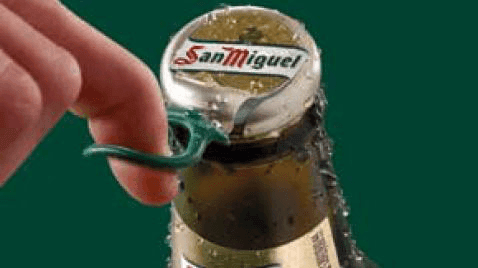

Crown twist

Винтовая краун крышка



Metal twist of

Металлическая твист оф крышка

Pop Rock

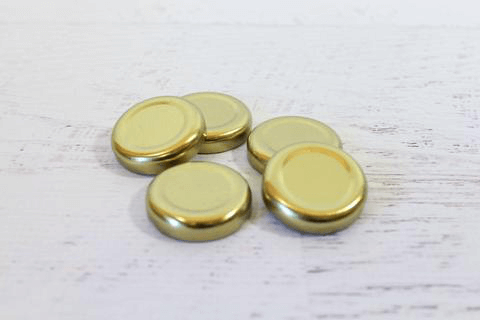

Easy open cap

Легко открываемая алюминиевая пробка



Press on plastic T shape

Т образная пластиковая  пробка

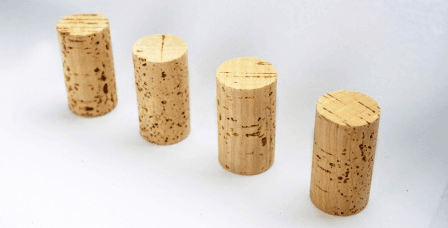

Natural cork caps for still wine

Натуральная корковая пробка для вина

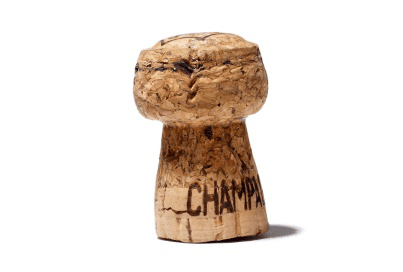

Natural cork for champagne and sparkling wine

Натуральная корковая пробка для шампанского и игристых  вин






Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. All your different requiremts King Machine can always offer you the most professional solutions and turnkey project.

Nearly 15 years, King Machine has provided bottling & packing equipments  of liquid solutions to companies all over the world, water bottling line, juice filling line, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery. King Machine offers complete filling and packaging solutions for beverage industry and excellent lifelong time service.

Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.

×
