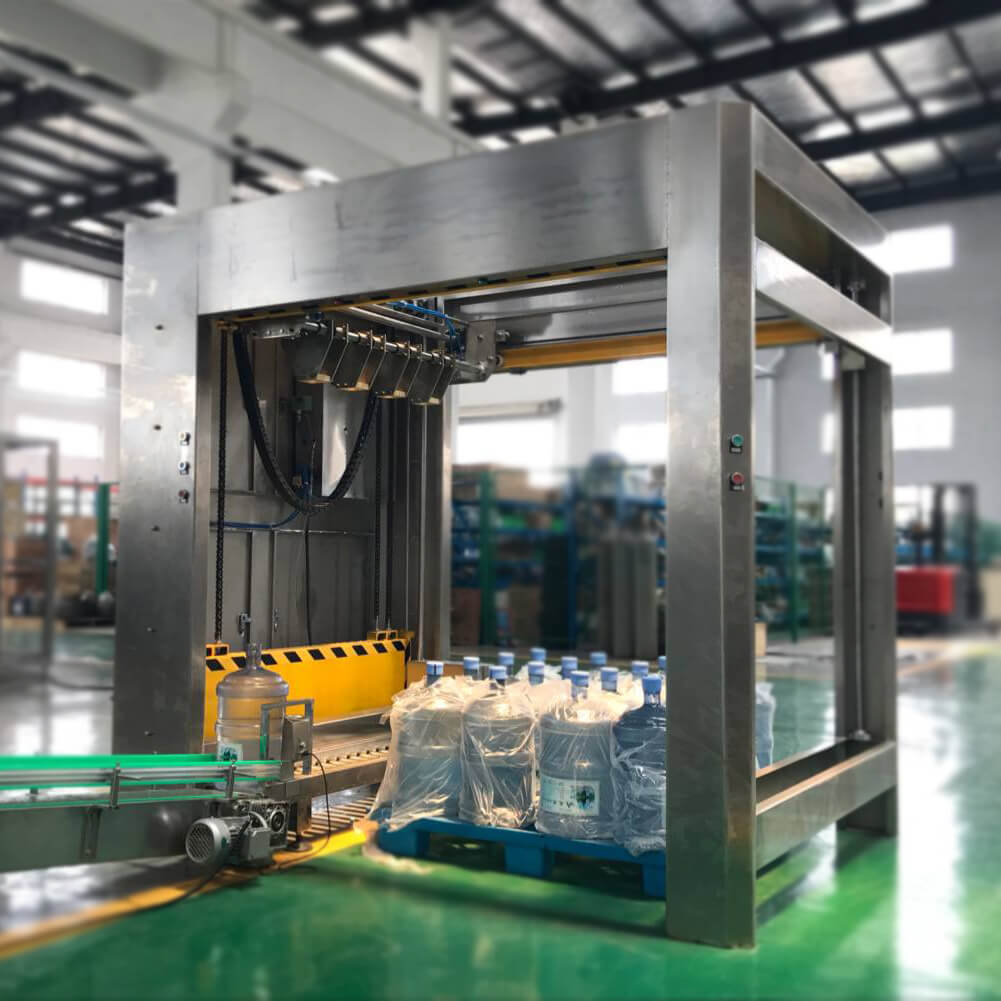

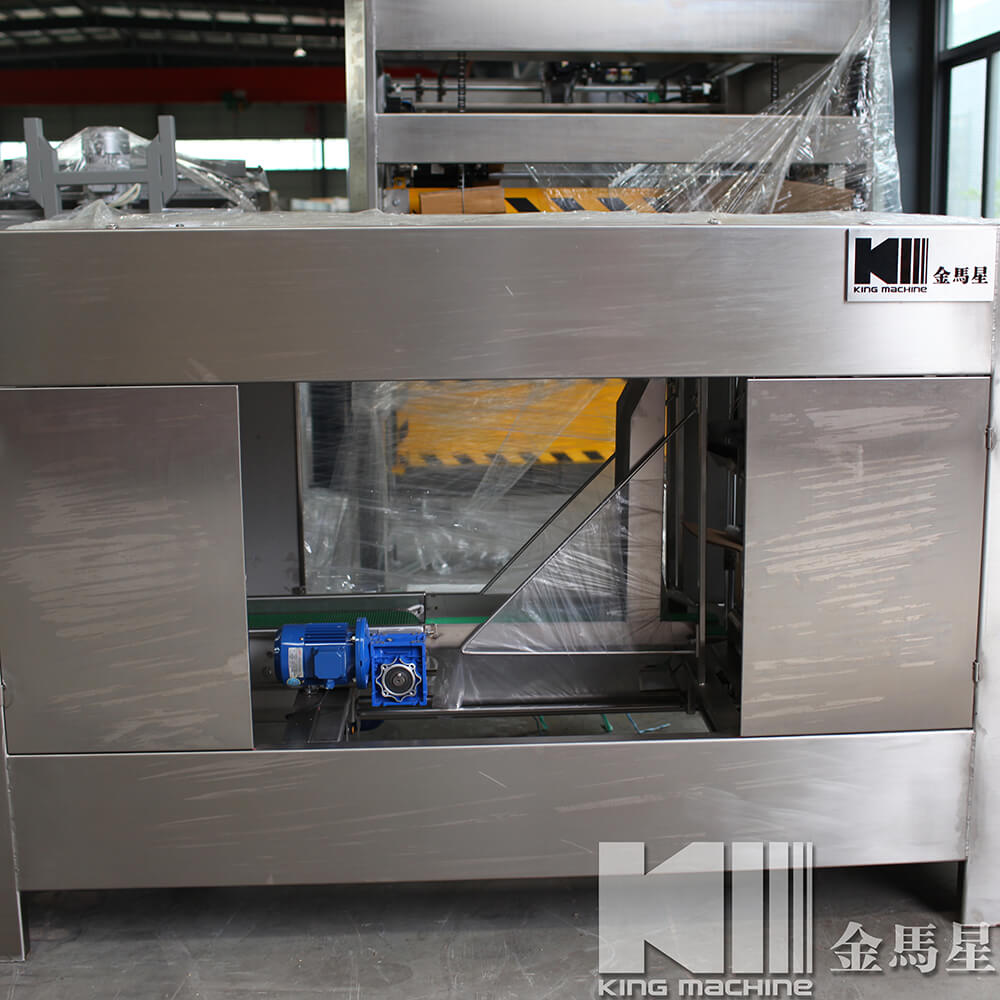

Bottle Automatic Lifting And Bagging Machine Bottle Automatic Lifting And Bagging Machine

The specification in above may changed according the improvement of the equipment.

Quantity:
Share this:
  • Brand: KM
  • Product Description


A:Equipment features:

1.All electric control systems adopt brand industrial control products, and the whole equipment does not need to consume gas at all, so as to reduce the failure rate of equipment operation;

2.Humanized touch screen operating system, set up many kinds of malfunction alarm function;

3.Sealing film system, high speed copper hot (sealing) knife, copper knife holder heating system, safe, energy-saving and durable;

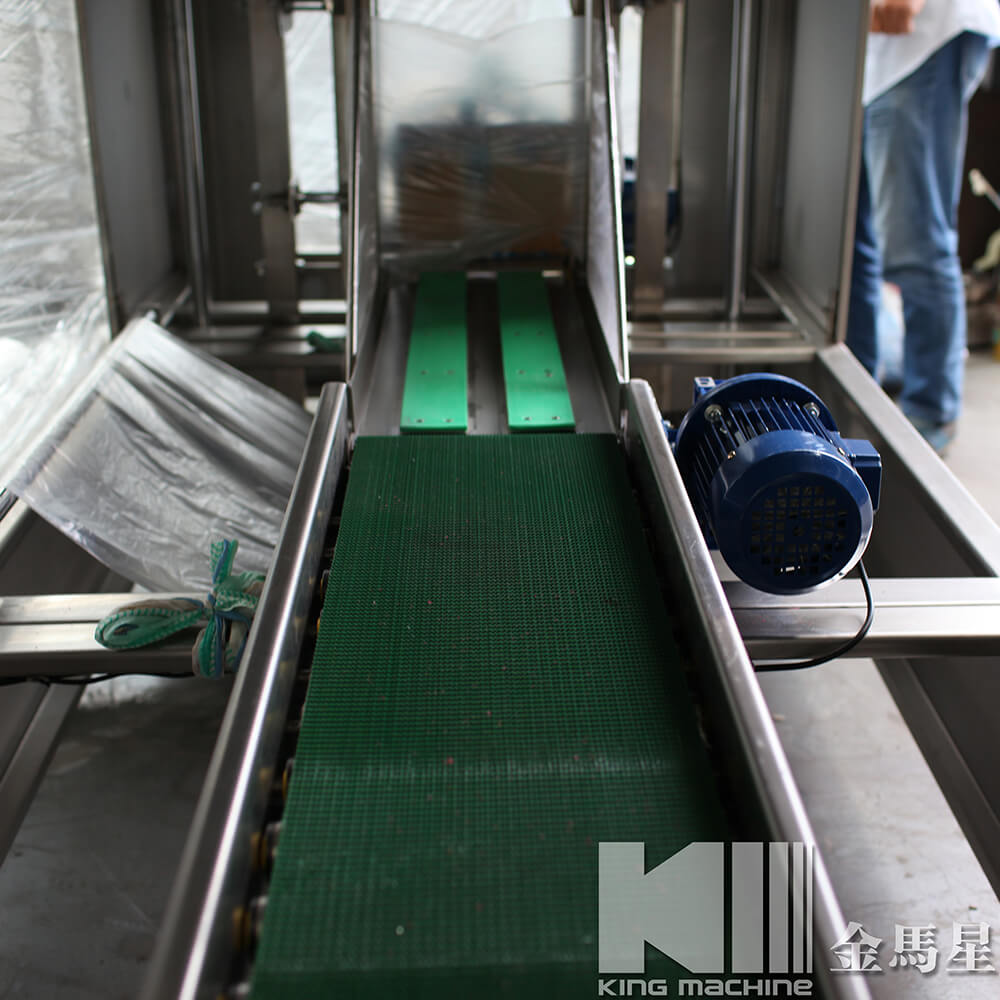

4.Feeding barrel, belt, power roller conveyor, applicable to all filling production lines connected with the market;

5.CNC servo cutting, belt power roller out of the barrel mechanism, film sealing accuracy, speed, lower failure rate;

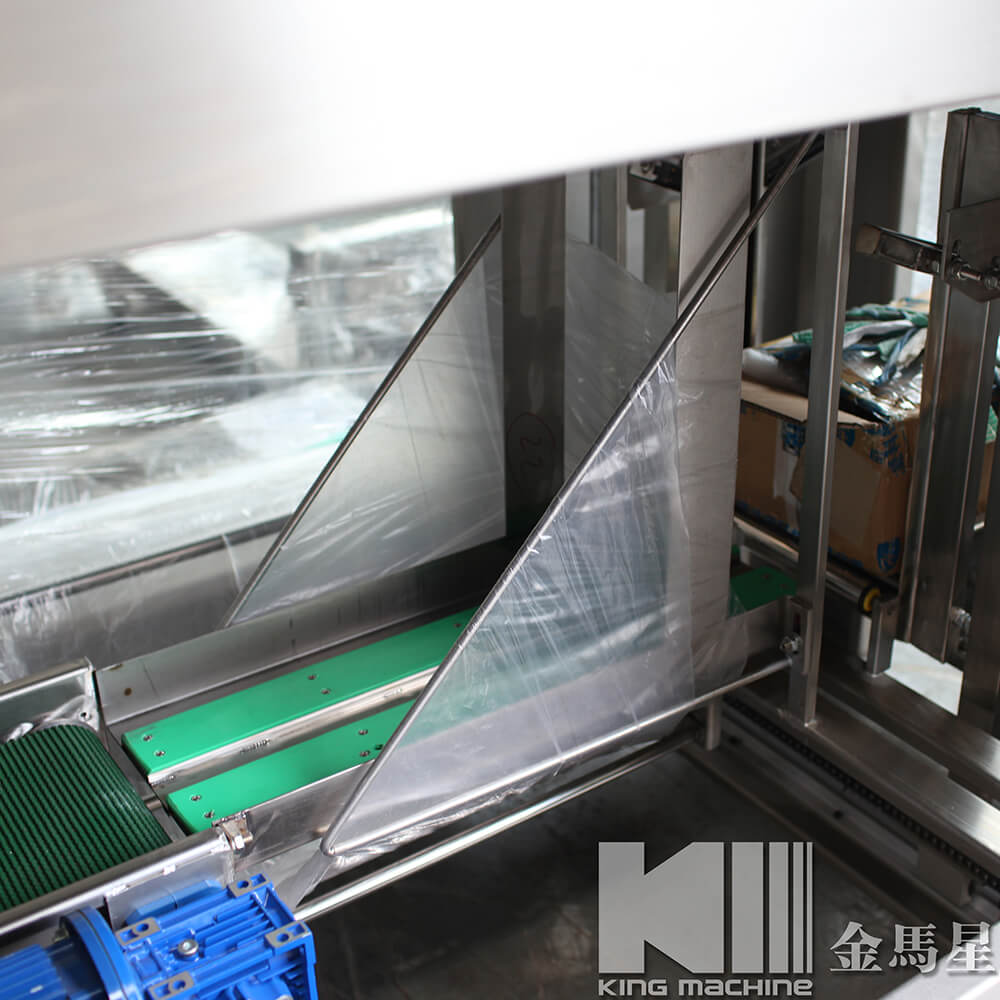

6.Forced type film opening and hanging mechanism ensures no falling film in equipment operation;

7.The film mechanism, double roller linkage, photoelectric detection tension control system.


B:Equipment requirements:

1.Conveyor system: belt power roller conveyor, single row into the barrel, single discharge barrel;

2.Main frame: 3.0m stainless steel frame, other parts are basically stainless steel or aluminum material;

3.Eager cooling method: computer temperature control, natural air drying, cooling;

4.Film way: the natural way to enter the film;

5.Sealing and cutting method: electric heating tube, high-speed copper knife holder, sealing, cutting and sealing bag, computer temperature control method;

6.Barrel way: automatic barrel, automatic delivery;

7.Suitable for production capacity: 100-1500 barrels / hour filling production line.


C:Packing material requirements: single side double layer film roll, material HDPE, folding diameter 680mm, thickness 0.01mm, roll core diameter 6 inches.


Voltage

AC   220/380V50Hz

Power

1.1Kwwithout air compressor

Pressure

0.5-0.7Mpa

Air   consumtion

0.05M3/MIN

Outsize

2400L×550W×1450(H)

Lifting   bottle speed

0.3meter/second

Lifting   bottle capacity

2500BPH

Bottle   size

Ф270×490×Ф56,5   gallon standard

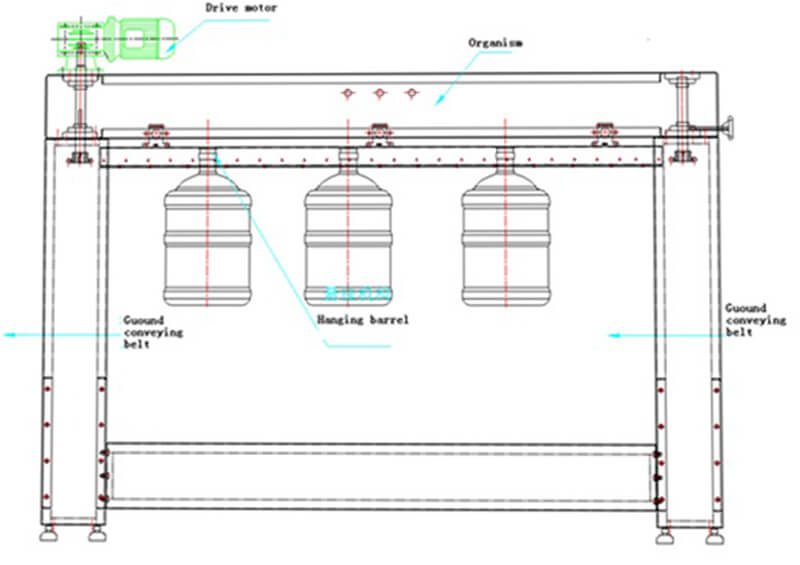

The structure Drawing:


Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
×
