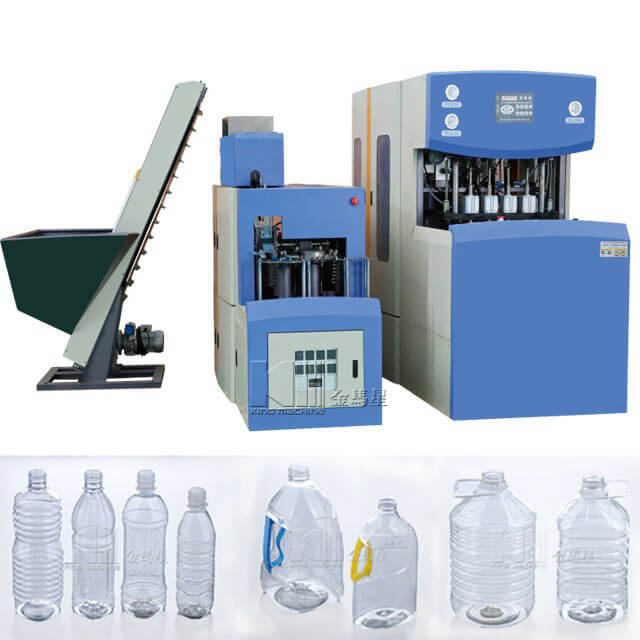

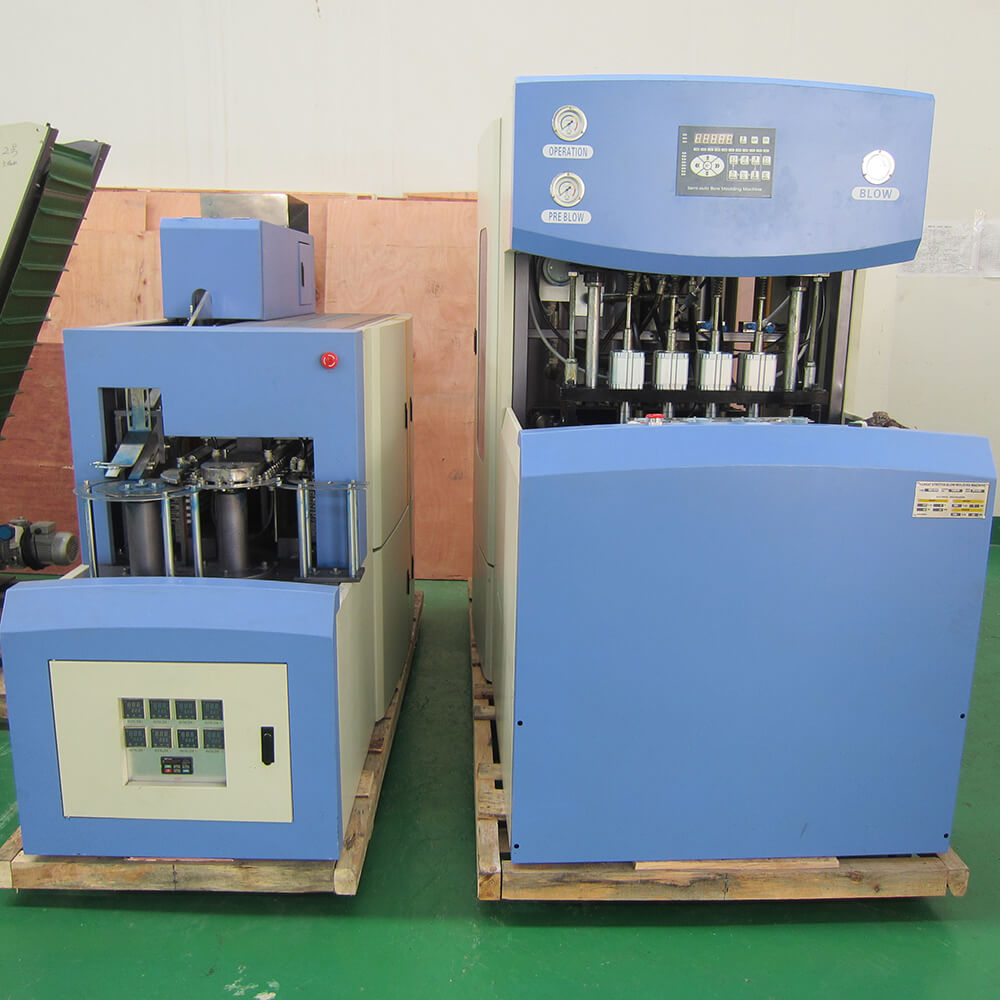

Semi-automatic Bottle Blowing Machine 2000BPH For 500mL
KM semi-automatic stretch bottle blowing machine with microcomputer controlling system. PET bottle blowing machine controls various technical parameter needed more accurately and more steadily. Only one person without special training operates PET bottle machine more easily and more safely.
2). Automatic preform conveyer to save human cost.
3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

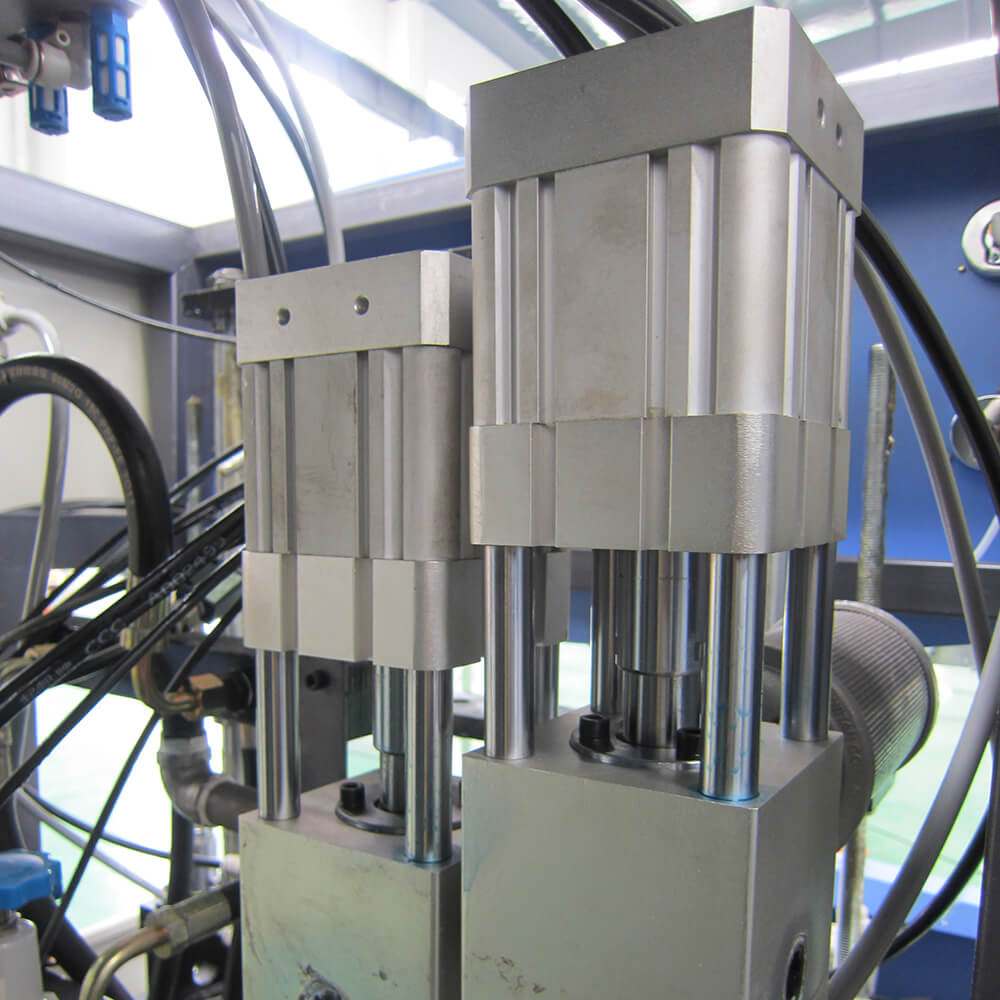

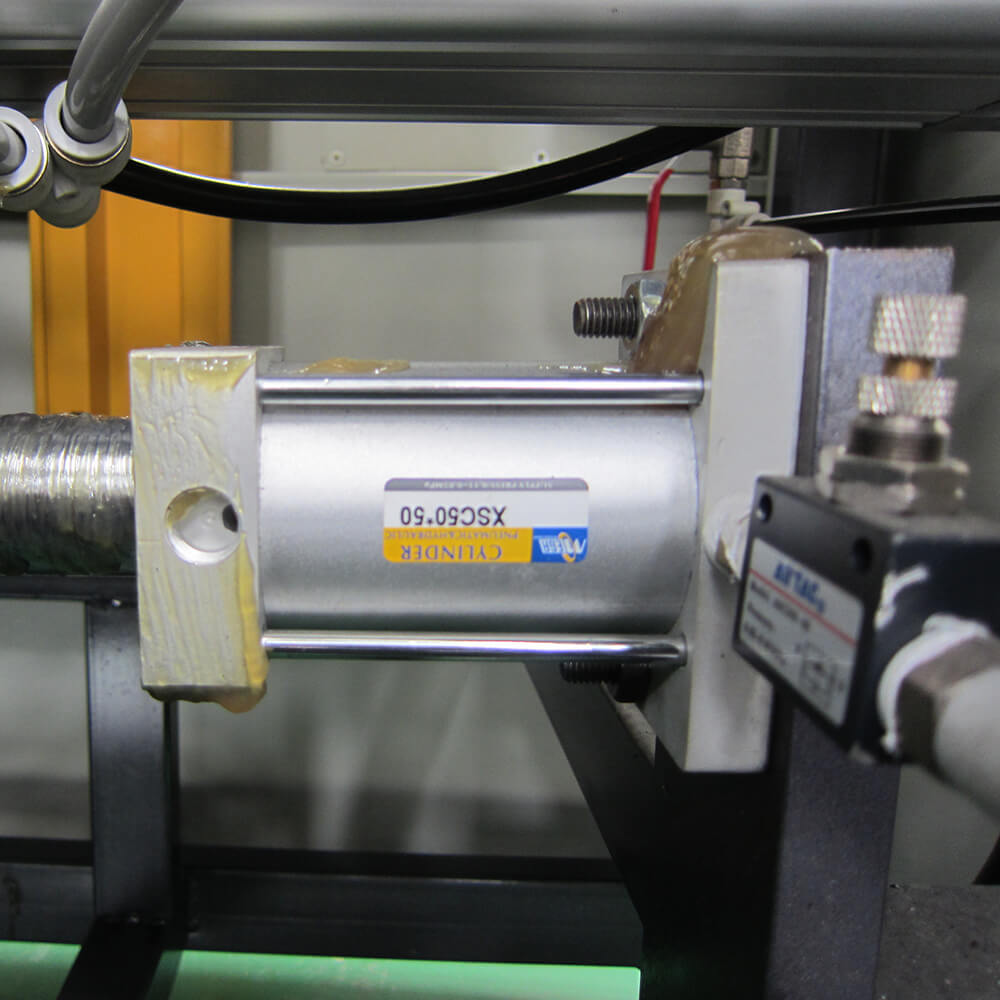

6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

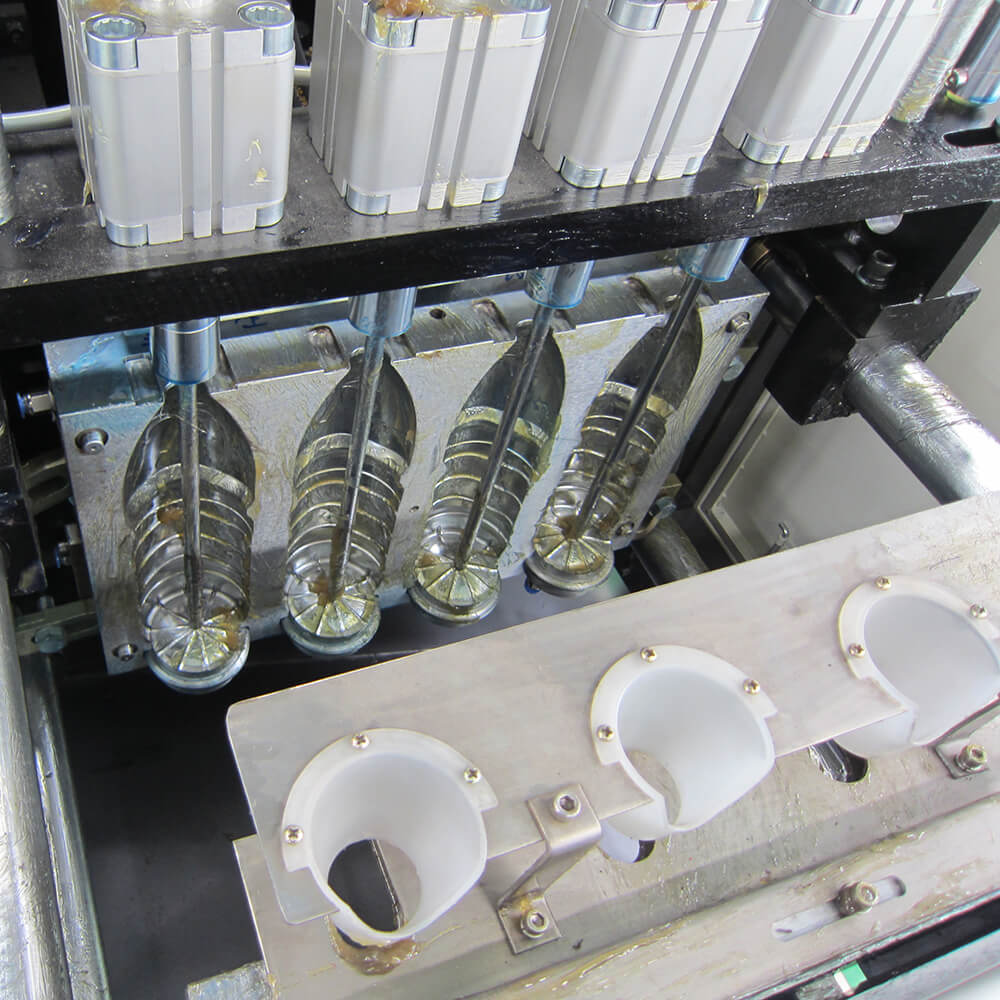

8). Strong clamping force with high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safe\reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low cost\high efficiency\easy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to install\test and start up.
14). Low rejection rate: less than 0.2 percent.
KM semi-automatic stretch bottle blowing machine with microcomputer controlling system. PET bottle blowing machine controls various technical parameter needed more accurately and more steadily. Only one person without special training operates PET bottle machine more easily and more safely.
Main machine
Item
20L-1
5L-1
2L-2
Product Spec
Max. product volume (L/cav)
20
5.5
2
Max. preform neck size (mm)
200
150
100
Max. product diameter (mm)
400
200
110
Max. product height (mm)
600
400
300
Cavities
1
1
4
Blow molding part
Die force (KN)
150
120
500
Die stroke (mm)
340
200
160
Mould thickness
adjustable
adjustable
adjustable
Mould spacing (mm)
/
/
≧120
Max. Stretchingstroke (mm)
500
400
0.8-1.0
350
1.2-2.8
300
360
Operation pressure (Mpa)
0.8-1.0
0.8-1.0
Operation air pressure consumption (1tr/min)
560
200
Blow pressure (Mpa)
1.2-2.8
1.2-2.8
Blow air pressure consumption (1tr/min)
650
300
capacity (pcs/h)
250
1000-1600
1000-1800
Machine size (LxWxH)(m)
2.15*0.75*1.65
1.9*0.63*1.62
1.58*0.615*1.69
Machine weight (KG)
1000
800
650
Oven
Temperature grade (rate)
8
8
8
Heating time (S)
90-200
90-200
90-200
Voltage (V)
220
220 or as your request
220 or as your request
Frequency (HZ)
50/60
50/60
50/60
Total power (KW)
15-40
16
16
Oven Size (LxWxH)
2.72*0.68*1.61
1.77*0.59*1.48
1.78*0.58*1.37
Oven weight (KG)
400
250
250
Q:How about the spare parts? A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation? A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost? A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid? A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines? A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer? A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in reasonable price, Welcome to visit us.
