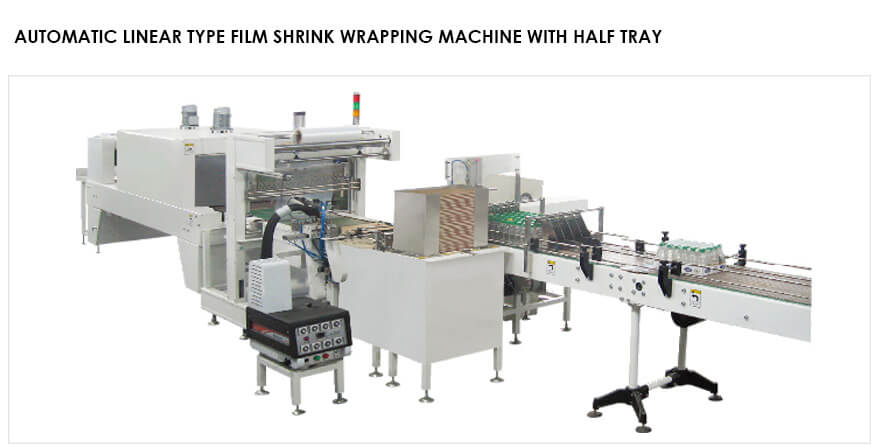

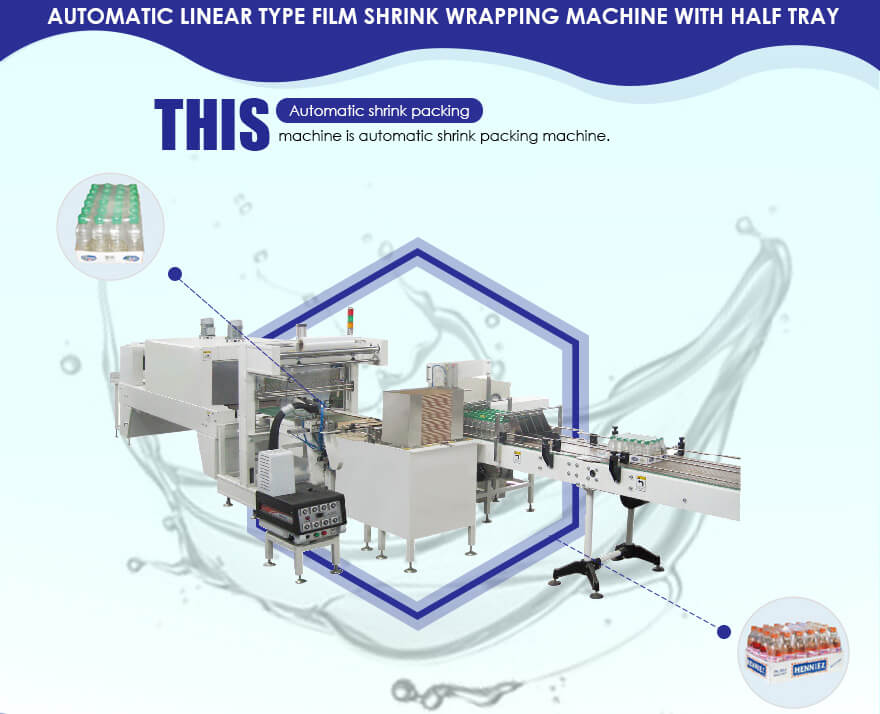

Automatic Linear Type Film Shrink Wrapping Machine With Half Tray Automatic Linear Type Film Shrink Wrapping Machine With Half Tray

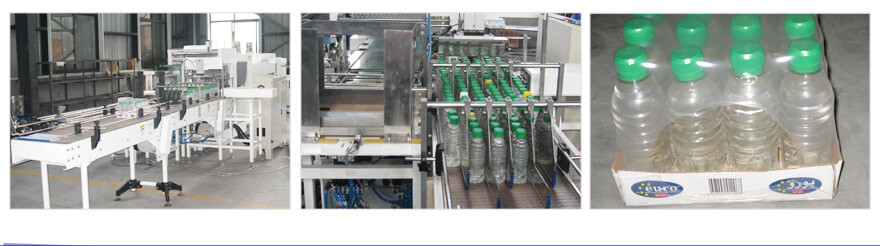

Connection production line→Buffer conveyor→Bottle Arranging→Automatic paper tray feeding→Film wrapping→Package Pressing→Shrink Wrapping→Cooling Store

Share this:
  • Brand: KM
  • Product Description

Connection production line→Buffer conveyor→Bottle Arranging→Automatic paper tray feeding→Film wrapping→Package Pressing→Shrink Wrapping→Cooling Store

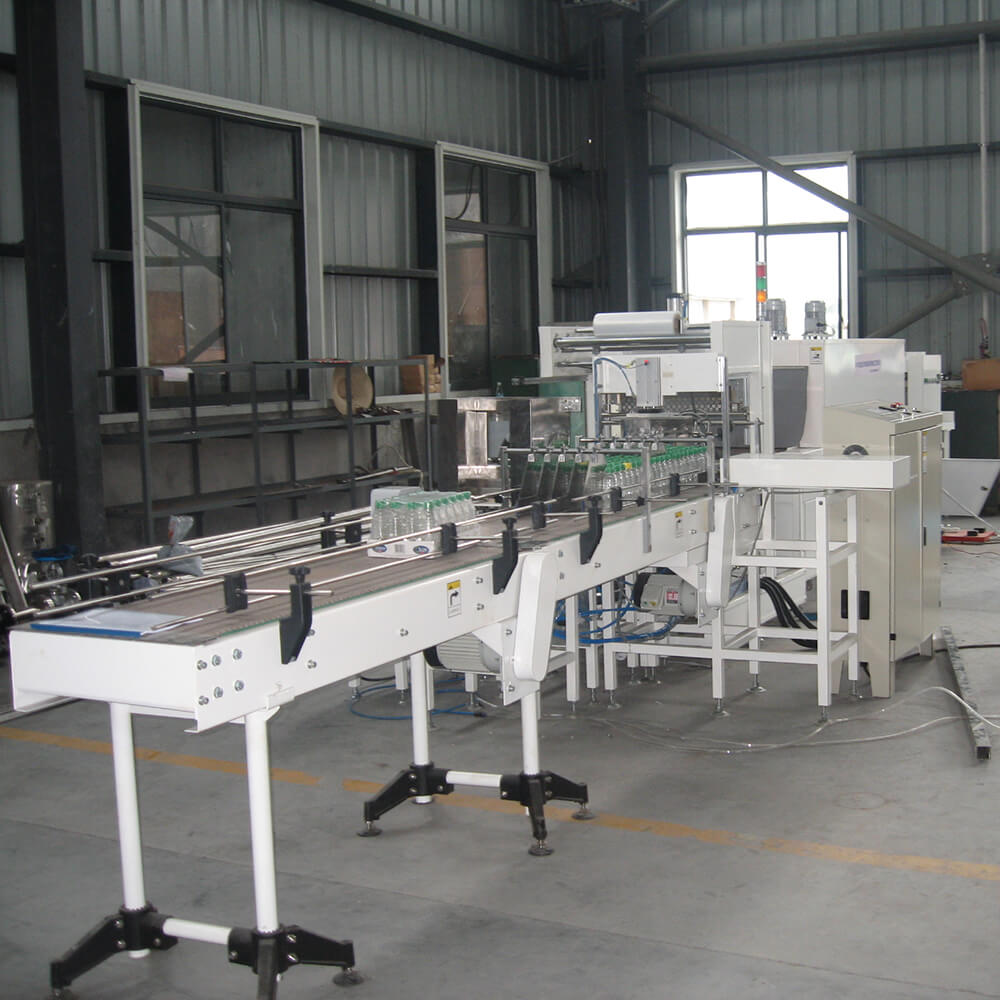

1.Bottles from production line will go inside buffer conveyor directly.

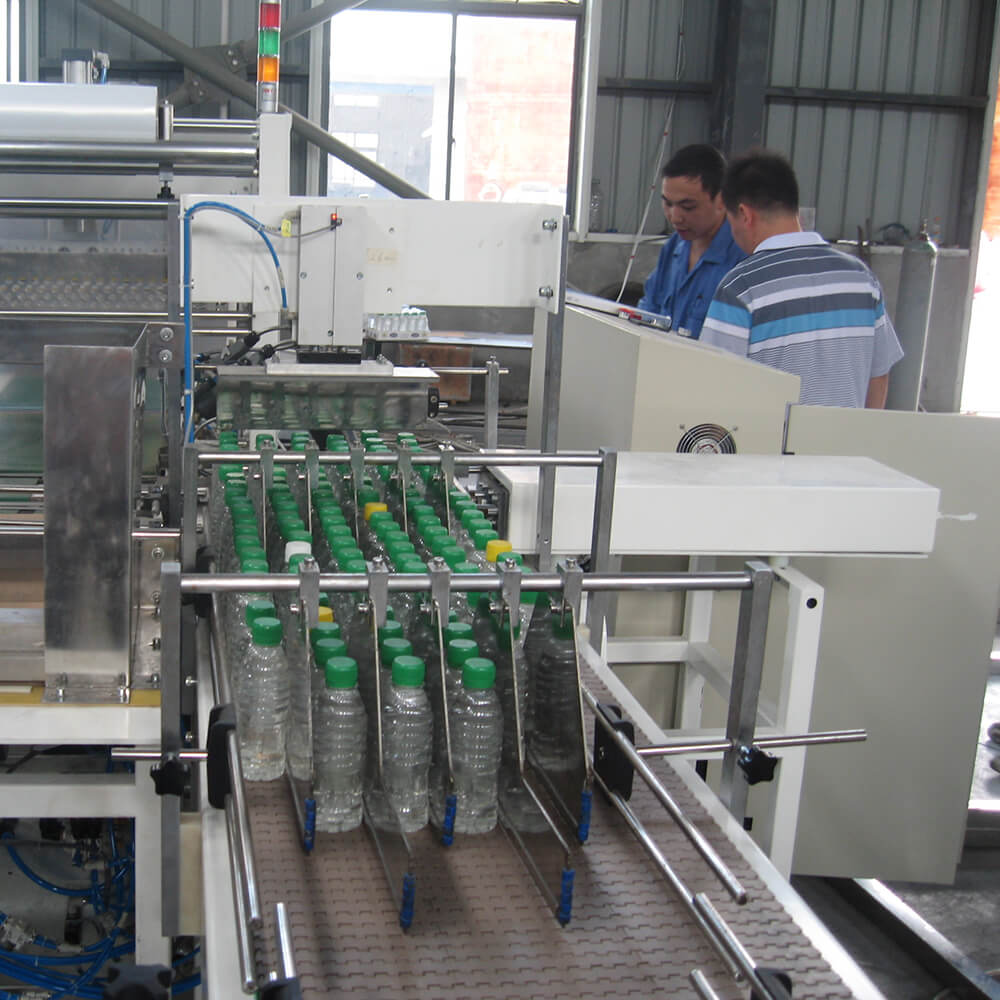

2.The buffer part laid them a certain amount bottle, again by grouping the whole column institutions, divided into need to set packing specifications.

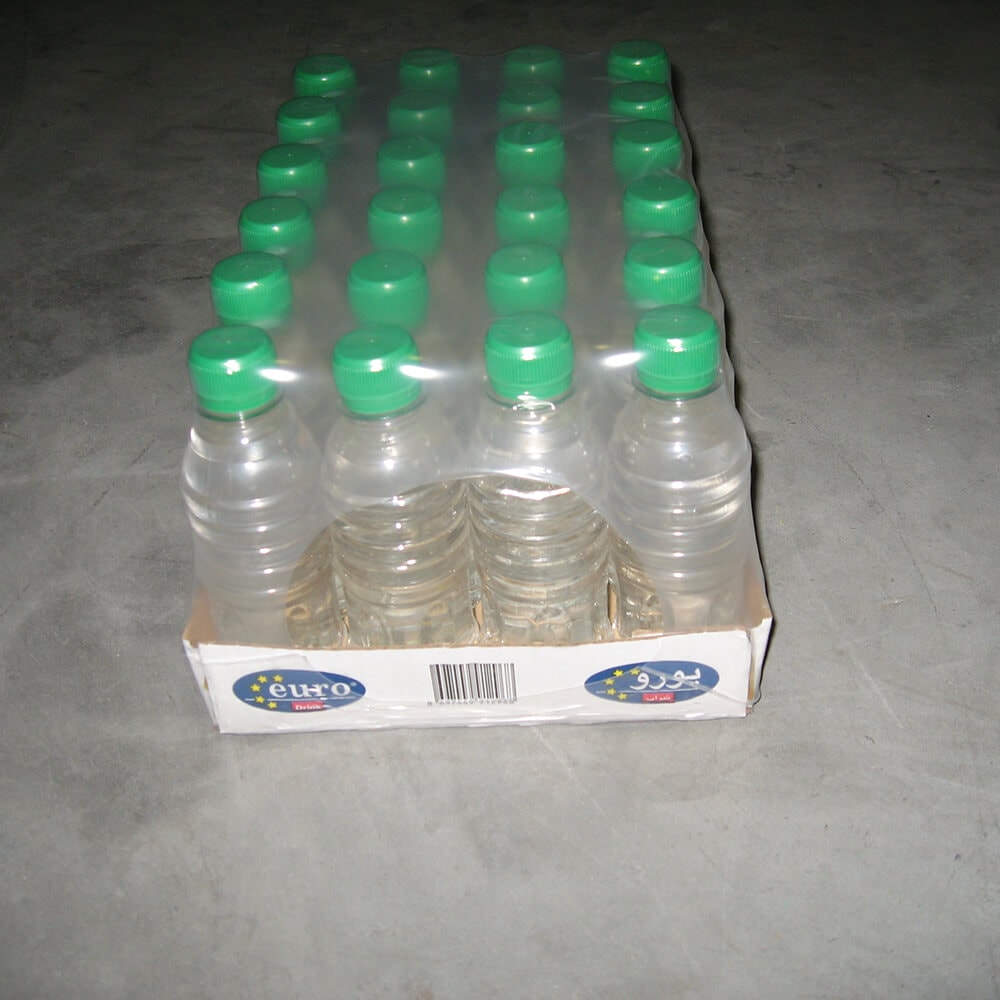

3.Through the automatic and cardboard institutions, will board placed on particular point, through the conveying, make packaging specifications according to the packing combination, placed on paper board.

4.Then through the transportation mode, set of membrane, sealing, press materials, shrinkage, cooling forming.





Max   packing size



Mini   packing size



Material of shrink film



Thickness of shrink film

0.03-0.15mm  Max width 600mm


Highest temperature of the heat   shrink furnace

160-260 (Can adjust freewill)


Max Capacity

5 packs/min


Packing/Shrinking power consumption

6/22-28   kw


Working   pressure

0.6-0.8   Mpa


Air   consumption






Dimension   (mm)


1. The optimization of equipment with straight line shape design, beautiful shape, covers an area of reduction.

2. Equipment subject use high quality carbon steel material gives priority to made, in part by South Korea's posco stainless steel.

3. Electrical system adopts imported PLC programmable control, the transmission process uses the import frequency converter, machine operation process using imported touch screen control, make equipment into action control sitzerlan intelligent state, the movements are monitored, all kinds of alarm, PC state are on glass display, make the equipment operation more safe, reliable, and can a single step action, debug and maintenance. Equipment has automatic alarm device set and special protection function, further improve equipment safety and reliability.

4. Pneumatic components choose Taiwan brand.

5. Using manipulator to be automatic and cardboard way.

6. The main electrical components are imported or domestic quality brand.

7. Traction film feeding: film feeding speed adjust themselves.

8. Heat shrinker: the sino-us cooperation with our production fluoro conveying, corrosion resistance, smooth conveying, speed can be adjusted, PLD control, temperature can be adjusted, the unique hot air processing, make the packaging shrinkage beautiful.

OMRON PLC controlling system

WEINVIEWTouch Screen

Taiwan Airtac pneumatic component 1set

Taiwan Telta transducer 2set

Stainless steel wing heating tube 12pcs

China-USA cooperation Teflon convey belt.

Shanghai HEMEI motor and Zhenjiang Taili worm derailleur.

South Korea Autonics photoelectrical switch, approach witch

thermo sealing knife aluminum casting heating board, even temperature, long usage life, our company special production.

whole machine appearance plastic spray, machine rack adopt to high-quality carbonated steel, main part adopt to stainless steel.

Wooden case and wrappage film separate package.

Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
