Grab Type Carton Wrapping And Packing Machine Grab Type Carton Wrapping And Packing Machine

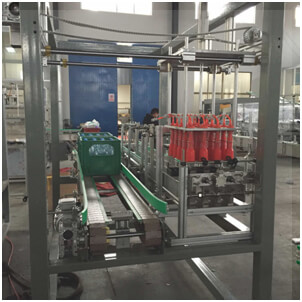

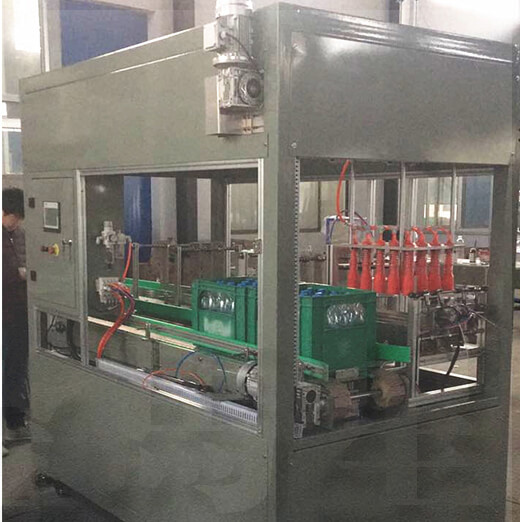

The bottles body are tightly clamped by the manipulator (rubber inside for protecting bottles), then exactly place into the opening carton, the cartons go outlet and are transported to the carton sealing machine while the manipulators go up.

Share this:
  • Brand: KM
  • Product Description

Major characteristics:

Grab Type Carton Wrapping And Packing Machine  is an intelligent fully automatic carton packing machine, controlled by PLC and friendly Human machine interface. With functions such as: Machine automatic stop if lack of bottles, no bottle no packing. Greatly reduce the labor force; it is a nice equipment to be working on the automatic line.


Working process:

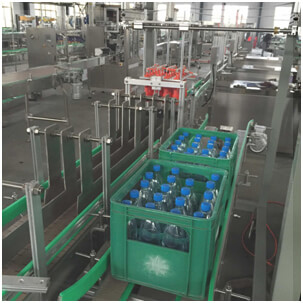

The bottles body are tightly clamped by the manipulator (rubber inside for protecting bottles), then exactly place into the opening carton, the cartons go outlet and are transported to the carton sealing machine while the manipulators go up.

(1) Products are well arranged according to the individual carton packing requirement.

(2) Widely application, suits for various products packed into carton.

(3) For bottles, cases, bags , pails, etc.

Carton size customized according to samples
Power source 380V ;50HZ
Power 6KW
Air source 0.6MPa clean and stable compressed air
Production capacity ≤ 6 box/min
Air source of grippers ≤ 0.2MPa
Machine size 5600*1630*2000mm

Main components:

PLC & touch screen Siemens
Contactor & relays Schneider
Frequency Siemens
Gear motor Taiwan
Bearing TR
Asynchronous motor Domestic
Main controller
Chain Plastic
Production line set multiple fault protection and alarm and fault alarm device. All the fault alarm with content in touch screen highlights, prompted the need to solve the main content and measures.

Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
