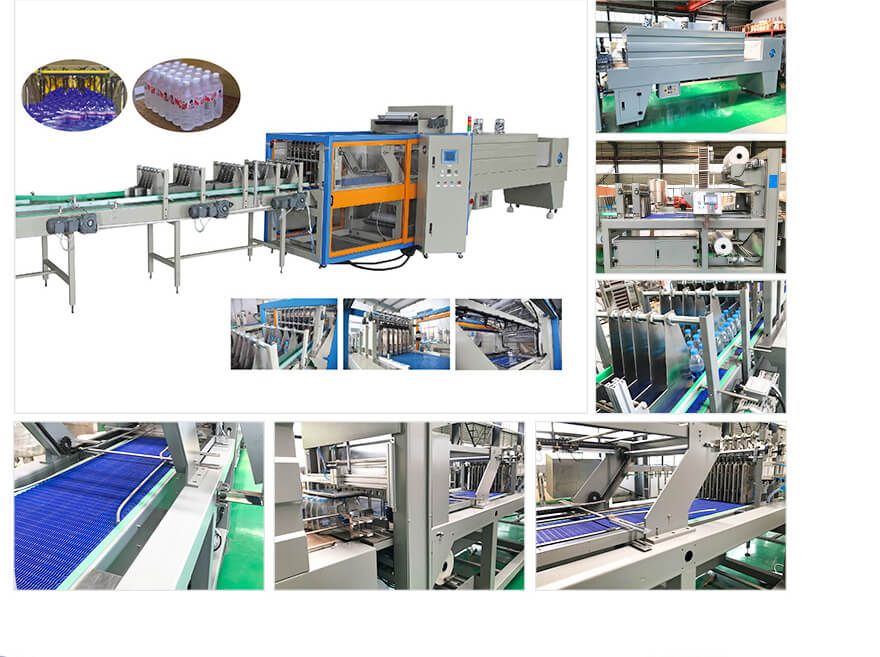

Linear Style Hot Shrinking Film Packing Machine Linear Style Hot Shrinking Film Packing Machine

High Speed Automatic Bottle Shrink Wrapping Machine is specially designed for high speed packing requirement of bottled drinking water (pure water, beverage, juice, milk etc).
When conveying the bottles, it can arrange and film wrap the bottles automatically, which save the time and improve the working efficiency.

Share this:
  • Brand: KM
  • Product Description

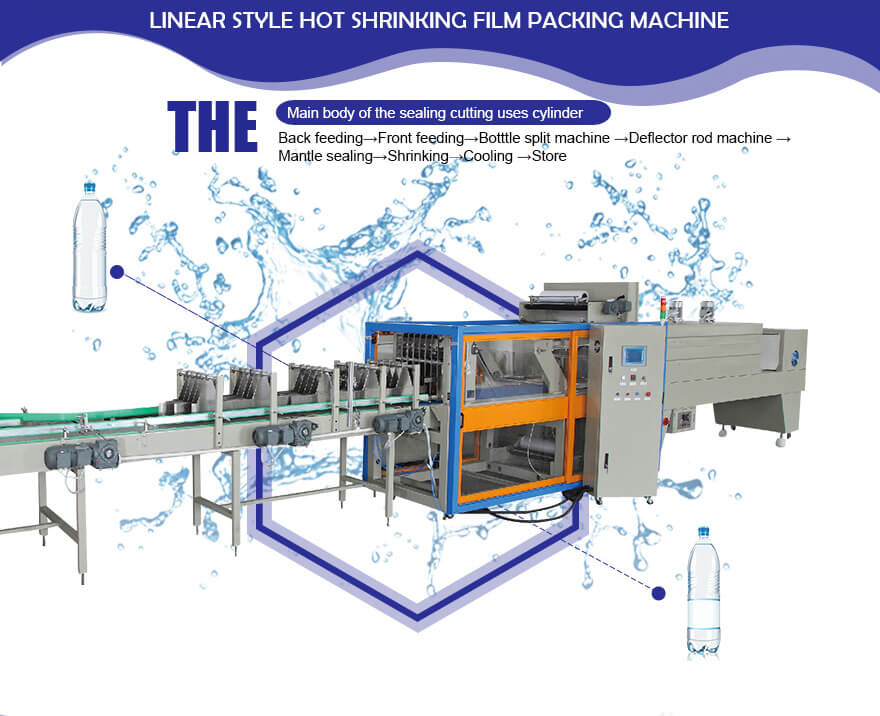

Back feeding→front feeding→botttle split machine →deflector rod machine →mantle sealing→shrinking→cooling →store


1、back feeding:It is connected to the production line ,when the goods come into the back feeding groove,there is no adjustable barrier.

2、front feeding:After the front feeding, the packed goods send the ordered packed goods to the bottle split machine

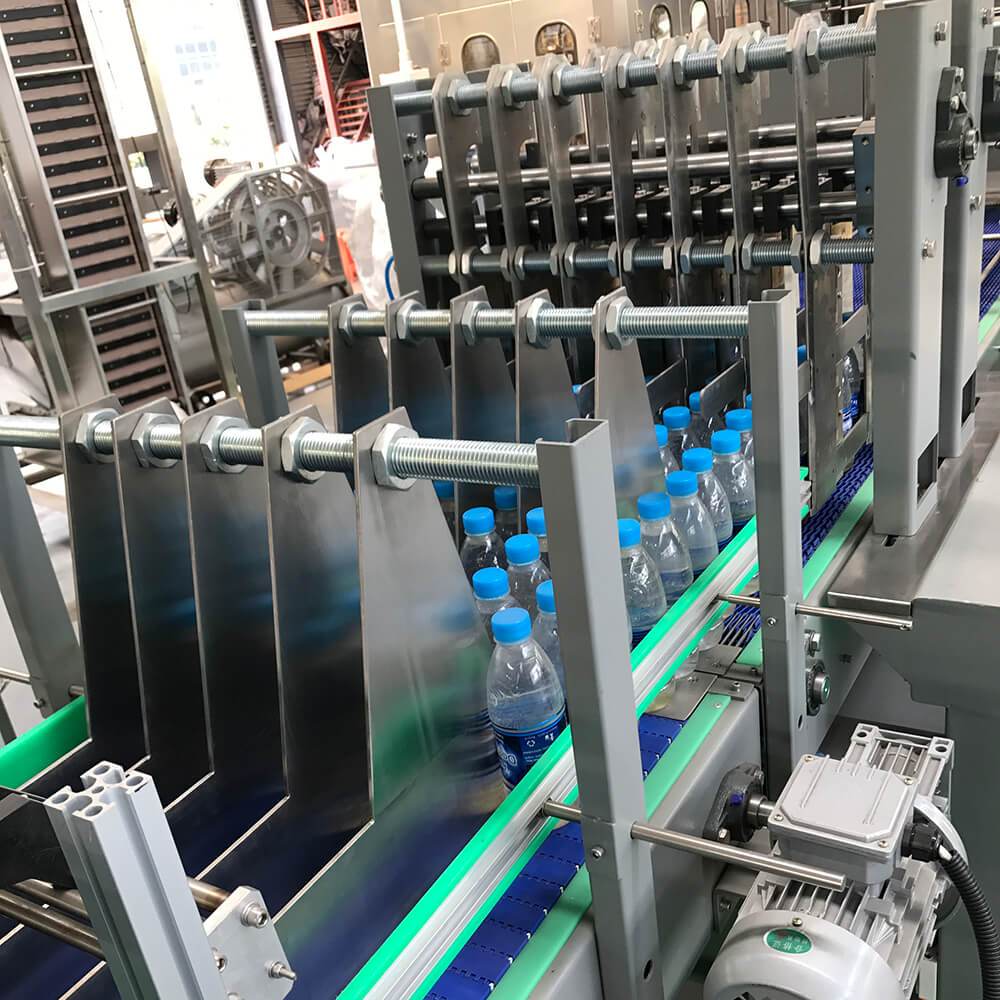

3、the split machine :This machine is made according to the requirement, it has novel structure,high efficient.

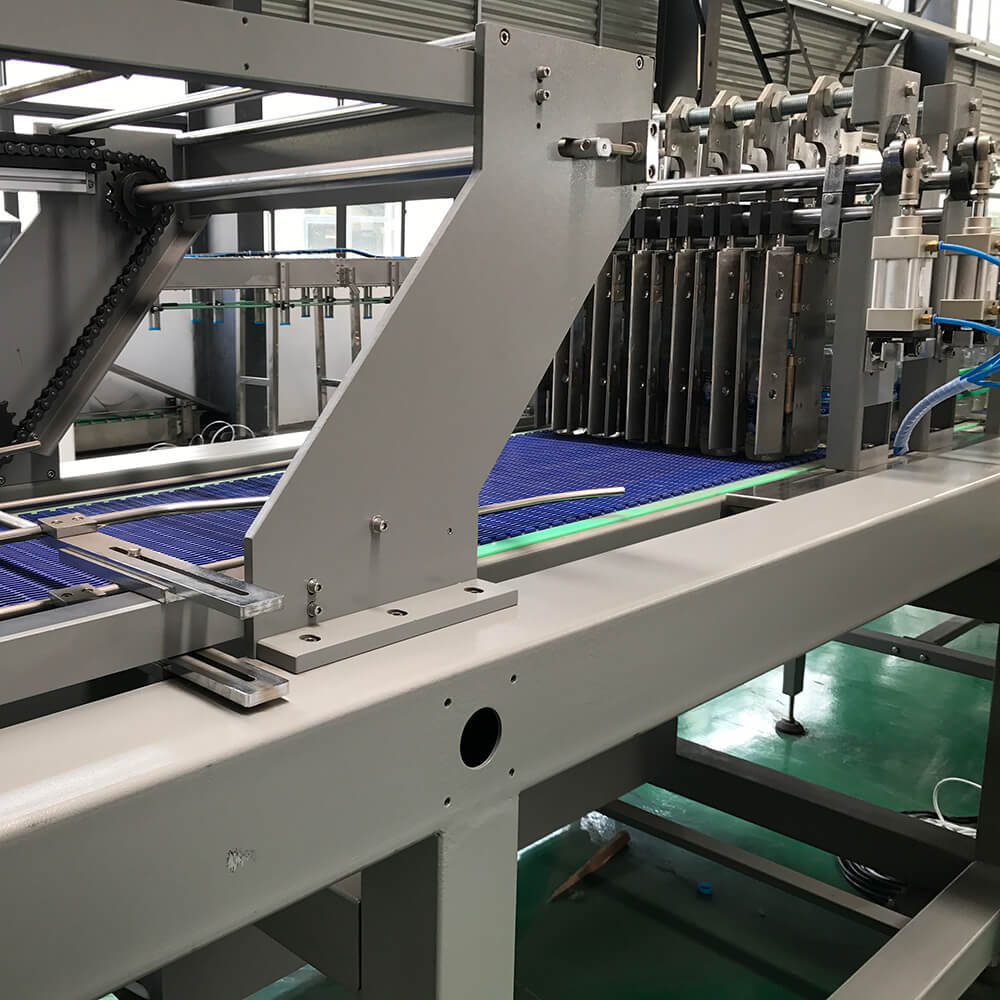

4、deflector rod machine :It puts the goods in order when this machine is working, then send the packed goods through selaingand cutting line.

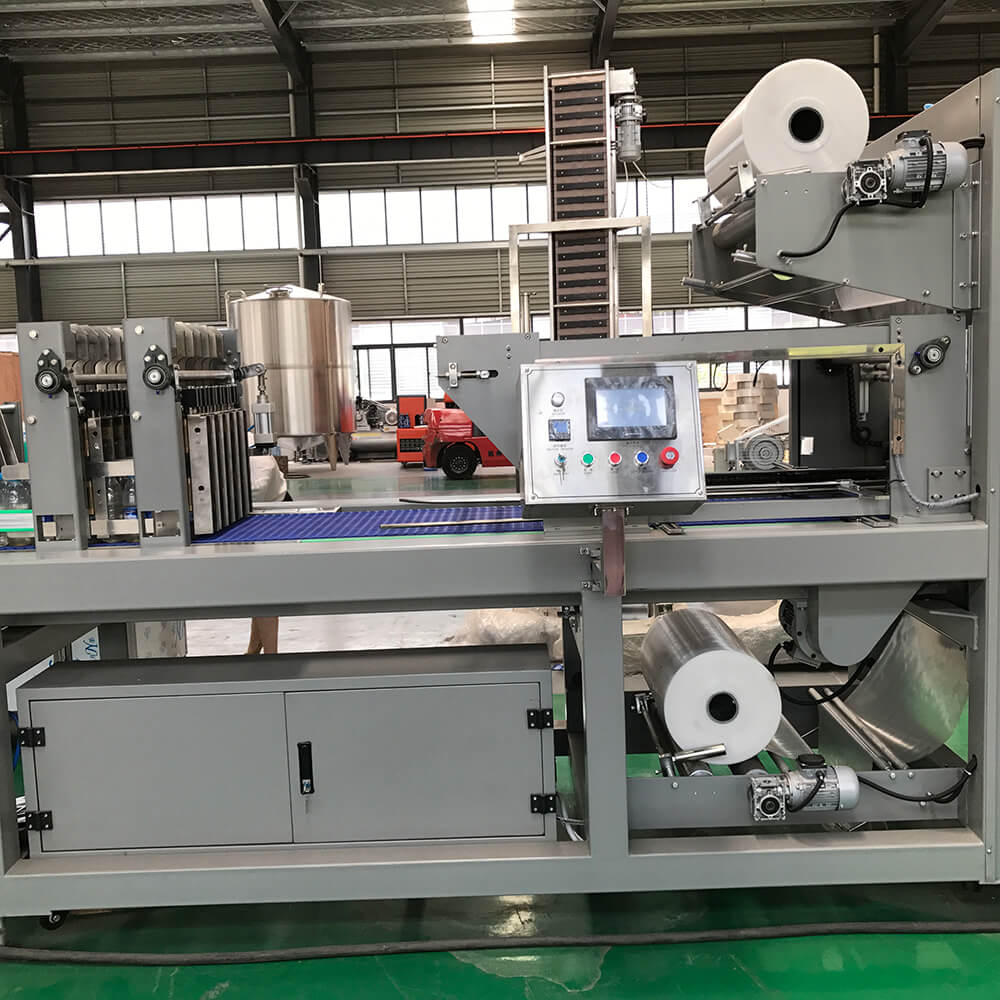

5、the mantle sealing:The packed goods will be pressed by the top swage device inorder to avoid dumpage, then finish the film ,sealing automaticlly

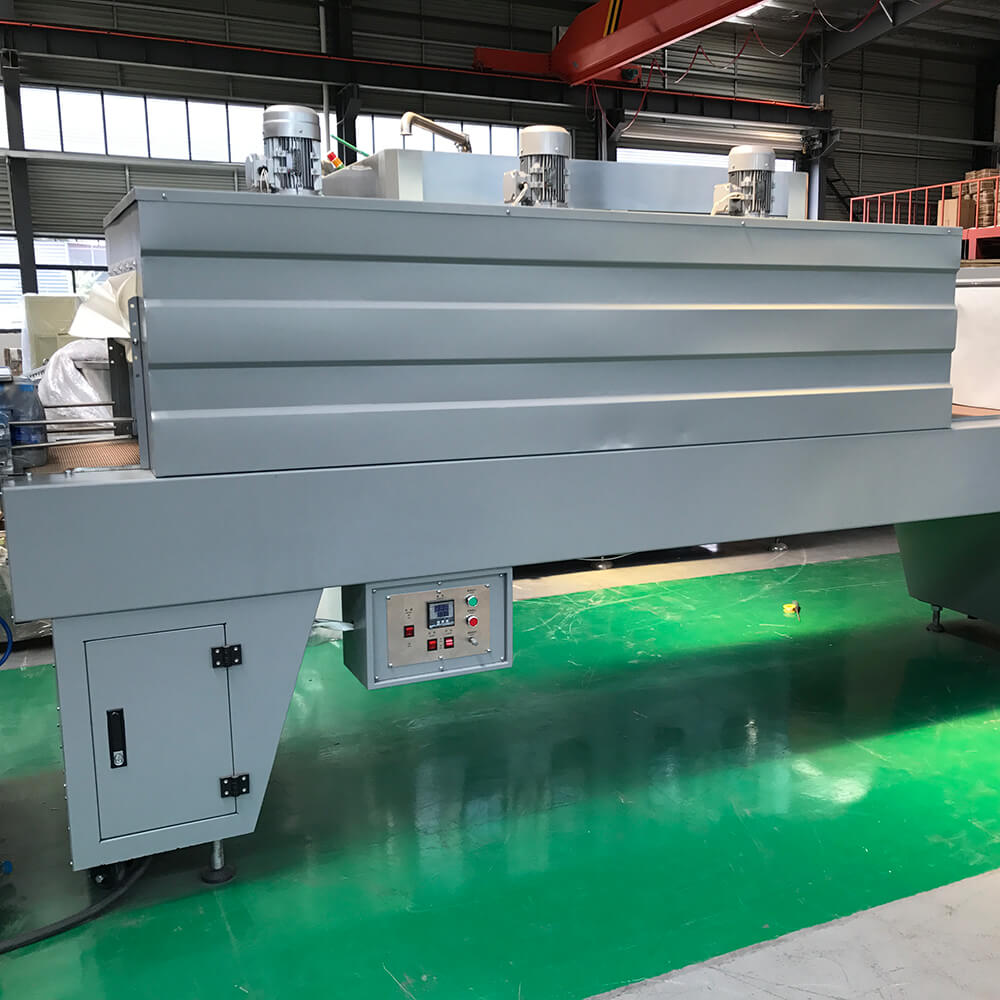

6、shrinking:After the mantle,the packed goods come into the shrinking oven then finish shrinking.

7、cooling :After shrinking ,this machine will cool the pached goods in the end of the machine .

8、Store:the packed goods come into the auxiliary frame ,be ready to pallet.

1、The mantle sealing machine uses hot sealing and hot cutting,the sealing is fast,the edge is tidy and with good sealing performance.This structure will need less electricity .

2、The main body of the sealing cutting uses cylinder ,there are pillars on both sides .

3、special protection function,when there is some obstruct at the sealing cutting ,the equipment will be protected ,at the same time ,the alarm will ring,it can prevent the packed goods from been damaged .

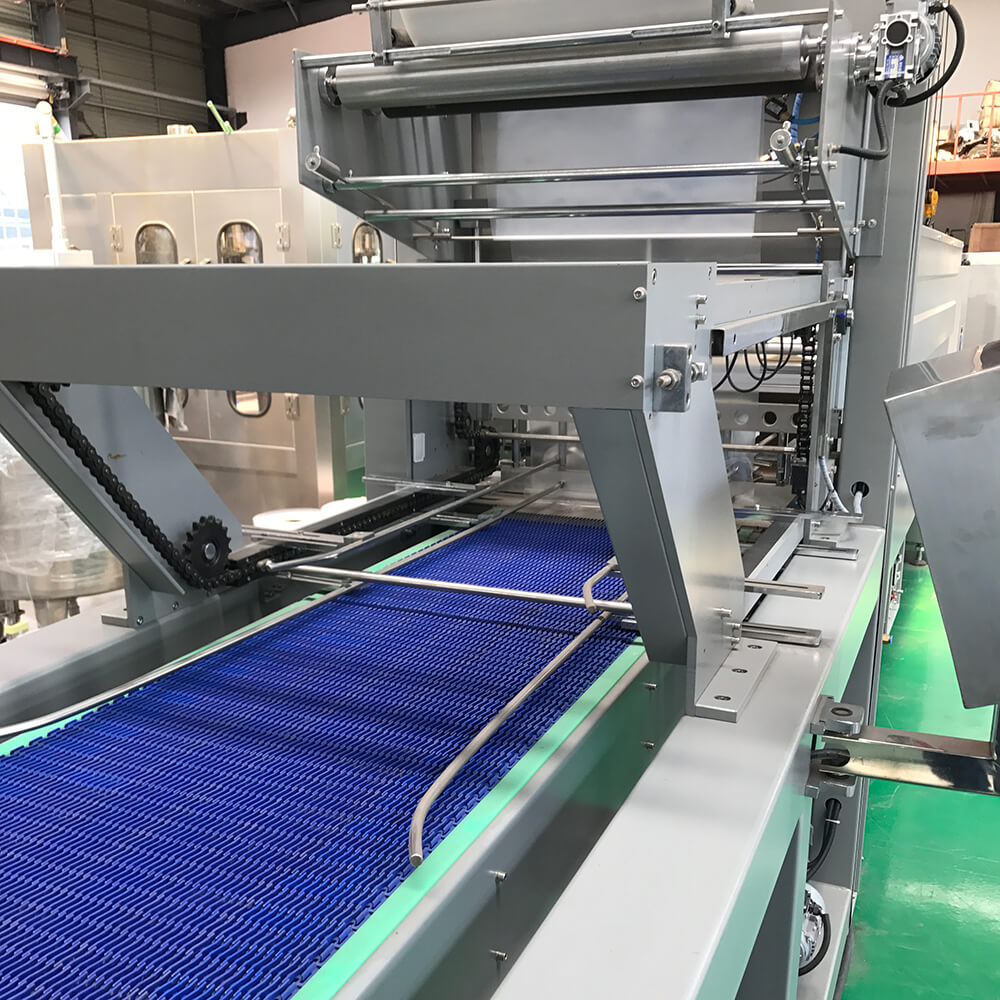

4、the convey groove adopts plastic steel chain net form, use for long ,it can not metamorphose,the convey is satble.

5、subletting machine ,it is accurate,stable,it is convient to adjust.

6、the heat part uses stainless steel heating tape cooling fin,the heat energy exhale steadily,this machine can be used for long terms.

7、there is PID temperature controller.

8、 The shrinking machine adopts the hot wind diversion kerb cycle system,the airflow can be adjustable ,the heat energy can be reclaimed automaticly

9、Special preserve heat structure,It can both save the energy,with the security operation.

10、The production process will be steady by the automatically controlling system.It can work for many hours and do not need to have a rest .

Suitable electrical source 50Hz/380V,three phase ,five wire stype
Power prox28KW
Working air pressure dry air ≥0.6MPa
Air consumption 25m3/H
The packing speed 20-25bag/minute
The suitable bottle material glass bottle 、pop can 、PET and heat-resistance temperature 200℃ and the other material
Suitable bottle diameter Φ60-90Φmm,height≤330mm
The packing material PE hot shrinking
Film,thickness 0.03-0.10mm
The max width of film 600mm
The weight of whole machine 1.5ton

Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.
Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.
Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.
Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.
Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.
Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
