CO2 generator for carbonated drink production line of 4,000-5,000 bottles per hour (0.4Mpa 5°C) CO2 generator for carbonated drink production line of 4,000-5,000 bottles per hour (0.4Mpa 5°C)

CO2 Generator Capacity:1.8CBM/hour (0.7Mpa) Suitable for carbonated drink production line of 4,000-5,000bph(0.4Mpa 5°C)

Quantity:
Share this:
  • Product Description
  • Video

CO2 generator for carbonated drink production line of 4,000-5,000 bottles per hour (0.4Mpa 5°C)

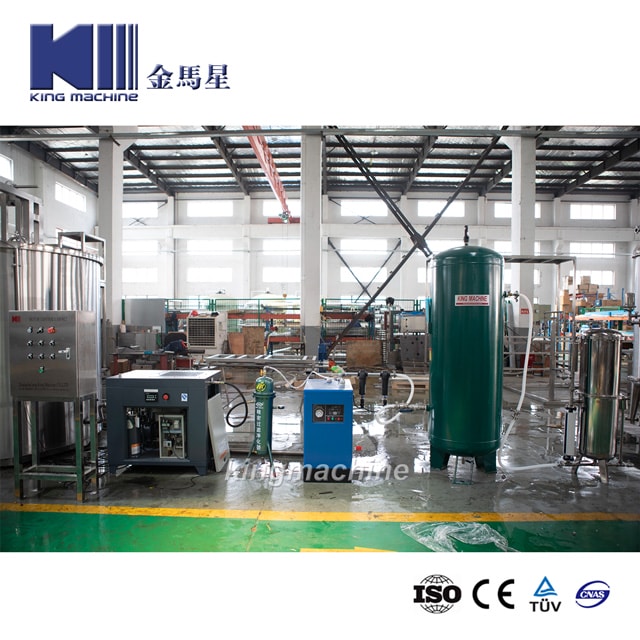

CO2 Generator
Capacity:1.8CBM/hour (0.7Mpa)
Suitable for carbonated drink production line of 4,000-5,000bph(0.4Mpa 5°C)



Technical Parameter

· System Composition

System Item

Configuration

Power supply

Power

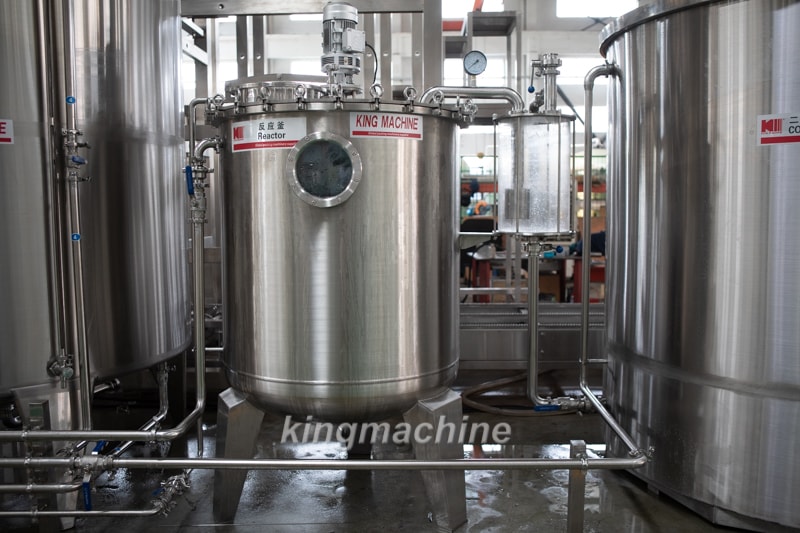

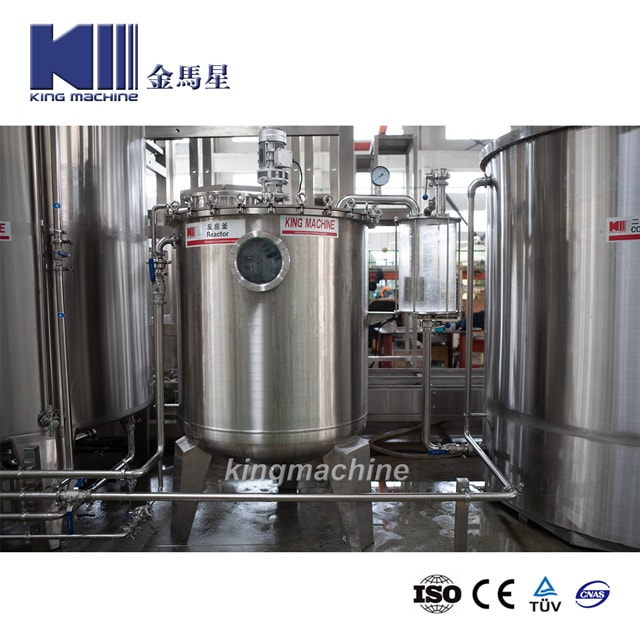

Reaction system

Electric contact pressure gauge, pressure sensor, anti-corrosion zero pressure start solenoid valve

220VAC


Purification filtration system

Microporous multi-node filter

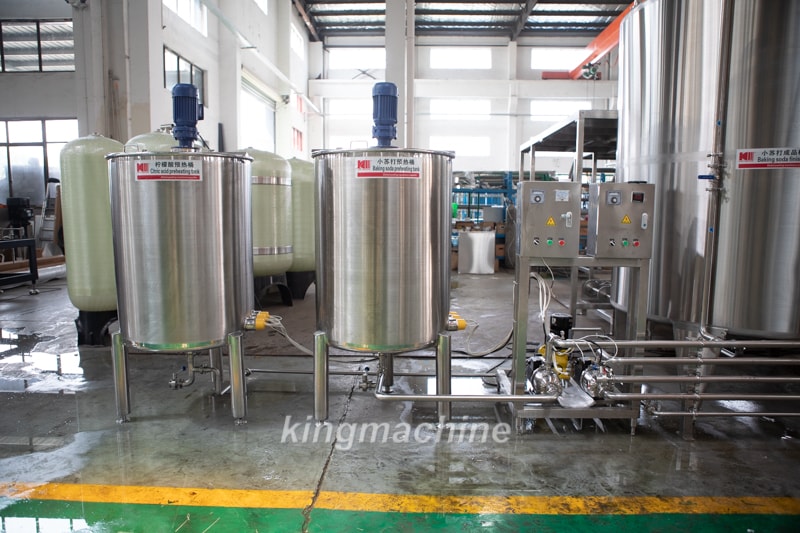

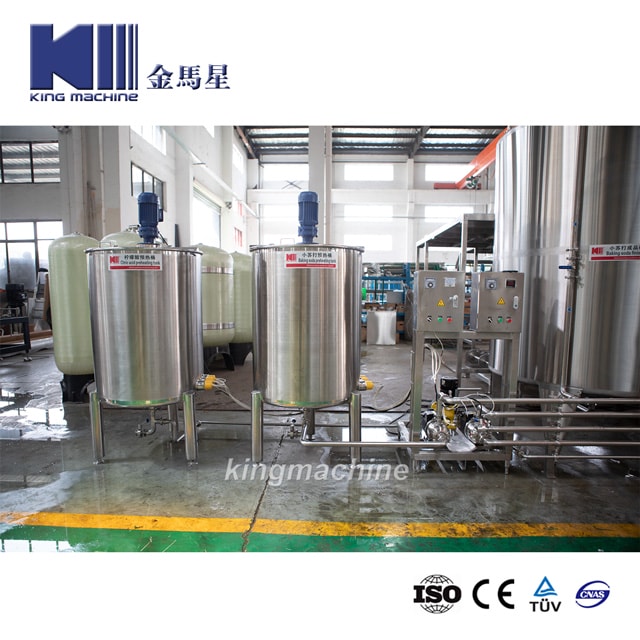

Dosing system

Piston metering pump

380VAC

3000W

Safety relief system

Safety valve



Control system

Zhengtai relay, AC contactor, leakage protector


1000W

Exhaust system

Anti-corrosion solenoid valve

220VAC


Overall size(mm)

Length*Width*Height: 2680*1460*2180 (The tank body diameter:500mm)

Working pressure

0.3-0.5MPA

Raw material

Citric acid, Baking soda

Input output

Citric acid (food grade)

Baking soda

(food grade)

Input (kg)

Output(kg)

Citric acid

Baking soda

CO2

Sodium citrate

320

424

200

400

(4000 solution)

Maximum gas production rate

30kg/hr

Maximum gas production by adding one charge

200kg



×
