7000BPH Carbonated Drink 3-in-1 Filling Machine 7000BPH Carbonated Drink 3-in-1 Filling Machine

The machine is mainly used for filling carbonated drink. It combines rinsing and filling and capping as one automatic body suitable for PET or other plastic bottles. The iso-pressure (iso-barometric) filling technology is adopted enabling it to fill more efficiently and more stably with more output than the machine of the same level from others.

Quantity:
Share this:
  • Model: DCGF 24-24-8
  • Brand: KM
  • Code: 8422301090
  • Product Description

1. Carbonated drink 3-in-1 filling machine 7000BPH uses the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.


Introduction:

Carbonated drink 3-in-1 filling machine 7000BPH is mainly used in the Equal pressure filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated beverage in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. . Therefore the output and benefit of the machine is higher than the machines of the same specifications. The advanced Mitsubishi programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably . It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity,it is the best choice for the beverage plant.


Containers and specifications

Project Name:

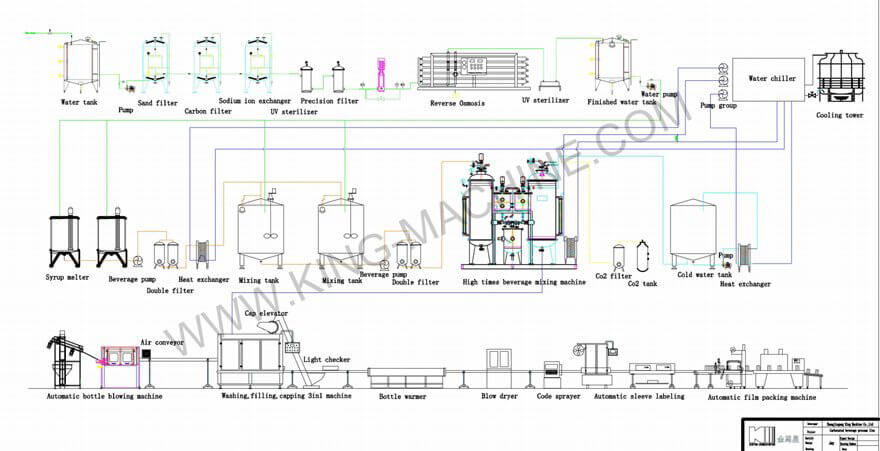

Full Automatic Complete Carbonated Drink 2000-36000bph Production Line

Carbonated Drink

Material

Shape

Filling volume

Filling levelmm

Neck type

PET Bottle

Square or Round Bottle

100-2000ml

Distance from bottle neck

According request

As request

Adjustable specifications of the bottle type

Middle Mould BaseBottle diameter ≤105mm Bottle Height≤335mm

Customers need to buy additional change-over parts for the different bottles.
If using square bottles, then bottle separating system will be added.

Juice Preparation

Fruit , Concentrate, Powder mixing .....

Container Label & Control Mode

Packaging system

Palletizing system



Hot Melt Roll-Fed

PVC Shrink Label

Full Label/ Half Label

Manual / Automatic

Packing system

Min, Spec.

Manual

Low position gantry palletizer

Robot Palletizer

High position gantry palletizer

Single Arm Palletizer

Manual Palletizer

Manual

Film shrinker

Wrap Around packer

Robert Packing Machine

1*2

2*3

3*4

4*6

3*5

User Ambient Conditions

Temperature1040℃HumidityNo dew

User Electrical Supply Specification

Voltage380V±5%3phaseFrequency50HZ±1%



Washing heads.





Filling heads.






Capping heads.





Technical paramter:

Model

DCGF14-12-4

DCGF16-16-5

DCGF18-18-6

DCGF24-24-8

DCGF32-32-10

Rinsing head

14

16

18

24

32

Filling head

12

16

18

24

32

Capping head

4

5

6

8

10

Power of main motor

3 kw

3 kw

3 kw

4 kw

 4.8 kw

Total weight

2.8 T

3.2 T

3.6 T

4.5 T

4.8 T

Capacity

2000-3000

3000-5000

6000-8000

8000-12000

12000-15000

Bottle diameter

50-80mm

50-80mm

50-80mm

50-80mm

50-80mm

Bottle height

160-320mm

160-320mm

160-320mm

160-320mm

160-320mm

Method of changing speed

Frequency conversion

Frequency conversion

Frequency conversion

Frequency conversion

Frequency conversion

Power of unscramble motor

0.37 kw

0.37 kw

0.37 kw

0.37 kw

0.37 kw

Supply presure of rinsing water

=0.06Mpa=0.2Mpa

=0.06Mpa=0.2Mpa

=0.06Mpa=0.2Mpa

=0.06Mpa=0.2Mpa

=0.06Mpa=0.2Mpa

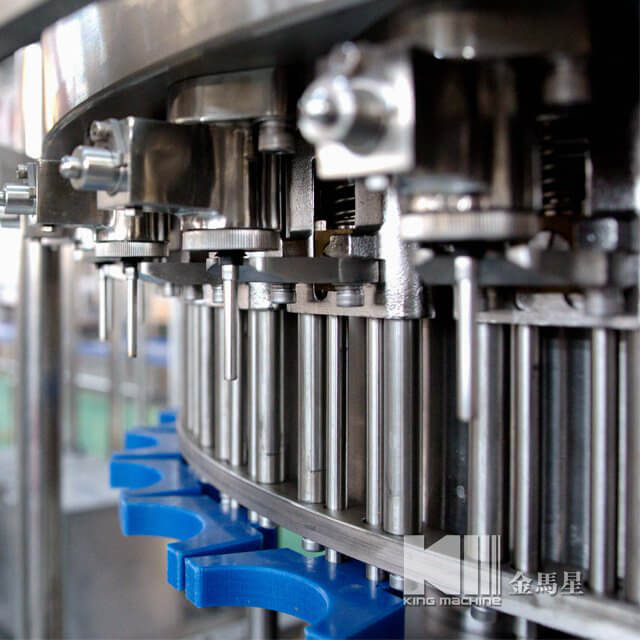

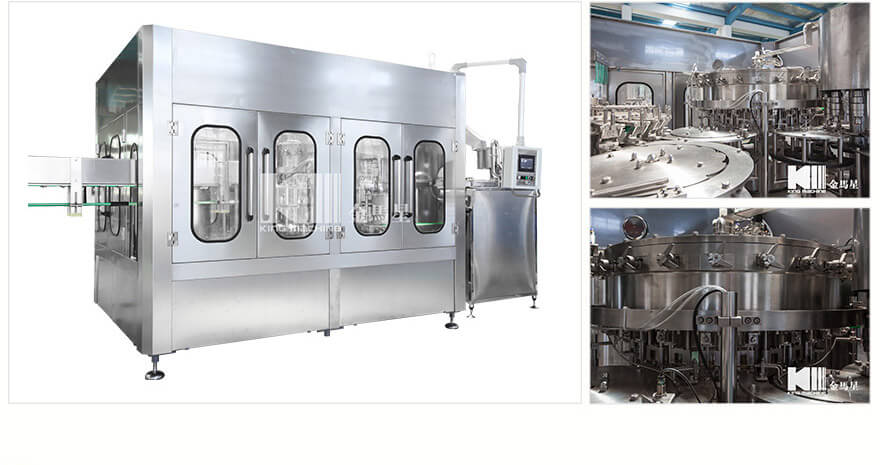

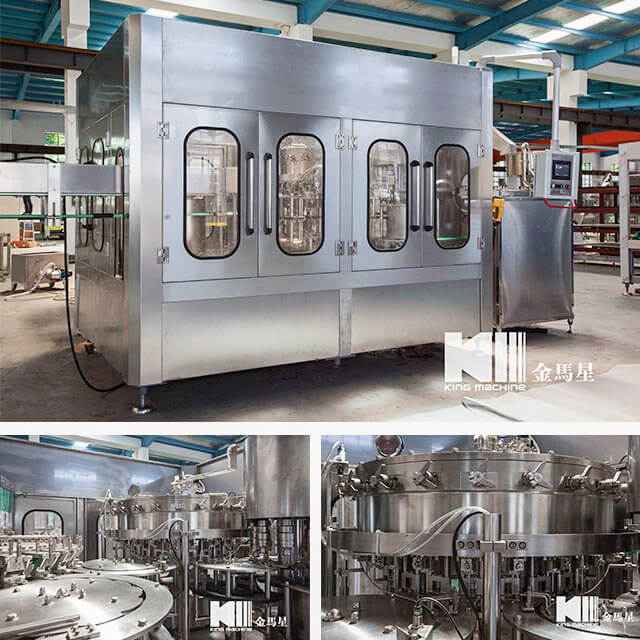

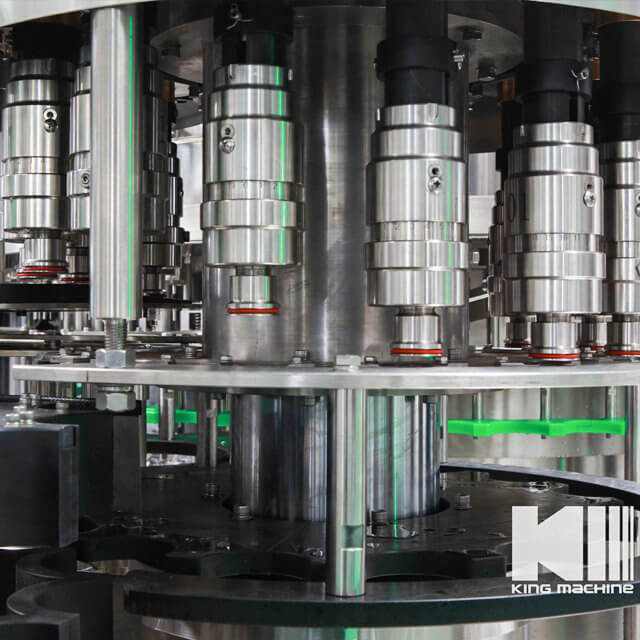

Photos for Machine:

Q:How about the spare parts?
A:We will send one year enough easy broken spare parts together with the machines,shipping together.During the warranty time,we will supply the spare parts with our cost including the delivery fees.

Q:How long time for installation?
A:According your machines order,we will send one or two engineers to your plant,it will take about 10 days to 25 days.

Q:How to install my machines when it arrives?how much the cost?
A:We will send our engineers to your factory to install the machines and train your staff how to operate the machines.Customer pay air tickets go and back,accommodation and USD80/day/person.

Q:When can I get my machine after I paid?
A:Normally production time is around 30-60days,the exactly depend on what kind of machine you order.The shipping time is based on your destination port.

Q:What’s your guarantee or the warranty of the quality if we buy your machines?
A:We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q:Are you a trading company or a manufacturer?
A:We are an Original Equipment Manufacturer so that we can provide you high quality machines in raeasonable price, Welcome to visit us.
×
