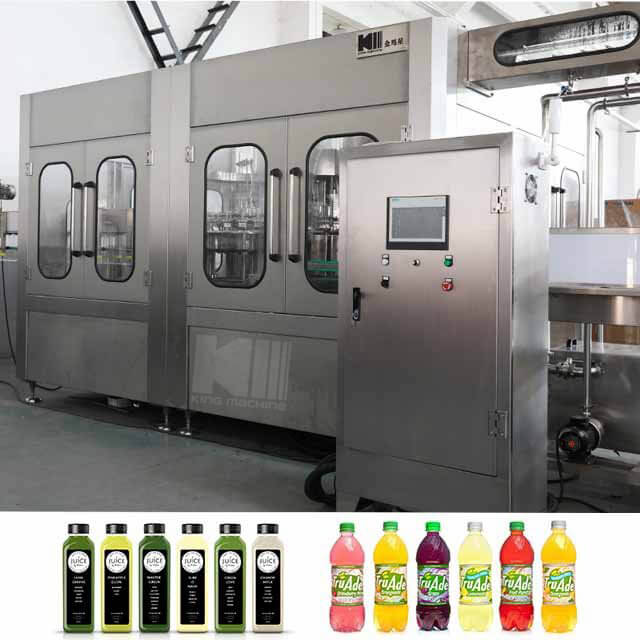

This CGF Wash-filling-capping 3-in-1unit: Beverage Machinery is used to produce polyester bottled mineral water, purified water, alcoholic beverage machinery and other non-gas beverage machinery.Beverage Machinery can finish all the process such as washing bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.
12000BPH RCGF32-32-12 Fruit juice bottling machine working principle and applications:
(1) Complete Bottled Orange / Mango Juice Production Line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.
(2)The fruit juice bottling machine used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.
(3)The Complete Bottled Orange / Mango Juice Production Line is used in filling juices, mineral water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.
(5)The advanced Siemens programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.
(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.
(7)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage maker.
|Containers and specifications|
|Project Name: Full Automatic Complete Juice 2000-20000bph Production Line||Hot Filling Fruit Juice|
|material||shape||Filling volume（ml）||Filling level（mm）||Neck type|
|PET Bottle||Square or Round Bottle||100-2000ml||Distance from bottle neck |
|Adjustable specifications of the bottle type||【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm|
|Customers need to buy additional change-over parts for the different bottles. |
If using square bottles, then bottle separating system will be added.
|Juice Preparation||Fruit , Concentrate, Powder mixing .....|
|Container Label & Control Mode||Packaging system||Palletizing system|
|Hot Melt Roll-Fed |
PVC Shrink Label
Full Label/ Half Label
Manual / Automatic
|Packing system||Min, Spec.||Manual |
Low position gantry palletizer
High position gantry palletizer
Single Arm Palletizer
|Wrap Around packer||3*4|
|Robert Packing Machine||4*6|
|User Ambient Conditions：||Temperature：10～40℃；Humidity：No dew|
|User Electrical Supply Specification||Voltage：380V±5%， 3phase； Frequency：50HZ±1%|
LAYOUT - 3000bph beverage juice hot filling line
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.
