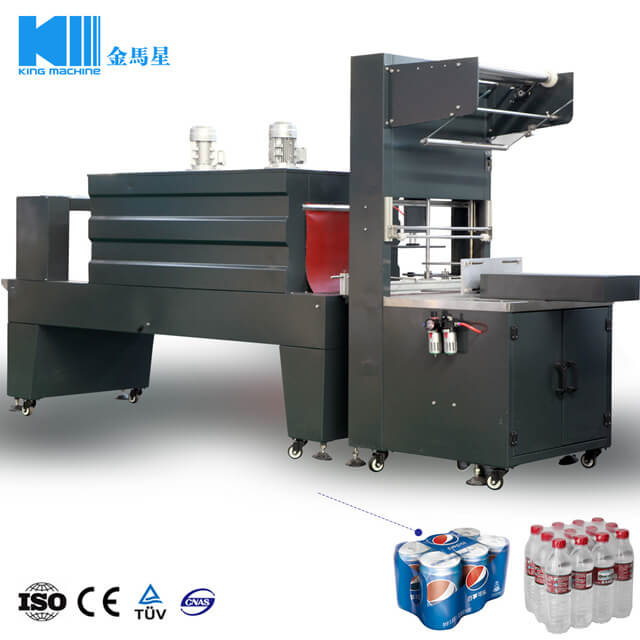

Semi-Automatic Bottle Shrink Wrapping Machine Semi-Automatic Bottle Shrink Wrapping Machine

PE film group packing machine is suitable for wrapping of such products as pop-top,mineral water ,bottles,beer,drinks etc without bottom-tray ,working with PE shrink tunnel to pack the goods perfectly ,the whole producing process adopts the Germany advanced technology,And the main parts are imported from international famous companys ,Capability stable and using long-time

Quantity:
Share this:
  • Brand: KM
  • Code: 8422303090
  • Product Description
  • Technical Data Sheet


Semi automatic PE film Group packing machine

PE film group packing machine is suitable for wrapping of such products as pop-top,mineral water ,bottles,beer,drinks etc without bottom-tray ,working with PE shrink tunnel to pack the goods perfectly ,the whole producing process adopts the Germany advanced technology,And the main parts are imported from international famous companys ,Capability stable and using long-time


Technical paramter:

Model:WD-50A

Capacity: 2-5bag/min

Sealing time: 0.5-1.5s 0-0.5s

Shrink film :PE /PET/POF film

Power supply :1.8kw

Heating power:28kw (adjustable)

Conveyor loading: 30kgs

Conveyor speed:10rm/minute

Film thickness: 0.04-0.12mm

Max. Packing dimension: L *W *H  450*270*350MM

Min.Packing Dimension:L*W*H  250*60*60MM

Machine head dimension: 1020*830*1980mm

Shrink tunnel dimension:2200*780*1470mm

Machine weight :450KG



 Specification:
   Voltage:220V  50HZ
   Power:2KW
   Max.packing size:420 280  350mm  L W H
   Package speed:17-25bags/min
   Air source pressure:0.5-0.7Mpa
   Equipped with infrared ray hot air circle shrink tunnel
   Power:22KW
   Conveyor speed:0-15m/min
   Shrink tunnel size:2465  840 1700mm L W H
   Note:the machines packing size and shrink tunnel is designed according customer requested speed and bottle size.

×
