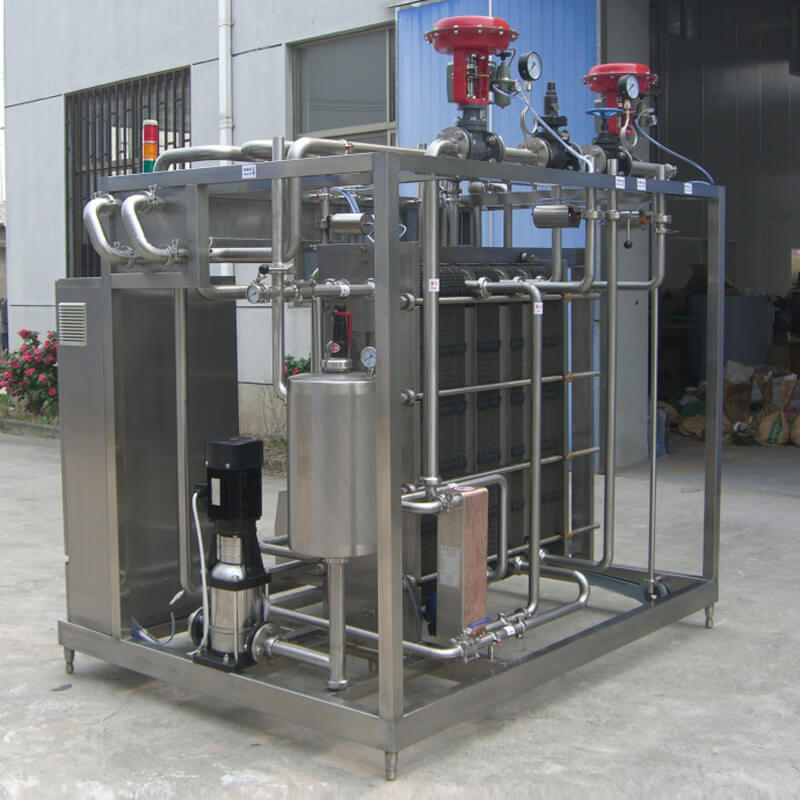

UHT Sterilizer (plate type) UHT Sterilizer (plate type)

The full set of BR0.05~ BR0.5 plate-type sterilizer is suitable for the Pasteur, super Pasteur and ultra high temperature sterilization of liquid materials, such as milk, fruit juice, tea, bear and health care beverage. Through the sterilization of this equipment, the quality guarantee period can be extended. In addition, the combined system design of single section, double sections and multi sections can be done according to the customer requirements for sterilization, heat preservation and cooling. This equipment has quite high recovery rate, compact structure, small occupation, flexible flow change and convenient operation and maintenance, favored by the users. Besides, the ultra high temperature sterilizers including CIP system can be manufactured according to customer requirements.

Quantity:
Share this:
  • Model: BR
  • Brand: KM
  • Product Description

Description:

Plate heat exchanger(UHT)can be applied in milk and juice beverage. It can be connected with aseptic filling machine. The product shelf life can reach upto 3~6 months. It can be connected with centrifuge, degasser and flash evaporator. The capacity can be controlled by flow controller, and also by homogenizer. Heat recovery efficiency is reached to 90%,because heating and cooling for material is done during heat recovery stage.
Fully automatic devices
This plant can be controlled by Omron PLC, there is CIP system in the plant.
Semi-automatic devices
The running operation is controlled by semi-automatic devices.
The operator can control the pump and reflux function from the controlling screen. The sterilization temperature can be controlled by the automatic temperature controller. The sterilization temperature can be recorded in the recorder.
Application
Milk, Fruit juice, tea beverage, soybean milk, milk beverage
Heating system of small capacity is electric heating set, this is adapts to a small scale product line.

Technical parameters:

 Specifications:
 Production capacity: 0.5-20t/h
 Sterilization temperature: 137ºC
 Holding time: 5-15s
 Control modes: Semi-automatic, automatic (PLC control, touch screen display system)



×
